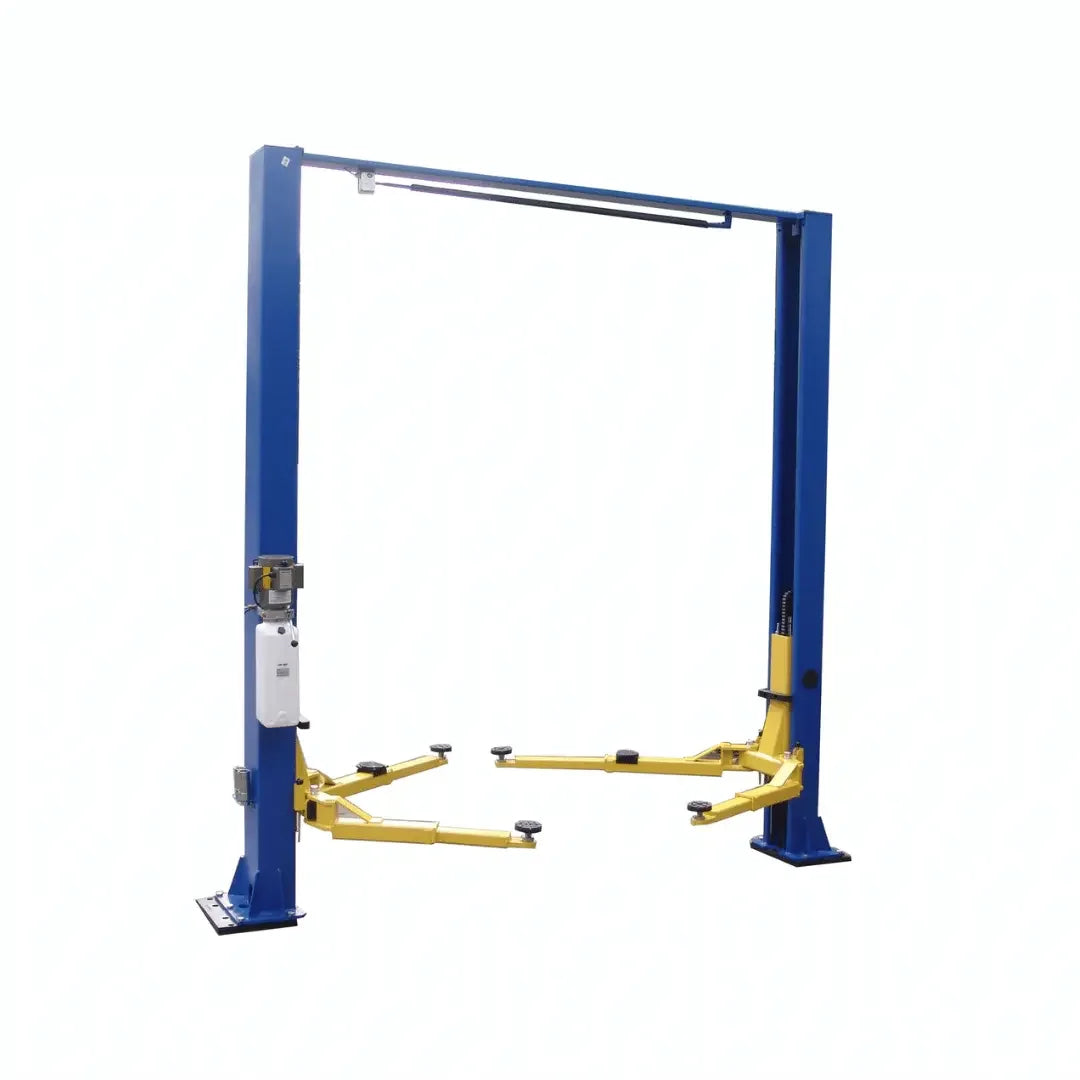

Tuxedo TP9KSCX 9,000 lb 2 Post Clear Floor - Symmetric

SKU/Product #: TP9KSCX

Tuxedo

Write a review
$2,699.00


Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

Tuxedo TP9KSCX Two Post Clear Floor

Product Features

  • 9,000 lbs capacity

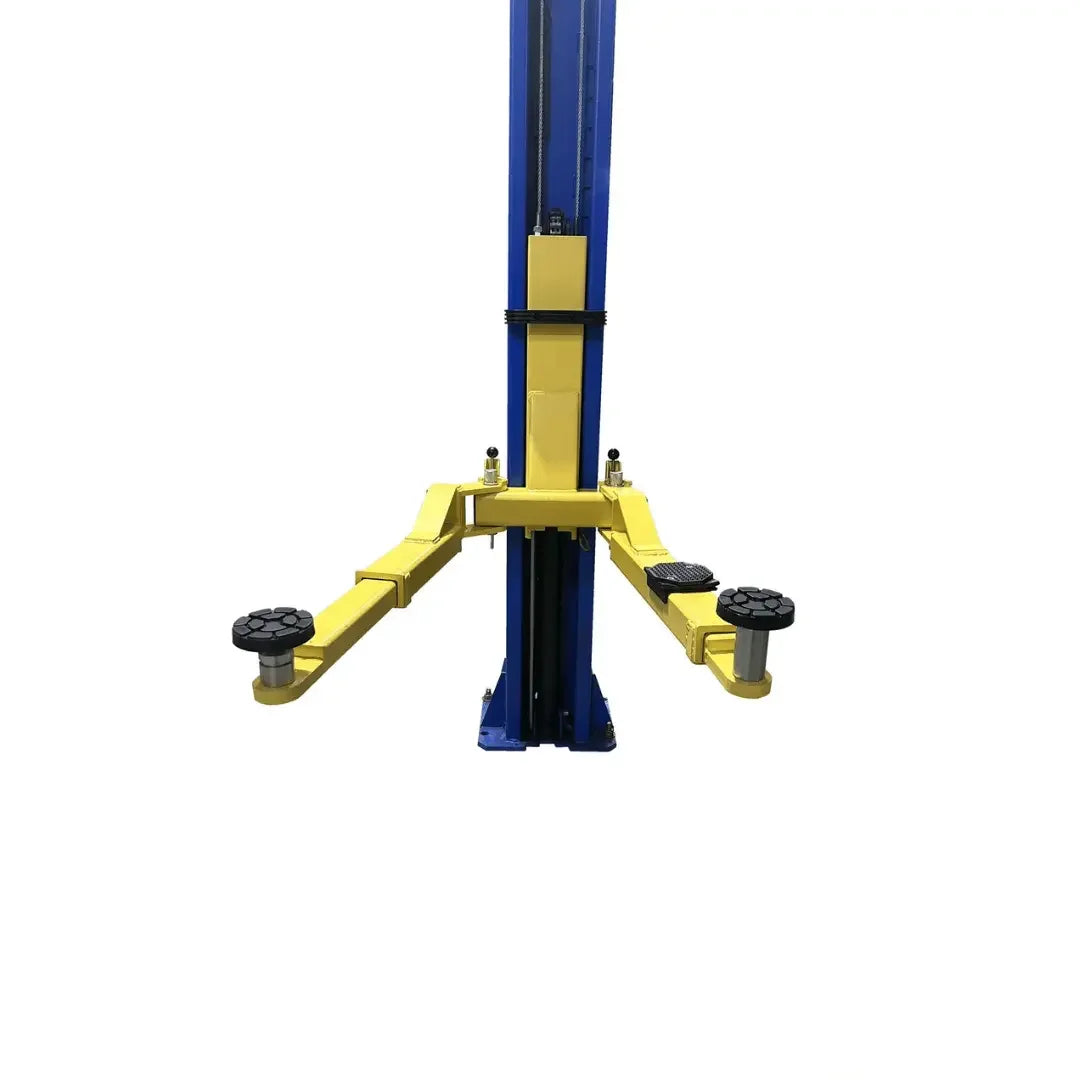

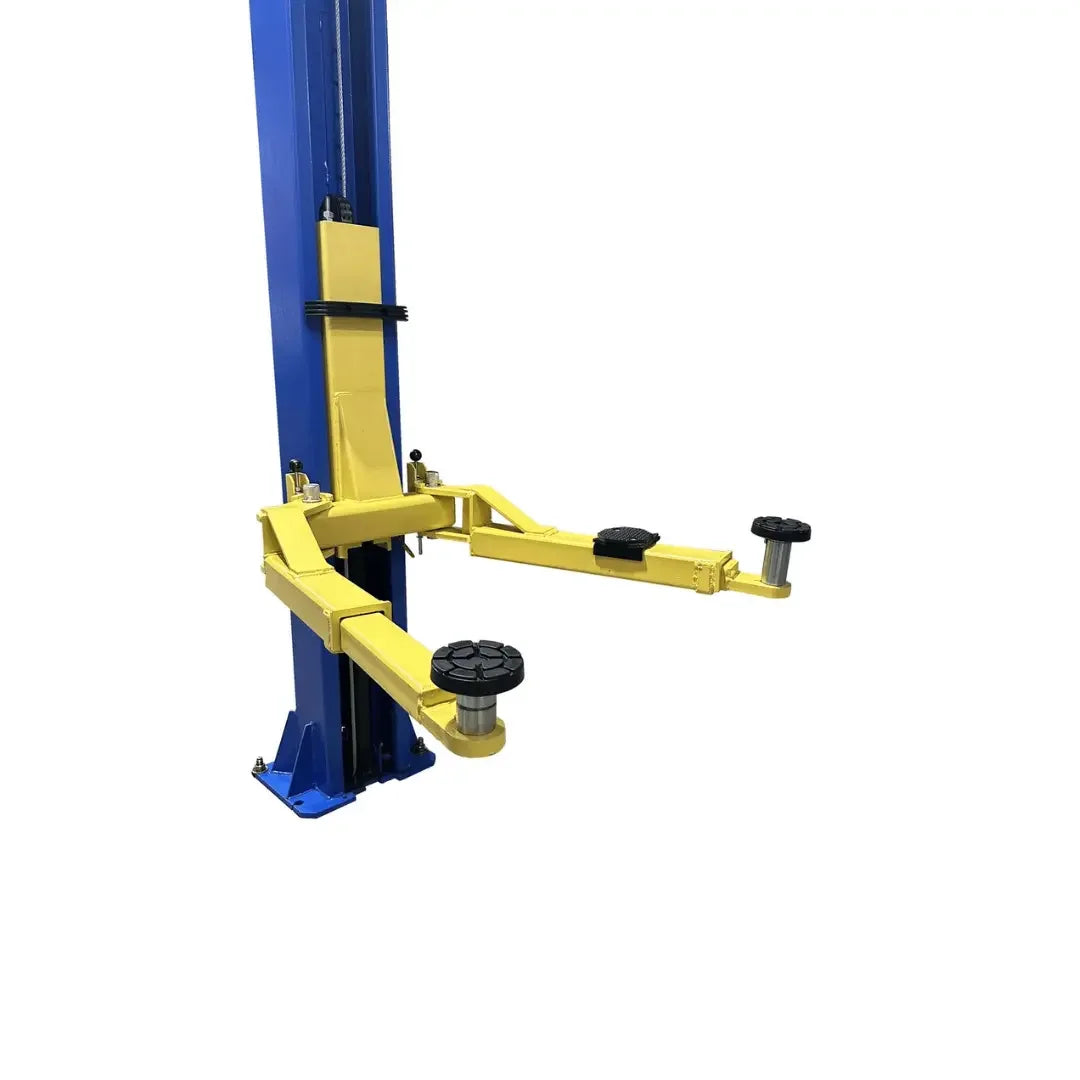

  • Symmetric Arms

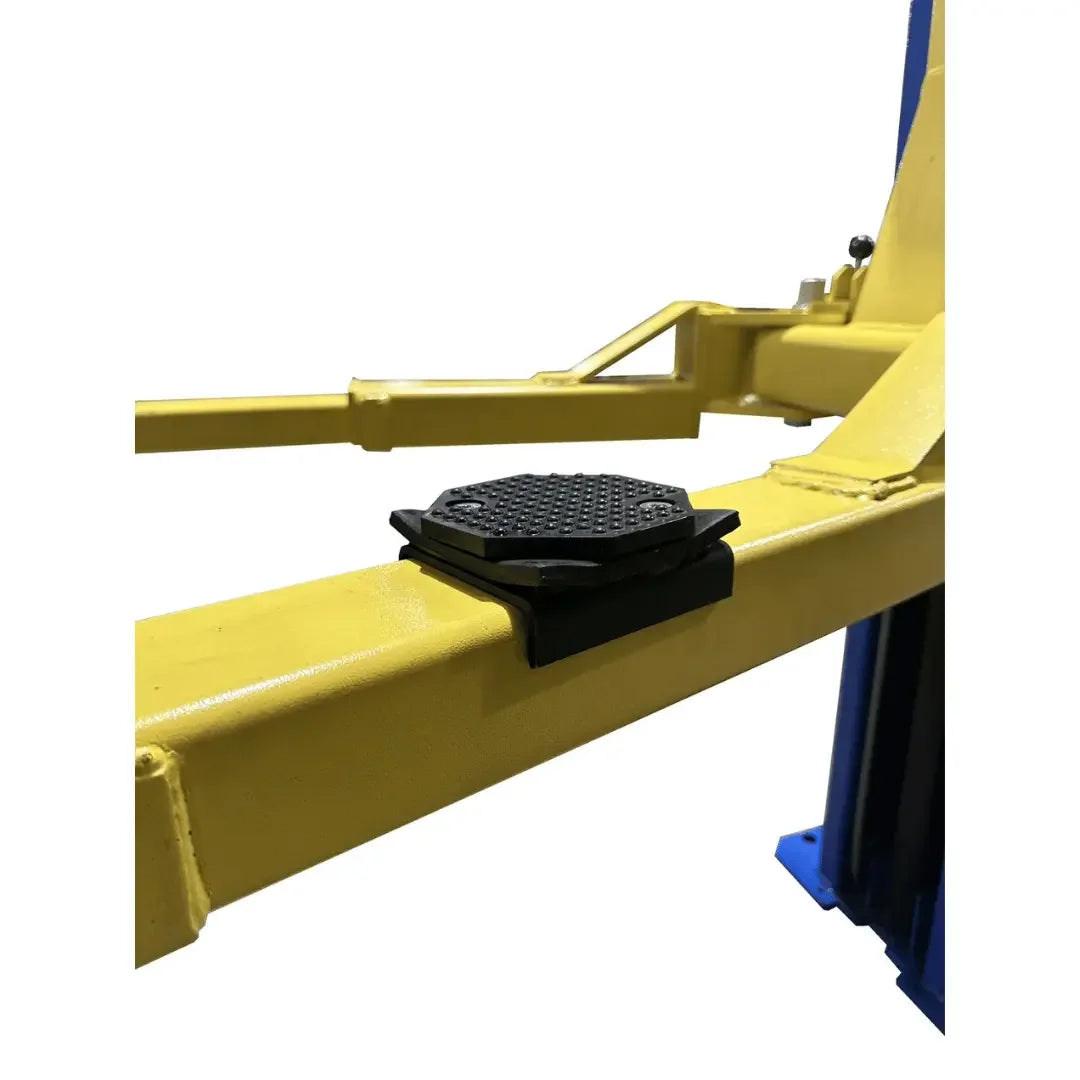

  • Rubber Door Guards
  • Chain Drive Cylinders
  • Dual Point Lock Release

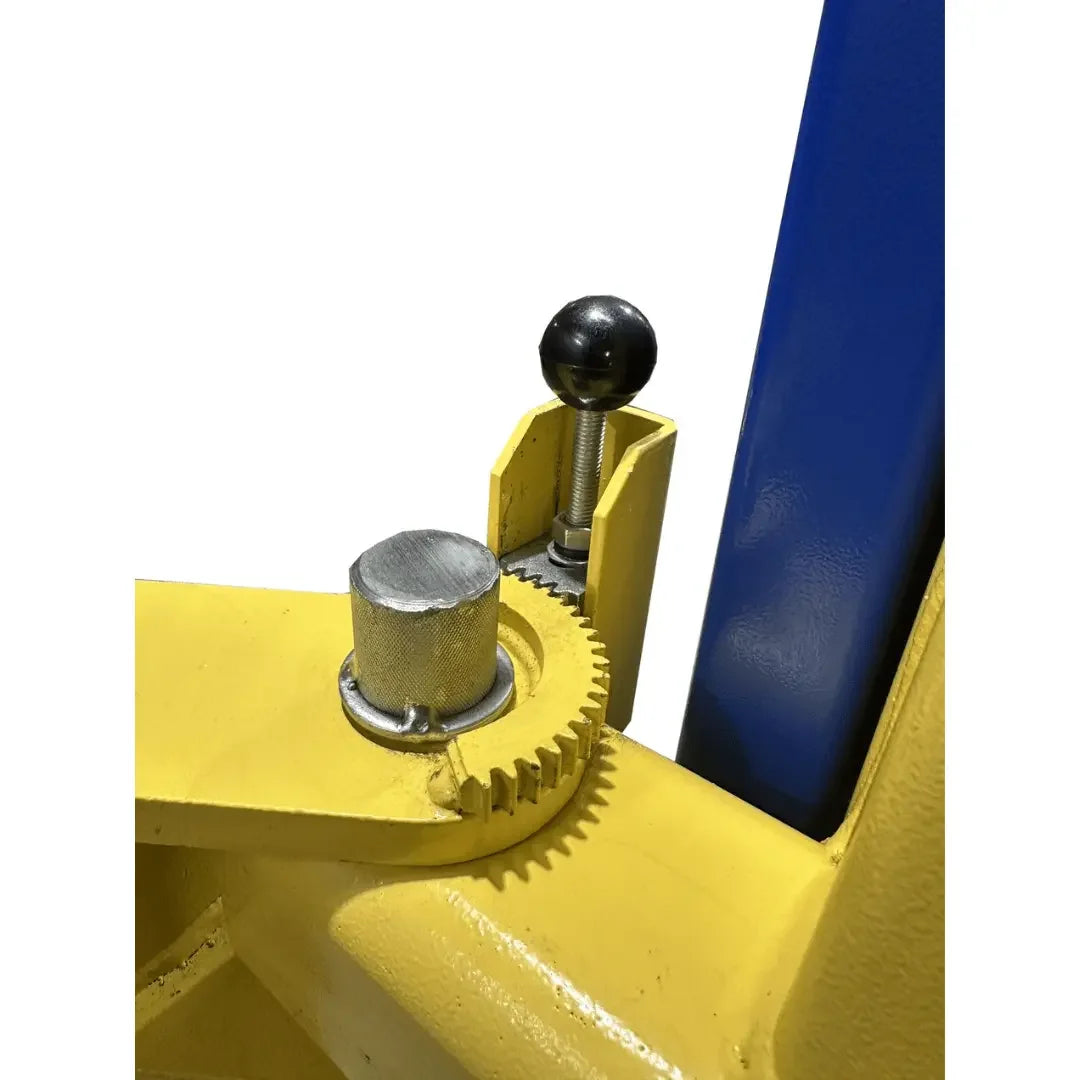

  • Auto Arm Restraint System
  • Single Piece Column

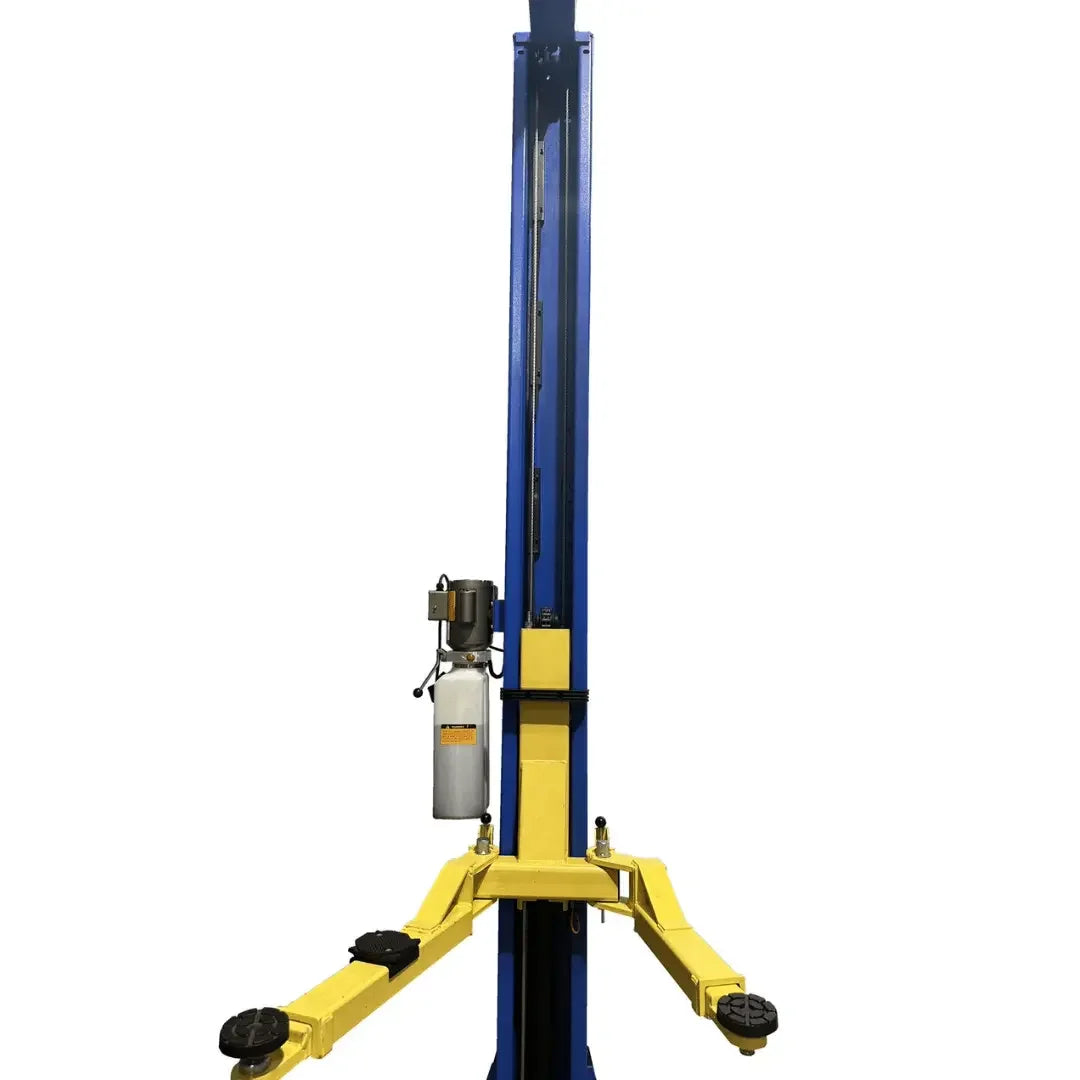

  • Internal Hose routing

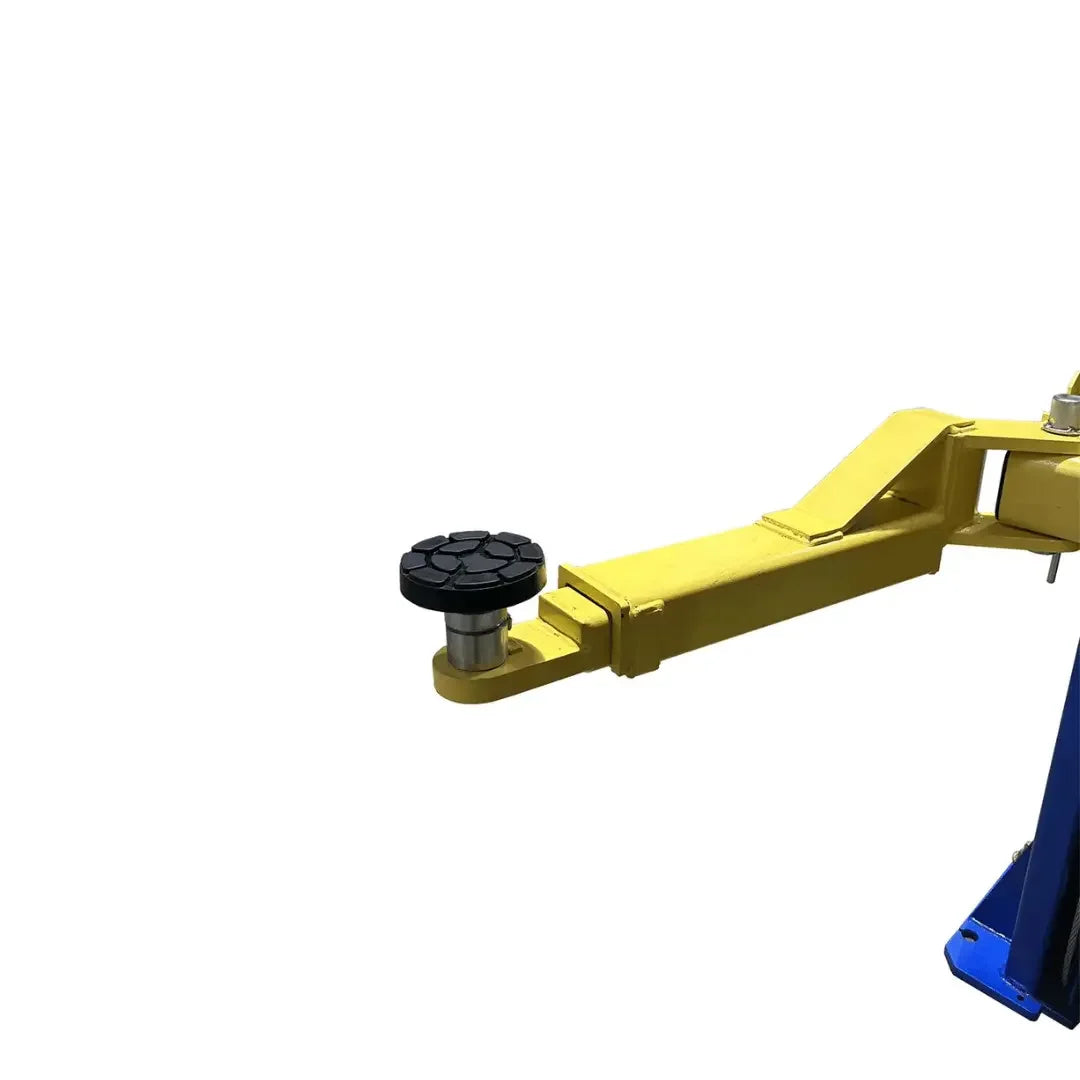

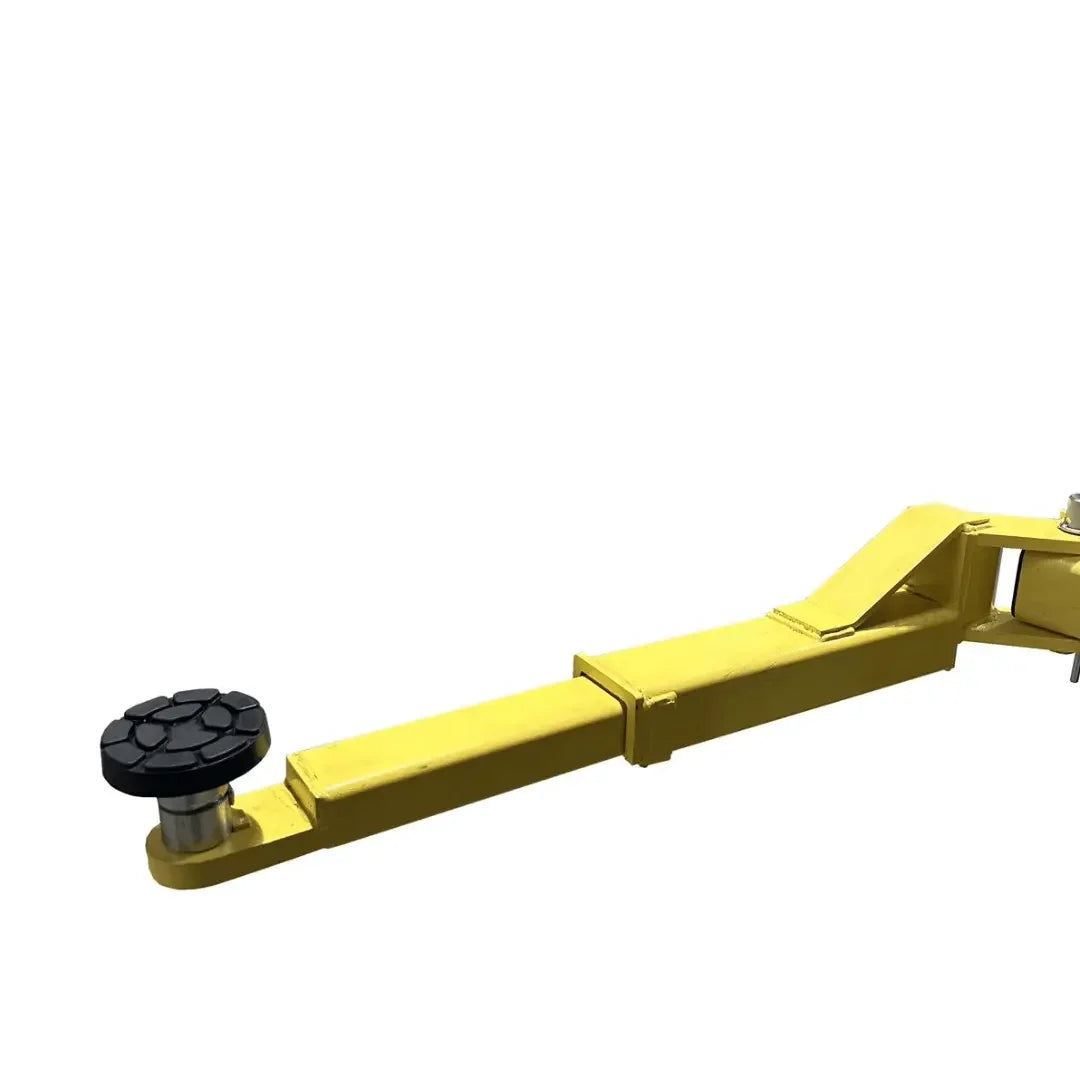

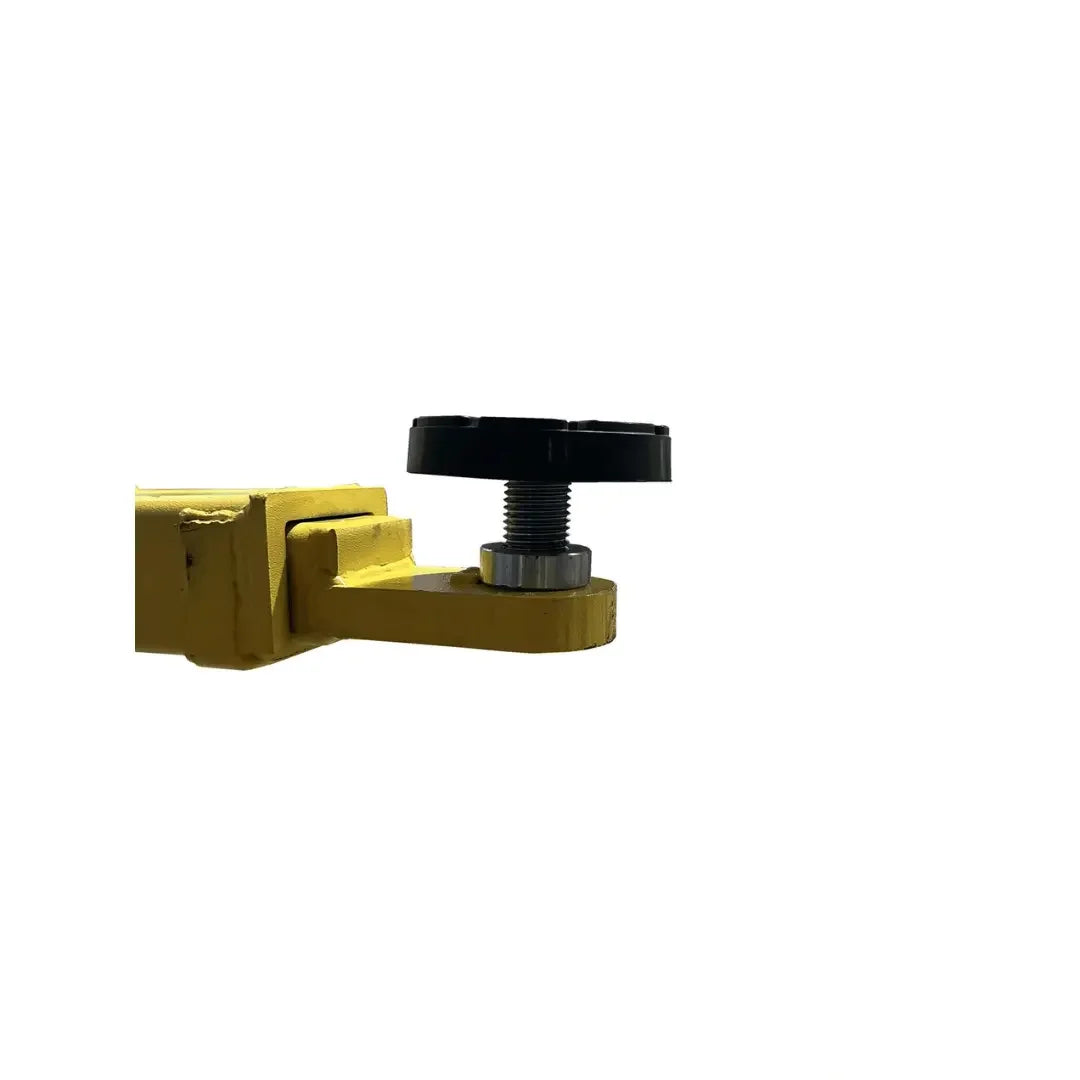

  • Low profile Spin Up Lift Pads

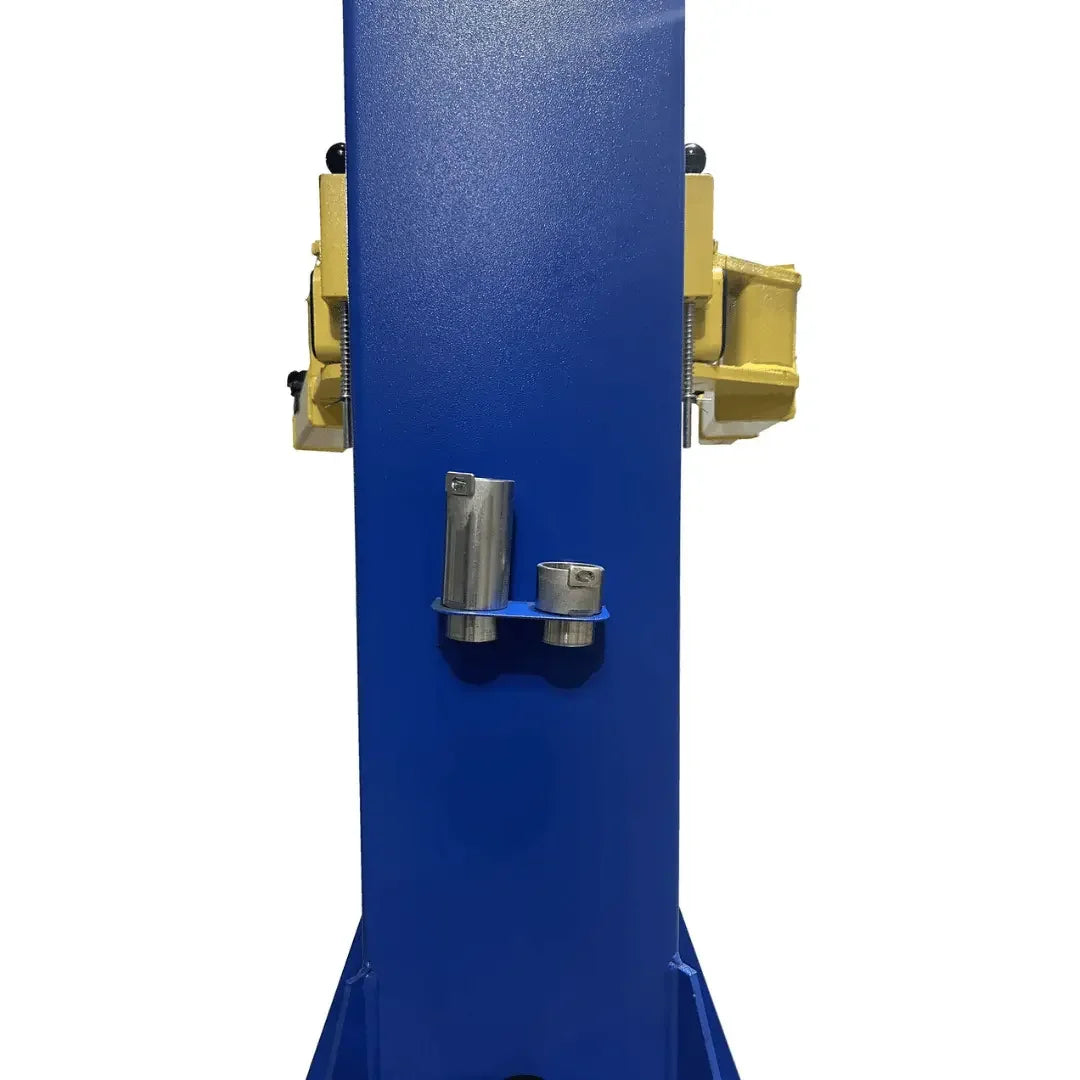

  • Stackable Adapters Included

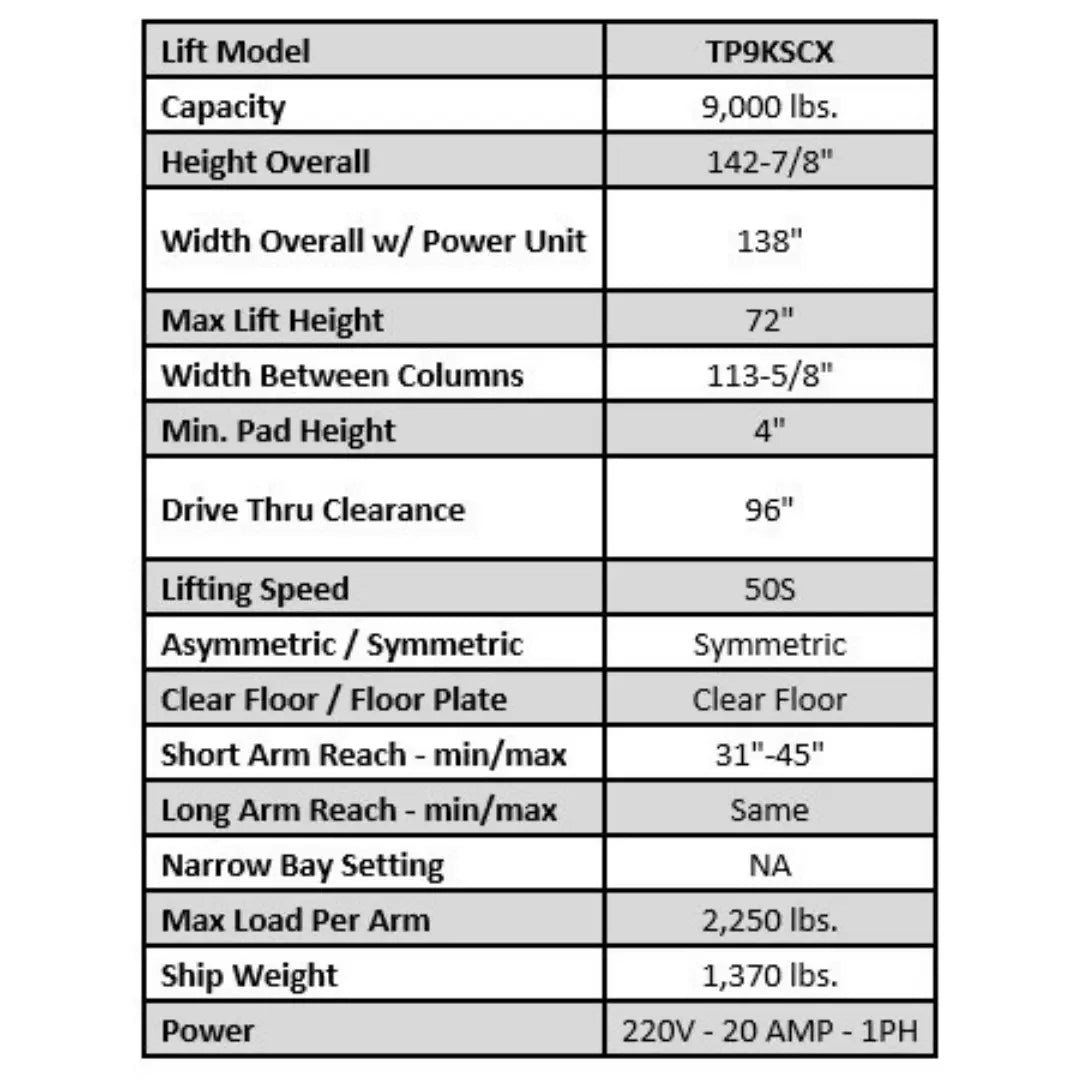

Product Specifications

Lift Model TP9KSCX
Capacity 9,000 lbs

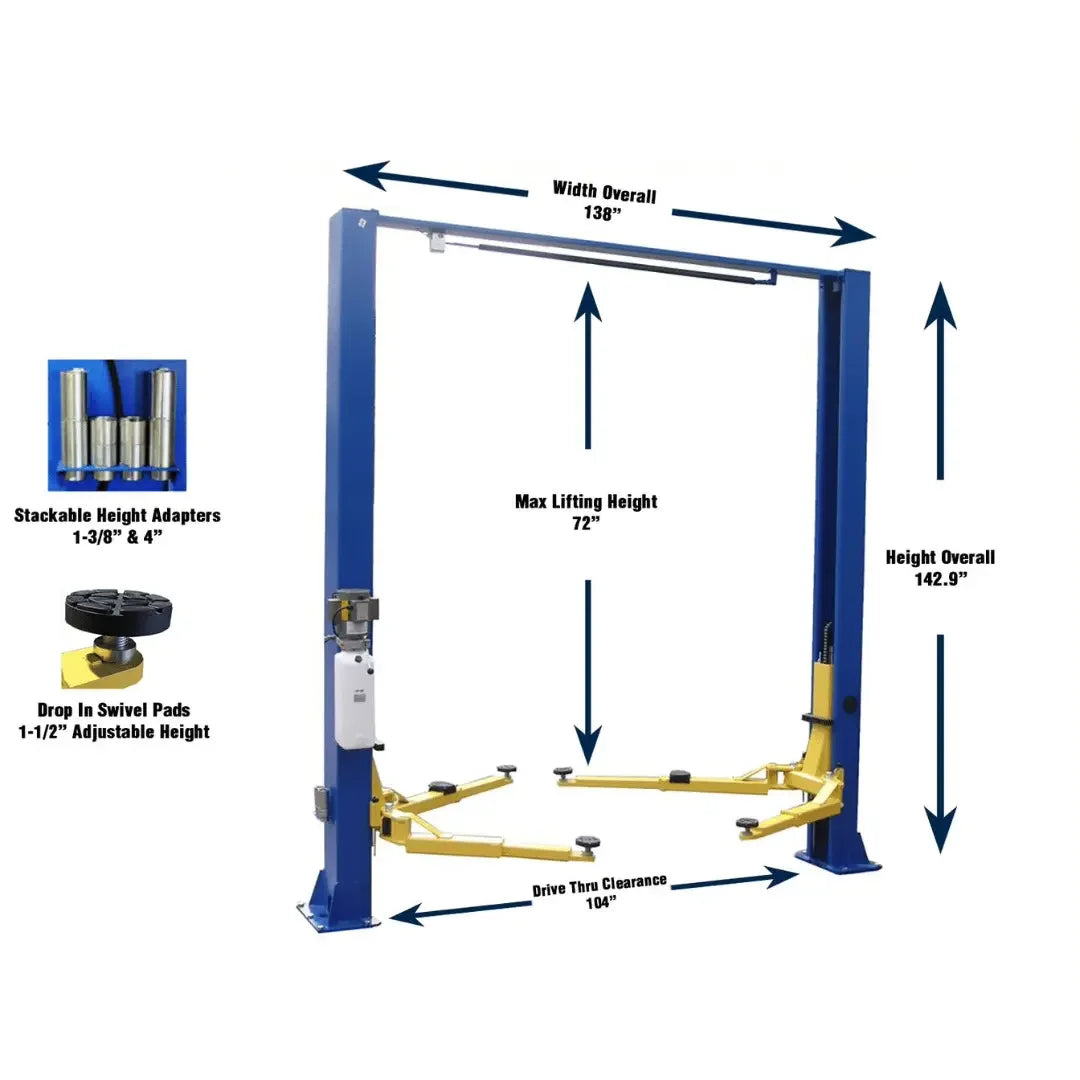

Height Overall 142-7/8″
Width Overall w/ Power Unit 138″
Max Lift Height 72″
Width Between Columns 113-5/8″
Min. Pad Height 4″
Drive Thru Clearance 96″
Lifting Speed 50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 31″-45″
Long Arm Reach – min/max 31″-45″
Max Load Per Arm 2,250 lbs
Ship Weight 1,370 lbs
Power 220V – 20 Amp – 1PH

Pick Up and Delivery

Our Pick Up locations for Tuxedo are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Marshalltown, Iowa - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.

Call, text, or chat with us if you have questions. 866-774-7743

Downloads

Brochure
Manual
Warranty
