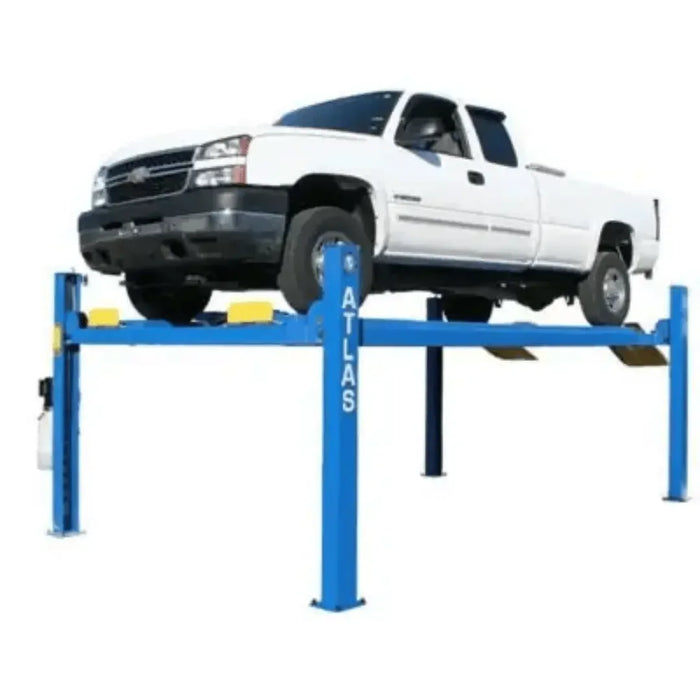

Atlas Equipment ATTD-412A 12000 LB 4 Post Alignment Lift
Atlas Equipment ATEATTD-412A 12000 LB 4 Post Alignment Lift
he Atlas® 412A is a commercial-grade 4 post alignment lift with a 12,000-pound lifting capacity, engineered for long-lasting performance in professional automotive shops. Built to the same standards as lifts costing significantly more, the 412A has been tested to ensure safe and reliable operation at its full rated capacity.
This model uses a high-strength cable system with an oversized hydraulic cylinder located beneath the runway, powered by a 220-volt single-phase power unit. Unlike older chain-driven systems with exposed hydraulic cylinders that can cause door damage and leveling issues, the cable-and-cylinder design provides smoother operation and improved durability.
The 412A includes many of the heavy-duty features of the Atlas® 412, such as built-in tracks between the runways that allow the use of rolling bridge jacks like the Atlas® RJ6BK or RJ6BKAH (sold separately). It is also equipped with slip plates and adjustable alignment turntables, designed to accommodate a wide range of wheelbases. When alignments are not being performed, the included metal cover plates can be placed over the turntable openings, allowing the lift to be used for general service work as well.
Engineered for versatility and professional use, the Atlas® 412A offers the strength, precision, and features needed for efficient vehicle lifting and alignment service.
Product Features
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Built-In Slip Plates & Alignment Turntables Included
- Multiple Positions for Turntable Placement
- Runway Covers Included (when Turntables are Removed)
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- 5 Year Structural/2 Year Hydraulic Warranty
- Shipping Weight: 2,900 lbs.
Product Specifications
| Model | ATTD-412A |
| Capacity | 12,000 lbs. |
| Lifting Height, Top of Runway | 77 3/4" (6' 5 3/4") |
| Clearance Under Runways | 70 1/4" (5' 10 1/4") |
| Height Of Columns | 89 3/4" (7' 5 3/4") |
| Overall Width Of Columns (Without Motor) | 126 1/4" (10' 6 1/4") |
| Overall Width Of Columns (With Motor) | 135 1/4" (11' 3 1/4") |
| Overall Length With Approach Ramp | 236 1/2" (19' 8 1/2") |
| Length Between Columns | 183 1/4" (15' 3 1/4") |
| Runway Width | 20" |
| Runway Length | 194 1/2" (16' 2 1/2") |
| Runway Thickness | 7 1/2" |
| Width Between Runways | 43 1/4" (w/ Rail 39 3/4") |
| Outside Runway To Outside Runway | 83 1/4" (6' 11 1/4") |
| Clearance Between Columns | 112 5/8" (9' 4 5/8") |
| Drive Thru | 98" (8' 2") |
| Air Requirement | 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement | 220 volt single (1) phase.(A 30 amp breaker is recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 2,900 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
