Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive

SKU/Product #: TP12KC-D

Tuxedo

Write a review
$5,349.00 $5,349.00

Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

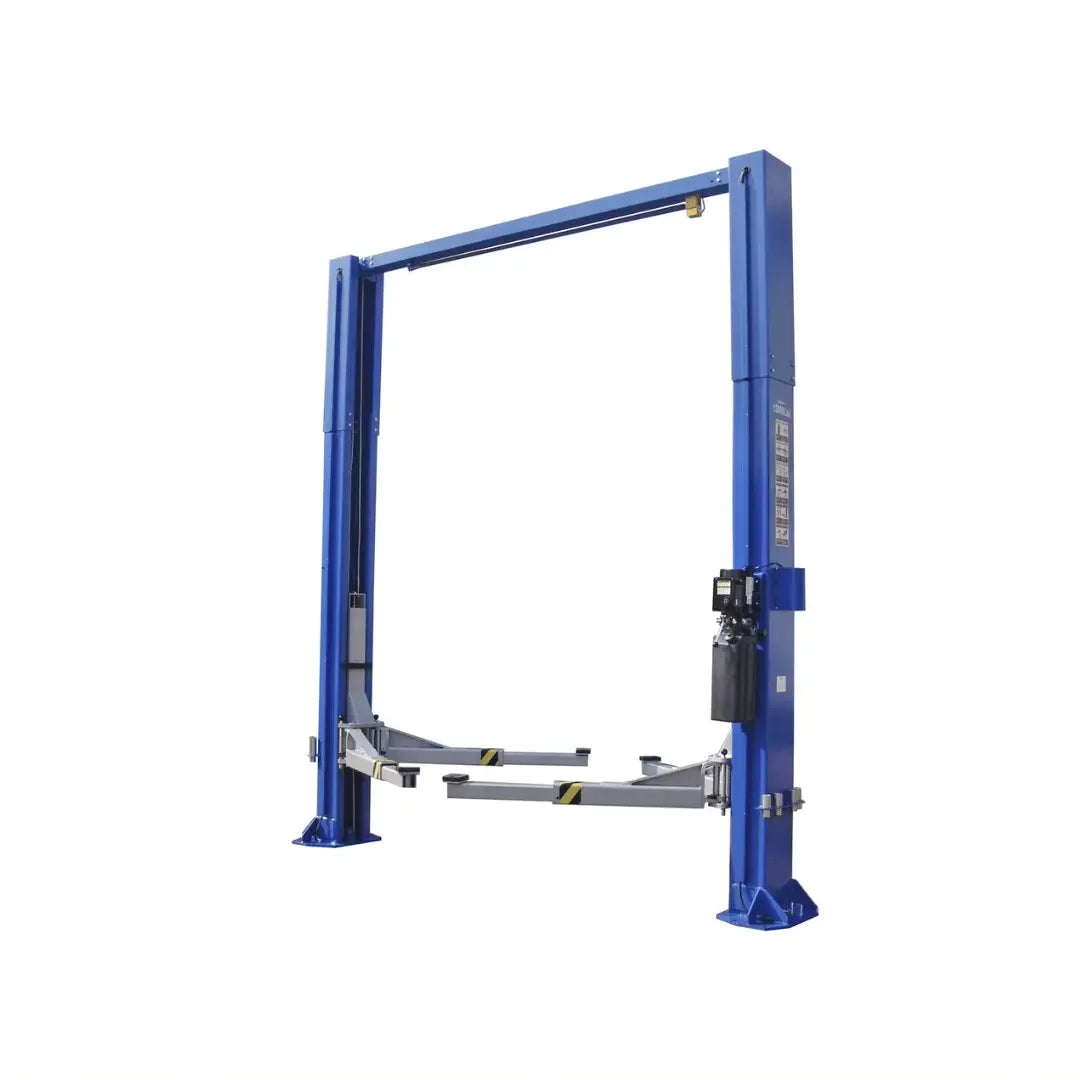

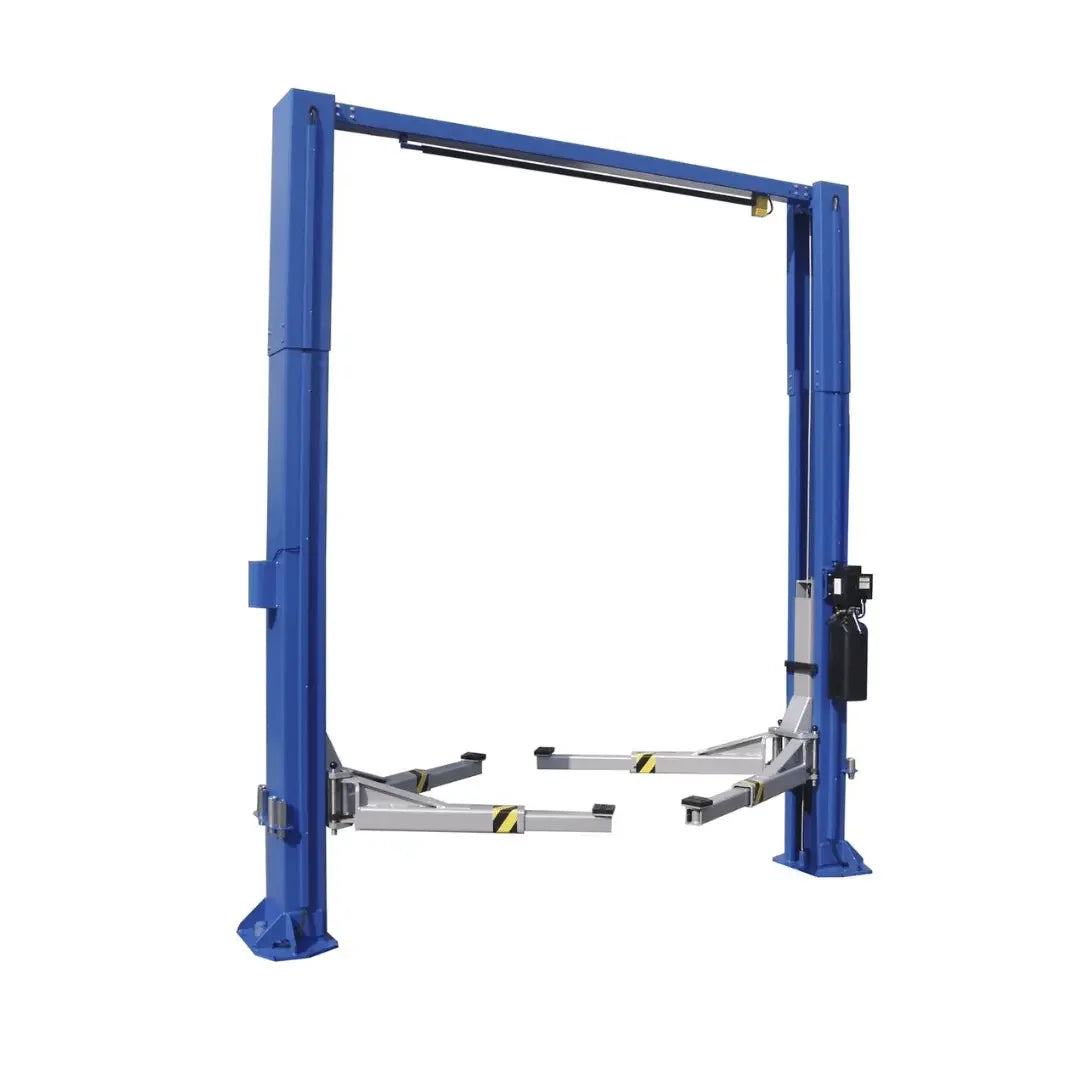

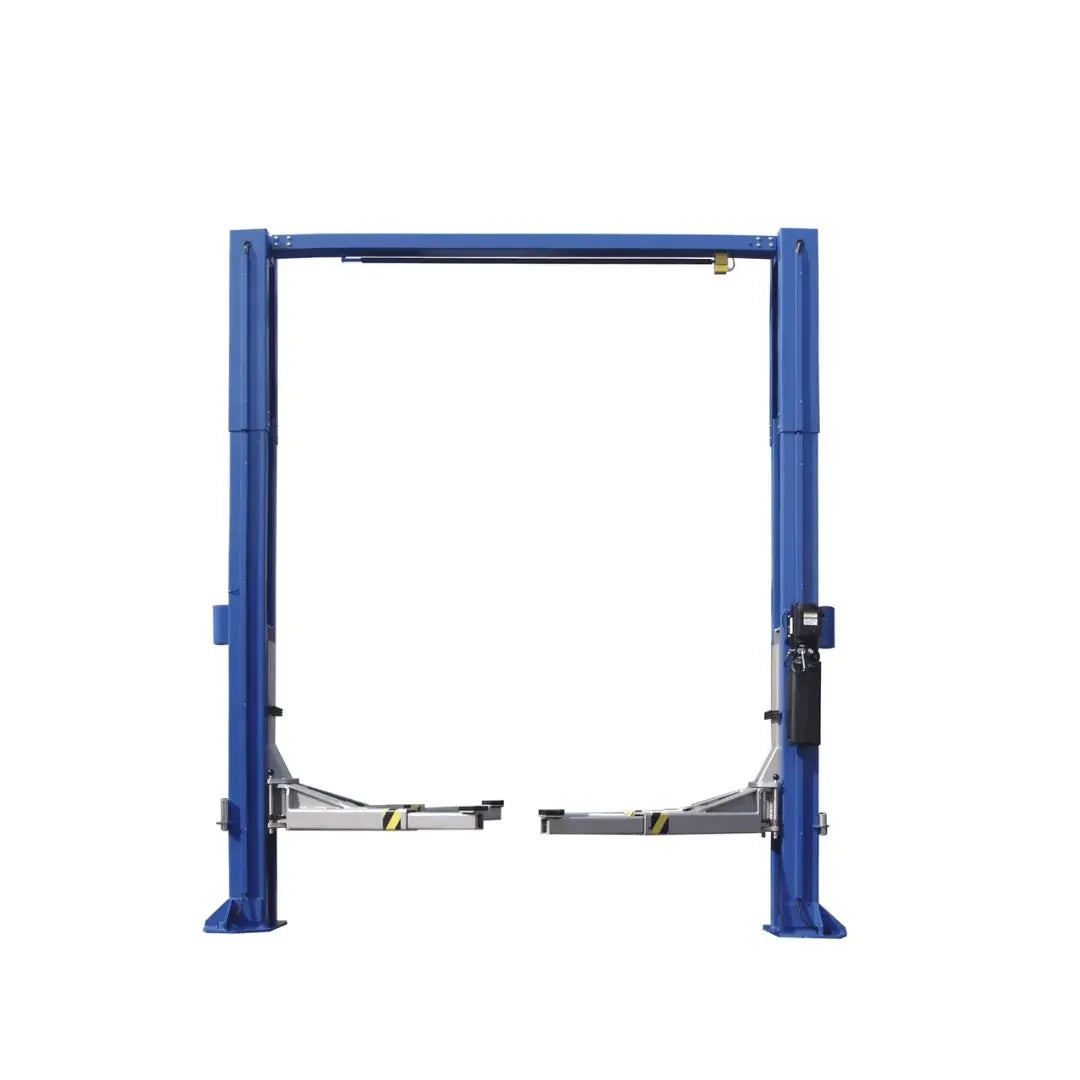

TP12KC-D Two Post Clear Floor

Product Features

  • 12,000 lbs Capacity
  • Symmetric arm design
  • Rubber Door Guards

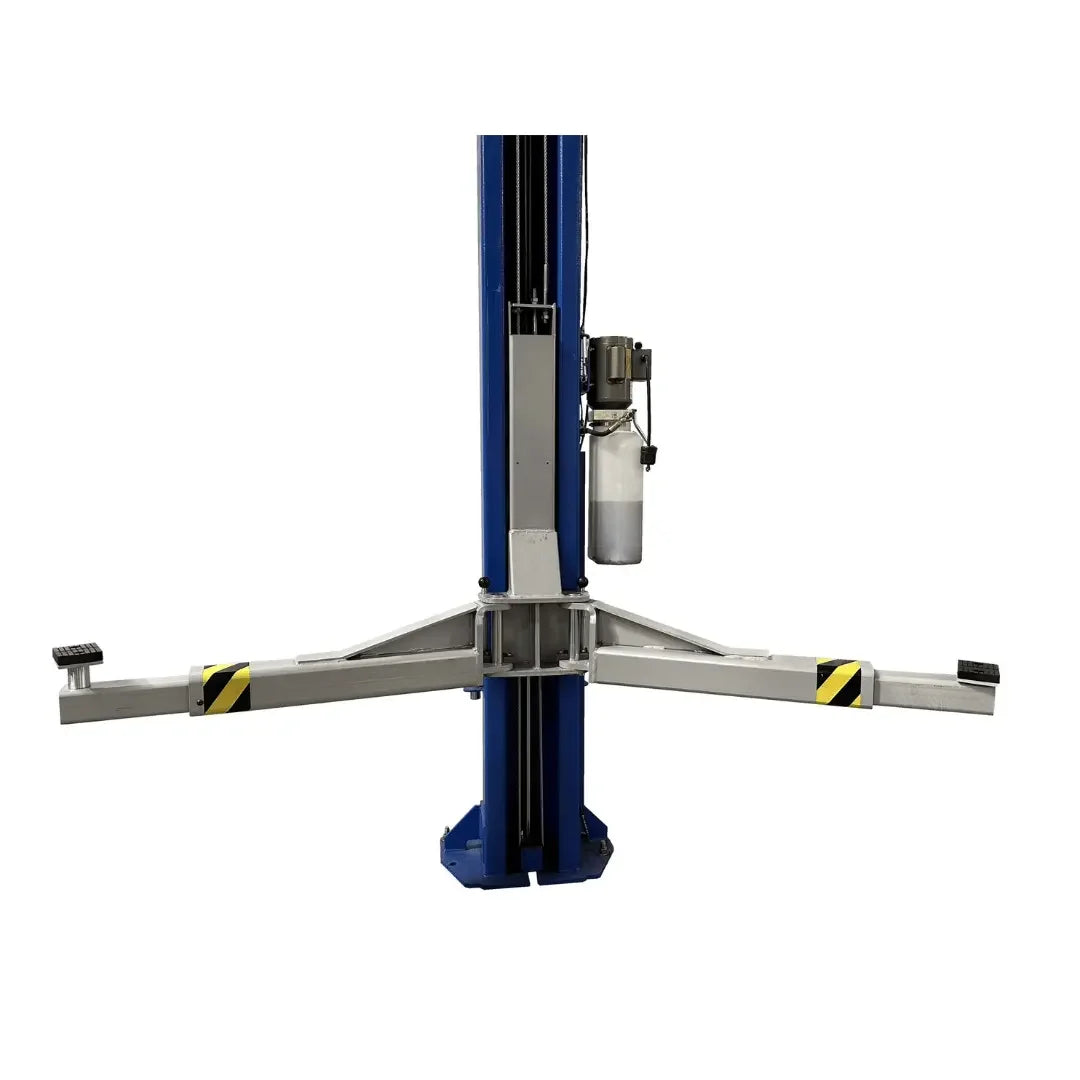

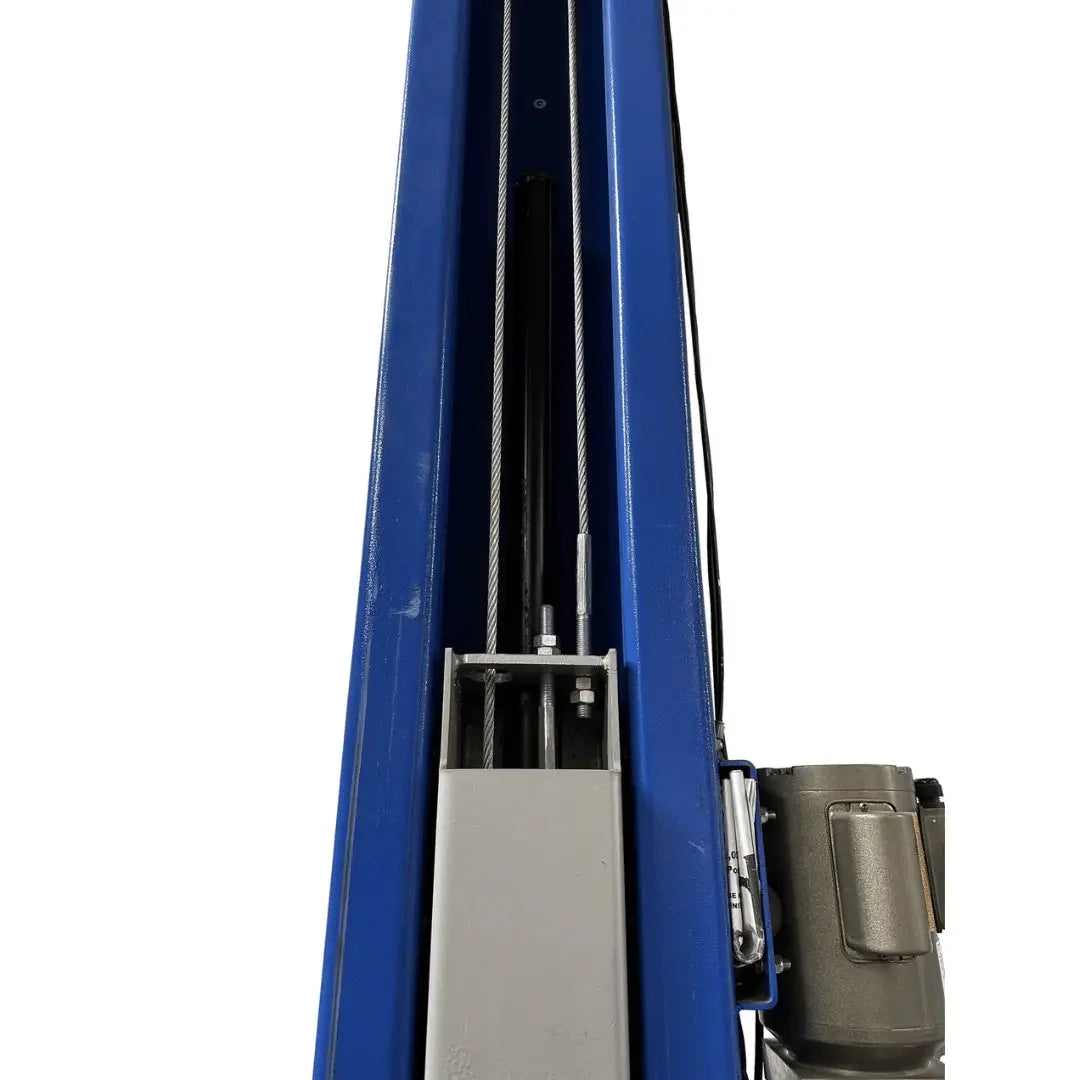

  • Direct Drive push Cylinders
  • Single Point pneumatic Lock Release
  • Heavy Duty Arm Restraint System

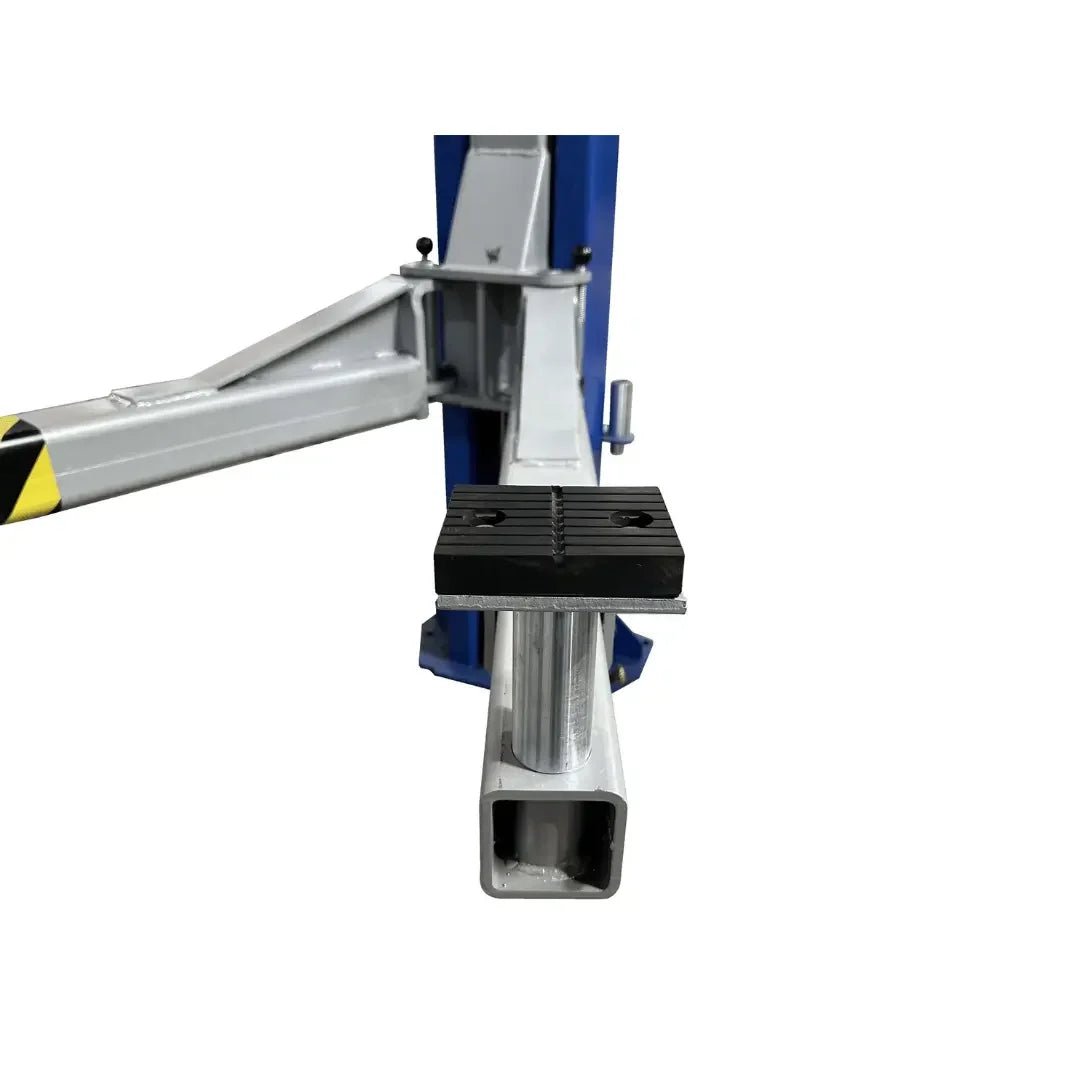

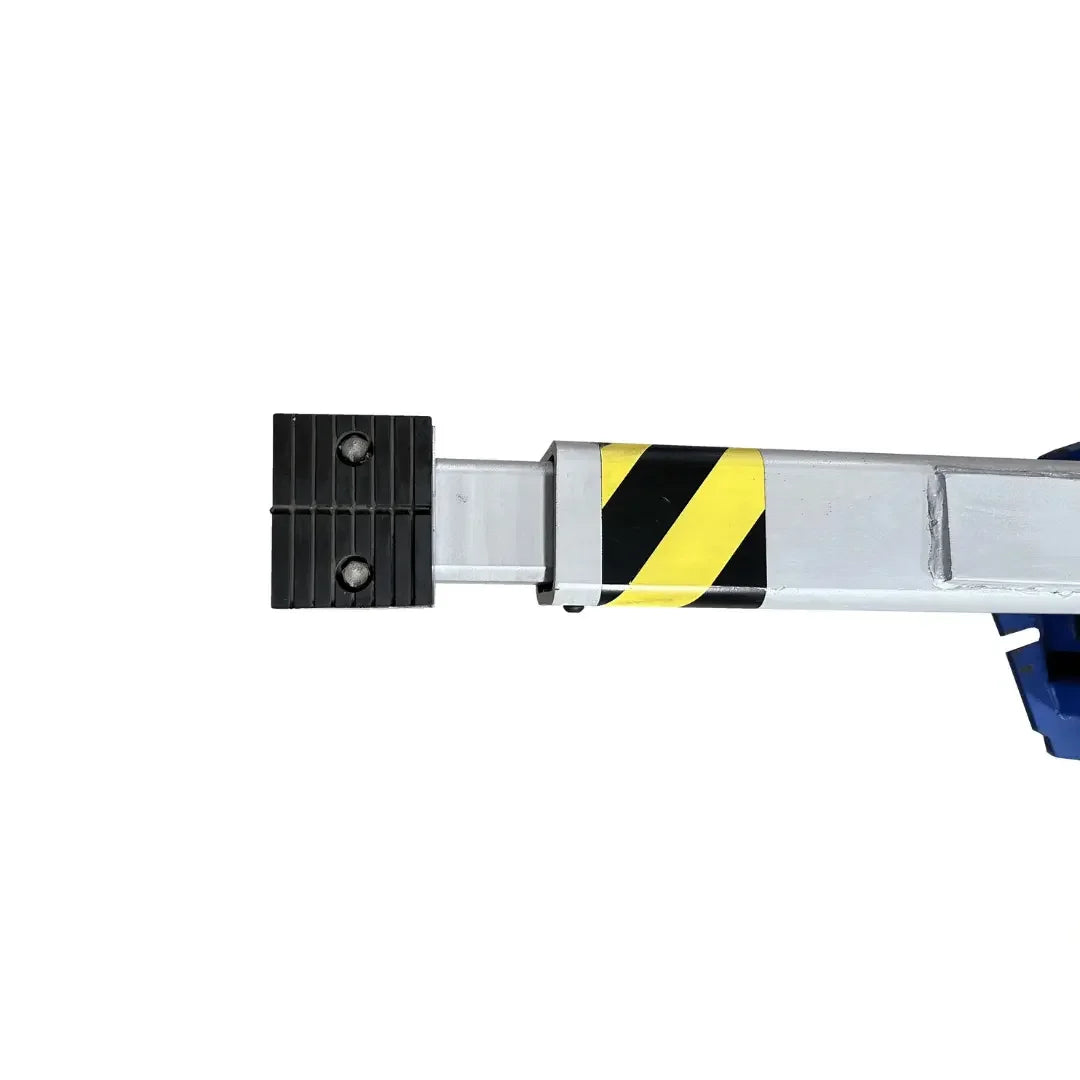

  • Drop-in Lift Pads

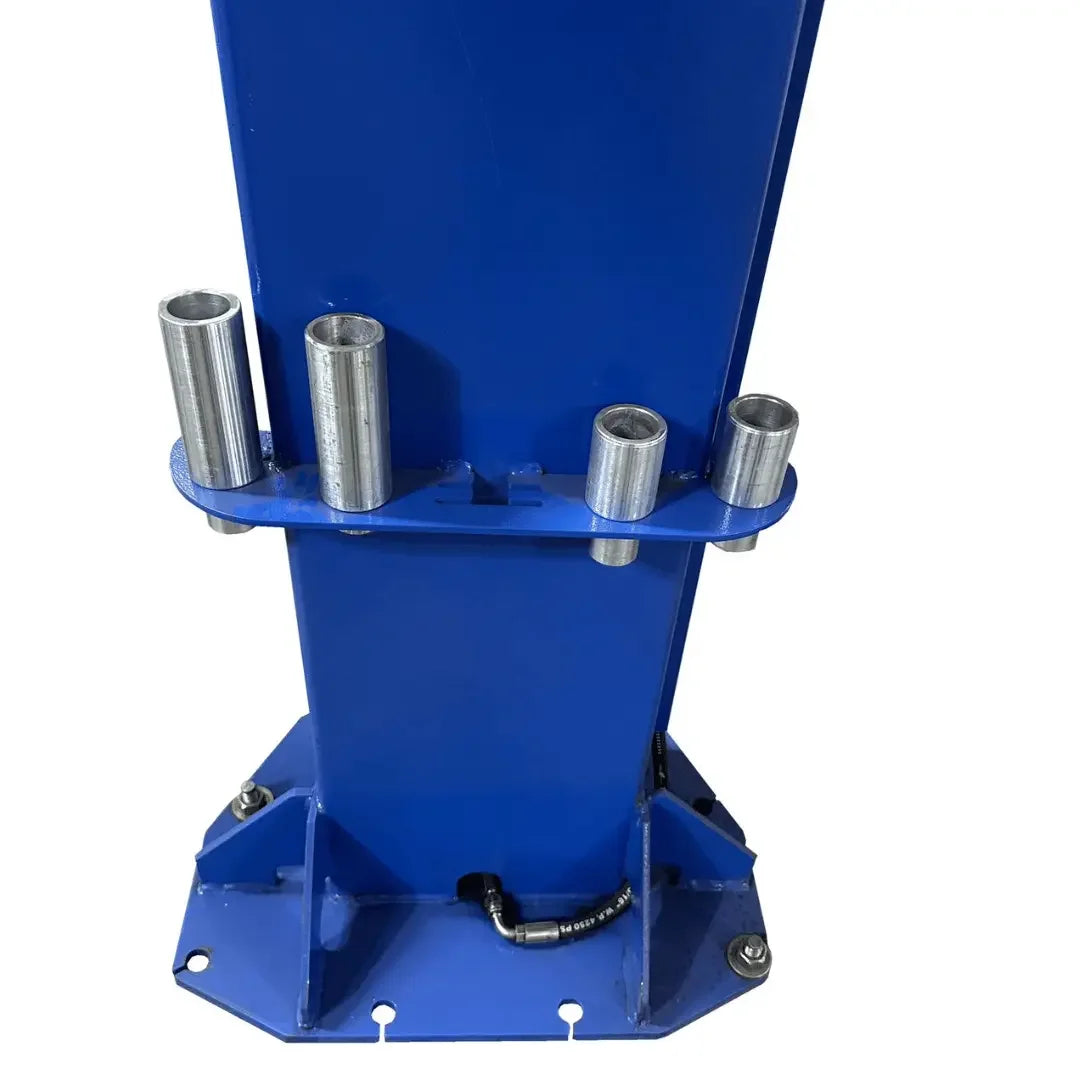

  • Stackable Adapters Included
  • External hose guards

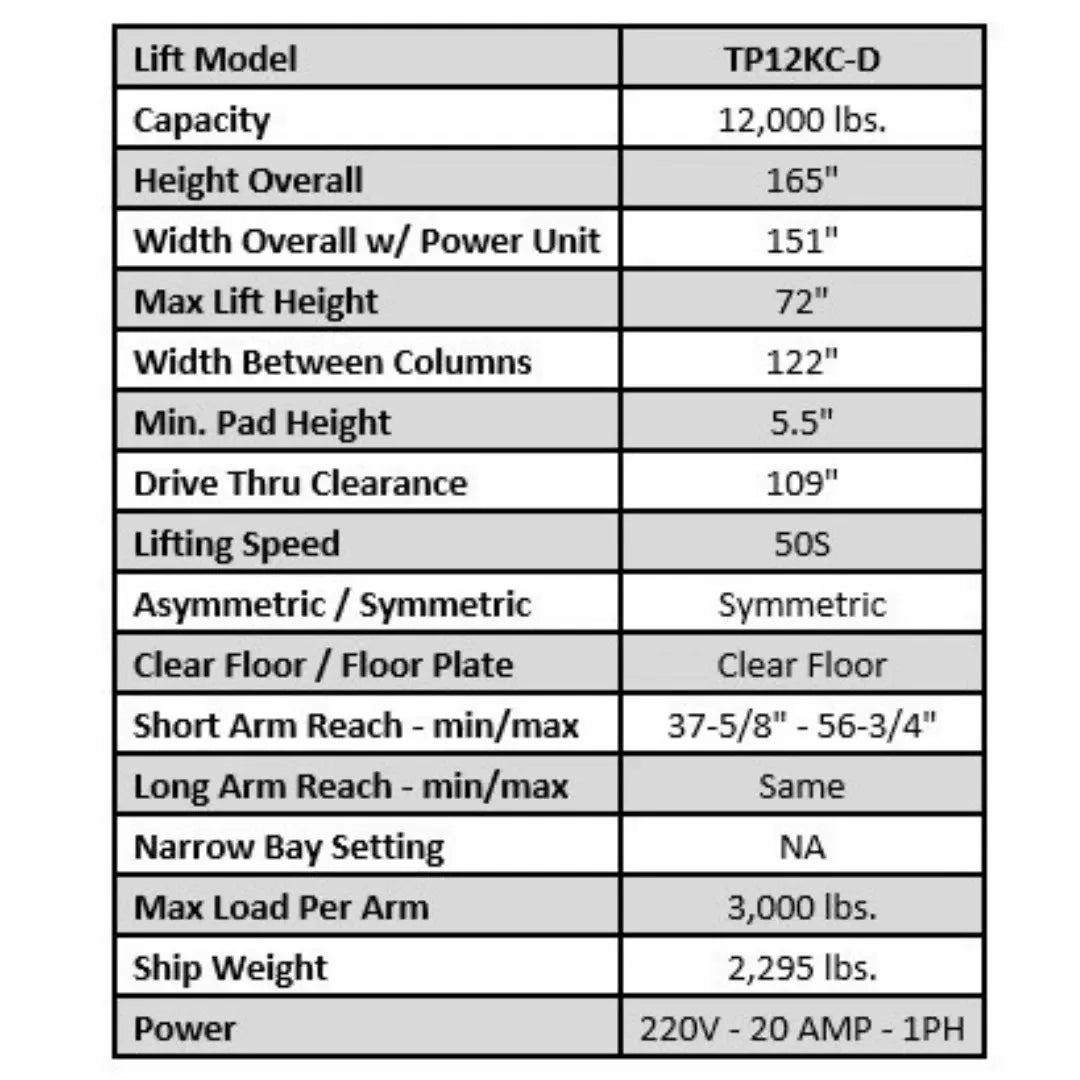

Product Specifications

Lift Model TP12KC-D
Capacity 12,000 lbs
Height Overall 165″
Width Overall w/ Power Unit 151″
Max Lift Height 72″
Width Between Columns 122″
Min. Pad Height 5-1/2″
Drive Thru Clearance 109″
Lifting Speed 50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 37-5/8″ – 56-3/4″
Long Arm Reach – min/max 37-5/8″ – 56-3/4″
Max Load Per Arm 3,000 lbs
Ship Weight 2,295 lbs
Power 220V – 20 Amp – 1PH


Pick Up and Delivery

Our Pick Up locations for Tuxedo are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Marshalltown, Iowa - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.

Call, text, or chat with us if you have questions. 866-774-7743



Downloads

Brochure
Manual
Warranty
