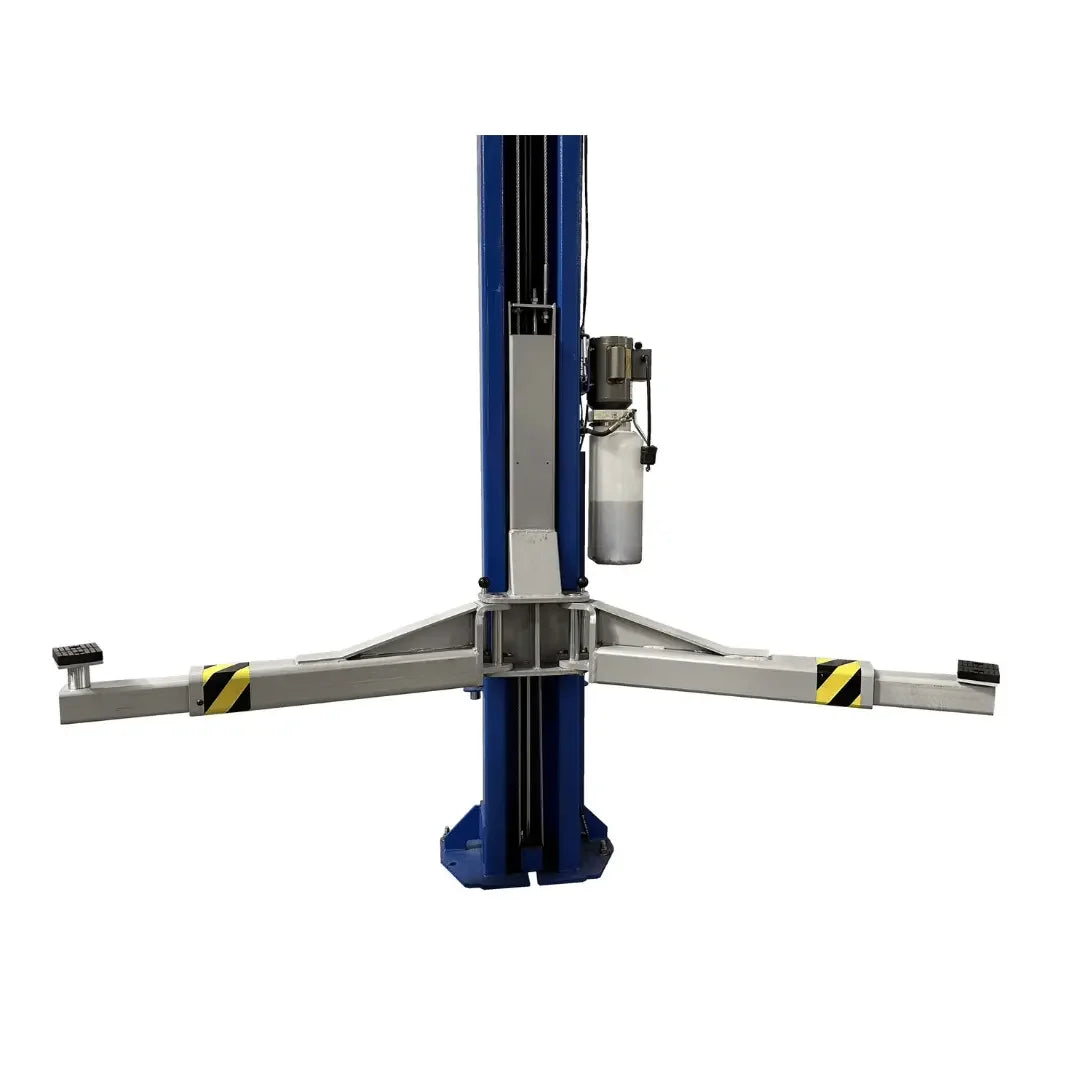

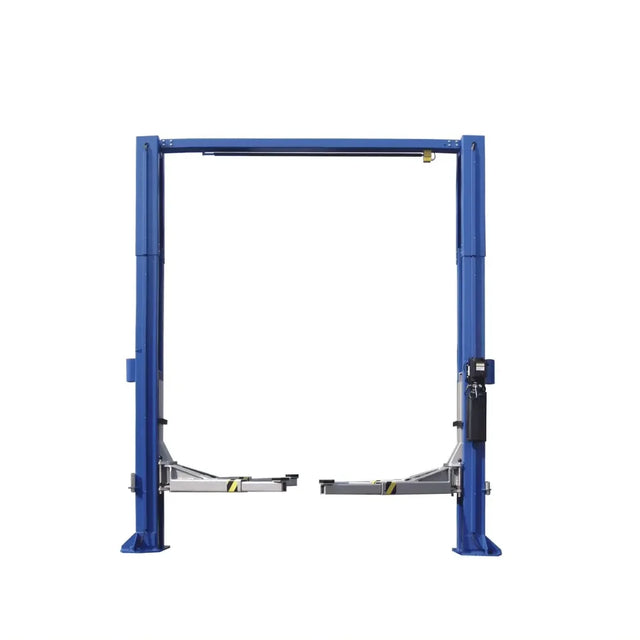

Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive

Name: Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive
Brand: Tuxedo
Price: 5712.0 USD
Availability: InStock

Part #:TP12KC-D

Brand: Tuxedo

$0.00 - $0.00

$0.00

$5,712.00

$5,712.00 - $5,712.00

$5,712.00

Call/Text Us: 866-774-7743 Call Us

Description

-

Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive

Product Features

12,000 lbs Capacity
Symmetric arm design
Rubber Door Guards
Direct Drive push Cylinders
Single Point pneumatic Lock Release
Heavy Duty Arm Restraint System
Drop-in Lift Pads
Stackable Adapters Included
External hose guards

Product Specifications

Lift Model	TP12KC-D
Capacity	12,000 lbs
Height Overall	165″
Width Overall w/ Power Unit	151″
Max Lift Height	72″
Width Between Columns	122″
Min. Pad Height	5-1/2″
Drive Thru Clearance	109″
Lifting Speed	50S
Asymmetric / Symmetric	Symmetric
Clear Floor / Floor Plate	Clear Floor
Short Arm Reach – min/max	37-5/8″ – 56-3/4″
Long Arm Reach – min/max	37-5/8″ – 56-3/4″
Max Load Per Arm	3,000 lbs
Ship Weight	2,295 lbs
Power	220V – 20 Amp – 1PH

Pick Up and Delivery

Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.

Call, text, or chat with us if you have questions. 866-774-7743

Specifications

-

Drive thru width	9 ft
Drive thru between carriage	109"
Height	51
Inside columns	122"
Length	122
Lifting capacity	12000 lbs
Lifting height top of arms	6 ft
Lifting height top of pad	72"
Max rise under arms	5.5 ft
Max rise under arms	67"
Min height lowered arm height	5.5″
Minimum pad height	5.5"
Modal	TP12KC-D
Motor	220V
Overall width	12.5 ft
Overall heights	165"
Overall width	151"
Width	26
Width between columns	10 ft
