Triumph NTO-10A 10,000 lb. 2 Post Lift
Couldn't load pickup availability
Shipping-FAQ's
Shipping Info
At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.
I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.
Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.
Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.
Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.

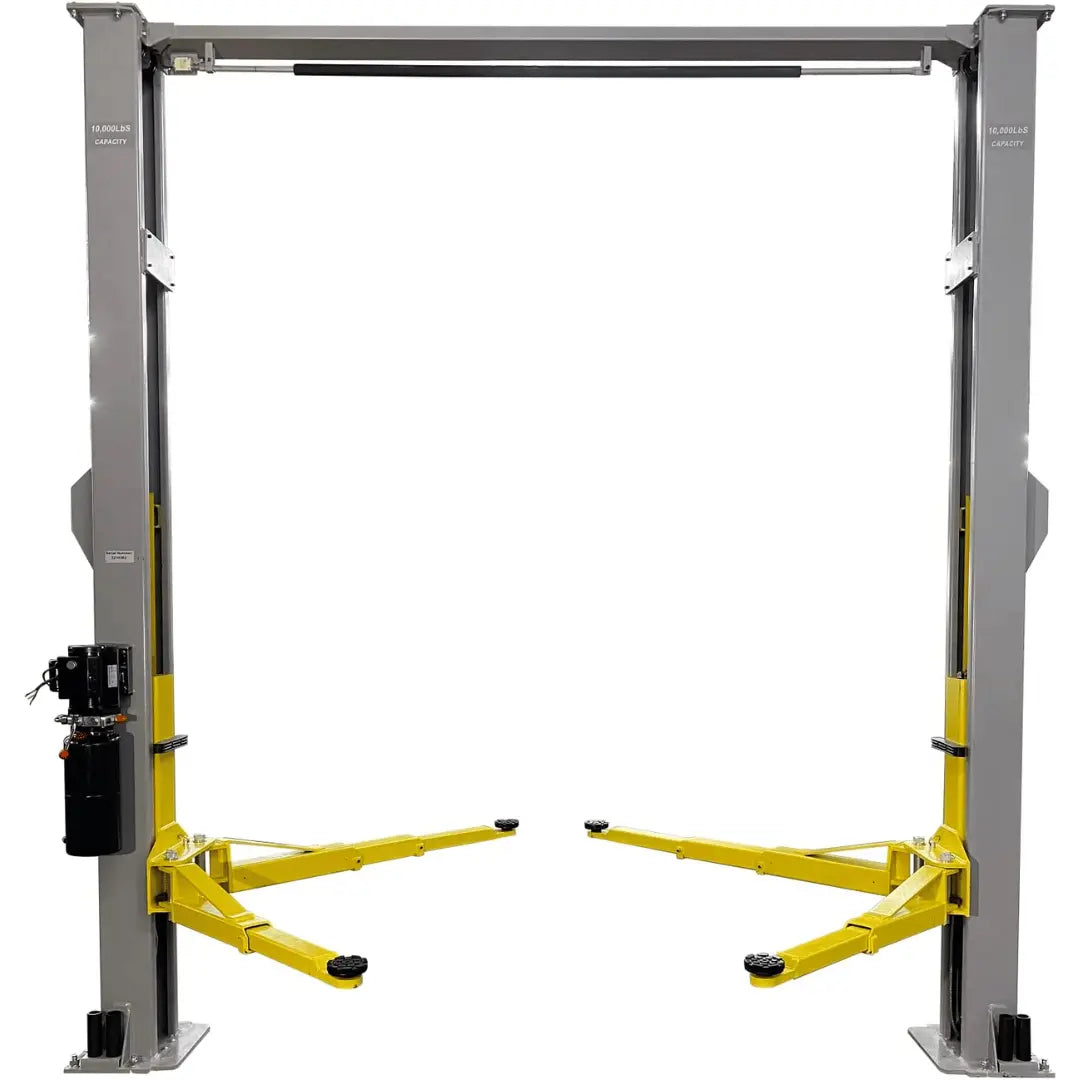

Triumph NTO-10A 10,000 lb. 2 Post Lift
Triumph NTO-10A Two-Post Auto Lift - Versatile Lifting with Precision Control
The Triumph NTO-10A 10,000 lb 2 Post Lift is a robust, professional-grade lifting solution designed for high-capacity applications in commercial garages, service centers, and serious home shops. Engineered to handle a wide range of vehicles—from full-size trucks and SUVs to performance cars and heavy duty pickups—this lift delivers dependable strength, ample reach, and smoother operations. With its durable build, efficient features, and emphasis on safety, the NTO-10A is an ideal choice for technicians who demand consistency under heavy loads.

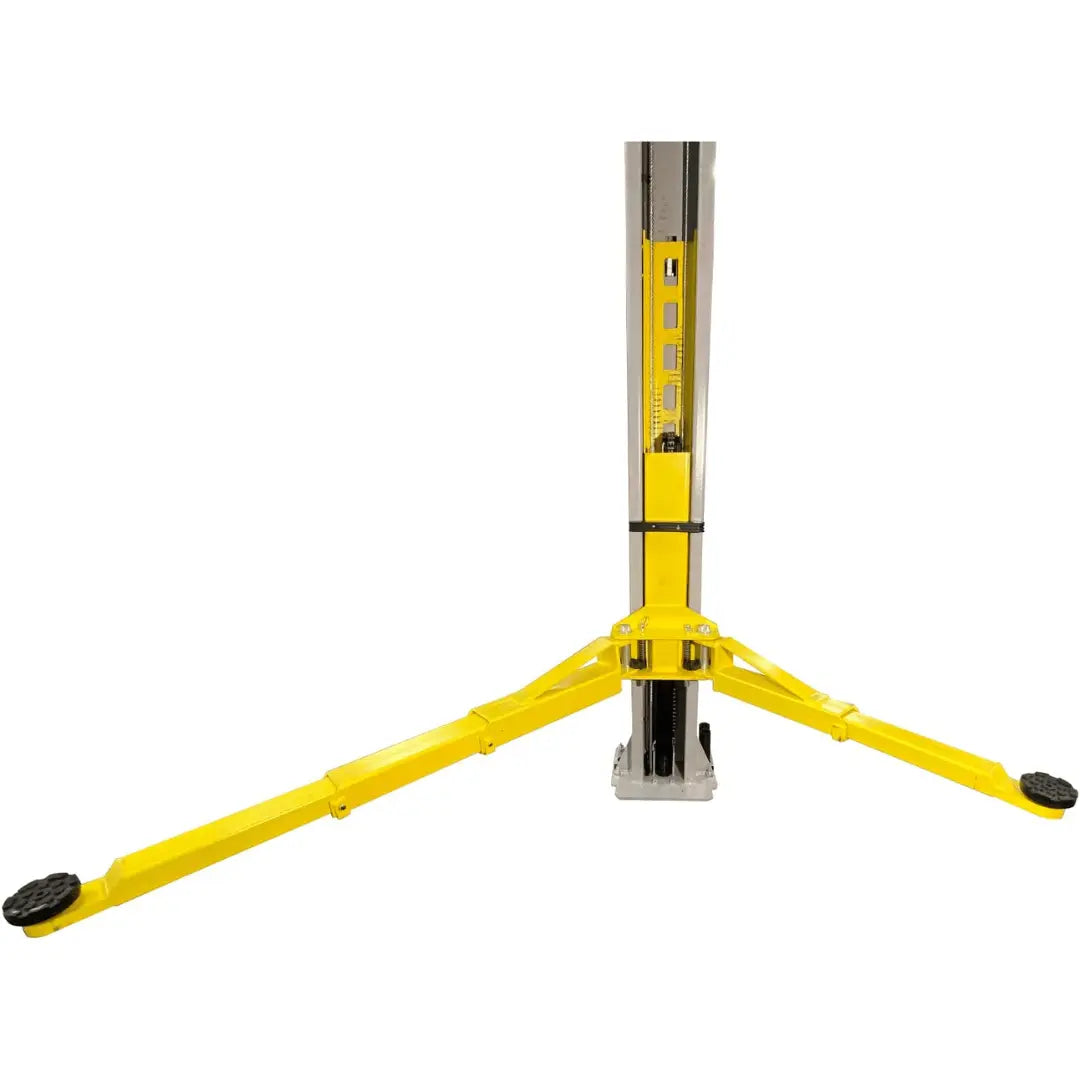

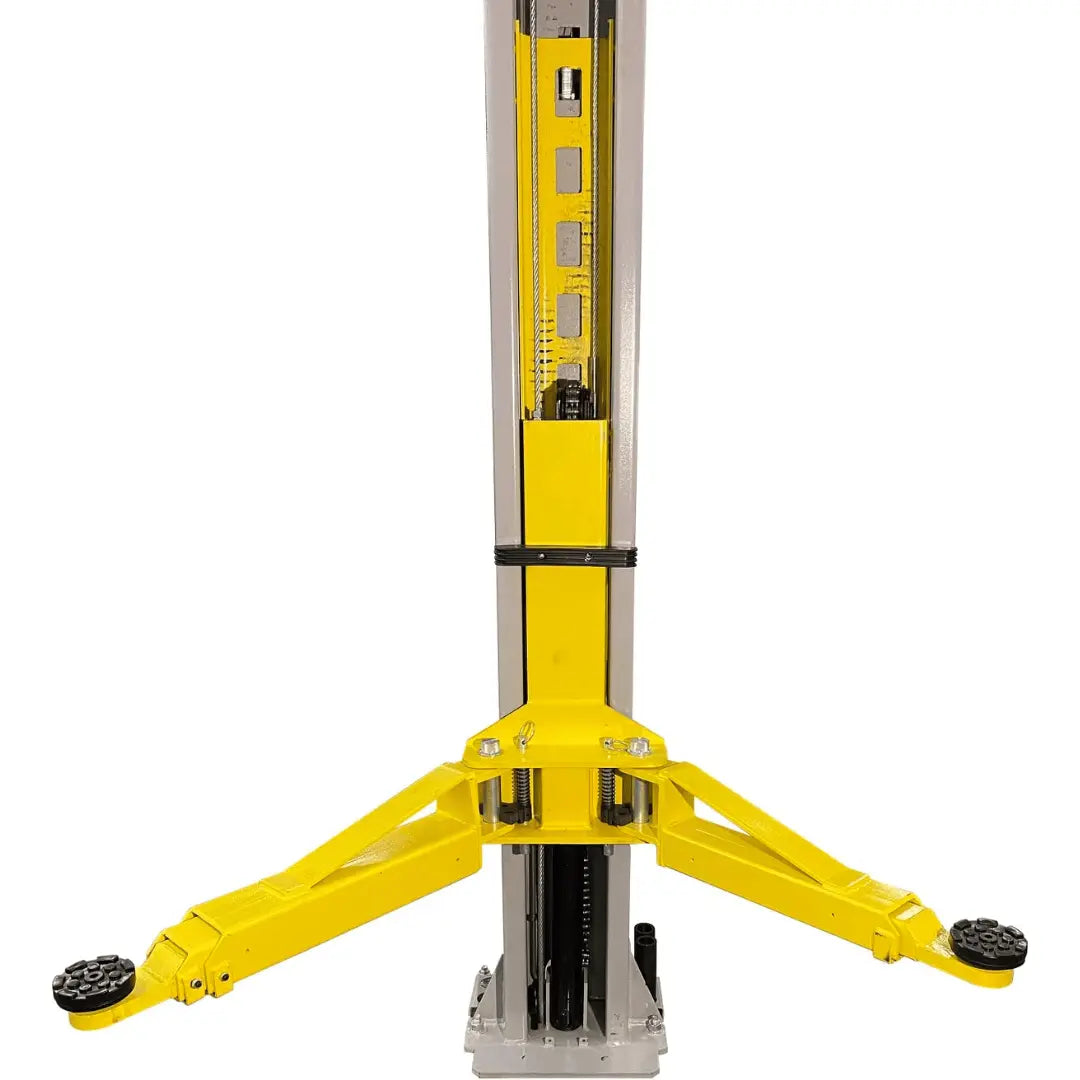

At its core, the NTO-10A 2 post lift provides a lifting capacity of 10,000 pounds, granting flexibility to work on heavier vehicles without hesitation. Its three-stage arms extend deeply while also retracting compactly, enabling adaptation to various wheelbases and chassis types. This makes the lift especially versatile, suited for both long wheelbase vans and shorter vehicles with equal ease. The arms are engineered for reach and clearance, allowing optimal placement under frame rails or lifting points.

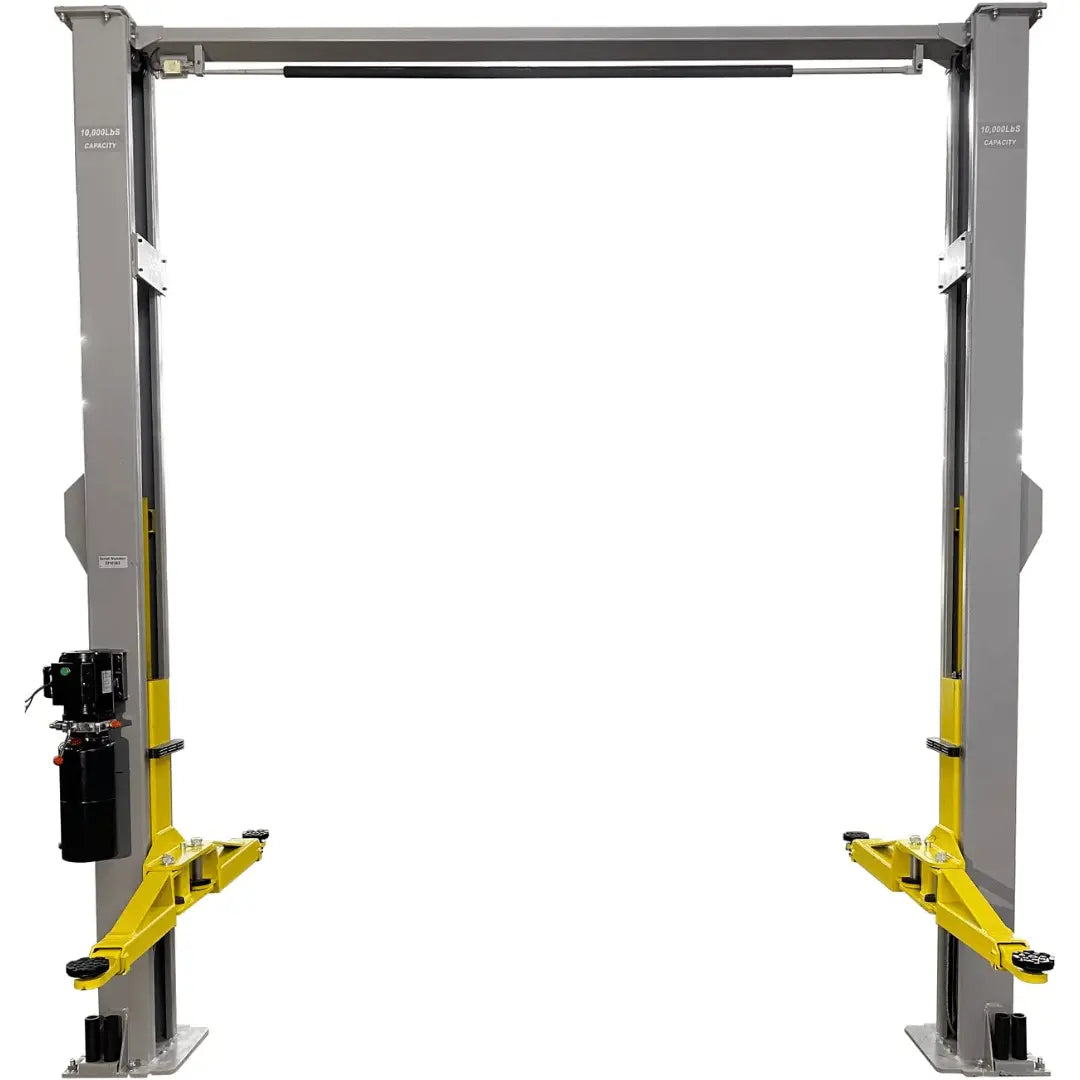

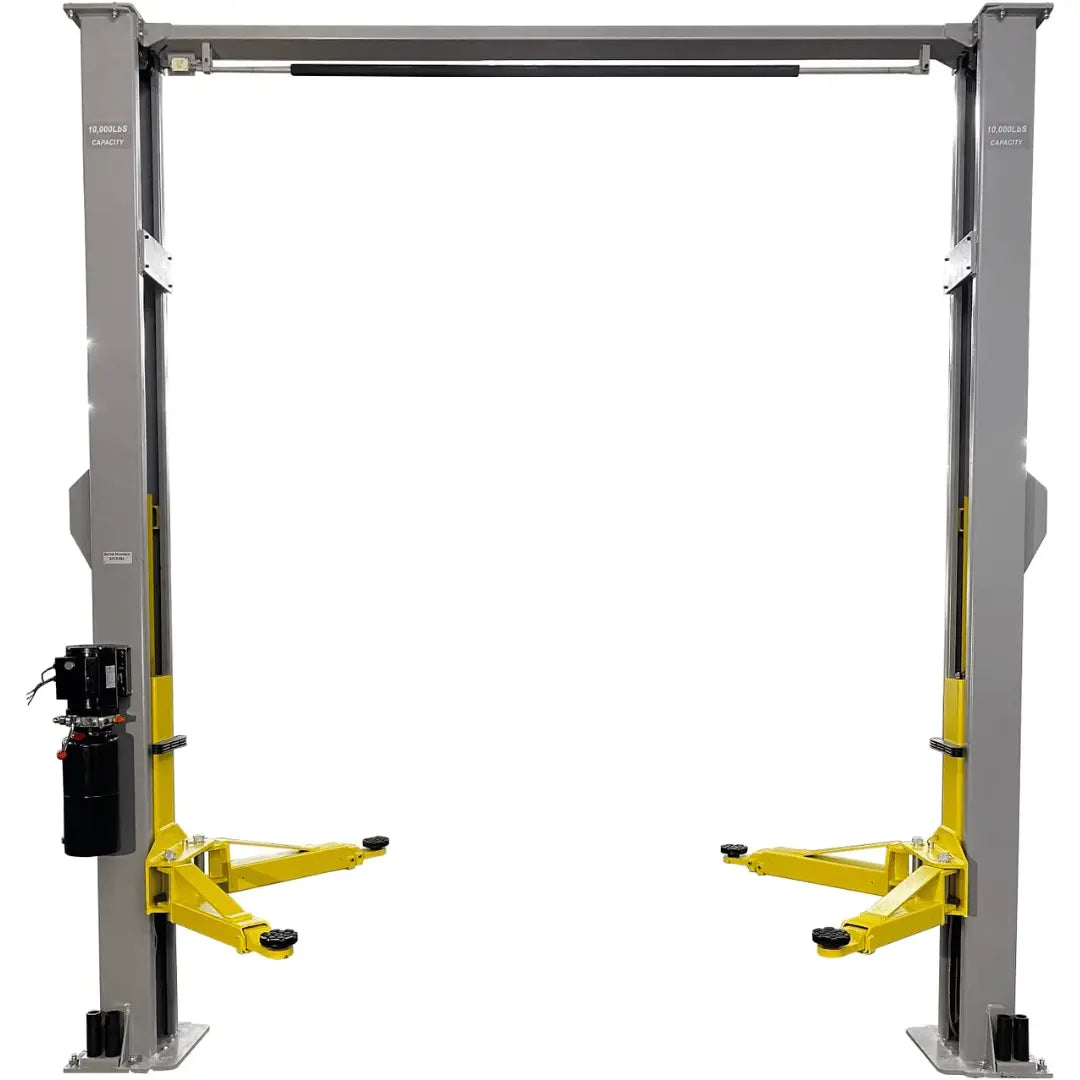

The overhead style design of this unit includes a bar across the top rather than a floor plate, making the floor space relatively unobstructed and cleaner under the vehicle. That overhead bar is also used to route cables, hoses, and other lines, keeping them above work height and minimizing trip hazards or clutter on the floor. Technicians benefit from a tidier workspace and fewer obstacles while moving around beneath raised vehicles.

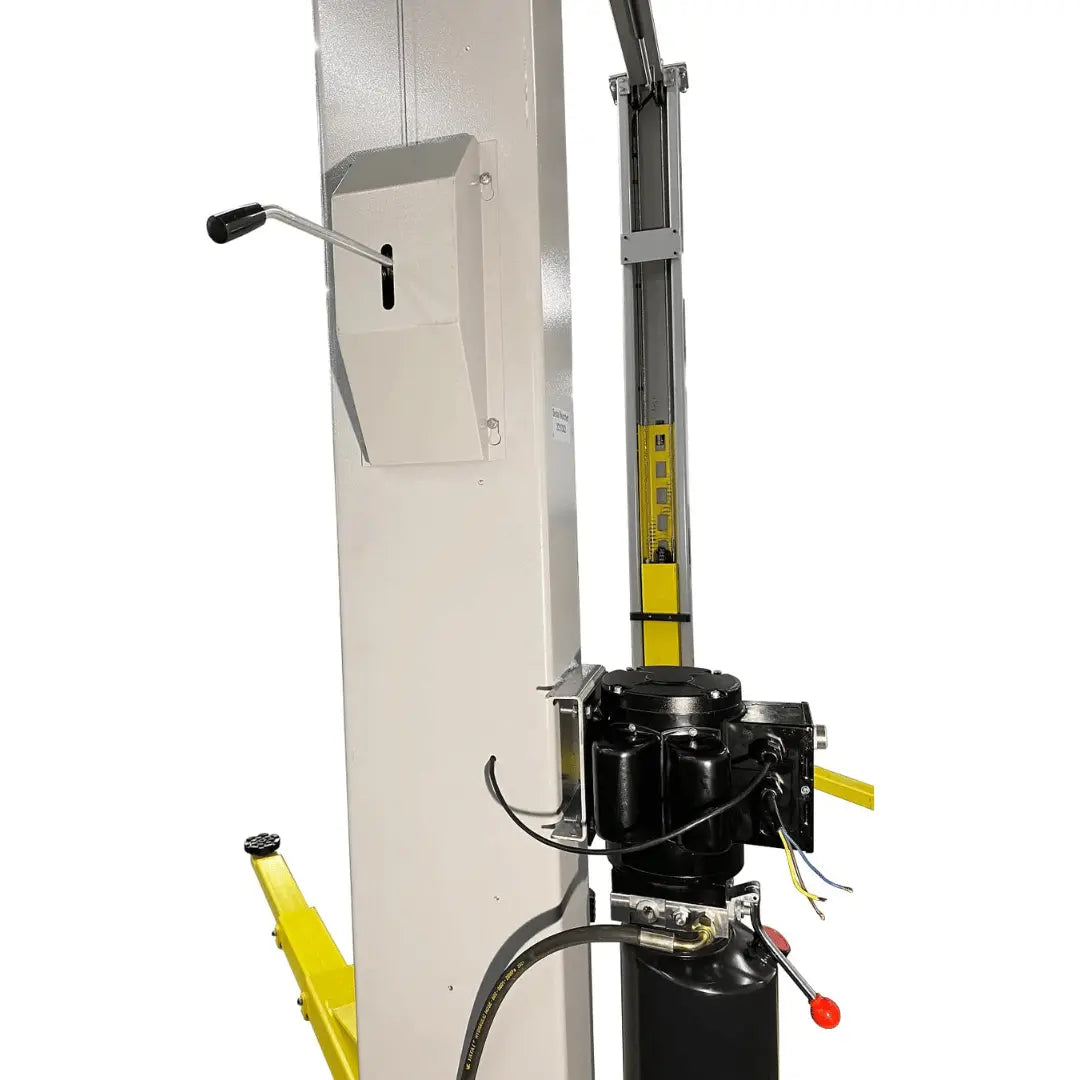

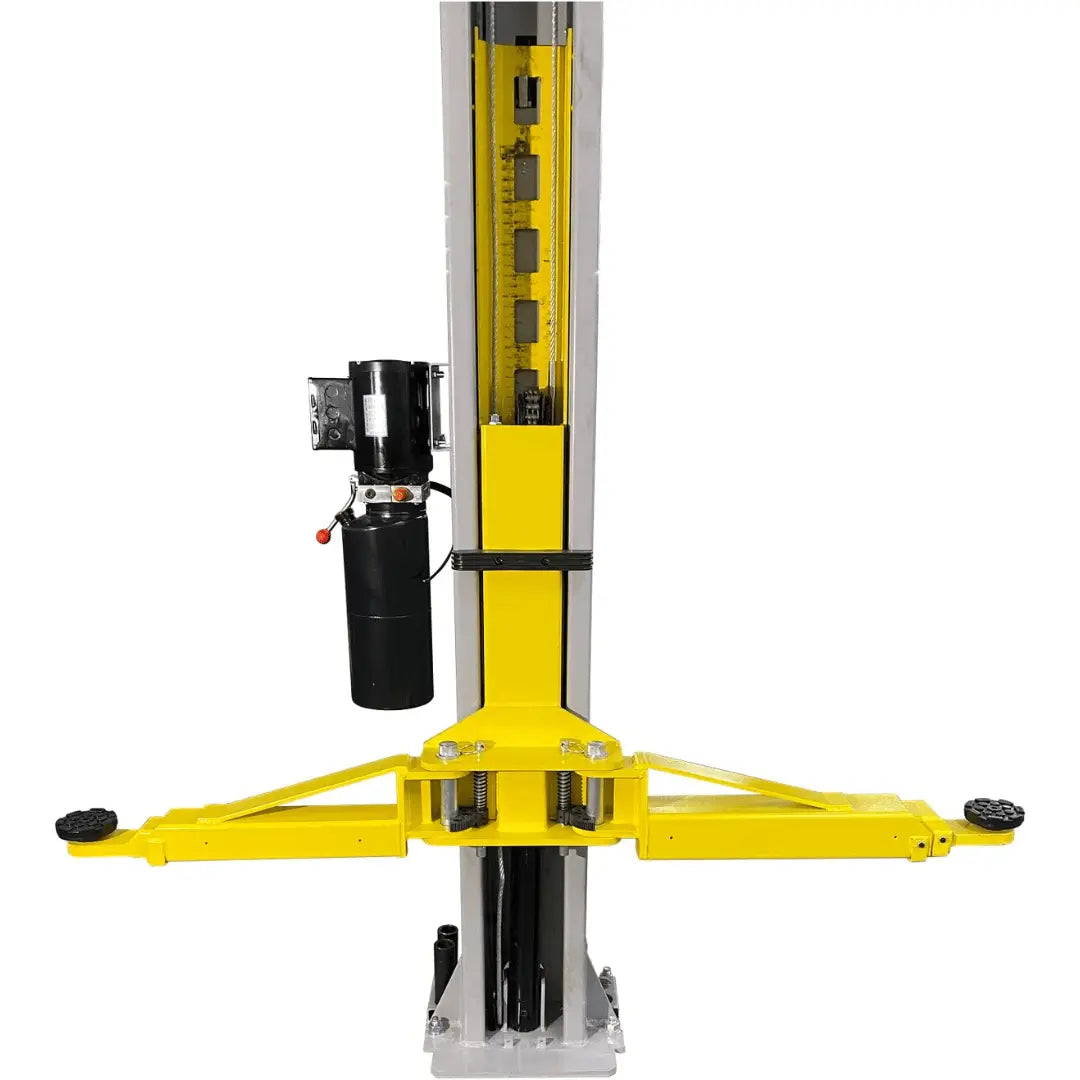

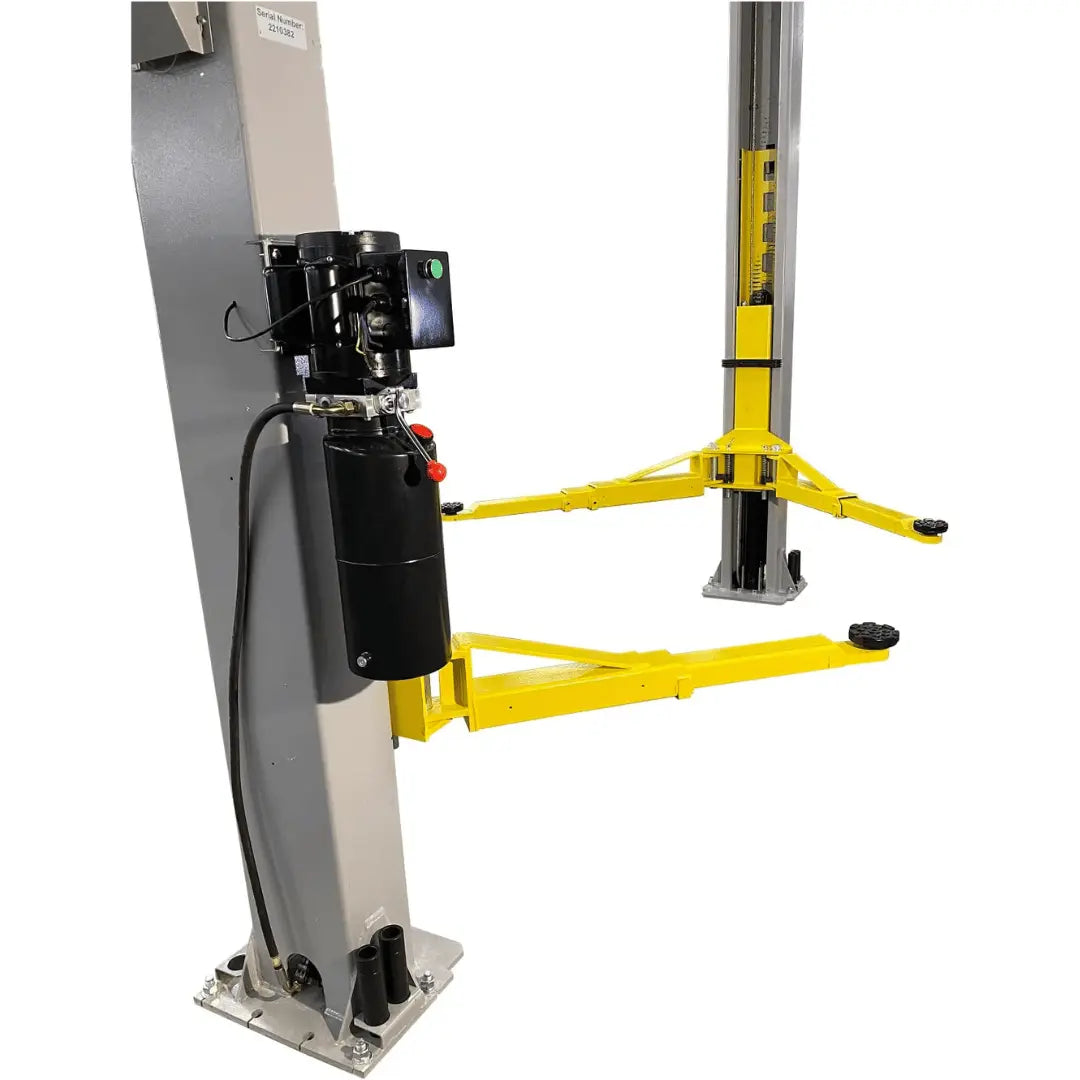

Performance is bolstered by the lift’s 3 horsepower motor operating on 220V single phase power. This motor delivers lifting action in approximately forty seconds in typical use, balancing speed and smoothness. Hydraulic components and associated mechanisms are selected for both durability and operational stability, ensuring that the lift performs reliably across repeated cycles. An electric safety cutoff is built in to protect against overextension or improper operation.
2 post lift installation requires a solid concrete floor, typically a thickness of around 4 inches at a minimum compressive strength of 3,000 PSI. Anchoring, leveling, and alignment are critical to ensure stability and safe operation under full load. Because of the heavy components involved, appropriate equipment (forklift, hoist, or similar) is necessary to unload and position parts during installation.
Contact us for more information.
Product Features
10,000 LB LIFTING CAPACITY: Built to lift a wide variety of vehicles, from cars to light trucks and SUVs.
FRONT TRIPLE TELESCOPING ARMS: Offers extended reach and flexibility, allowing for easy vehicle positioning and better access points.
CLEAR FLOOR DESIGN: Provides unobstructed space beneath the lift for tools, equipment, and movement.
HEAVY-DUTY CONSTRUCTION: This 2 post lift is made with industrial-grade steel for unmatched strength, stability, and durability.
SMOOTH HYDRAULIC OPERATION: Dual hydraulic cylinders ensure controlled, efficient lifting and lowering.
AUTOMATIC SAFETY LOCKS: Multiple locking positions keep vehicles secure at any height for safe operation.
OPTIMIZED FOR PROFESSIONALS: Perfect for automotive repair shops and home enthusiasts handling heavy workloads.
PRECISION, POWER AND FLEXIBILITY: The Triumph NTO-10A combines heavy-duty lifting capability with advanced features like front triple telescoping arms for superior flexibility and control. Whether you're performing maintenance, repairs, or inspections, this lift offers the strength, reliability, and ease of use you need to get the job done right. Upgrade your garage or shop with the performance and precision of the NTO-10A.

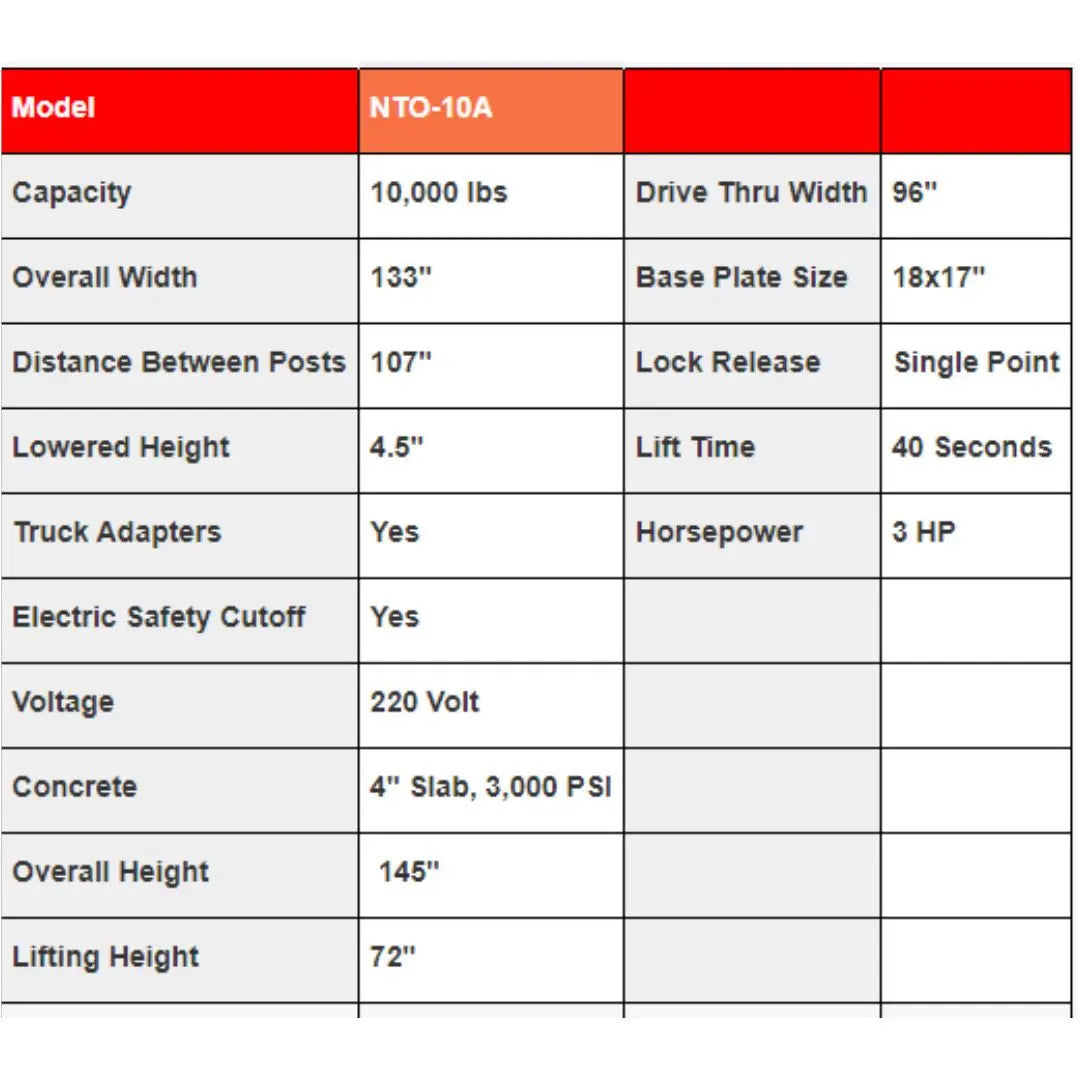

Product Specifications
| Lift Model | NTO-10A |
|---|---|
| Capacity | 10,000 lbs |
| Overall Height | 145″ |
| Overall Width | 133″ |
| Lifting Height | 72″ |
| Distance Between Posts | 107″ |
| Drive Thru Width | 96″ |
| Lowered Height | 4-1/2″ |
| Base Plate Size | 18x17″ |

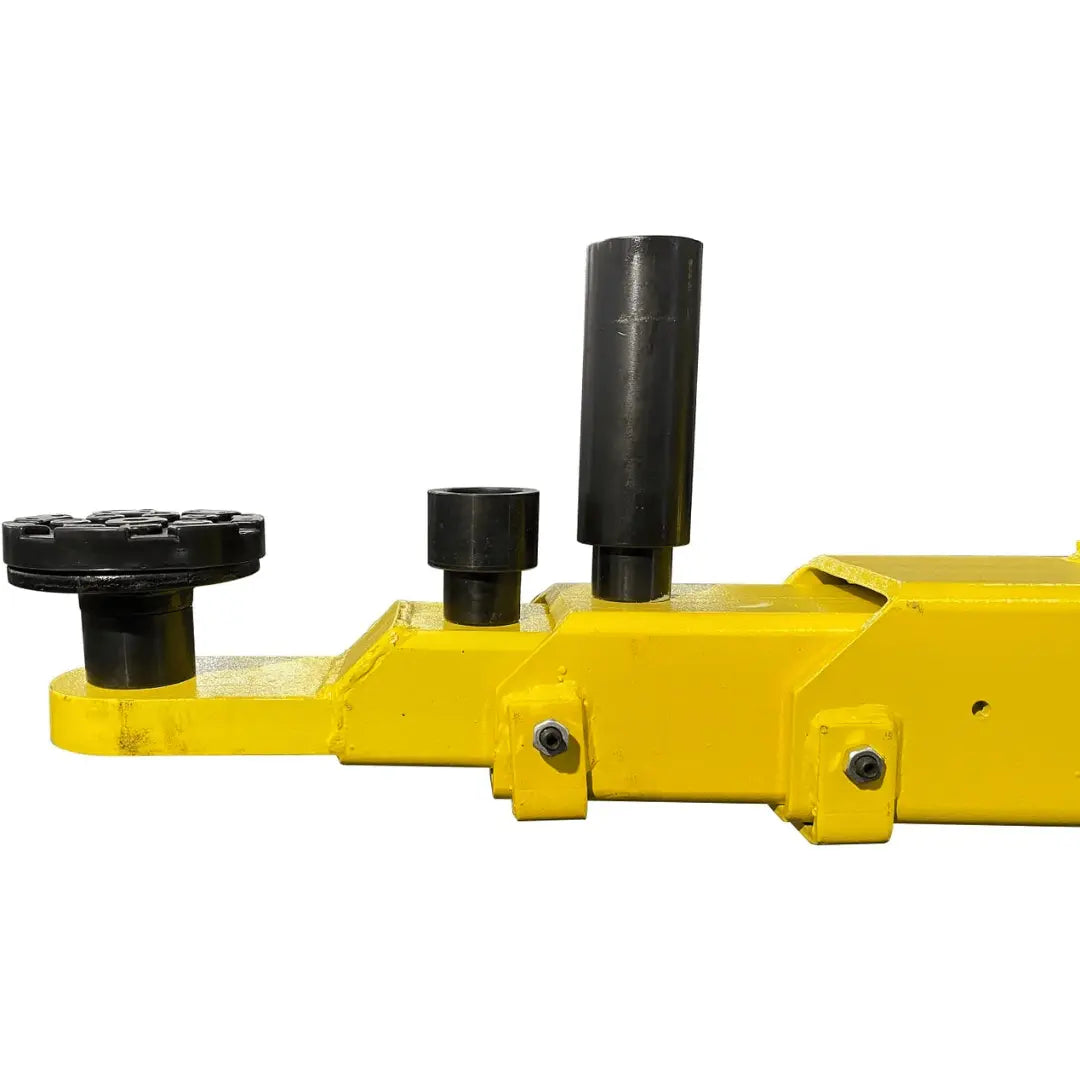

| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete | 4" Slab, 3,000 PSI |
| Style | Overhead |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Los Vegas, NV.
Call, text, or chat with us if you have questions. 866-774-7743
