Triumph NTC-950-1 Tire Changer NTB-800 Wheel Balancer Combo
Product Description

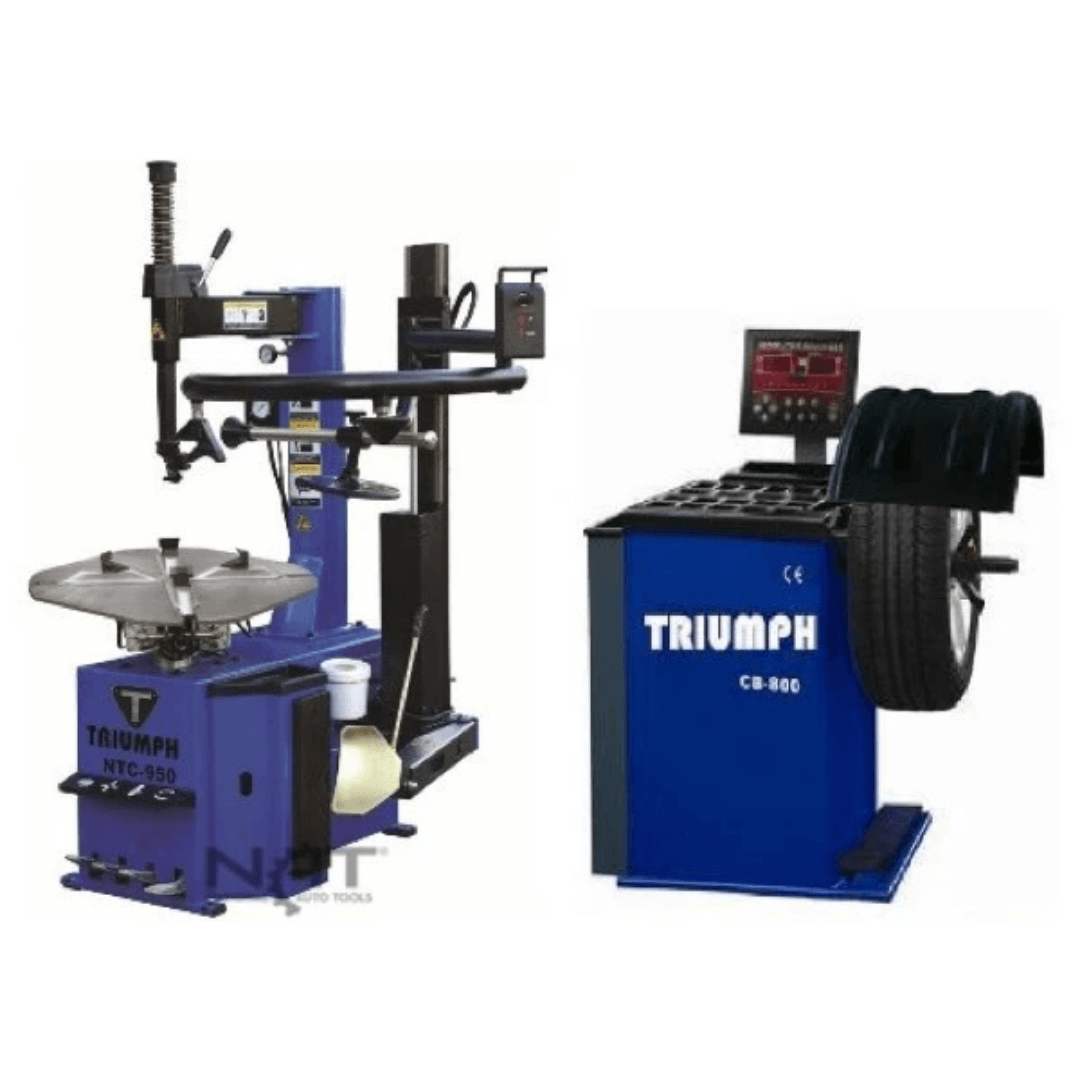

Triumph NTC-950-1 Tire Changer and Triumph NTB-800 Wheel Balancer Combo
Introducing the TRIUMPH NTC-950-1 Tire Changer and NTB-800 Wheel Balancer Combo – a top-tier solution designed for high-performance tire and wheel service in any commercial shop. This powerful pair offers the capabilities you need to handle a wide range of tires and wheels with ease and precision.
The NTC-950-1 Tire Changer is built for commercial use, making it perfect for servicing run-flat and low-profile tires with the help of its assist arm. This tire changer can accommodate tires up to 28 inches in diameter and is equipped with a Jet Blast Inflator System and a powerful bead breaker system, delivering 5,500 lbs of force. It includes both metal and plastic demount heads, plastic wheel clamp covers, a tire iron, and a lube bucket with a brush, ensuring you have all the necessary tools to tackle any tire change efficiently.
Paired with the NTB-800 Wheel Balancer, this combo ensures that your shop can balance wheels with the highest level of accuracy. The NTB-800 features a plastic safety hood, quick release wing nut, cone adapters, a wheel weight hammer, and a rim caliper. Its standout features include a wheel brake that holds the wheel in place while weights are applied and automatic data entry, which simplifies the balancing process by requiring only one parameter to be entered manually.
The NTC-950-1 Tire Changer’s specifications include inside clamping from 16-28 inches and outside clamping from 14-26 inches, with a maximum wheel width of 15 inches. The tire changer operates on 110 volts and provides a maximum PSI of 120, powered by a 1 1/2 HP motor. Its robust construction ensures durability and reliable performance in any high-volume shop.
The NTB-800 Wheel Balancer accommodates wheel sizes from 10-28 inches and can handle a maximum tire diameter of 44 inches. It operates with a cycle time of just 6-9 seconds and an accuracy of +/-1 gram, powered by a 1/4 HP motor. The balancer also operates on 110 volts, making it suitable for standard shop electrical systems.
Upgrade your tire and wheel service capabilities with the TRIUMPH NTC-950-1 Tire Changer and NTB-800 Wheel Balancer Combo from Mechanic Superstore. This dynamic duo offers everything you need for efficient, precise, and reliable tire and wheel servicing.
Product Specifications
NTC-950-1 Tire Changer Specifications
| Inside Clamping | 16-28" (406-711 mm) |
| Outside Clamping | 14-26" (355-660 mm) |
| Max Wheel Width | 15" (381 mm) |
| Max Tire Diameter | 43" (1092 mm) |
| Bead Blast | Yes |
| Horse Power | 1 1/2 HP |
| Bead Breaker Force | 5,500 lbs. |
| Max PSI | 120 PSI (8.3 Bar) |
| Voltage | 110 Volt |
| Shipping Size | 51" x 38" x 51" (1,295mm X 965mm X 1,295mm) |
| Shipping Weight | 820 lbs. |
NTB-800 Wheel Balancer Specifications
| Wheel Size | 10-28" (254-711 mm) |
| Max Tire Diameter | 44" (1,118 mm) |
| Rim Width | 1 1/2-20" (38-508 mm) |
| Max Weight | 150 lbs. |
| Shaft Size | 36 mm |
| Automatic Data Entry | Yes |
| Display | Standard or Metric |
| Accuracy | +/-1 Gram |
| Cycle Time | 6-9 Seconds |
| Horse Power | 1/4 Horse |
| Voltage | 110 Volt |
| Assembled Size | 28" X 48" X 62" (711mm X 1,219mm X 1,575mm) |
| Shipping Size | 30" X 39" X 51" (762mm X 990mm X 1,295mm) |
| Shipping Weight | 300 lbs. |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Los Vegas, NV.
Call, text, or chat with us if you have questions. 866-774-7743
