Supreme SP-12CFX 12,000 lb, 2 Post Car Lift

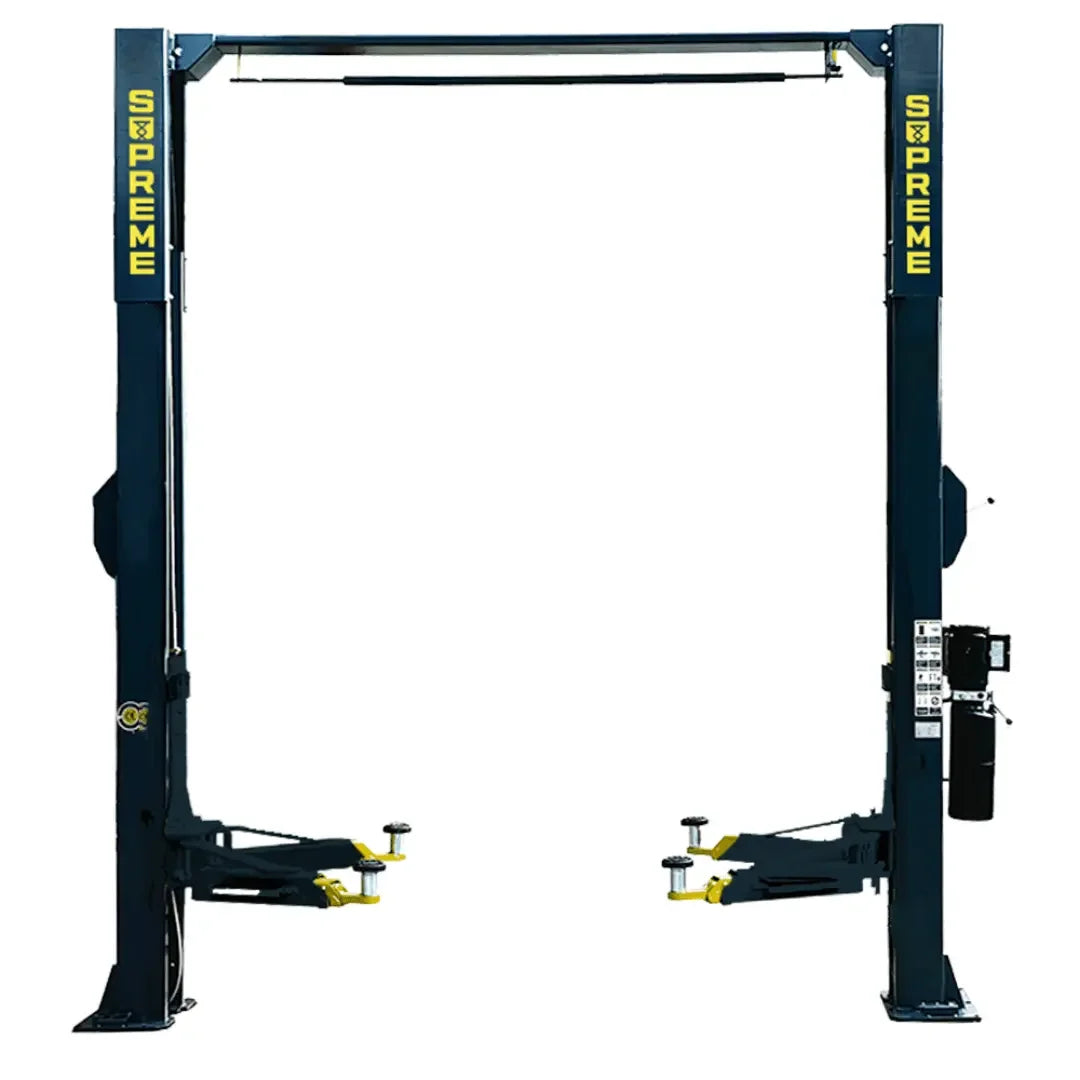

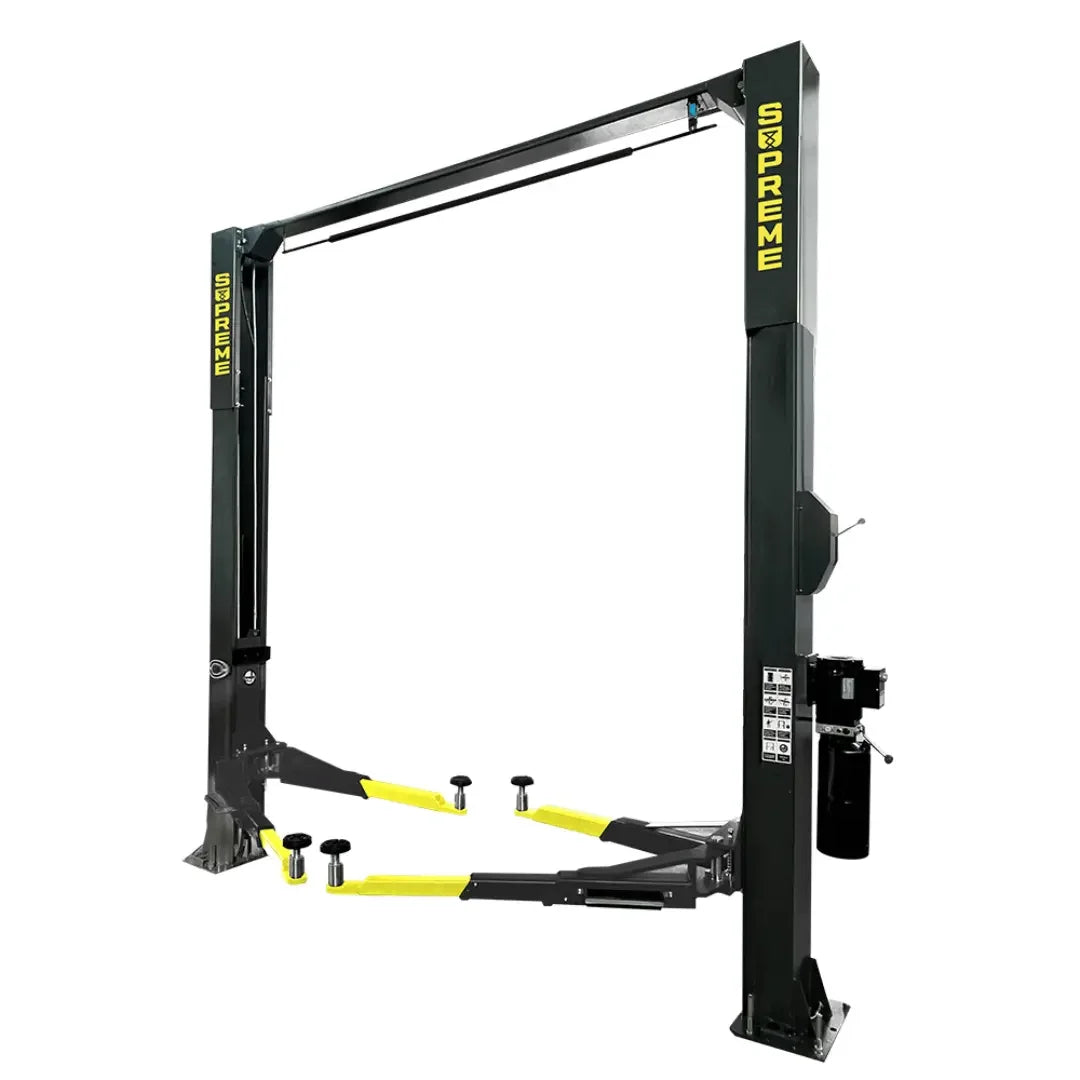

Supreme SP-12CFX 12,000 lb Clear Floor 2 Post Car Lift
The Supreme SP-12CFX 12,000 lb Clear Floor 2 Post Lift is engineered for high-demand automotive shops, fleet service centers, and performance garages that require maximum capacity, full accessibility, and long-term reliability. Rated to lift twelve thousand pounds, this lift is designed to handle heavy trucks, full-size vans, SUVs, and dual rear wheel vehicles with ease. Its clear floor design allows mechanics to work unhindered beneath the vehicle without overhead crossbars obstructing access or movement.
Built with strength as a foundational priority, the SP-12CFX 2 post lift features oversized columns, reinforced arms, and welded structural steel meant to endure daily heavy use. The asymmetric arm configuration provides improved door clearance and easier positioning of vehicles, especially in tighter bays. The telescoping arm reach spans from 30.75 inches to 59.25 inches, ensuring compatibility with a wide variety of wheelbases and vehicle types. This flexibility means technicians can safely lift sedans, pickups, light trucks, and heavier specialty vehicles without constant repositioning.
The lift achieves a maximum lifting height of 82.75 inches, giving generous undercarriage access for exhaust work, suspension inspections, and drivetrain service. The maximum rise under runway clearance is 86.50 inches, allowing plenty of headroom underneath lifted vehicles. The overall column height is 166.75 inches, making this lift suitable for many standard shop ceiling heights. The drive-through width between columns is 117.75 inches, enabling larger vehicles and wide-track models to enter and exit with ease. With inside post spacing of 133.50 inches and overall width extending to 158 inches, the lift offers stability without sacrificing usable work area.
Operation is powered by a 4 horsepower hydraulic unit running on 220V single phase. This motor delivers strong lifting performance, smooth travel speed, and quiet operation under load. A one-touch manual safety lock release simplifies operation, allowing both columns to be unlocked in a single motion for faster workflow between lifts. The true clear floor design, with only a durable baseplate across the floor rather than overhead cross-members, maximizes unobstructed space under the vehicle, which is especially valuable in shops that use gantry cranes or tall equipment.
Beyond its raw capabilities, this 2 post lift is backed by Supreme’s industry-leading 5-3-1 warranty: five years on structural components, three years on hydraulic and electrical systems, and one year on parts. This coverage reflects Supreme’s confidence in the design, materials, and high-end manufacturing standards built into every unit.
Proper installation is essential. The lift must be anchored to a concrete floor of adequate thickness and compressive strength to withstand the forces of lifting and load transfer. Accurate anchoring, leveling, and alignment are critical to both safety and longevity. Because the lift’s shipping weight is significant, proper handling equipment such as forklifts or hoists is necessary during unloading and setup.
Contact us for more information.
Key Product Features
-
12,000 lb Lifting Capacity: Easily lifts full-size pickups, high-roof vans, and heavy vehicles without strain.
-
True Clear-Floor Design: Eliminates crossbar obstructions for complete under-car access, keeping your workspace open and organized.
-
Asymmetric Arm Engineering: Offers superior door clearance and easier vehicle entry—perfect for tight bays and wide-body builds.
-
Elite Lifting Height (82.75”): Stand comfortably under lifted trucks or Sprinter vans with this extra-tall design.
-
117.75" Drive-Thru Width: Accommodates wide-frame vehicles and dually trucks with confidence.
-
One-Touch Manual Safety Lock Release: Simplifies lock engagement and disengagement with a single-point system for secure operation.
-
Premium Hydraulic System – 4.0HP Motor: Industrial-grade 220V motor ensures quiet, smooth, and powerful lifting every time.
-
Fortress-Level Build Quality: Oversized columns, reinforced arms, and high-strength welds deliver unmatched stability and shop-floor confidence.
Product Specifications
| Model | SP-12CFX |
|---|---|
| Capacity | 12,000 lbs |
| Max Lifting Height | 82.75″ |
| Overall Height | 66.75″ |
| Max Rise | 86.50″ |
| Drive-Thru Width | 117.75″ |
| Inside Width | 133.50″ |
| Overall Width | 158.00″ |
| Min/Max Arm Reach | 30.75" – 59.25" |
| Motor | 4.0HP / 220V / 60Hz / 1PH |
Pickup & Delivery
Pickup is available at Supreme locations in Pooler, GA / Houston, TX / Kalamazoo, MI / City of Industry, CA.
For questions, call, text, or chat with us at 866-774-7743.
