Schulz V-Series 7580VV30X-3 7.5-HP 80-Gallon Two-Stage Air Compress...

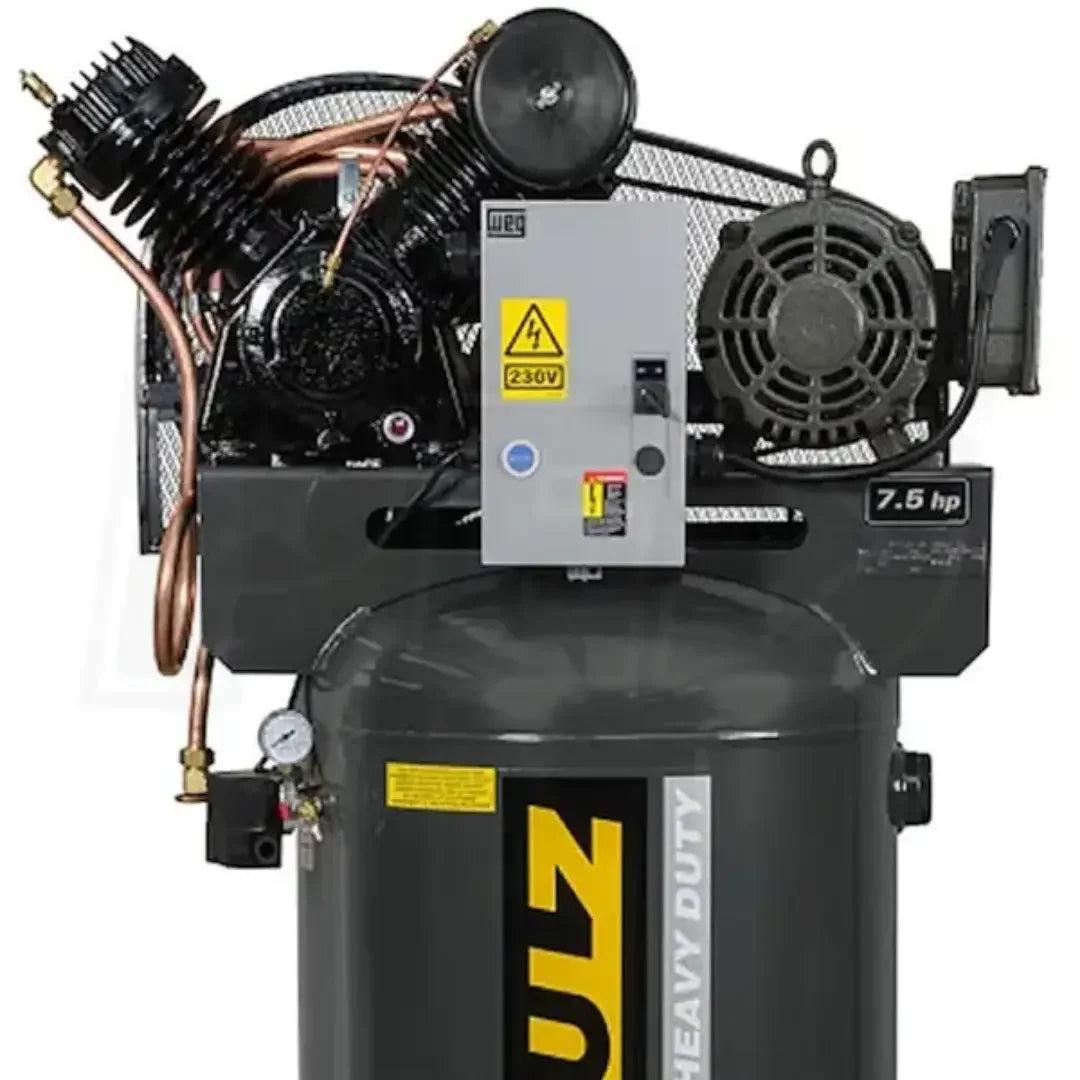

Schulz V-Series 7580VV30X-3 7.5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
V-Series compressors are built to handle tough, continuous-duty applications with strength and reliability. These two-stage units are available with either vertical or horizontal tanks and feature low-RPM operation to reduce wear over time. Constructed with high-grade cast-iron blocks, they’re designed for long service life and dependable output. The V-style cylinder layout enhances heat dissipation, resulting in cooler compressed air and improved overall efficiency.
Each model includes a factory-mounted, prewired magnetic starter to support safe and easy startup. With ASME-certified air receivers, built-in safety valves, and energy-efficient motors, the Heavy Duty V-Series offers a turnkey solution for operations that demand consistent air delivery and minimal maintenance.
WEG Electric Motor
7.5 HP motor reliably handles commercial duty demands
V-Series Cast Iron Pump
Runs cooler, lasts longer due to the space between each cylinder
Deeper cylinder fins for additional heat dissipation
Oversized Main Bearings
Sturdy & reliable
Swedish Steel Valves
Quality components contribute to pump efficiency
CNC Machined Components
Accurate fit produces top-notch performance
Notched Belts Standard
Enclosed belt guard protects the belt & operators
Powder Coated Components
Resist rust & corrosion
1 Year Unit With 2 Year Pump Warranty
Protects your investment
Product Features
- WEG Electric Motor
- V-Series Cast Iron Pump
- Oversized Main Bearings
- Swedish Steel Valves
- CNC Machined Components
- Notched Belts Standard
- Powder Coated Components
- 1 Year Unit With 2 Year Pump Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 7.5 |
Pump
| CFM | 30 |
| CFM Rated @ | 175 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Overview
| Weight | 565 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 32 Inches |
| Product Width | 25 Inches |
| Product Height | 78 Inches |
| Power Type | Electric |
