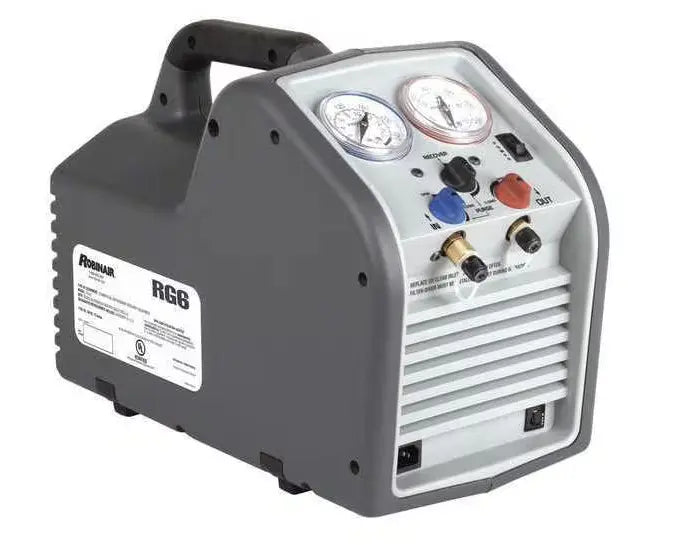

Robinair RG6 Portable Refrigerant Recovery Machine
The RG6 is a portable recovery machine designed around one problem in particular: recovery gets slow when the machine gets hot, and recovery work does not happen in comfortable places. The answer here is an oversized condenser paired with a larger fan, laid out in a cross-flow arrangement so air moves through the coil rather than around it. That is the reason to choose this machine over a smaller one — not headline speed on a bench, but the ability to keep pulling at a useful rate on a hot roof, in an unventilated plant room, or at the fourth job of the afternoon.
It is a twin-cylinder, oil-less design. Oil-less matters for a portable unit because there is no crankcase oil to check, top up or lose when the machine travels on its side in the back of a van, and because an oil-less compressor will handle both liquid and vapour recovery without the precautions an oil-lubricated pump needs. Twin cylinders are what let a machine this size move refrigerant at a rate worth the trip.
Recovery methods, and picking the right one
The RG6 supports push-pull, liquid and vapour recovery. Those are not interchangeable, and choosing correctly is most of the skill in getting a system emptied quickly.
Push-pull is the method for large charges — the machine drives vapour into the top of the system to force liquid out of the bottom and into your recovery cylinder, and it moves refrigerant far faster than pulling vapour ever will. It needs a system with a substantial liquid charge and a way to connect both paths, so it is a commercial and industrial technique rather than a small-split one. Liquid recovery is the fast path when you can get liquid to the machine directly. Vapour recovery is what finishes the job: slower, but it is what takes the system down to the vacuum level that lets you sign it off. A machine that only does one of the three makes you work around it.
Self-purge, and the contamination problem it solves
The self-purge function clears the machine's own internal passages of the refrigerant it has just handled. This is the feature that stops a service call turning into a warranty argument. Every recovery machine holds a residue of the last charge it processed; move straight from one refrigerant to another and that residue goes into the next system. Cross-contaminated refrigerant is not a problem you find on the day — it is a problem the customer finds later, and the machine is the obvious suspect. Purging between jobs is also simply faster than the manual alternative.
The high-pressure shut-off
A high-pressure safety switch shuts the machine down automatically if pressure climbs above 550 psi. Pressure rises like that when a recovery cylinder is fuller than the technician thought, when a cylinder valve is closed, or when ambient heat pushes head pressure up on a long recovery. On a machine without the switch, the operator is the safety system. Here the machine stops on its own, which is the right design for a unit that is regularly left running while its operator works on something else.
Check these figures with us before you order
Published specifications for this machine differ, and part of the specification list describes the RG3 — the smaller machine in the same family — rather than the RG6. Two of the lines are RG3 lines: that model's weight of 18 pounds, its 40 percent smaller footprint and its refrigerant compatibility list. Read those as RG3 figures, because that is what they are.
The electrical and compressor entries differ from one another as well. One gives a 1/3 HP, 115V AC, 60 Hz single-cylinder compressor; the other gives the compressor as 3/4 hp direct drive and the supply as 110V AC. A single-cylinder rating and a twin-cylinder rating describe different machines, and those two horsepower figures are not the same motor.
If the compressor rating, the supply voltage, the shipping weight or the exact refrigerant compatibility list is what your decision turns on, confirm it with us in writing before you order — we will get each figure straight from Robinair. What the machine is and how it works — twin-cylinder, oil-less, oversized condenser, self-purge, push-pull, liquid and vapour capability, and the high-pressure shut-off — reads the same in every source, and is what this page is written on.
Perfect For
-
Mobile service technicians. A machine you carry to the equipment, not one the equipment has to come to.
-
Commercial and industrial refrigeration work. Push-pull capability is what makes large charges practical.
-
Hot-climate and rooftop work. The condenser and fan sizing is the whole point of this model.
-
Shops recovering across different refrigerants. Self-purge is the routine that keeps one job out of the next one.
What Is in the Box
Our record covers the recovery machine itself. It does not list hoses, gauges, a recovery cylinder or a scale, and none of those should be assumed to be included — a recovery machine is normally sold as the machine. Ask us before ordering if you need the unit to arrive ready to work rather than ready to be connected to kit you already own.
Certification, stated plainly
Our product data claims no third-party certification or safety listing for this machine. That is a gap in what we hold rather than a statement about the equipment. Refrigerant recovery is one of the areas where an insurer, a fleet contract or a state handling programme may require equipment carrying a specific listing, so if any of that applies to you, ask us to confirm it in writing rather than inferring anything from this page. The same applies to the refrigerant compatibility question raised above: confirm it for the refrigerants you actually work with.
Shipping and delivery
This item ships to the lower 48 states, with freight quoted live at checkout rather than fixed in the copy, so what you see is current for your address. You will need to be able to take the shipment: either receive and unload it yourself, or arrange to collect from the carrier terminal. Delivery to a residential address is available and carries a residential fee, which checkout shows before payment. Check the packaging over while the driver is still with you, and note any damage on the delivery paperwork before signing. Signing clean and reporting damage later is the version of this that goes badly.
Warranty and service
Our record points to the Robinair warranty claims process rather than stating a term, so we are not going to print a term we cannot source — ask us and we will confirm the current coverage for this model before you buy. One rule holds for the whole of it: if the machine faults, contact us before you take anything apart. Opening the housing or attempting an internal repair is the most common way a valid claim becomes an invalid one.
