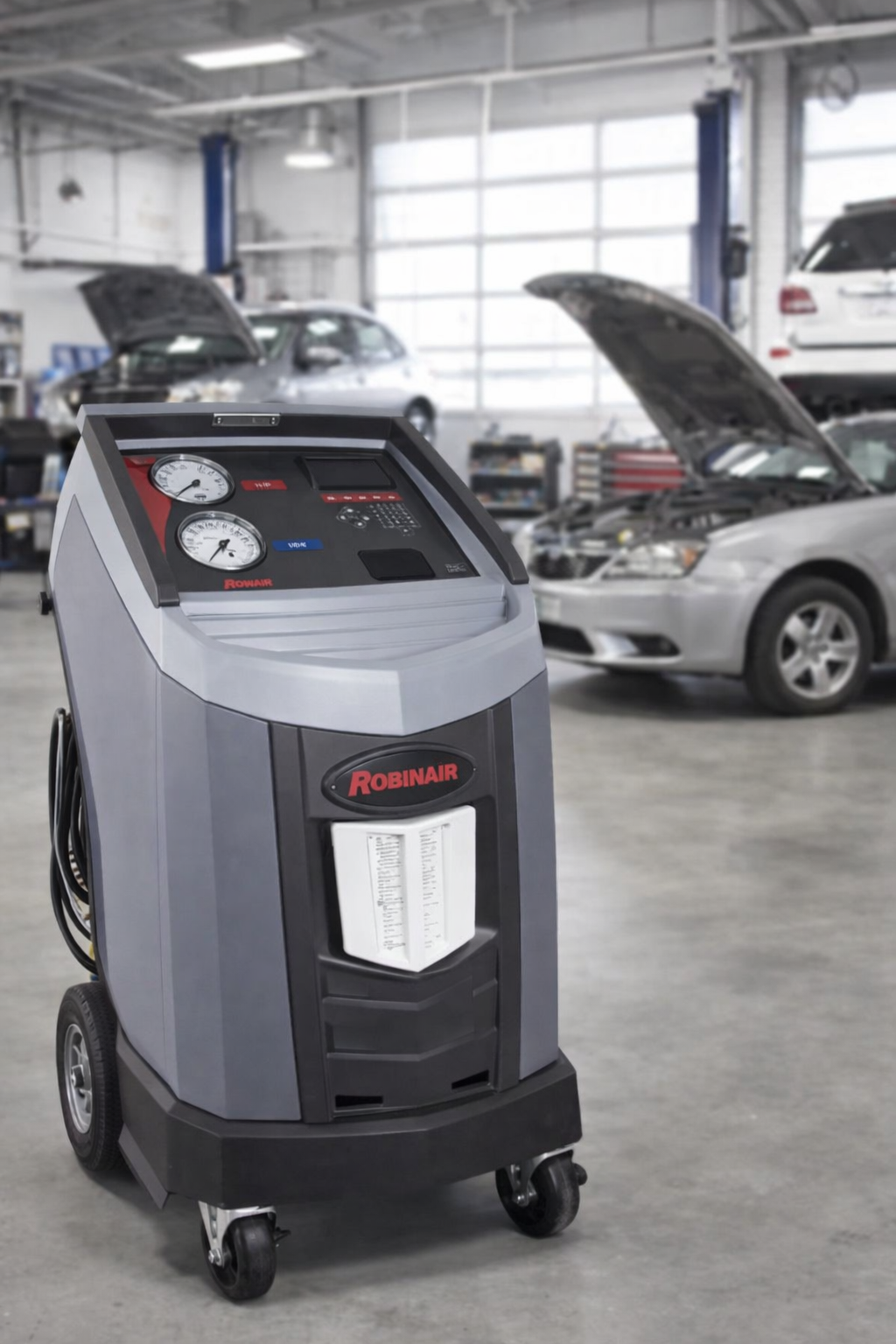

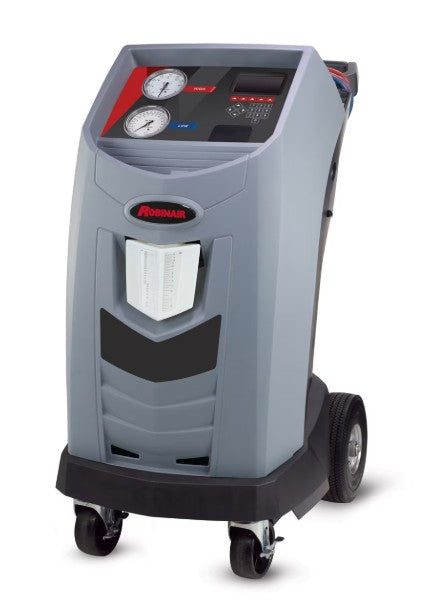

Robinair 34788NI-H Fully Automatic AC Recovery Recycle Recharge Machine EV

Robinair 34788NI-H: an A/C service machine built to work on high-voltage electric compressor systems

The 34788NI-H is a fully automatic recovery, recycling and recharge station for automotive air conditioning work. The reason to look at this particular model rather than a conventional shop station is narrow and specific: it is set up to service high-voltage electric compressor systems, which is what hybrid and battery-electric vehicles use in place of a belt-driven compressor. If your bays are starting to see those vehicles and your existing station was never intended for them, that single capability is the whole argument for this machine.

Everything else about it is the familiar professional pattern. A technician programs a sequence, walks away, and comes back to a job that has been recovered, evacuated, leak-checked and recharged without anyone standing over a manifold turning valves.

Fully automatic, but not locked into automatic

The distinction matters more in practice than it reads on a spec sheet. In automatic mode the station will run recovery, vacuum, leak test and charge as one programmed sequence, so a routine service job occupies the technician for the two minutes it takes to connect and start it rather than the better part of an hour of intermittent attention. That is the case for automation on volume work.

But diagnostic work is not routine work. When you are chasing a slow leak, or evacuating a system you have just opened, or recovering from a vehicle whose history you do not trust, you want to run one function, stop, look at what happened, and decide. The 34788NI-H lets each function run independently for exactly that reason. A station that only knows how to run the whole cycle forces you to work around it; this one does not.

The record it leaves behind

This machine stores service data and prints it. That sounds like a convenience feature and it is really a liability feature. A printed record of the before-and-after condition of a system, produced by the equipment rather than written on a shop ticket by hand, is the document that settles an argument about whether a system was low when it arrived or whether the shop undercharged it on the way out. It is also what a fleet or warranty customer expects to be handed.

Alongside the printed record, the station tracks refrigerant usage and monitors the life of its own filter, warning both visually and audibly as that filter approaches the end of its service life. Filter condition is one of the things that quietly degrades recovered refrigerant quality in a busy shop, because nobody is tracking it until something goes wrong. Being told is better than remembering.

Automatic oil drain, air purge and the optional capacity database

Three of the fiddly, easily skipped steps in A/C service are handled for you here. The station alerts the technician when the oil container needs emptying, so recovered oil is measured and replaced properly instead of being estimated. It purges non-condensable gases automatically, which removes the step where somebody watches a gauge and makes a judgement call about how much air is in the recovered charge. And it can flush a system with refrigerant to clear contaminants, which is the difference between replacing a failed compressor and replacing a failed compressor twice.

An optional database of refrigerant and oil capacities for North American vehicles is supported. Looking a capacity up in the machine, rather than in a book or a browser tab, is one fewer opportunity to charge a system to the wrong figure. Note that this is listed as optional support rather than as standard content, so if you intend to rely on it, confirm with us what is included with the unit as shipped before you order.

Connectivity you can add later

The 34788NI-H is described as upgrade ready, with optional accessories that add wireless connectivity for VIN scanning, refrigerant capacity lookup and wireless temperature monitoring. That is worth understanding correctly at the point of purchase: these are accessories, not features of the base machine. The station is fully capable without them. If wireless vent-temperature monitoring or VIN-driven capacity lookup is part of why you are buying, ask us which accessory covers it and whether it is in the box.

Perfect For

• Independent shops taking on hybrid and electric work. The high-voltage electric compressor capability is the reason this model exists in the range.
• High-volume general service shops. Programmed sequences turn A/C service into a job a technician starts rather than a job a technician performs.
• Dealership and fleet operations. The stored and printed service data is what those customers ask for after the work is done.
• Shops that want documentation, not recollection. Refrigerant tracking and filter-life alerts put the record in the machine.

What Is in the Box

Our product record for this machine describes the station itself and the capabilities built into it. It does not itemise a packing list, and we would rather tell you that than invent one. The connectivity upgrades and the refrigerant and oil capacity database are both described as optional, which means they should be treated as separate items unless we confirm otherwise in writing. If a specific accessory, hose set or starting refrigerant charge matters to your decision, contact us before ordering and we will confirm exactly what ships.

Specifications we can confirm

Why this table is short. Our catalogue record for the 34788NI-H carries no dimensions, no weight, no tank capacity and no electrical requirement. We could copy those figures from somewhere else, and a shorter table is the honest alternative. If you need the footprint, the shipping weight or the power requirement before you commit, ask us and we will get the figures from the manufacturer rather than guess at them here.

Certification, stated plainly

Our product data for this machine claims no third-party certification or equipment listing of any kind. That is an absence in what we hold, not evidence in either direction about the machine. It matters because some insurers, some fleet contracts and some state refrigerant-handling programmes require recovery equipment that carries a specific third-party listing, and a shop that assumes and finds out later has a real problem. If any of that applies to you, ask us to confirm the machine listing in writing before you order, and do not take the absence of a claim on this page as either a yes or a no.

Shipping and delivery

This unit ships by freight to the lower 48 states. Freight is quoted live at checkout, so the figure you see is current rather than an estimate baked into a page. You will need to be able to receive a freight shipment: that means either equipment and hands to get the crate off the truck, or arranging to collect from the carrier terminal instead. Delivery to a residential address is possible and carries a residential fee, which the checkout will show you before you pay. Inspect the crate while the driver is still there, and write any damage you find on the delivery paperwork before you sign it. A signature on a clean bill of lading is very hard to argue with afterwards; a note on that paperwork is what makes a claim straightforward.

Warranty and service

Our record for this product does not state a warranty term, so we are not going to print one. Ask us for the current manufacturer terms before you buy and we will confirm them. One thing that applies regardless of the term: if the station develops a fault, do not open it, do not disassemble it and do not attempt an internal repair before you contact us. Warranty coverage on service equipment is routinely voided by exactly that, and a machine that has been opened is a machine that is no longer straightforward to claim against.
