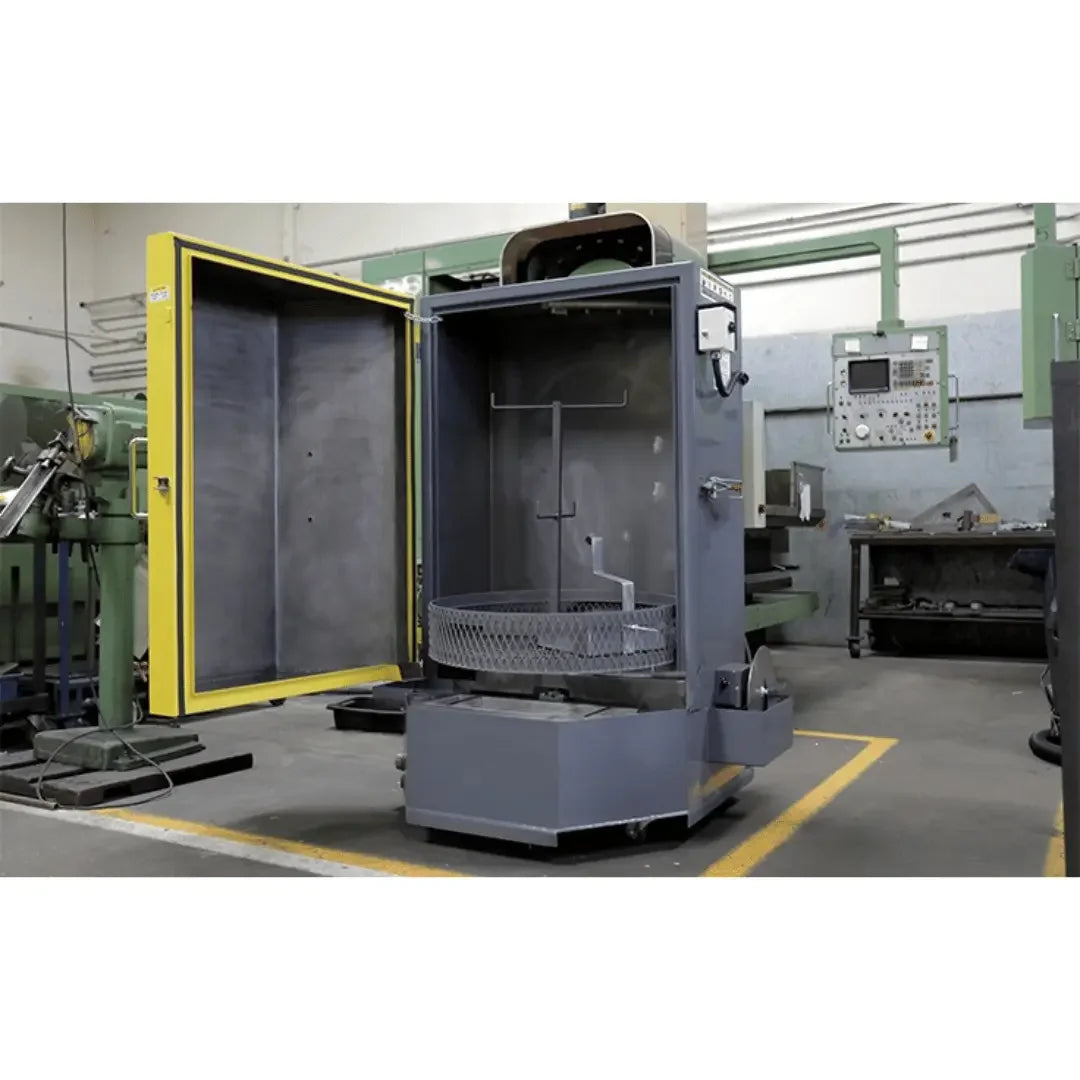

Ranger RS-500D Professional Spray Wash Cabinet With Skimmer
Product Description
Ranger RS-500D Professional Spray Wash Cabinet With Skimmer
Introducing the Ranger RS-500D Professional Spray Wash Cabinet With Skimmer—the premium solution for effortlessly degreasing and cleaning your vehicle parts, no matter how large or small. With a robust 50-gallon capacity, this spray wash cabinet is engineered to handle everything from bulky truck engine components to the smallest nuts and bolts, ensuring that your parts come out looking brand new every time.
Built with performance and durability in mind, the RS-500D features an octagonal full-opening door, offering easy access to the turntable for quick loading and unloading. Constructed from heavy-duty 12-gauge steel and coated with an industrial two-step primer and powder coat finish, this cabinet is designed to withstand the harshest shop conditions. The powerful, industrial-grade 70 gpm pump, brass nozzles, and dual water heaters deliver rapid and thorough cleaning, making this spray wash cabinet the preferred choice for professionals worldwide.
Key features include a fast-release door latch for easy operation, a leak-proof neoprene door seal to prevent spills and evaporation, and a robust filter basket that traps large particles for easy maintenance. The stainless steel oil skimmer extends the life of your detergent by efficiently separating oil from the water, while contamination-proof cabinet welds prevent debris from clogging the system, ensuring continuous, hassle-free operation.
The RS-500D is equipped with stainless steel nozzles that provide a high-quality, corrosion-resistant cleaning experience. Safety and convenience are prioritized with a low-water shutoff feature, a NEMA-rated electrical panel with smart circuitry, and non-marring urethane casters for easy maneuverability. The friction-drive turntable and built-in pipe drains further enhance the unit’s functionality and ease of maintenance.
For versatility, the RS-500D includes a removable tree rack and components basket, perfect for cleaning smaller parts alongside larger items on the turntable. And with the extra accessories that come standard—like the removable parts rack, small parts basket, and a 20 lb. bucket of Aluma-Klean detergent—you have everything you need to get started right away.
Experience the superior performance, durability, and convenience of the Ranger RS-500D Professional Spray Wash Cabinet With Skimmer—the ultimate tool for keeping your parts clean and your operation running smoothly.
Product Features
- Heavy-duty steel construction
- Safe aqueous operation: No harsh chemicals
- 50 gallon tank
- Dual water heaters for quick startup
- Heated cabinet w/ adjustable thermostat
- High-power spray jets clean parts fast
- Automatic low water shutoff
- Removable tank screen
- Stainless oil skimmer
- Removable parts tree
- Powder coat finish
- Stainless steel nozzles
- Full opening octagonal door
- Large drain pipe
- Heavy-duty casters
- Friction-drive turntable system
- Neoprene-sealed wash cabinet
- Contamination-proof interior welds
- Gasket-free door
- Small parts basket
- Stainless steel handles
- Free bucket and soap included
Product Specifications
| Overall height | 66" (1,676 mm) |
| Inside height | 43" (1,092 mm) |
| Inside width | 32" (813 mm) |
| Turntable diameter | 30" (762 mm) |
| Tank capacity | 50 gallons |
| Recommended floor space | 44" x 43" (1,118 mm x 1,092 mm) |
| Load capacity | 500 lbs. (227 kg) |
| Cycle timer | 0 - 60 min |
| Brass nozzles | 18 |
| Steel construction | 12 Gauge / .109 thickness |
| Pump output | 75 psi @ 70 gpm |
| Motor | 1 HP / 220 VAC / 60 Hz / 1 Ph |
| Electric heater | 6 kW |
| Water temperature | 160° - 180° F (71° - 82° C) |
| Shipping weight | 680 lbs. (308 kg) |
| Shipping dimensions | 46" x 46" x 68" (1,168 mm x 1,168 mm x 1,727 mm) |
Pick Up and Delivery
Our Pick Up locations for Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
