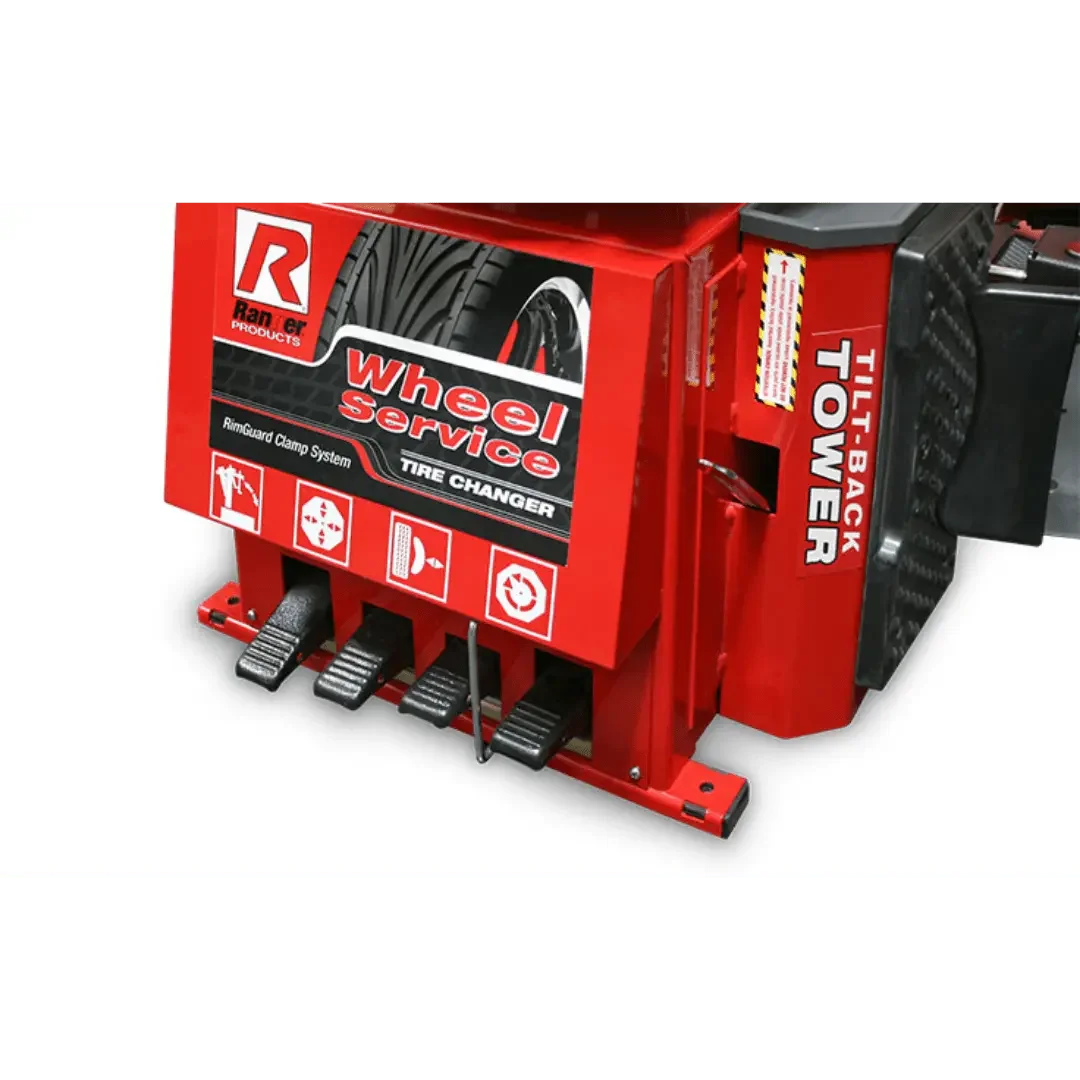

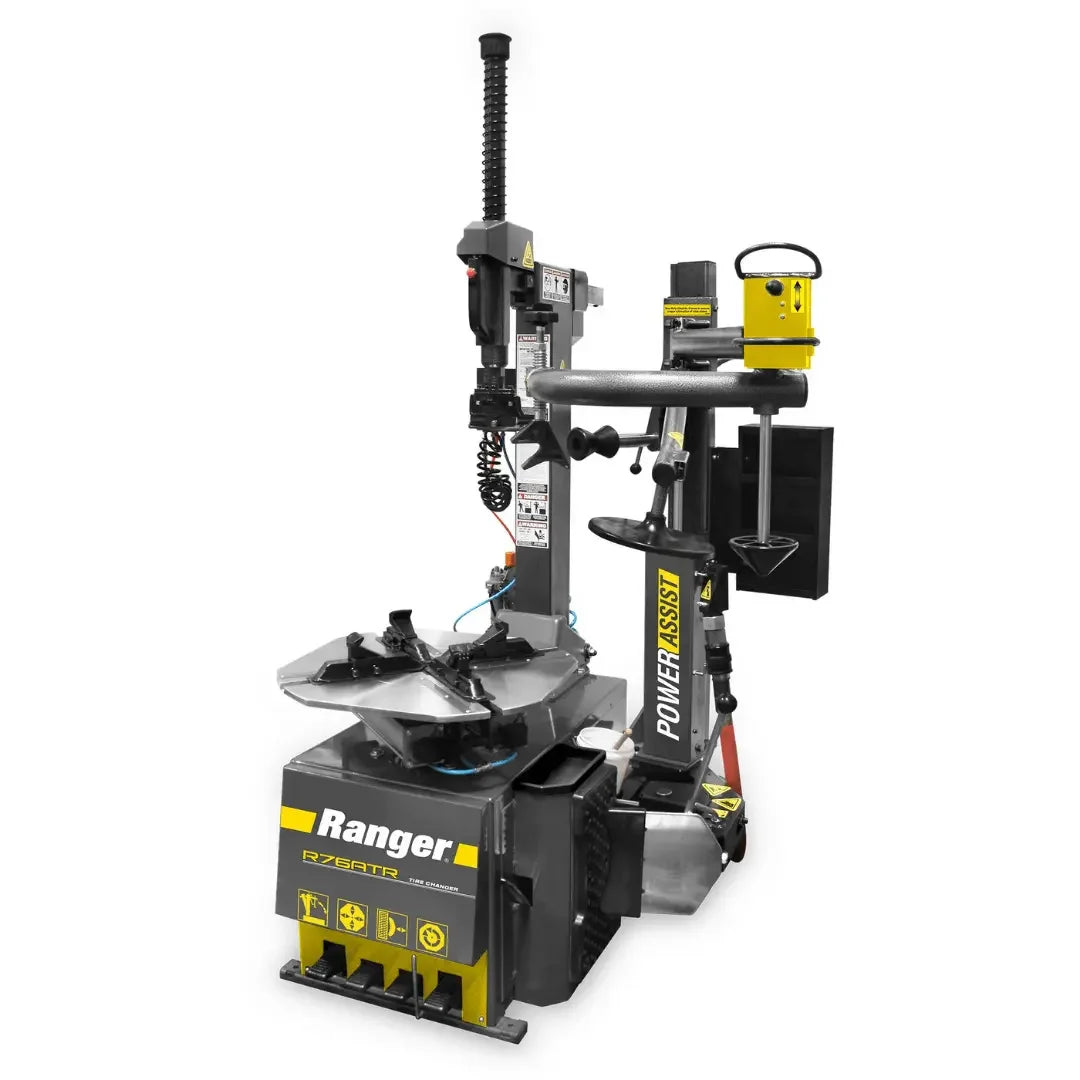

Ranger R76ATR: the tower tilts back, so the tool head stays where you set it
The R76ATR is a professional tire changer built around one mechanical decision that shows up in every single job: the tower tilts backwards away from the turntable instead of standing rigid over it. On a fixed-tower machine you re-set the mount/demount head for each new wheel diameter you load. On the R76ATR you tilt the tower back, load the next wheel, bring it forward again — and because the vertical shaft locks pneumatically, the head comes back to the position you last set. Run a matched set of four wheels and that is three setups you did not have to make, on every set, all day.
Paired with that tower is a right-side power assist arm, which decides whether a stiff-sidewall tire is a two-minute job or a fight. Together they make this the specialist machine in the line-up — a changer for shops that see run-flats, low-profile fitments and expensive alloys rather than only commuter steel.
What the tilt-back geometry actually buys you
Two things, and both are about the space above and around the turntable. Tilting the tower back opens ground clearance over the table, which is what makes loading a heavy assembly and getting an inflator chuck onto a valve stem straightforward rather than a contortion. It also takes the tower out from directly over the wheel while you work the bead, so your sightline to the lower bead stays clear during mounting and inflation — the geometric tabletop is designed around that same idea, letting you see the lower bead to lubricate and inspect it rather than working by feel.
The second benefit compounds over a shift: a pneumatically locked tool head that holds its setting through a tilt cycle means the machine remembers the wheel profile for you. Rubber bump-stops catch the tower on its return so the stop is cushioned instead of shock-loaded, which is the difference between a mechanism that stays accurate and one that drifts out of adjustment over a few thousand cycles.
The right-side assist tower, and what it is really for
Assist towers get sold on power. What they actually provide is a third and fourth hand at the two moments when a tire will damage itself. The first is demounting a stiff sidewall, where the upper bead has to be held down in the drop-centre of the rim while the head comes round; the multi-profile traveling drop-centre tool travels with the work, holding the bead in the well instead of letting it climb the rim flange and stretch. The second is mounting, where a power-drop top bead assist roller keeps a reluctant top bead seated as the head passes.

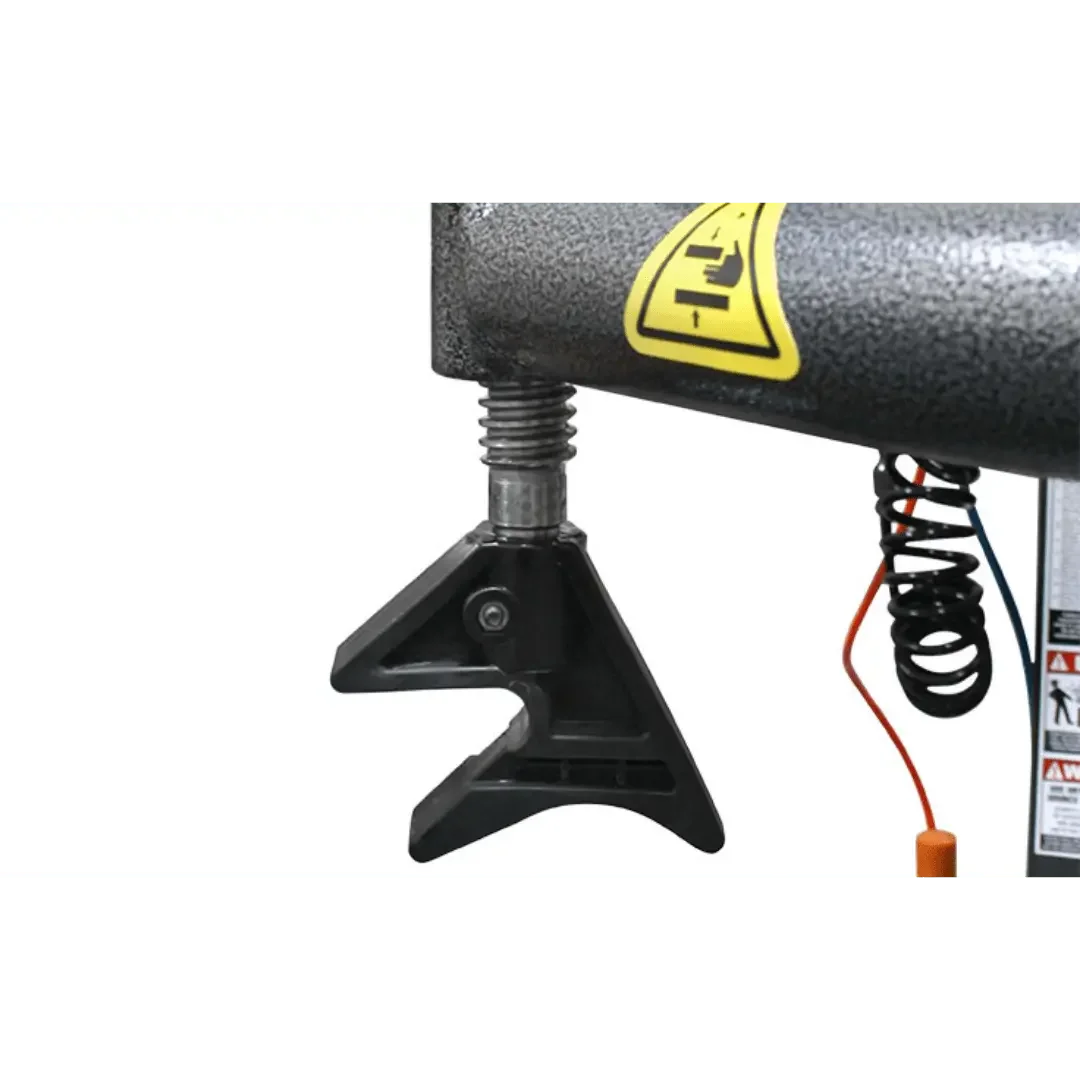

Underneath, a lower-bead lifting disc unseats a stubborn bottom bead or elevates the tire enough to get a tool beneath it, which removes a lot of prying. Trigger control sits up front where your hands already are, the articulating arm places the assist components where the wheel needs them, and the carriage is a tri-flange cast-iron assembly on linear way bearings — the maintenance-free version of that mechanism rather than the greased-slide version.
The bead breaker, and the reason for a 100% stainless cylinder
Shop air carries water. That is not a criticism of anyone's compressor — it is what happens when you compress humid air and cool it down — and it is why pneumatic components in a tire bay fail from the inside. The bead-breaker cylinder body on the R76ATR is 100% stainless steel for exactly that reason: moisture that gets past a filter cannot corrode the bore it sits in. Bilateral pneumatic accelerators drive the blade quickly in both directions, so the return stroke is not dead time, and a large dual-flange axle carries the blade so it does not flex or fail early under an off-centre load.
The blade is multi-axis adjustable to suit the tire and wheel combination in front of you, which matters where the bead sits in very different places on a low-profile passenger wheel and a light-truck tire. Box-frame construction gives the blade arm its stiffness, and a large rubber bump-stop cushions the return so the cylinder, guides and pivots are not absorbing a hammer blow every cycle.
Tool shaft, heads, and protecting a customer's wheels

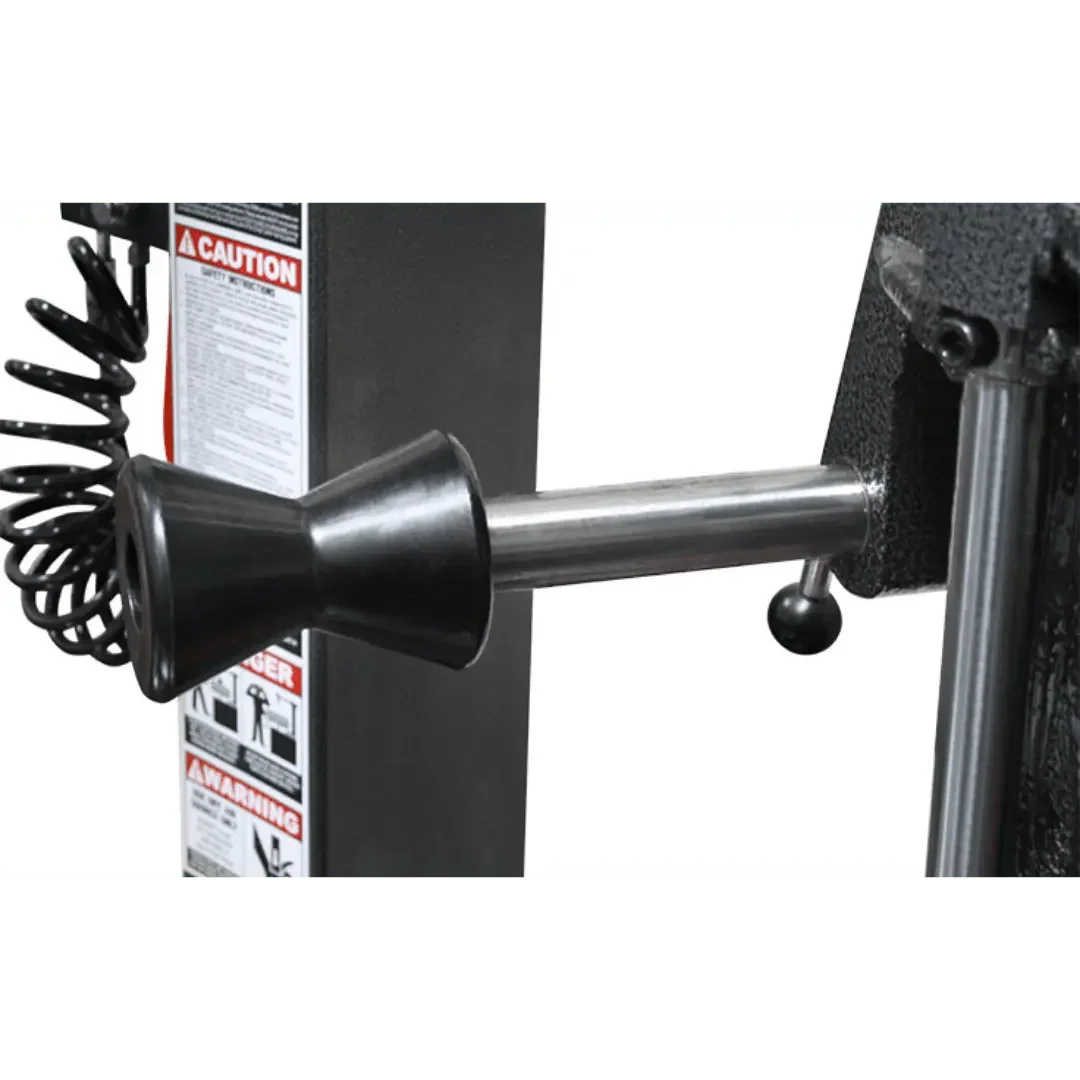

The vertical tool shaft is a 45 mm spring-assisted hexagonal section. Hexagonal rather than round means the head cannot rotate on the shaft under load; the spring assist means you are not lifting the full weight of the assembly by hand each time. With a hardened-steel horizontal outrigger arm, the point is positional accuracy — the head stays exactly where you set it.

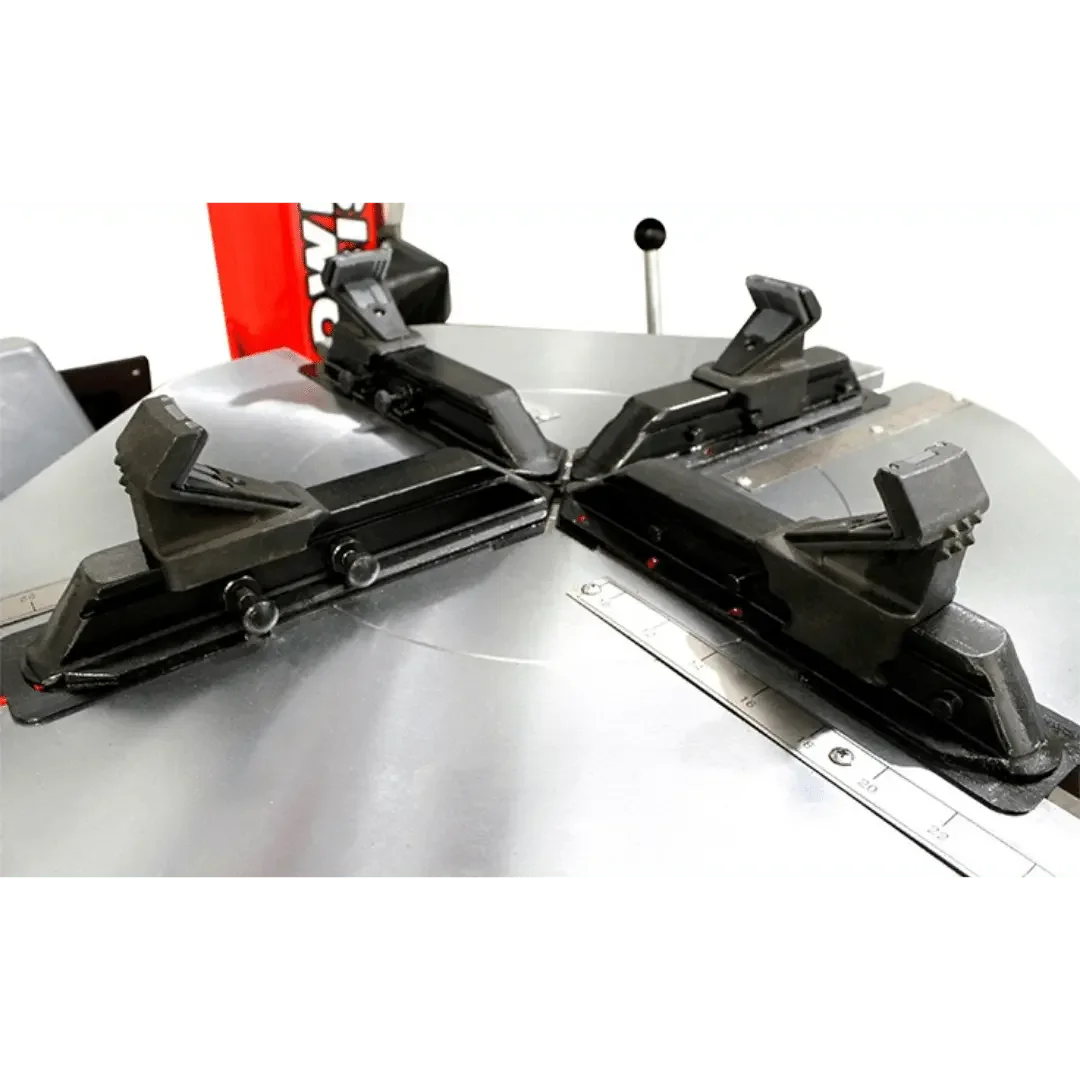

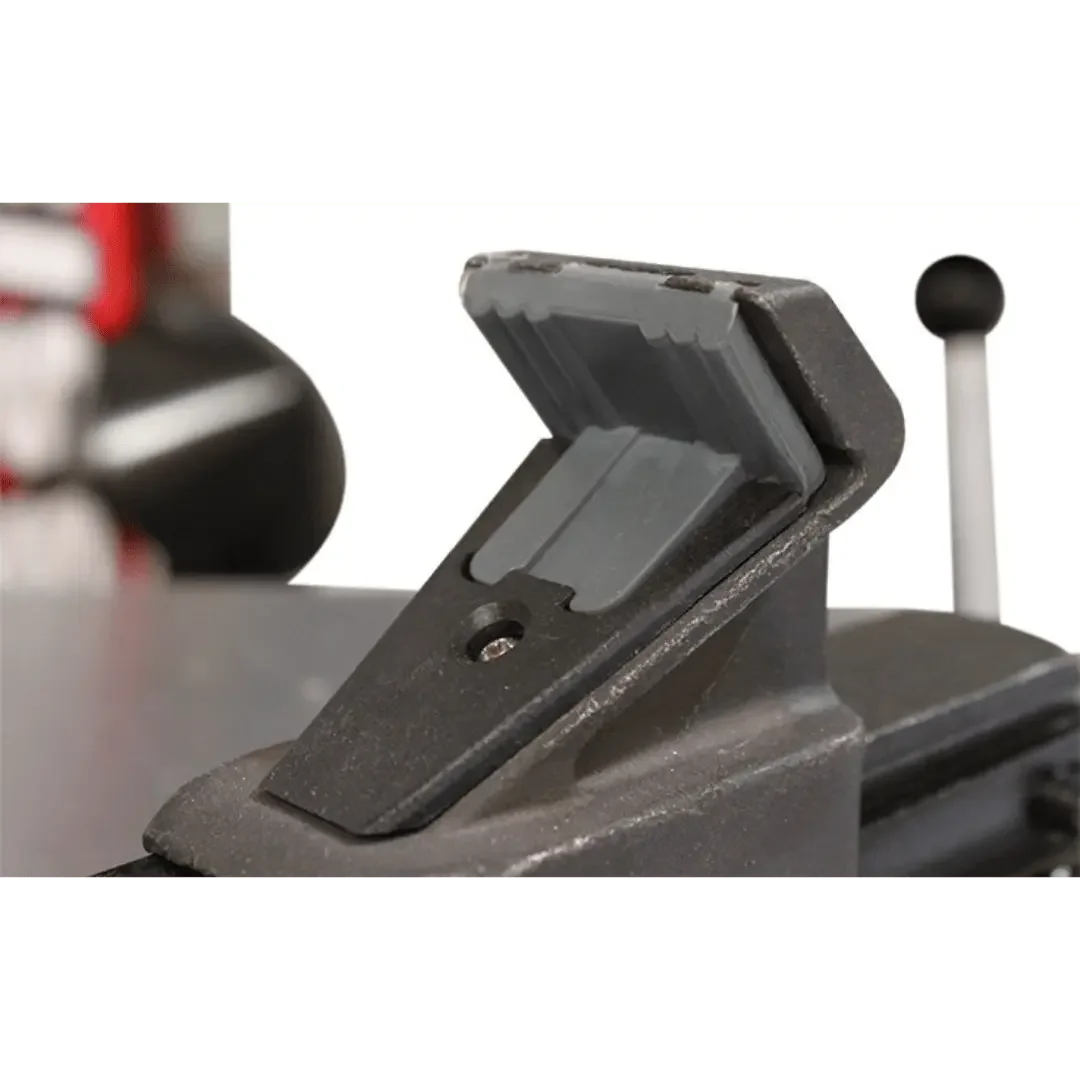

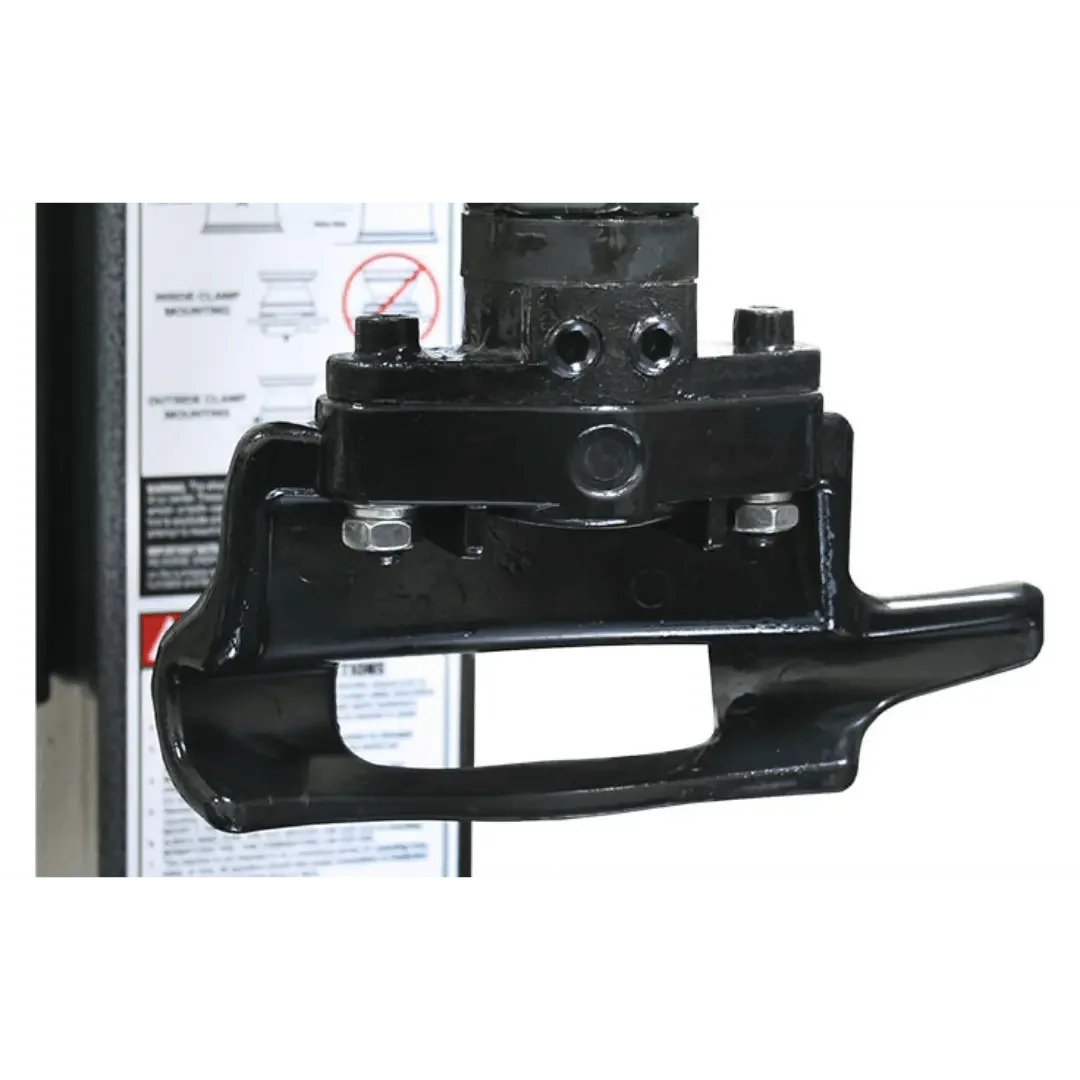

Two heads are supplied. The hardened alloy-steel head is equi-dimensional, so you change function without moving it, and its face is finished smooth so beads glide rather than drag. A nylon head is standard for alloy and powder-coated rims, where metal-to-metal contact is what generates a comeback. RimGuard adjustable clamps are hardened steel with multi-tooth jaws, and clamp position is set anywhere within the range rather than cycling the whole travel to reach a setting.
Will it fit, and what it needs
Plan a recommended footprint of 60" x 50" x 78" for the machine plus working room, and note the shipping crate is 50" x 50" x 68" at 920 lbs. (417 kg) — this is a forklift or pallet-jack item, not a two-person carry.
Air supply is the specification people under-plan. The machine calls for 110-175 PSI, and a bead breaker plus a TurboBlast seating system will draw hard in short bursts, so a compressor sized only for impact wrenches will leave you waiting on pressure recovery between wheels. Power is a 3 HP motor at 220 VAC, 50/60 Hz. An L configuration of this machine is also offered running on 110V, 50/60 Hz with a 2 HP motor and a 20 amp breaker, which is the version to look at if a 220V circuit is not available where the machine has to live. Confirming your available circuit, breaker size and compressor capacity before delivery is the buyer's responsibility, and it is a five-minute check that avoids a machine sitting uninstalled.
Perfect for
-
Tire and wheel specialists handling run-flats and low-profile fitments as routine work.
-
Dealership service departments, where the wheels are expensive and the tolerance for marring is zero.
-
Busy general repair shops changing matched sets all day that want the setup time back.
-
Performance and custom wheel shops, where the nylon head and the assist tower earn their keep daily.
What is in the box
- Four internal/external adjustable RimGuard clamps and dual pneumatic table cylinders
- Adjustable pneumatic bead-breaker blade and tilt-back tower with vertical shaft/tool head positioning
- Alloy-steel mount/demount head and a nylon mount/demount head
- Inflation system with gauge, integrated air dump valve, and pressure regulator/limiter
- Water filter, oiler/lubricator and air regulator
- Bead tool/tire iron, large soap bucket and soap brush
- TurboBlast bead seating system and tool tray/bin storage
- Motorcycle turntable clamps are available as an option, not included
Specifications
| Turntable clamping capacity |
30" |
| Maximum tire diameter |
43" (1,092 mm) |
| Maximum rim width |
15" (381 mm) |
| Motor |
3 HP, 220 VAC, 50/60 Hz |
| L configuration |
110V, 50/60 Hz, 2 HP, 20 amp breaker |
| Air requirement |
110-175 PSI |
| Tower |
Tilt-back, single right-side power assist |
| Shipping weight |
920 lbs. (417 kg) |
| Recommended footprint |
60" x 50" x 78" |
Certification and compliance, stated honestly
The product data we hold for the R76ATR claims no third-party safety listing, and we will not claim one on its behalf. Some insurers, fleet policies and local jurisdictions require shop equipment that carries an independent test-house listing — a document issued by an outside laboratory, which is a different thing from a manufacturer's own declaration of conformity. If that applies to your business, confirm exactly what your paperwork asks for before you order, and ask us if you want help matching a requirement to a machine.
Shipping and delivery
This machine ships as freight within the lower 48 states. The receiving end supplies the means to unload — a forklift, a dock with a pallet jack, or a terminal collection you arrange — so decide which before the truck is booked. Residential delivery is a different service from a commercial dock and carries a residential fee, quoted live at checkout. Inspect the crate before signing and write any damage on the bill of lading while the driver is there; a clean signature is very hard to walk back.
Warranty
Coverage follows the manufacturer's published warranty document for this product, and we will send you the current version before you order if you ask. One practical warning that applies to every pneumatic machine: do not dismantle a cylinder, valve or the tower assembly to investigate a fault before making a claim. Stripping the component removes the evidence the claim is assessed on, and it usually ends the coverage on the part you were trying to fix.
