Quincy 25-HP 132-Gallon, 3-phase Rotary Screw Air Compressor w/ Dryer

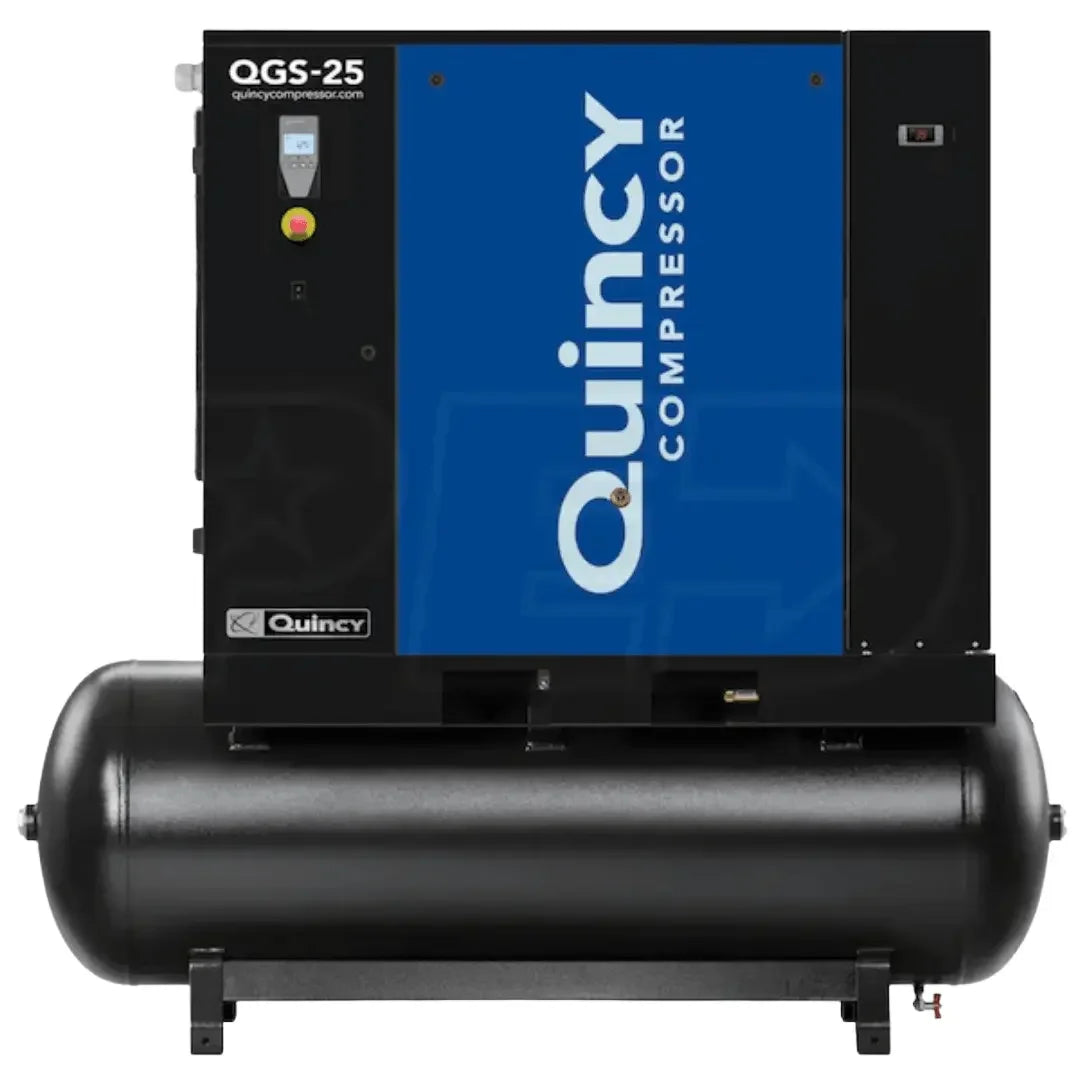

Quincy 4152026541 QGS 25-HP 132-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Built for continuous 100% duty cycle operation, this oil-injected twin screw compressor delivers reliable, quiet power using premium synthetic lubrication rated for 8,000 hours, minimizing oil carryover and protecting key components.
Equipped with the Infologic2 Basic Microprocessor Controller, it networks up to six QGS 20 to 30 HP units, offering fully programmable auto-restart and remote start/stop capabilities. The user-friendly display panel shows auto run, general alarms, power-on LEDs, plus pressure, temperature, and dewpoint data.
Operating quietly thanks to a full sound enclosure and rotary screw technology that reduces vibration, it features a TEFC electric motor with IP 55 wash-down protection, shielding the motor from dirt, moisture, and weather. The Wye-Delta reduced voltage start is designed for industrial applications.
An integrated refrigerant air dryer helps reduce corrosion and supplies clean, dry air for optimal system performance. Maintenance is simplified with fast, out-of-the-box installation, hinged doors, detachable panels, constant fluid monitoring, and a spin-on fluid filter.
Due to size, this unit requires a shipping dock or forklift and is not suitable for liftgate service.
See warranty information below.
Product Features
- Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
- Infologic2 Basic Controller
- Convenient Display Panel
- TEFC Electric Motor (IP 55 Wash Down)
- Integrated Refrigerant Air Dryer
- Quiet Operation
- Increased Maintenance Simplicity
- Extended 3 Year Factory Warranty Available
- True Blue 5-Year Warranty with Quincy Authorized Start Up
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230/460 Volt AC |
| Phase | Three Phase |
| dBA | 69 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 25 |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 99.4 |
| CFM Rated @ | 125 PSI |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Gear Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | Yes |
| Duty Cycle | 100% |
Tank
| Tank Size | 132 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | Yes |
| Air Filter | Yes |
Overview
| Weight | 1,329 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 74 Inches |
| Product Width | 30.7 Inches |
| Product Height | 72.2 Inches |
| Power Type | Electric |
