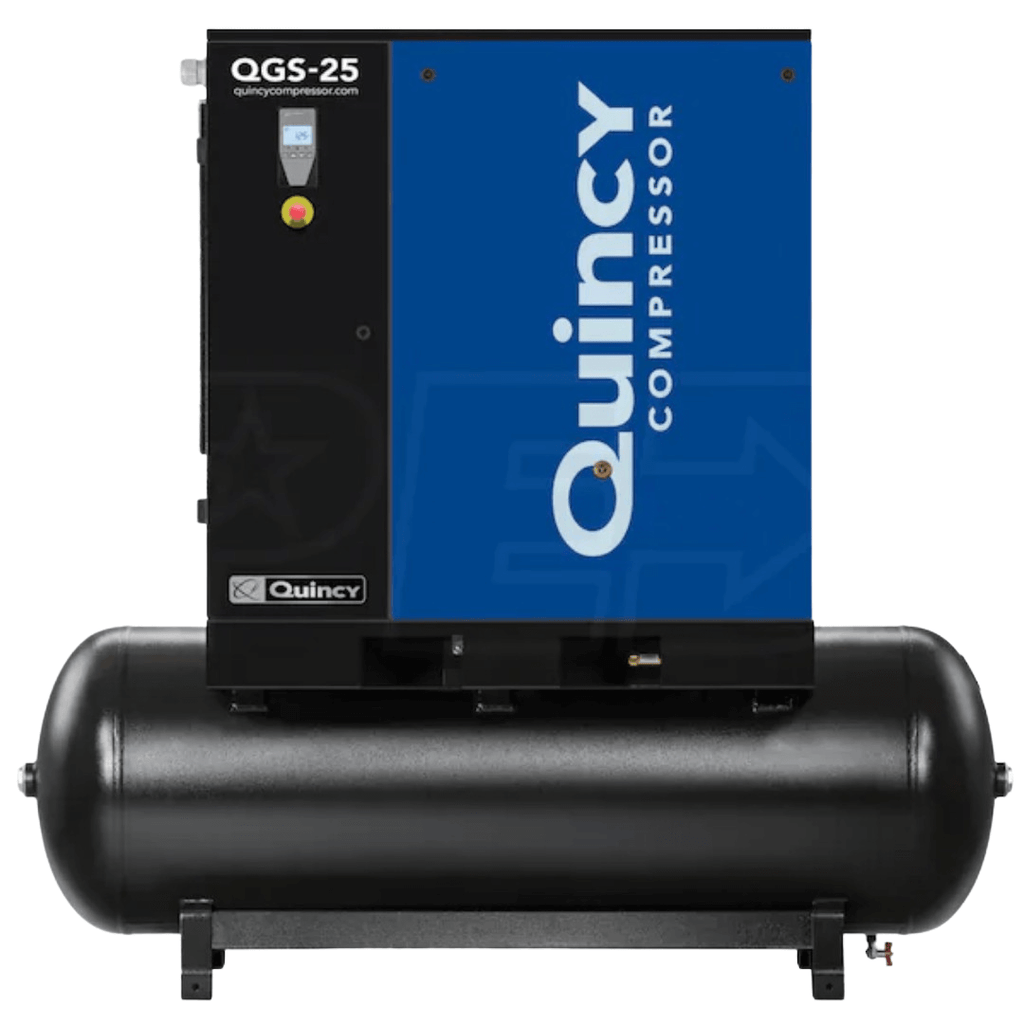

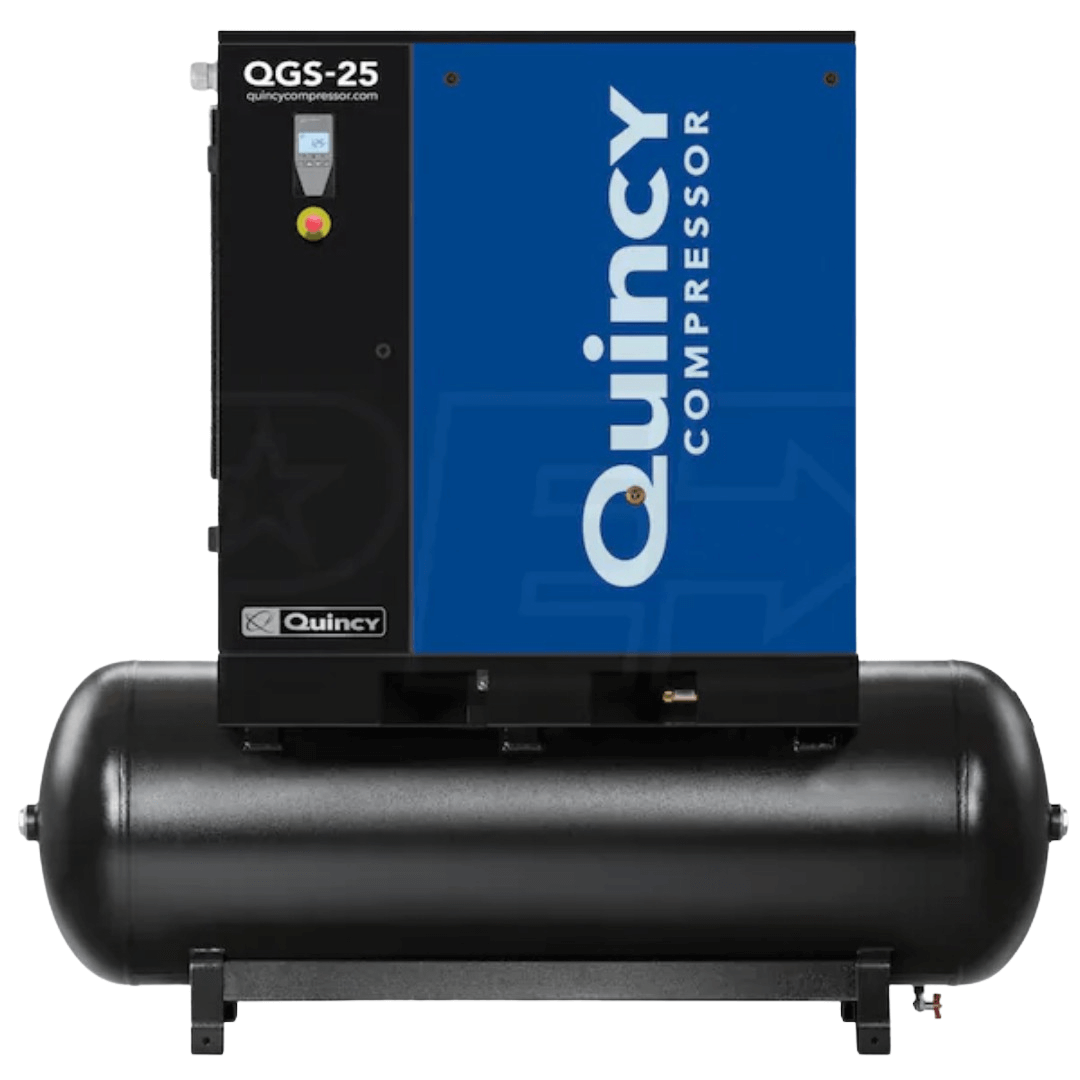

Quincy 4152026529 QGS 25-HP 132-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase)

$19,683.00
Shipping FAQ's

Quincy 4152026529 QGS 25-HP 132-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase)

Designed for 100% continuous duty cycle, this oil-injected twin screw compressor provides reliable, efficient compressed air with premium synthetic lubrication rated for 8,000 hours, minimizing oil carryover and protecting key components.

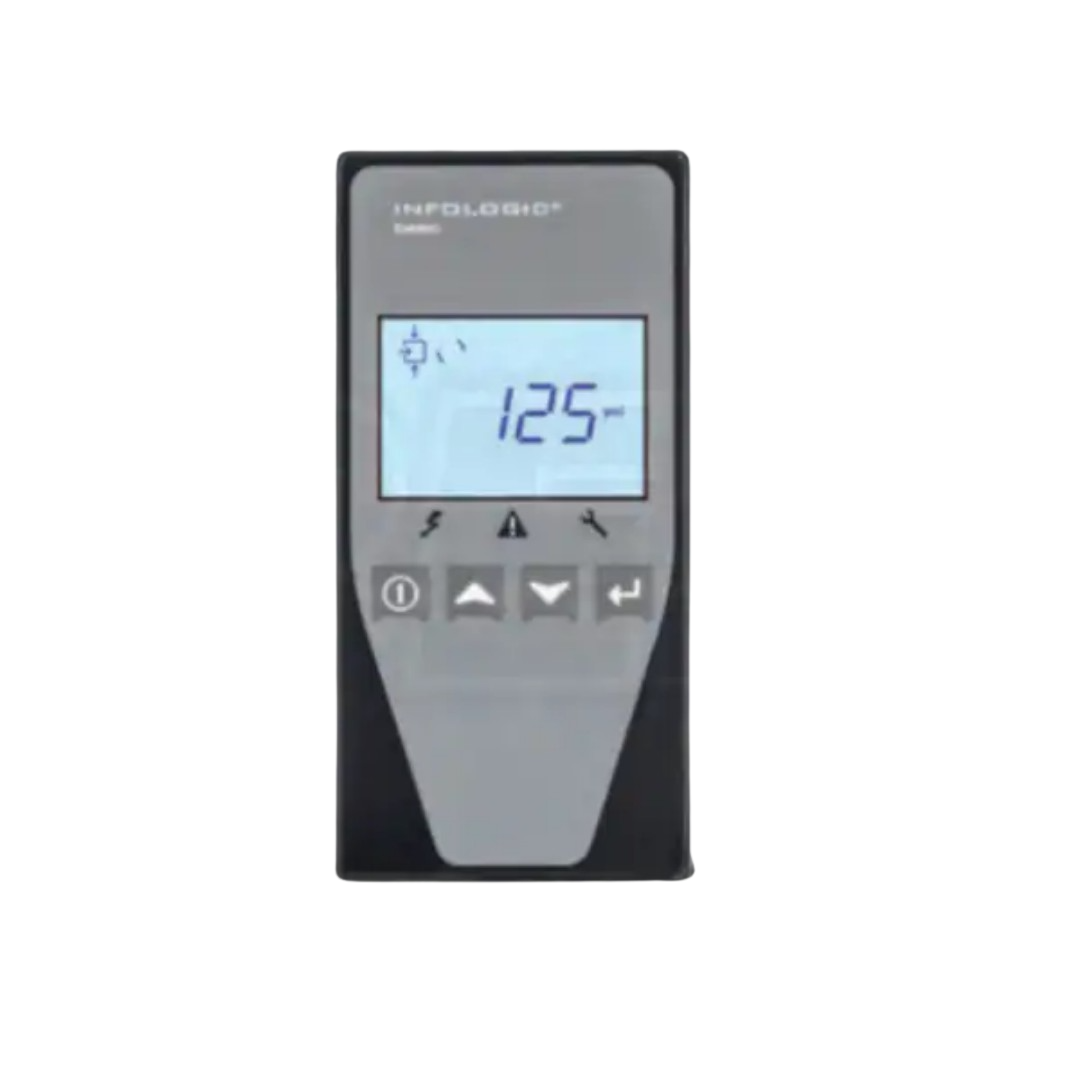

Featuring the Infologic2 Basic Microprocessor Controller, it allows networking up to six QGS 20 to 30 HP units with fully programmable auto-restart and remote start/stop. The convenient display panel offers real-time pressure, temperature, dew point readings, and motor start limit settings.

Operates quietly with a full sound enclosure and rotary screw technology that reduces vibration significantly. The TEFC electric motor with IP 55 wash down protection safeguards against dirt, moisture, and weather. Wye-Delta reduced voltage start is optimized for industrial applications.

An integrated refrigerant air dryer reduces corrosion and delivers clean, dry air to your system. Maintenance is made simple with fast installation, hinged doors, detachable panels, constant fluid monitoring, and a spin-on fluid filter.

This unit requires a shipping dock or forklift for delivery as it is too large for liftgate service.

See warranty information below.

Product Features

  • Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
  • Infologic2 Basic Controller
  • Convenient Display Panel
  • TEFC Electric Motor (IP 55 Wash Down)
  • Integrated Refrigerant Air Dryer
  • Quiet Operation
  • Increased Maintenance Simplicity
  • Extended 3 Year Factory Warranty Available
  • True Blue 5-Year Warranty with Quincy Authorized Start Up

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230/460 Volt AC
Phase Three Phase
dBA 69
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 25
Engine Low Oil Shut-off Yes

Pump

CFM 99.4
CFM Rated @ 125 PSI
Max PSI 125 PSI
Oil Sight Glass Yes
Pump Type Rotary
After Cooler Yes
Pump Drive Gear Drive
Oil Type Oil Lubricated
Pump Low Oil Shut-off Yes
Duty Cycle 100%

Tank

Tank Size 132 Gallons
Tank Included Yes
Tank Outlet 1 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Pressure Gauge Yes
Air Dryer No
Air Filter Yes

Overview

Weight 1,201 Pounds
Certification ASME
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 74 Inches
Product Width 30.7 Inches
Product Height 72.2 Inches
Power Type Electric
