Quincy 132-Gallon Rotary Screw Value Package Air Compressor w/ Dryer

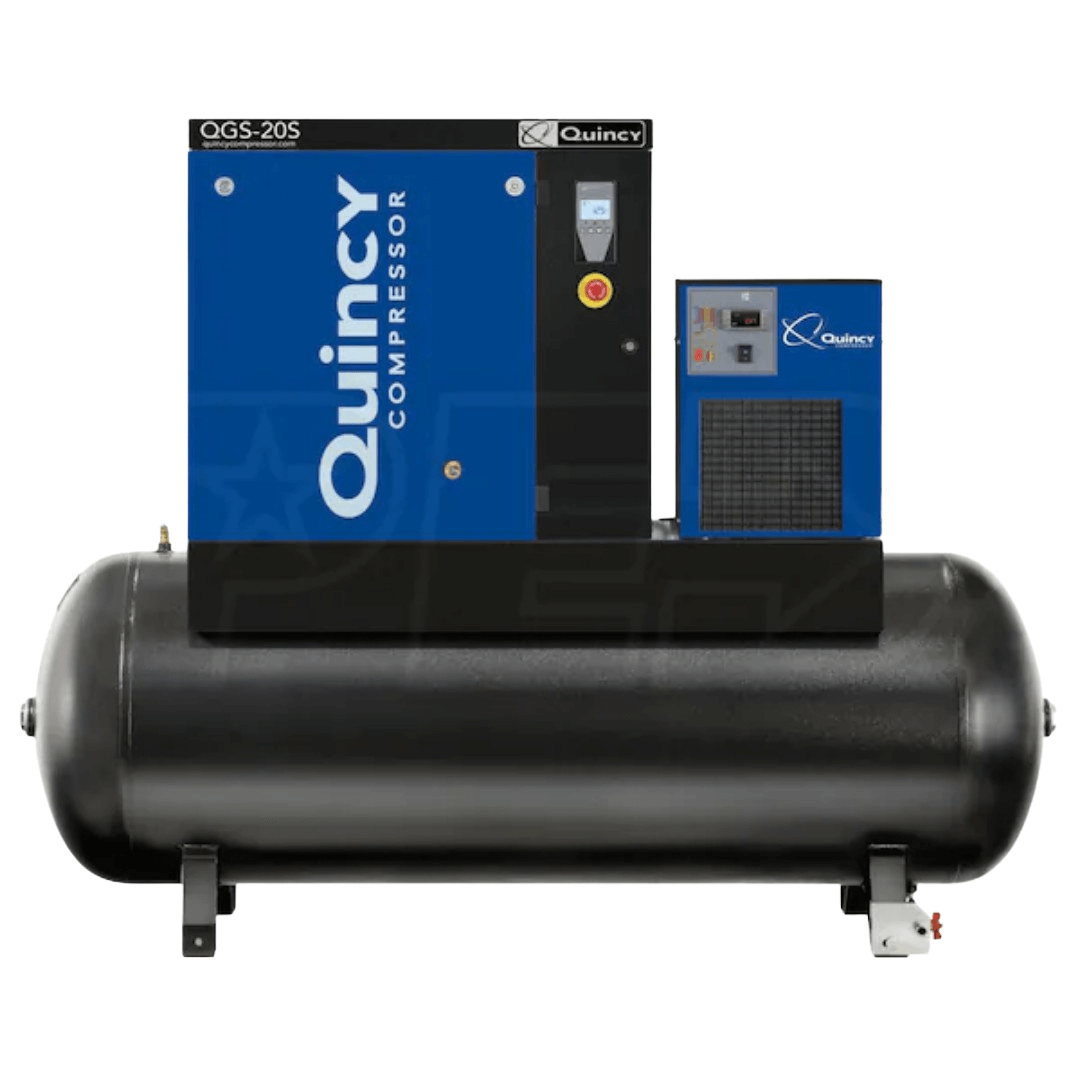

Quincy 4152022000 QGS 20S-HP 132-Gallon Rotary Screw Value Package Air Compressor w/ Dryer (208-230/460V 3-Phase)
Engineered for reliable, continuous-duty operation, this Quincy QGS rotary screw compressor delivers 60.9 CFM at 71 dBA with oil-injected twin screw technology for quiet, efficient power. The integrated refrigerated air dryer removes moisture, dirt, and oil, ensuring clean, dry air output.
Features include the Infologic2 Basic Microprocessor Controller for programmable auto-restart and remote start/stop, a convenient display panel, TEFC motor with wye-delta reduced voltage start, and easy maintenance with hinged doors, detachable panels, and spin-on fluid filters.
This unit requires a shipping dock or forklift for delivery; it is too large for liftgate service.
See warranty information below.
Product Features
- Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
- Value Package QGS-20S Series Features

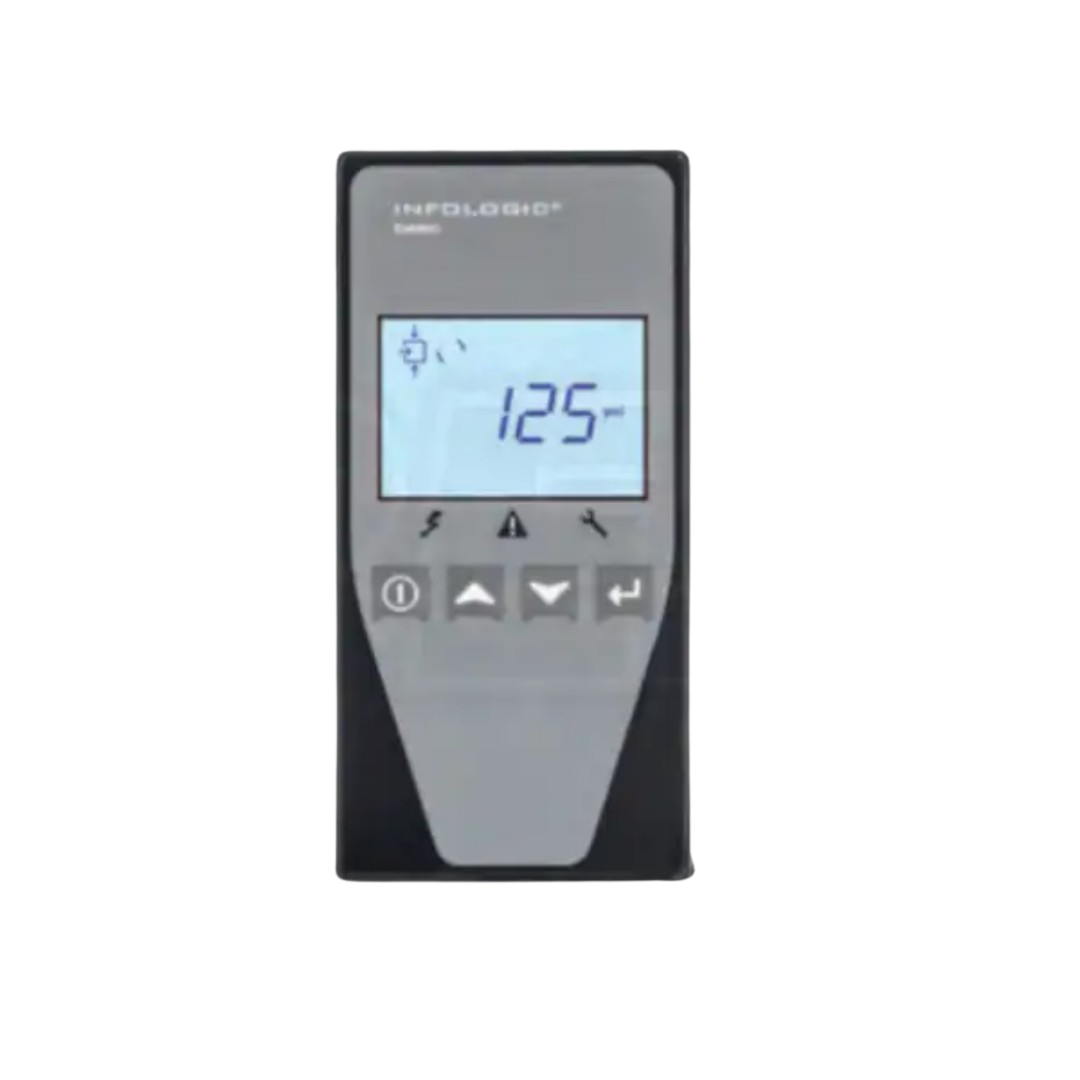

- Infologic2 Basic Controller
- Convenient Display Panel
- TEFC Electric Motor (IP 55 Wash Down)
- Integrated Refrigerant Air Dryer
- Quiet Operation
- Increased Maintenance Simplicity
- Extended 3 Year Factory Warranty Available
- True Blue 5-Year Warranty with Quincy Authorized Start Up
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230/460 Volt AC |
| Phase | Three Phase |
| dBA | 71 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 20 |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 60.8 |
| CFM Rated @ | 125 PSI |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Gear Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | Yes |
| Duty Cycle | 100% |
Tank
| Tank Size | 132 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | Yes |
| Air Filter | Yes |
Overview
| Weight | 1,296 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 74 Inches |
| Product Width | 30.7 Inches |
| Product Height | 72.2 Inches |
| Power Type | Electric |
