Quincy 132-Gallon Rotary Screw Value Package Air Compressor 3-Phase

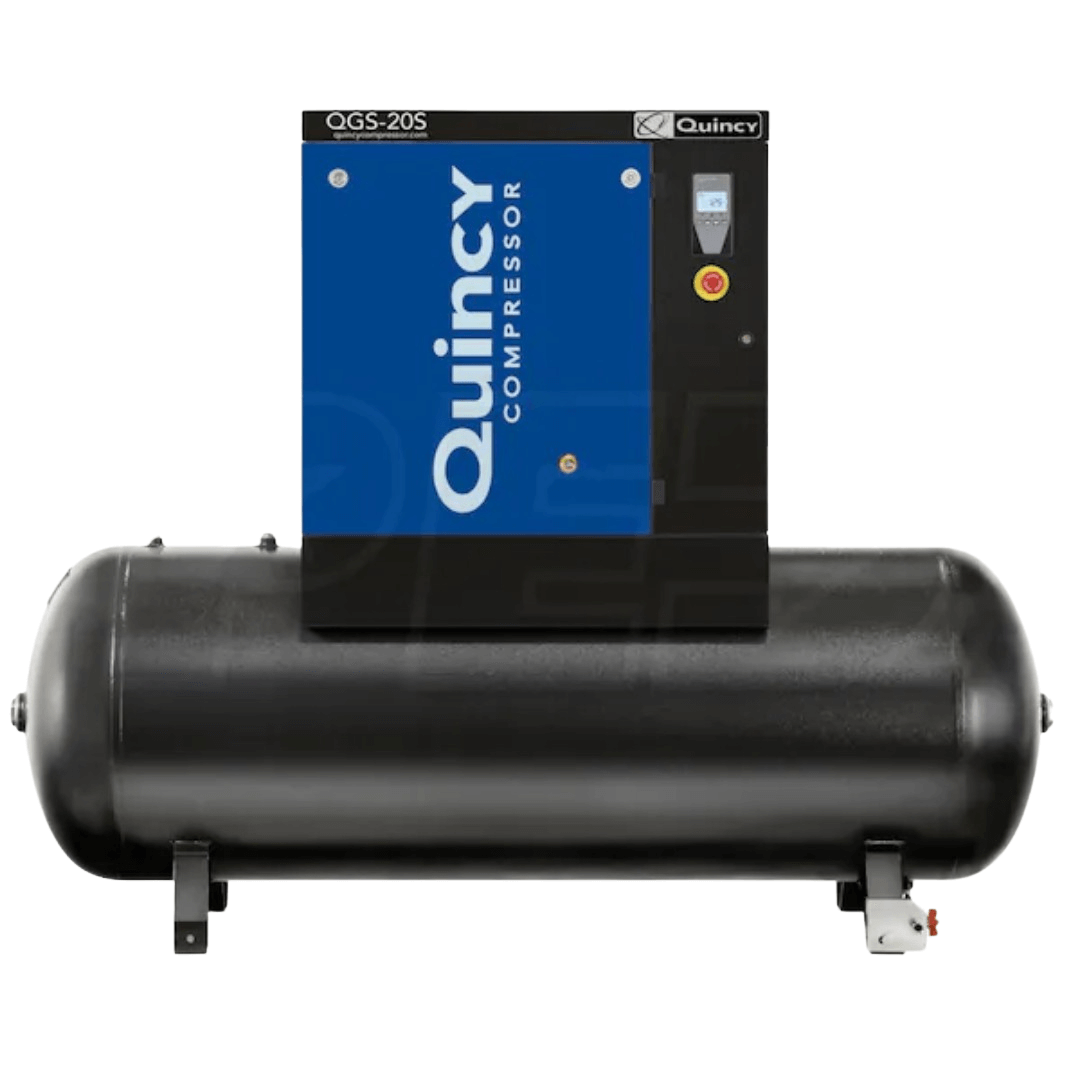

Quincy 4152021996 QGS 20S-HP 132-Gallon Rotary Screw Value Package Air Compressor (208-230/460V 3-Phase)
The Quincy QGS 20S-HP rotary screw compressor value package is built to deliver efficient, reliable air power for demanding industrial operations. Operating at a full 100% duty cycle, it features a highly durable oil-injected twin screw pump with premium synthetic lubrication rated for 8,000 hours, minimizing maintenance while protecting critical components from wear.
Producing 60.9 CFM with a quiet 71 dBA sound level, this 20-HP unit utilizes a compact air end for improved efficiency and reduced footprint. The integrated refrigerated air dryer ensures your system delivers clean, dry air to prevent corrosion and protect pneumatic equipment.

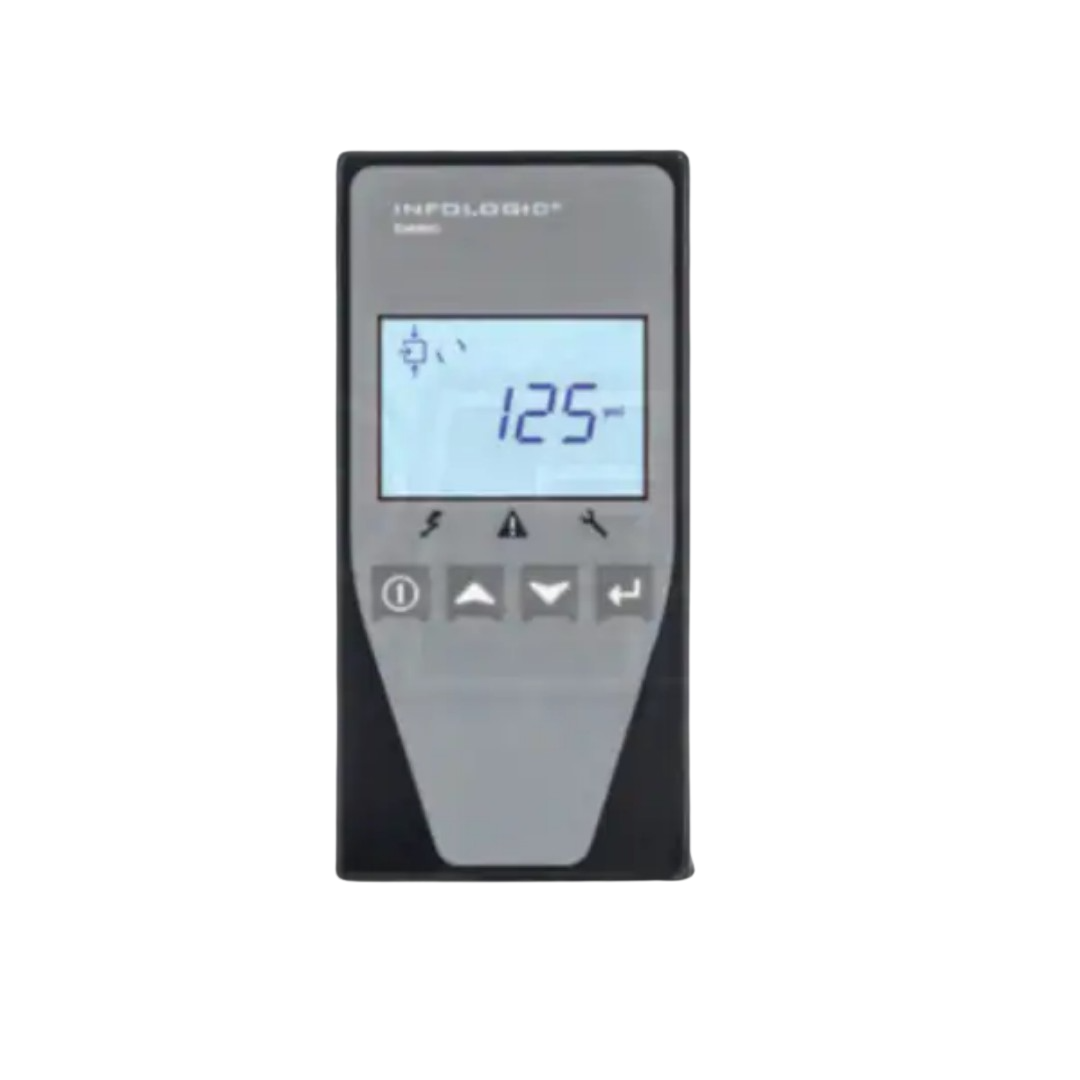

Its Infologic2 Basic Microprocessor Controller allows for advanced programmable auto-restart and remote start/stop functions, while the convenient display panel provides real-time pressure, temperature, and dewpoint data. Built with a TEFC motor and wye-delta reduced voltage start, this compressor is designed for industrial durability and performance.
Maintenance is simplified with hinged doors, detachable panels, spin-on fluid filters, and constant view fluid monitoring. Please note, this unit requires a shipping dock or forklift upon delivery due to its size.
For warranty information, consult Quincy’s registration and maintenance requirements.
Product Features
- Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
- Value Package QGS-20S Series Features
- Infologic2 Basic Controller
- Convenient Display Panel
- TEFC Electric Motor (IP 55 Wash Down)
- Integrated Refrigerant Air Dryer
- Quiet Operation
- Increased Maintenance Simplicity
- Extended 3 Year Factory Warranty Available
- True Blue 5-Year Warranty with Quincy Authorized Start Up
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230/460 Volt AC |
| Phase | Three Phase |
| dBA | 71 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 20 |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 60.8 |
| CFM Rated @ | 125 PSI |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Gear Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | Yes |
| Duty Cycle | 100% |
Tank
| Tank Size | 132 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
| Air Filter | Yes |
Overview
| Weight | 1,184 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 74 Inches |
| Product Width | 30.7 Inches |
| Product Height | 72.2 Inches |
| Power Type | Electric |
