Quincy  |  SKU: 4152016908

Quincy 50-HP Tankless Rotary Screw Air Compressor w/ Dryer )

$31,890.00
Shipping FAQ's

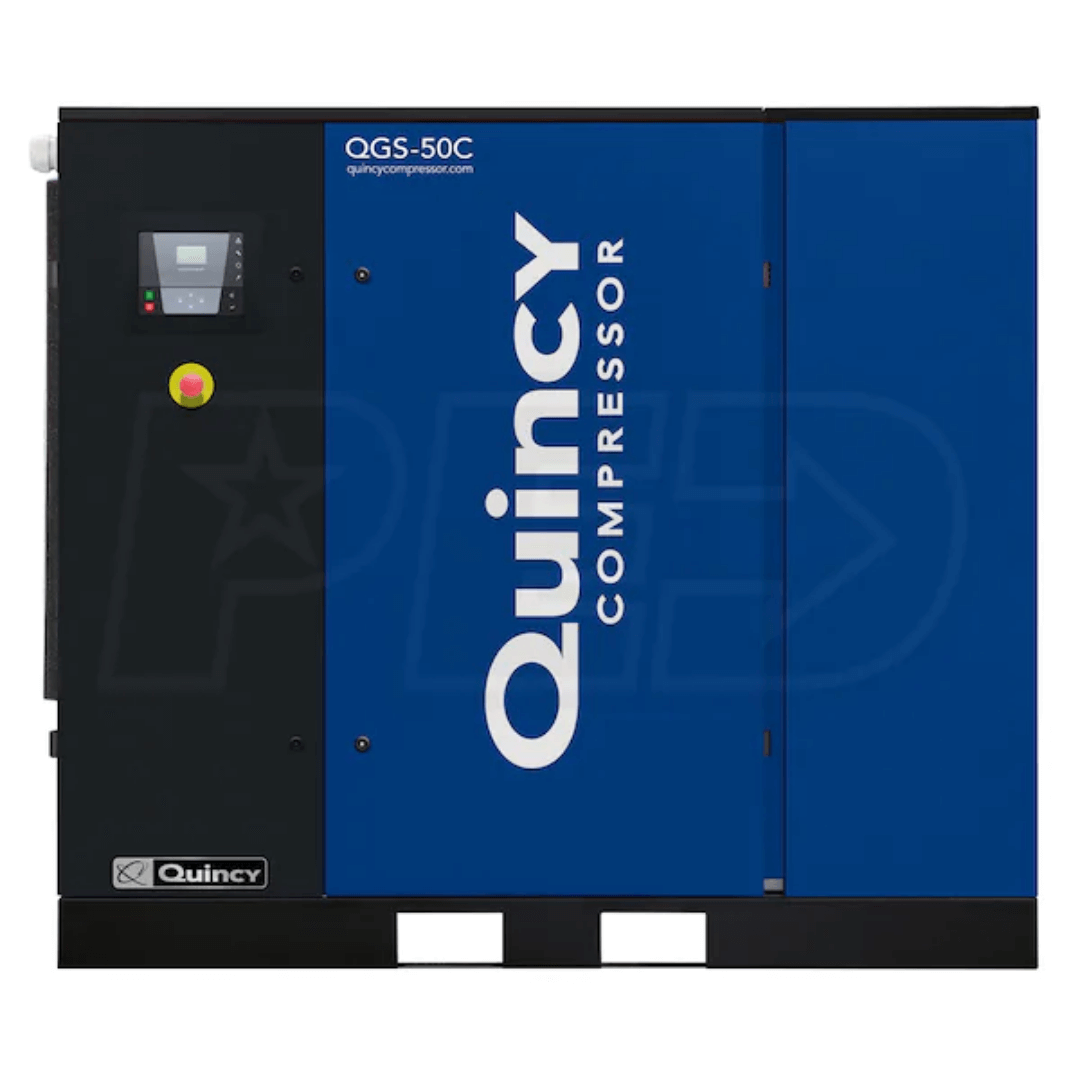

Quincy 4152016908 QGS 50-HP Tankless Rotary Screw Air Compressor w/ Dryer (230/460V 3-Phase)

The Quincy QGS 50-HP rotary screw air compressor with integrated dryer delivers efficient, reliable compressed air for demanding industrial environments. Its gear-driven system eliminates the need for belts, reducing maintenance while maximizing transmission efficiency. The TEFC motor operates on a full 100% duty cycle with a wye-delta reduced voltage start, ensuring dependable performance day after day.

Featuring the Infologic2 Basic Controller, this compressor offers full programmability, auto-restart capabilities, and networking for up to six QGS units, making it a versatile choice for scalable operations. The integrated refrigerated air dryer removes moisture, oil, and particulates from your air supply, protecting downstream tools and equipment from corrosion and buildup.

Operators benefit from an intuitive display panel with clear readings of pressure, temperature, and dewpoint. Maintenance is streamlined with hinged access doors, detachable panels, constant fluid monitoring, and spin-on fluid filters. The unit arrives wired for 460V-3 with a kit included for 230V-3 conversion, requiring installation by a licensed electrician.

For warranty information please see the below link

Product Features

  • Quincy QGS Highly Efficient Gear-Driven Rotary Screw Compressor

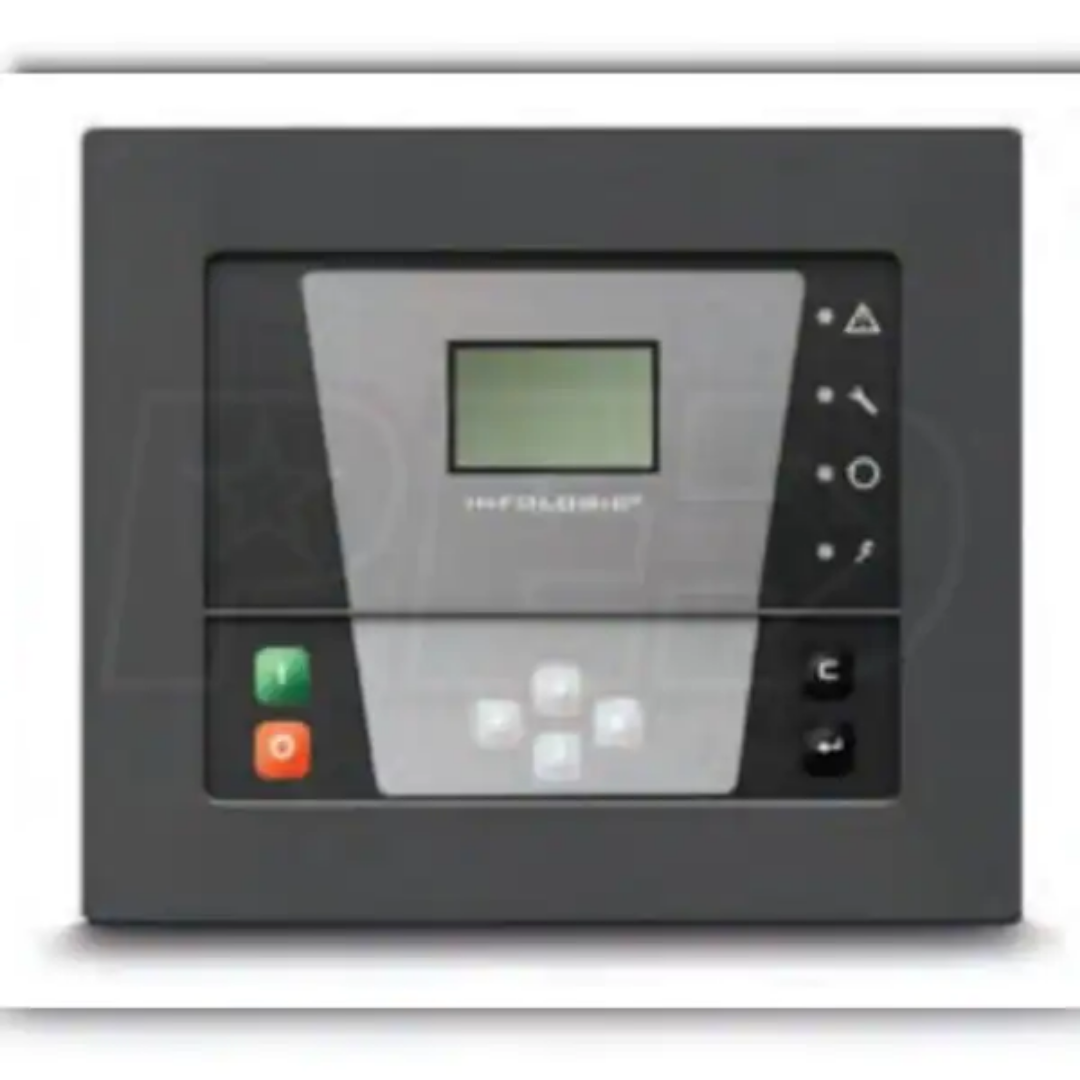

  • Infologic2 Basic Controller
  • Convenient Display Panel
  • 100% Duty Cycle TEFC Motor
  • Integrated Refrigerant Air Dryer
  • Quiet Operation
  • Increased Maintenance Simplicity
  • Extended 3 Year Factory Warranty Available
  • True Blue 5-Year Warranty with Quincy Authorized Start Up

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 230/460 Volt AC
Phase Three Phase
dBA 69
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 50
Engine Low Oil Shut-off Yes

Pump

CFM 203.2
CFM Rated @ 125 PSI
Max PSI 125 PSI
Oil Sight Glass Yes
Pump Type Rotary
After Cooler Yes
Pump Drive Gear Drive
Oil Type Oil Lubricated
Pump Low Oil Shut-off Yes
Duty Cycle 100%

Tank

Tank Size 0 Gallons
Tank Included No
Electronic Drain Valve No

Accessories

Pressure Gauge Yes
Air Dryer Yes
Air Filter Yes

Overview

Weight 1437 Pounds
Certification ASME
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 71.3 Inches
Product Width 32.7 Inches
Product Height 61.3 Inches
Power Type Electric
