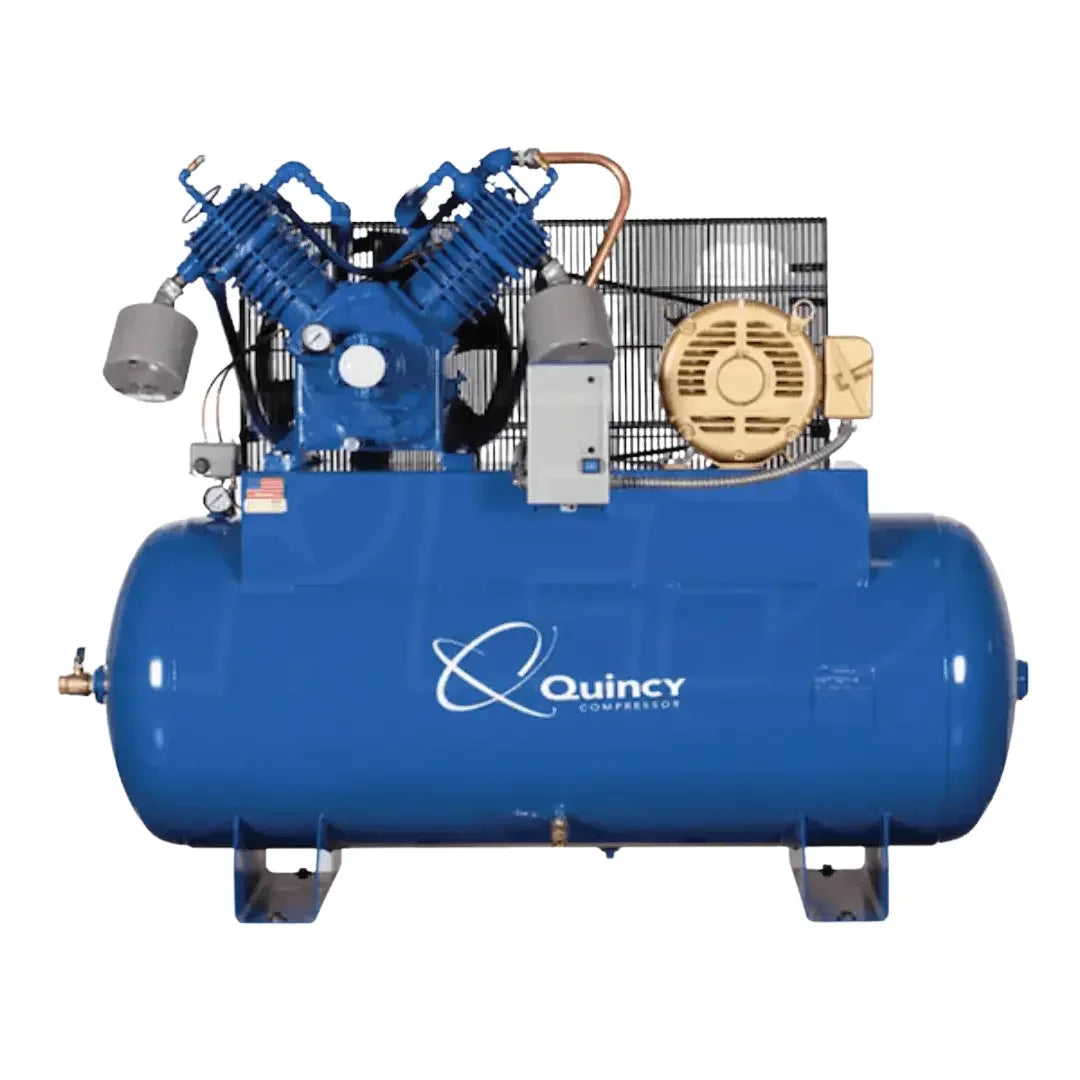

Quincy 15HP 120Gal Pressure Lubricated 2-Stage Air Compressor
Quincy 5153D12HCB20M QP MAX 15-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)
Experience unmatched durability with this Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor. Engineered for heavy industrial use, it delivers up to 60,000+ hours of pump life, with a 1750 RPM motor built for continuous operation. The electronic automatic tank drain keeps moisture at bay, while the mounted air-cooled aftercooler maintains optimal pump temperatures for extended service life.

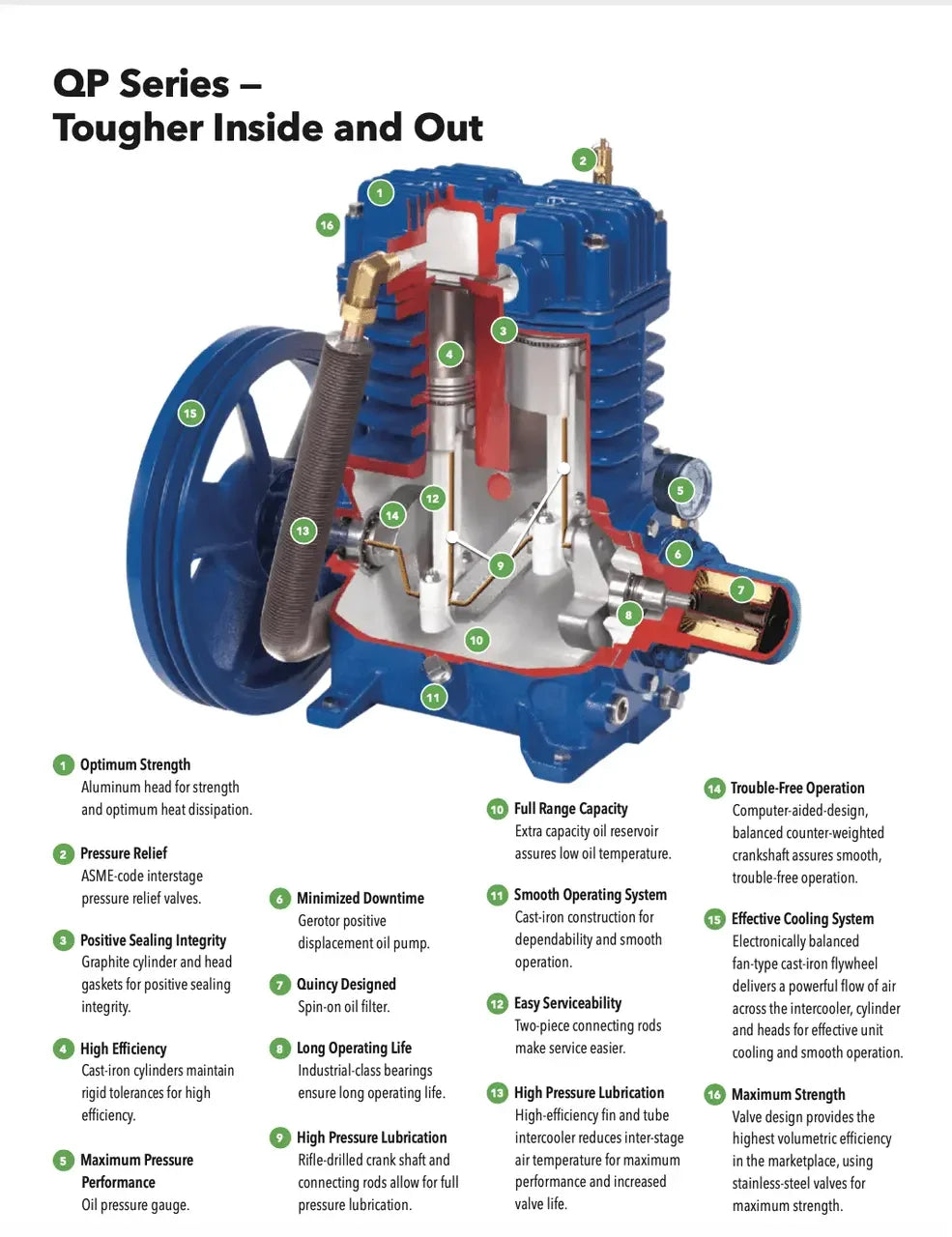

This compressor features a heavy-duty cast iron 2-stage pump with aluminum heads and graphite cylinder gaskets for superior sealing. Its spin-on oil filter and gerotor positive displacement oil pump ensure critical parts stay lubricated, reducing internal wear. Stainless steel reed valves with valve bumpers offer excellent strength and airflow efficiency, while the high-efficiency fin and tube intercooler keeps temperatures low to maximize performance and durability.
For warranty information please see the below link.
Product Features
- Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
- Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
- Spin-On Oil filter
- Gerator Positive Displacement Oil Pump
- Stainless Steel Reed Valves With Valve Bumpers
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 48.3 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 15 |
Pump
| CFM | 51 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 995 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 78 Inches |
| Product Width | 28 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
