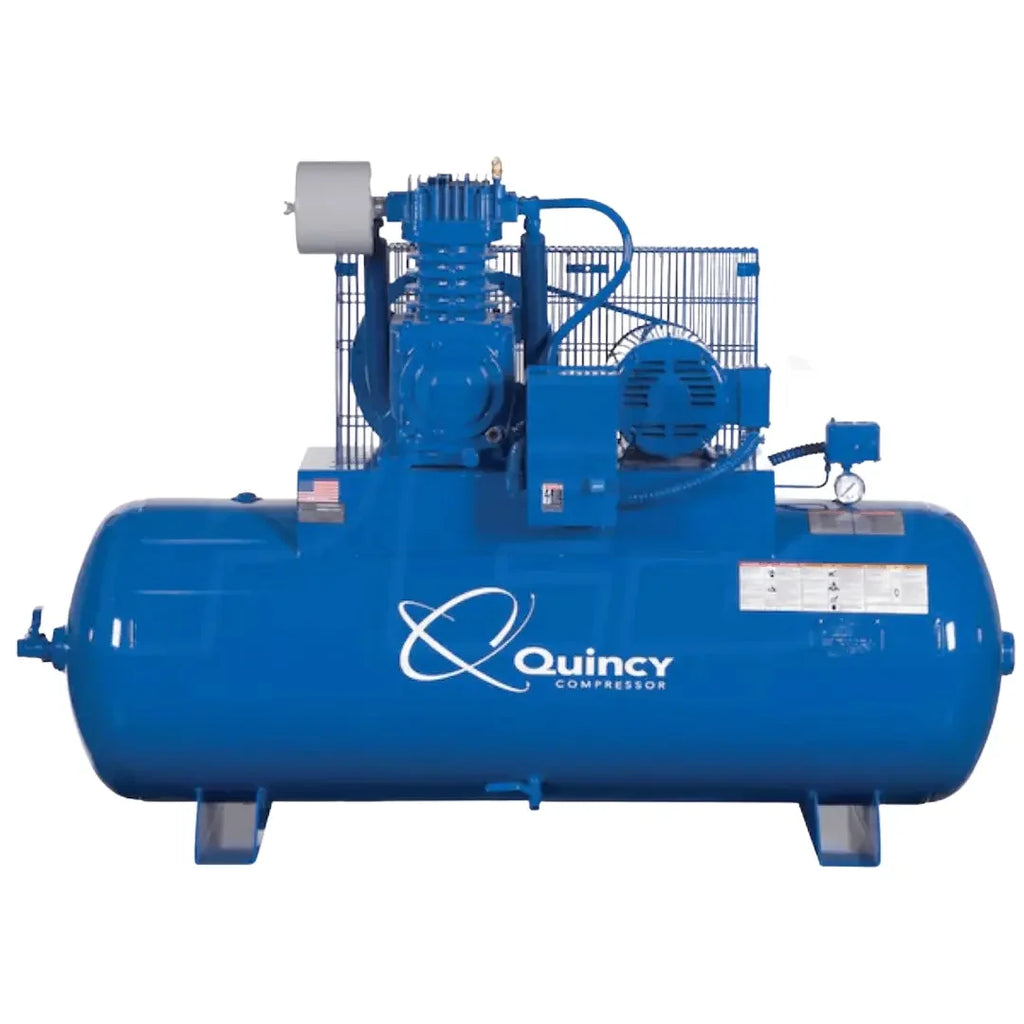

Quincy 5103D12HCA23M Pressure Lubricated 3-Phase Air Compressor
Quincy 5103D12HCA23M QP MAX 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 3-Phase)
Our fully Pressure Lubricated QP Max Package 2-Stage Compressor is designed for extended service life, with pump longevity exceeding 60,000 hours. It features a 1750 RPM industrial motor built for continuous operation in demanding work environments. The compressor includes an electronic automatic tank drain that minimizes condensation, and a mounted air-cooled aftercooler to extend pump life.
This model boasts a heavy-duty cast iron 2-stage pump with aluminum heads, complemented by graphite cylinder and head gaskets to ensure positive sealing and durability. Its 100% continuous duty cycle operation is supported by a spin-on oil filter that lengthens compressor life and improves reliability. Protection features include a low oil pressure switch shutdown and a magnetic starter providing thermal overload protection.
Lubrication is enhanced through a gerator positive displacement oil pump, which pressurizes oil to critical components such as the crankshaft, bearings, and rods, reducing wear. Stainless steel reed valves with valve bumpers maximize strength and efficiency, while cast iron cylinders with a high-efficiency fin and tube intercooler reduce interstage temperatures for optimal performance and durability.
For warranty information please see the below link.
Product Features
- Fully Pressure Lubricated QP Max Package 2-Stage Compressor
- Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
- Spin-On Oil filter
- Gerator Positive Displacement Oil Pump
- Stainless Steel Reed Valves With Valve Bumpers
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
Pump
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 850 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 78 Inches |
| Product Width | 28 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
