Quincy 453D80VCB23M QT MAX 5-HP Air Compressor 230V 3-Phase

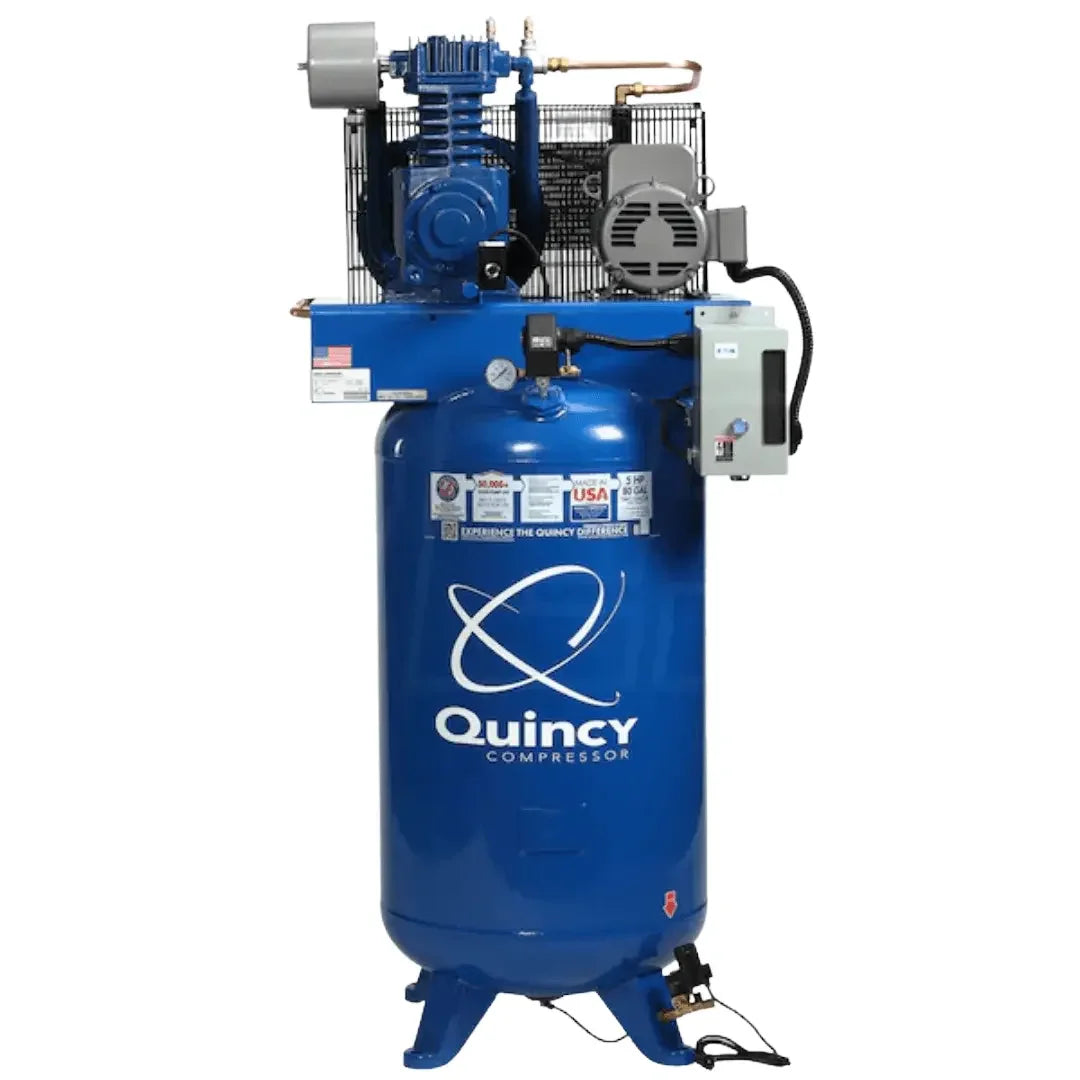

Quincy 453D80VCB23M QT MAX 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
The Quincy QT MAX 5 HP compressor brings dependable compressed air performance to industrial and commercial settings with its 5 horsepower three-phase motor and an 80-gallon ASME-certified vertical tank. Its splash-lubricated, cast-iron two-stage pump delivers around 17.2 CFM at 175 PSI while operating at a low RPM (~1,750), which helps reduce heat and wear and extend service life beyond 50,000 hours. Built for longevity, the compressor features aluminum heads, stainless steel reed valves, finned intercoolers, and extra-capacity oil reservoirs. Safety and maintenance are enhanced through an automatic tank drain, low-oil shutoff protection, and a magnetic starter.
With minimal oil carry-over (under 5 ppm) and a continuous-duty design, it's ideal for fabrication shops, automotive bays, or any space with limited floor area. The unit ships with a standard one-year factory warranty on parts and labor. If the EWK‑3 maintenance kit is purchased at the time of sale and the compressor is registered promptly, the warranty extends to two years on the unit and three years on the pump, with on-site service included. Click on the manual link below for warranty information.
Product Features
- Heavy Duty Industrial Unit - Proudly Built in the US
- High-Efficiency Finned Intercooler
- Magnetic Starter
- 2-Piece Connection Rods
- ASME Certified Tank
- Automatic Tank Drain
- Air-Cooled Aftercooler
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 15.2 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 5 |
Pump
| CFM | 17.2 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Vertical |
Accessories
| Air Dryer | No |
Overview
| Weight | 680 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 37 Inches |
| Product Width | 24 Inches |
| Product Height | 74 Inches |
| Power Type | Electric |
