Quincy 4153DS12HCA20 QT Pro 15-HP 120-Gallon Two-Stage Air Compress...

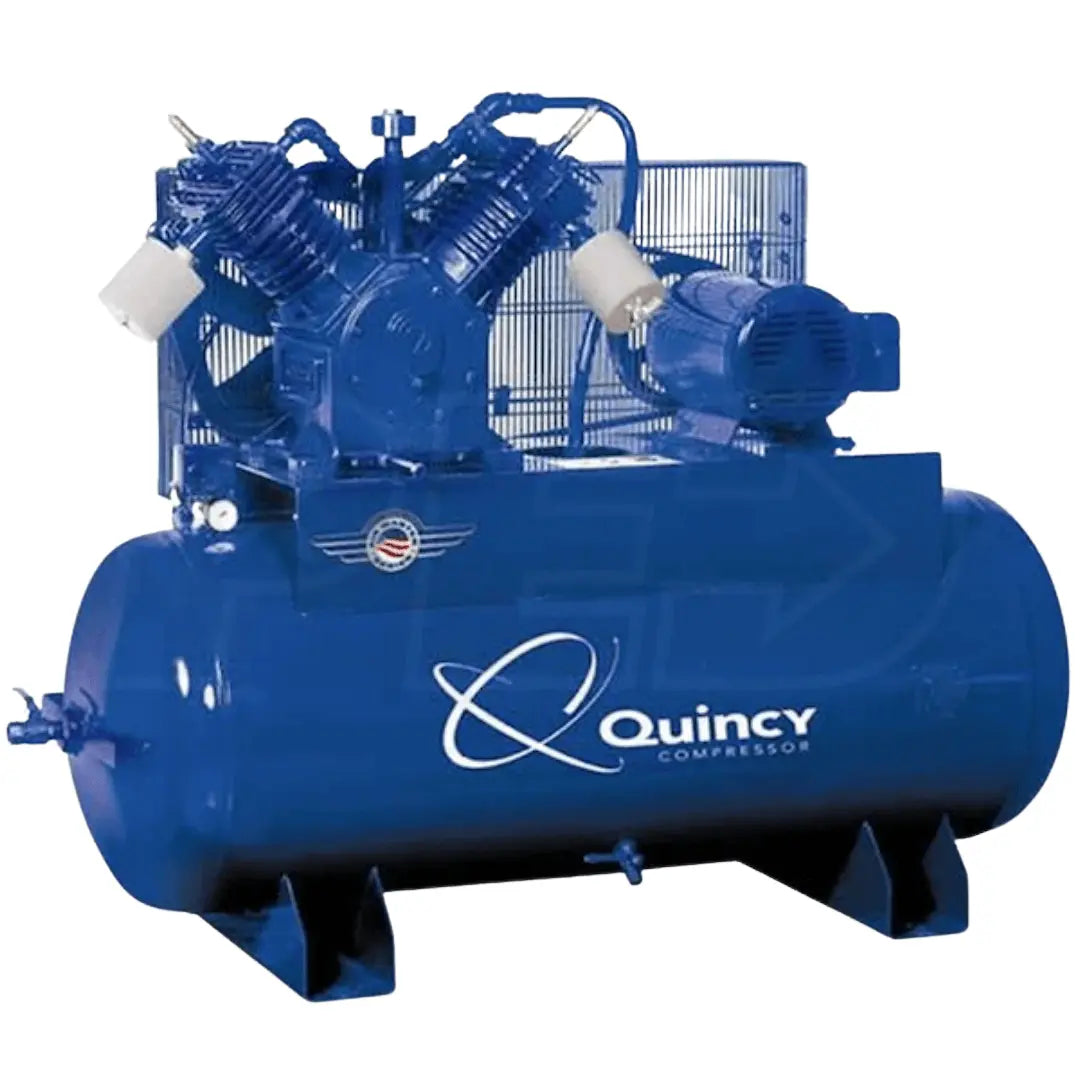

Quincy 4153DS12HCA20 QT Pro 15-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)
The Quincy QT Pro 15 HP compressor (model 2153DS12HCA20) delivers industrial-level performance through its two-stage, splash-lubricated cast‑iron pump, rated for more than 50,000 hours of life. Powered by a durable 15 HP, 208 V three‑phase motor and paired with a horizontal 120 gallon ASME-certified tank, it provides approximately 51 CFM at 175 PSI while running at a low 923 RPM for cooler and quieter operation.

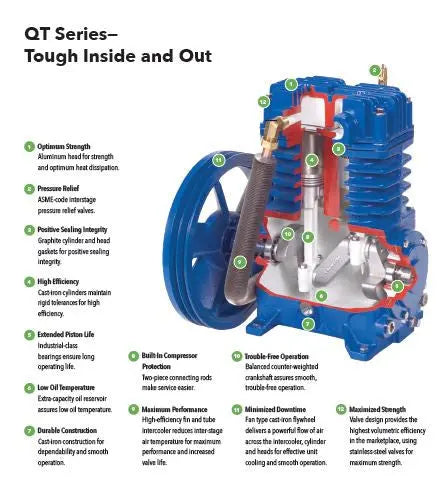

Its cast‑iron cylinders, aluminum head, stainless‑steel reed valves, and fin‑and‑tube intercooler all play roles in maximizing volumetric efficiency, minimizing heat, and extending valve life. Additional features include a factory-mounted magnetic starter for overload protection, low‑oil shutoff, oil sight glass, and a streamlined design built to reduce oil carry-over to less than 5 PPM—protecting tools and projects alike.
This compressor is built for continuous (100 %) duty cycle use and is ready for tough environments like automotive shops and fabrication bays. It includes a one‑year factory warranty on parts and labor. If you purchase Quincy’s EWK‑5 maintenance kit at the same time and register the unit promptly, the package warranty extends to two years and the pump warranty to three years—with on-site service included. Click on the manual link below for warranty information.
Product Features
- Industrial Duty Baldor Electric Motor
- Cast Iron 4 Cylinder Pump
- Industrial Duty Magnetic Starter
- Less Than 5 PPM Oil Blow By
- Strong Enough For Tough Jobs
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 48.3 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 15 |
Pump
| CFM | 51 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 995 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 78 Inches |
| Product Width | 28 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
Downloads
Brochure
Manual
Warranty
