Quincy 4103D12VCB23M QT MAX 10-HP 120-Gallon Two-Stage Air Compress...
Quincy 4103D12VCB23M QT MAX

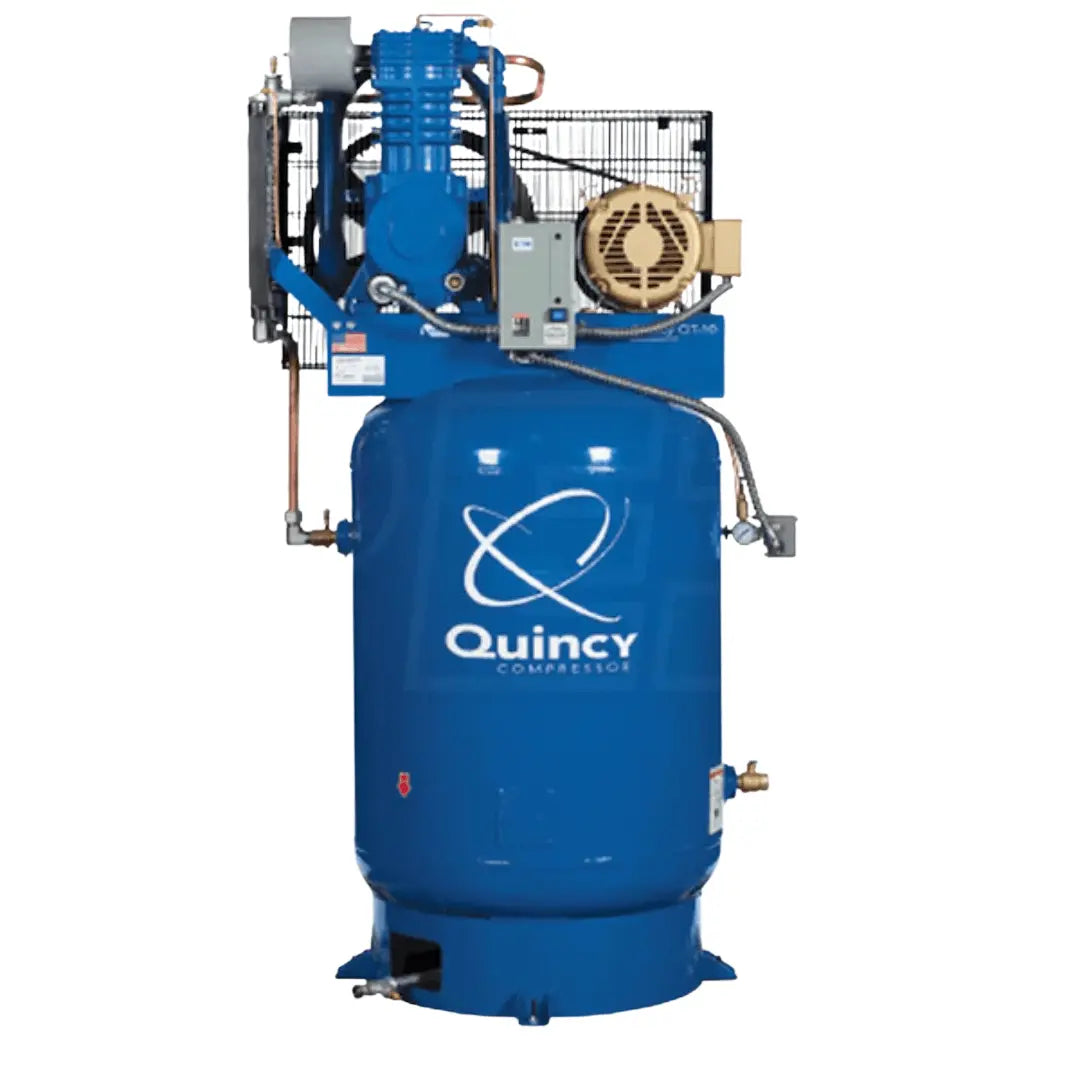

The Quincy QT Max model 2103D12VCB23M is a heavy‑duty industrial air compressor purpose‑built for demanding shop environments. With a 10 horsepower 230 V three‑phase motor and an ASME‑certified 120 gallon vertical tank, this two‑stage machine reliably delivers approximately 35 CFM at 175 PSI, making it ideal for continuous use in automotive, fabrication, or paint spray operations. Its splash‑lubricated cast‑iron pump is engineered for durability, offering an industry‑leading pump life of 50,000 hours or more, while a fin‑and‑tube intercooler and air‑cooled aftercooler ensure cooler, dryer air output and longer valve life .
Safety and uptime are prioritized with features like an automatic electronic tank drain, a low‑oil shutoff switch, oil sight glass, and a magnetic starter with thermal overload protection—all enclosed for operator security. Designed to run continuously at 100 % duty cycle, it operates at slower RPMs to minimize wear, maximize efficiency, and reduce energy costs .
This compressor includes a standard one‑year factory warranty. If the EWK‑4 Maintenance Kit is purchased at the time of sale and the unit is registered within the manufacturer’s timeframe, the warranty extends to a two‑year package and a three‑year pump warranty—including onsite service and labor coverage. Click on the manual link below for warranty information .
Product Features
- Heavy-Duty Industrial Air Compressor
- Built In Air-Cooled Aftercoolers
- High-Efficiency Finned Intercooler
- Magnetic Starter
- Automatic Electronic Tank Drain
- Low Oil Cut-Off Switch
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
Pump
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Vertical |
Accessories
| Air Dryer | No |
Overview
| Weight | 1,000 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 40 Inches |
| Product Width | 30 Inches |
| Product Height | 75 Inches |
| Power Type | Electric |
