Quincy 4103D12HCB23M QT MAX 10-HP 120-Gallon Two-Stage Air Compress...

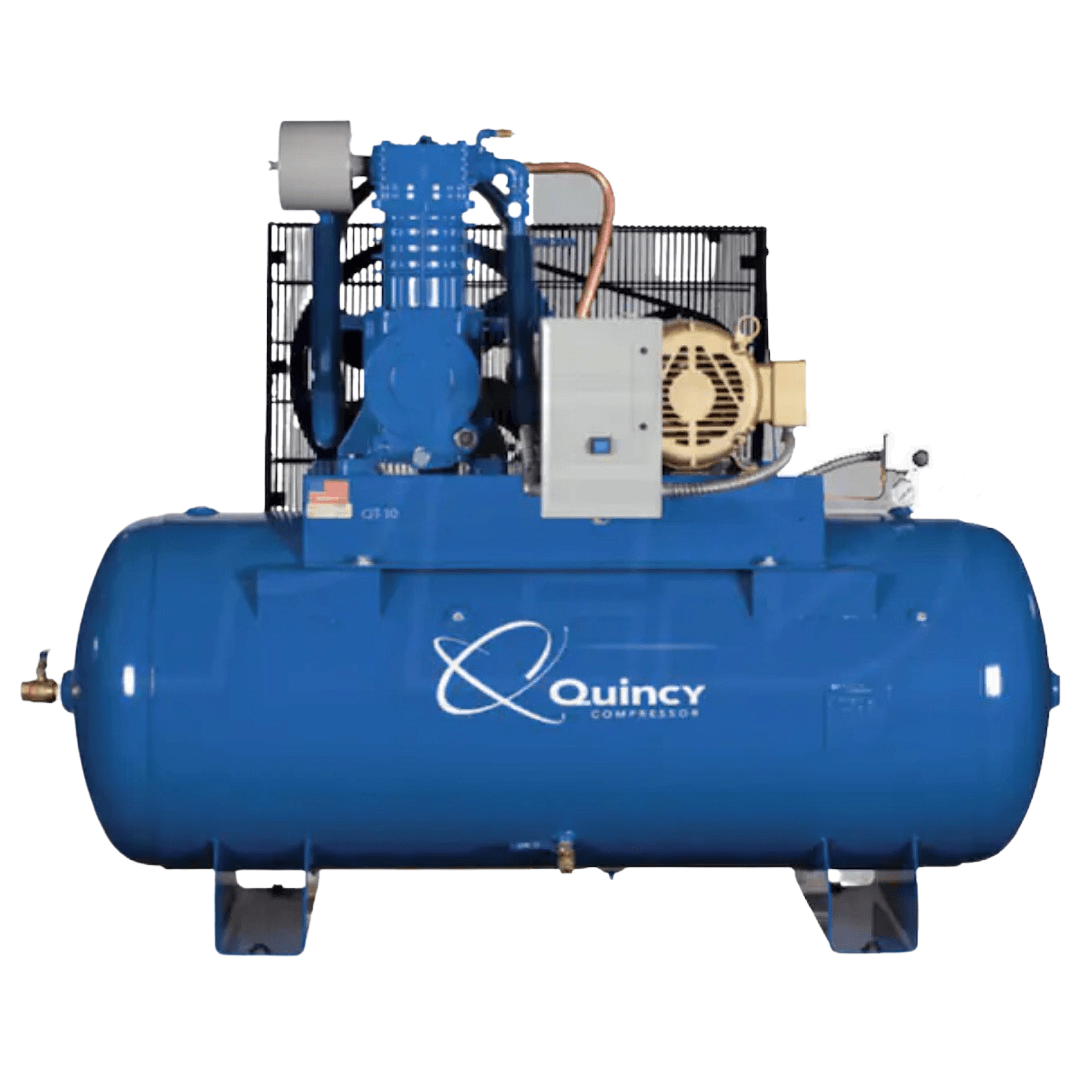

Quincy 4103D12HCB23M QT MAX 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)
This heavy-duty industrial air compressor is engineered for exceptional durability, offering over 50,000 hours of pump life. Its splash-lubricated cast-iron pump provides reliable performance, while the 1750 RPM industrial motor keeps your shop or garage running efficiently. An extra capacity oil reserve ensures extended operation under heavy workloads.
The built-in air-cooled aftercoolers and high-efficiency finned intercooler reduce air temperature to maximize system performance. A temperature-driven variable speed fan continuously removes heat, preventing overheating during demanding use.
Additional features include a magnetic starter for motor thermal protection, an automatic electronic tank drain to eliminate daily maintenance and reduce moisture in airlines, and a low oil cut-off switch to protect the pump.
For warranty information please see the below link.
Product Features
- Heavy-Duty Industrial Air Compressor
- Built In Air-Cooled Aftercoolers
- High-Efficiency Finned Intercooler
- Magnetic Starter
- Automatic Electronic Tank Drain
- Low Oil Cut-Off Switch
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
Pump
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 850 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 78 Inches |
| Product Width | 28 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
