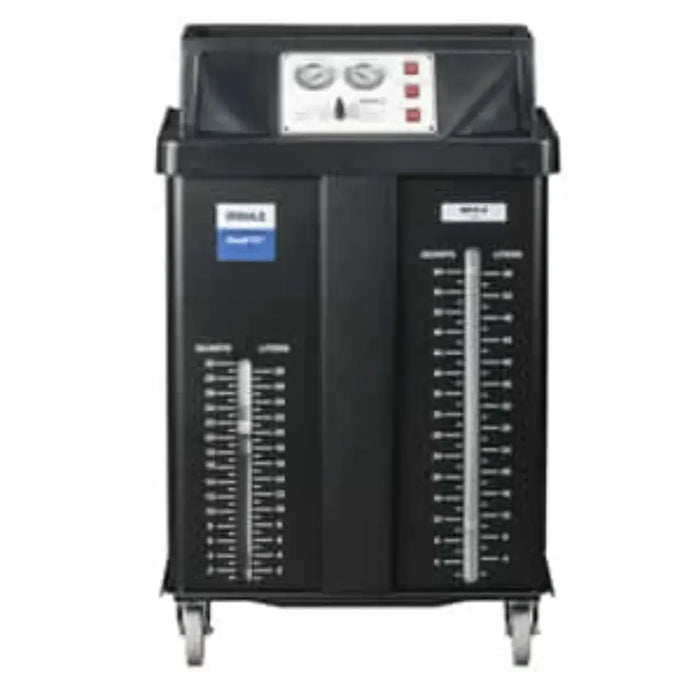

Mahle MCX-2HD Multi-Coolant Exchanger w/HD Truck Adapter Set
Mahle MCX-2HD Multi-Coolant Exchanger w/HD Truck Adapter Set
The MAHLE FluidPRO MCX-2HD Multi-Coolant Exchanger is a robust, high-capacity fluid exchange system designed specifically for heavy-duty vehicles. This advanced unit streamlines coolant servicing by enabling rapid and efficient fluid exchanges, accommodating the unique demands of commercial trucks and large-scale fleets.

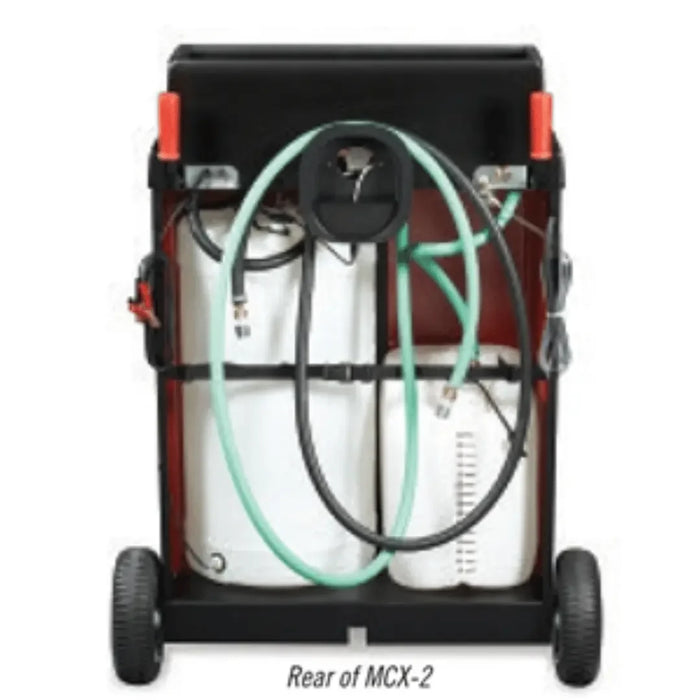

Equipped with dual 15-gallon new coolant tanks and a 15-gallon waste tank, the MCX-2HD facilitates quick switching between different coolant types, such as traditional green antifreeze and extended-life formulations like Dex-Cool™. This versatility ensures compatibility with a wide range of vehicles, enhancing service efficiency and flexibility.
The system features an automatic pump shut-off mechanism, allowing technicians to manage multiple tasks simultaneously without compromising safety. Drip-proof tank connectors and visible fluid level indicators further contribute to a clean and organized workspace, minimizing the risk of spills and ensuring accurate fluid monitoring.
Designed for rapid service times, the MCX-2HD can perform a complete coolant exchange in approximately three minutes, significantly reducing downtime and increasing productivity in high-volume service environments. Its user-friendly interface includes easy-to-read gauges and a 12V power supply, simplifying operation and maintenance.
The inclusion of the HD Truck Adapter Set expands the system's capabilities, enabling it to service a broader range of heavy-duty vehicles with varying radiator neck sizes. This comprehensive adapter set ensures a secure and leak-free connection, enhancing the overall effectiveness of the coolant exchange process.
Built with durability in mind, the MCX-2HD is constructed to withstand the rigors of commercial workshop settings. Its sturdy design and high-quality components ensure long-term reliability and performance, making it a valuable investment for businesses focused on delivering efficient and effective coolant servicing.
Warranty: 1 year parts and labor
Control Panel
- Vacuum & pressure gauges
- Easy-to-use process control switches
Fluid Level Indicator
- Fluid level visible - both new & waste tanks
- Waste tank float switch provides automatic pump shut-off when tank is empty
Coolant Tank Connectors
- Drip proof
- Quick disconnect style
Product Features
MCX Accessory Kit
- (2) universal Adapter hoses
- (4) universal step Adapters w/ shut-off valves
- (1) overflow tank wand w/ shut-off valve
- Miscellaneous fittings/clamps
Product Specifications
| Model | MCX-2HD |
| Electrical | 12 VDC - 15 Amp |
| Operating Range | 32° to 122°F (0° to 50°C) |
| Pump | Venturi Vacuum generator; 28 InHg (0.95 bar) maximum |
| Hoses | 3/8 in (9.5 mm); quick connect/disconnect (brass; chrome sleeve; silicone sealed) |
| Step Adapters | Universal; 2 sets; 1-1/4 in to 1-3/4 in range (3.2 cm to 4.4 cm) diameter (MCX-2HD contains additional step adapters) |
| Adapter Hoses | Universal; 2 hoses, 1-1/4 in to 1-3/8 in (3.2 cm to 3.5 cm) and 1-1/2 in to 1-3/4 in. (3.8 cm to 4.4 cm) diameter (MCX-2HD contains additional adapter hoses) |
| Fill Pump | Diaphragm Type: 2 gal (7.9 liter) per minute |
| Drain Pump | Impeller Type: 2 gal (7.9 liter) per minute |
| Pressure Switch | 6 to 12 psi (0.4 to 0.8 bar); protects vehicle cooling systems from high pressure |
| New Coolant Tank (2) | 7.5 gal (28 liter); integrated output tube w/ debris filter screen and check valve; MCX-2HD contains two 15 gal (57 liter) tanks |
| Waste Coolant Tank | 15 gal (57 liter); integrated input/output tube; w/ automatic empty fluid level sensor |
| Process Time | Less than 3 minutes average full exchange |
| Coolant Exchange | 92 to 98% single pass, average exchange for most vehicles |
| Dimensions | 45 in x 38 in x 22.5 in (114 cm x 97 cm x 57 cm) |
| Weight | 121 lb (55 kg) |
