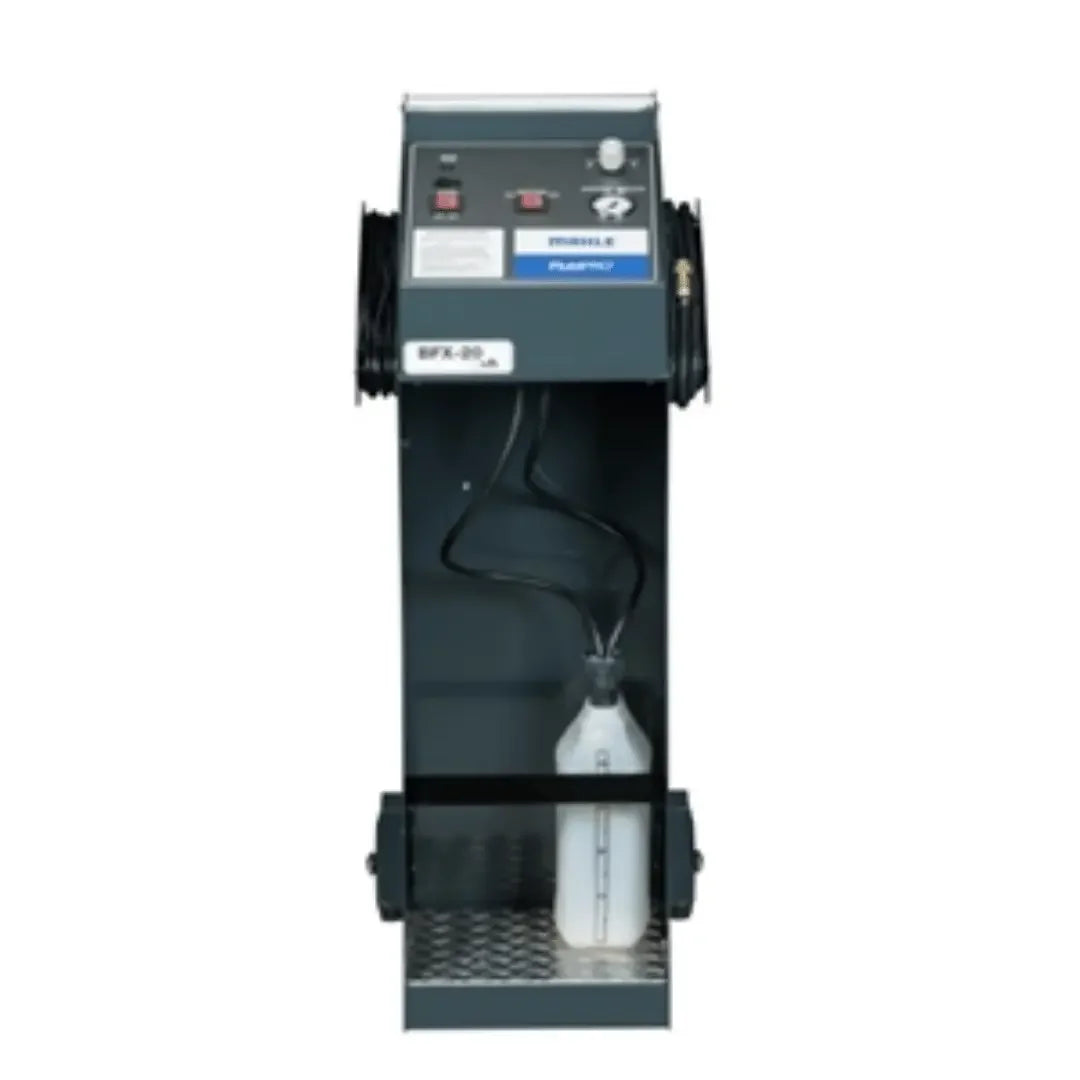

MAHLE BFX-20 Brake Fluid Exchanger — Complete Adapter Package
This is the BFX-20 supplied as part number 425 80014 00 — the version that ships with the adapter set included. That distinction is the whole point of this listing. The same machine is also sold bare, and a brake fluid exchanger without adapters is a machine that cannot be connected to a car. Buying the adapter package means the unit arrives ready to work on the range of master cylinder reservoirs a general workshop actually sees, instead of ready to sit in a corner until a second order arrives.
What it is: a wheeled, one-technician brake fluid exchanger. A hydraulic pump pushes fresh fluid from the machine's own 5-liter (1.3 gal) reservoir into the master cylinder while old fluid is drawn out at the bleed screws, so the job that traditionally needs one person pumping the pedal and one person at each wheel becomes a job for one person and a machine.
Pulsating Flow — the Feature That Earns Its Keep
The pump does not deliver a steady push. It delivers a pulsating flow against an infinitely variable pressure regulator, and that pulsation is what dislodges air bubbles clinging inside the circuit rather than sliding fluid past them. On a modern car this matters more than it used to: a vehicle with ABS, ESP, EDS or SBC has valve blocks, accumulators and small-bore galleries where an air bubble can sit happily through a conventional gravity bleed and come back as a long pedal a week later. The BFX-20 is specified for exactly those systems.
Because the regulator is infinitely variable rather than stepped, the technician sets the pressure the vehicle manufacturer asks for instead of picking the nearest preset. That is a small thing on one car and a significant thing across a workshop that sees a dozen different makes in a week.
Designed So One Person Can Finish the Job
Several features only make sense once you picture a single technician doing this alone. The unit switches itself off when the container is empty, so nobody has to stand and watch a level while the wheels are being worked. It decouples from the vehicle without pressure, which means no fluid spray at the cap when the job ends — brake fluid strips paint, and that is a bodyshop bill, not an inconvenience. And venting the device during a container changeover is not necessary, so swapping to a fresh container does not become a procedure of its own.
A removable tool tray sits on the machine to hold the adapters and fittings while you work. Anyone who has put an adapter down on a wing and then gone looking for it understands why that tray is listed as a feature.
Will It Fit Your Bay?
The BFX-20 stands 40 in high with a 16 in by 16 in footprint and weighs 46 lbs. It is a unit that lives beside a lift and gets wheeled to the next bay, not one that needs a home built for it. The service hose is 11.3 ft long, which is the specification worth checking against your own bay: it decides whether the machine can stay parked while you reach a vehicle up on a lift, or whether it has to be repositioned mid-job.
Power is standard single-phase 110V, 60Hz shop supply. Confirming your outlet position and available bay space before ordering is the buyer's responsibility — measure the working area you intend to use with a vehicle actually in it, not the empty floor.
Perfect For
-
General repair shops that want brake fluid service to be a routine one-technician job rather than a two-person operation.
-
Workshops seeing modern electronic brake systems, where the adapter coverage and the pulsating flow both matter.
-
Fleet and municipal garages running scheduled fluid changes across a mixed vehicle list.
-
Mobile and satellite operations where a compact wheeled unit and a long hose beat a fixed installation.
What's in the Box
This configuration ships as the exchanger plus its adapter set (part number 425 80014 00). The removable tool tray, the BFX PLUS extraction system and the infinitely variable pressure regulator are part of the machine. Brake fluid is not included. The same exchanger without adapters is part number 425 80011 00 — if you already own a set of adapters that fit your work, that is the version to ask us about.
Specifications
| Model |
BFX-20 (with adapters) |
| Part number |
425 80014 00 |
| Max. container size |
5L / 1.3 gal |
| Filling hose length |
11.3 ft |
| Power supply |
110V / 60Hz |
| Dimensions |
40 in H x 16 in W x 16 in L |
| Weight |
46 lbs |
| Systems supported |
ABS, ESP, EDS, SBC |
Keeping It Working
The one piece of routine maintenance the manufacturer calls out is periodic replacement of the inline suction filter. Brake fluid is hygroscopic and the debris that a filter catches is exactly what you do not want delivered into a fresh circuit, so this is a consumable to keep on the shelf rather than a job to defer.
Certification, Honestly
The product data we hold on this unit records no third-party safety listing and no conformity marking, so we are not going to badge one. In most workshops nothing turns on that for a fluid-service machine. If your insurer, a corporate purchasing standard or a local requirement asks for equipment carrying a specific listing or declaration, ask us before ordering and we will go back to the manufacturer for the paperwork rather than assume.
Shipping and Delivery
This unit ships by freight within the lower 48 states. Freight is quoted live at checkout against your address, so what you see is the real cost rather than an estimate. You must be able to receive and unload the shipment, or arrange to collect it from the carrier's terminal — the driver is not obliged to bring it inside. Residential delivery is available and carries a residential fee. Inspect the shipment before signing and record any damage or shortage on the delivery receipt at the time of delivery; a receipt signed clean makes a subsequent damage claim very difficult to pursue.
Warranty
This unit is covered by the manufacturer's warranty; the current terms are set out on our warranty claims page. We have deliberately not printed a warranty period here, because the data we hold for this configuration does not state one — call or message us and we will confirm the exact term for this part number before you buy. If a fault does appear, contact us first and leave the machine intact: disassembling a unit or attempting a repair before a claim is opened is the most common reason a valid claim gets refused.
