Mahle ATX-3+Boost FluidPRO™ Automatic Transmission Fluid Exchanger ...
Product Description

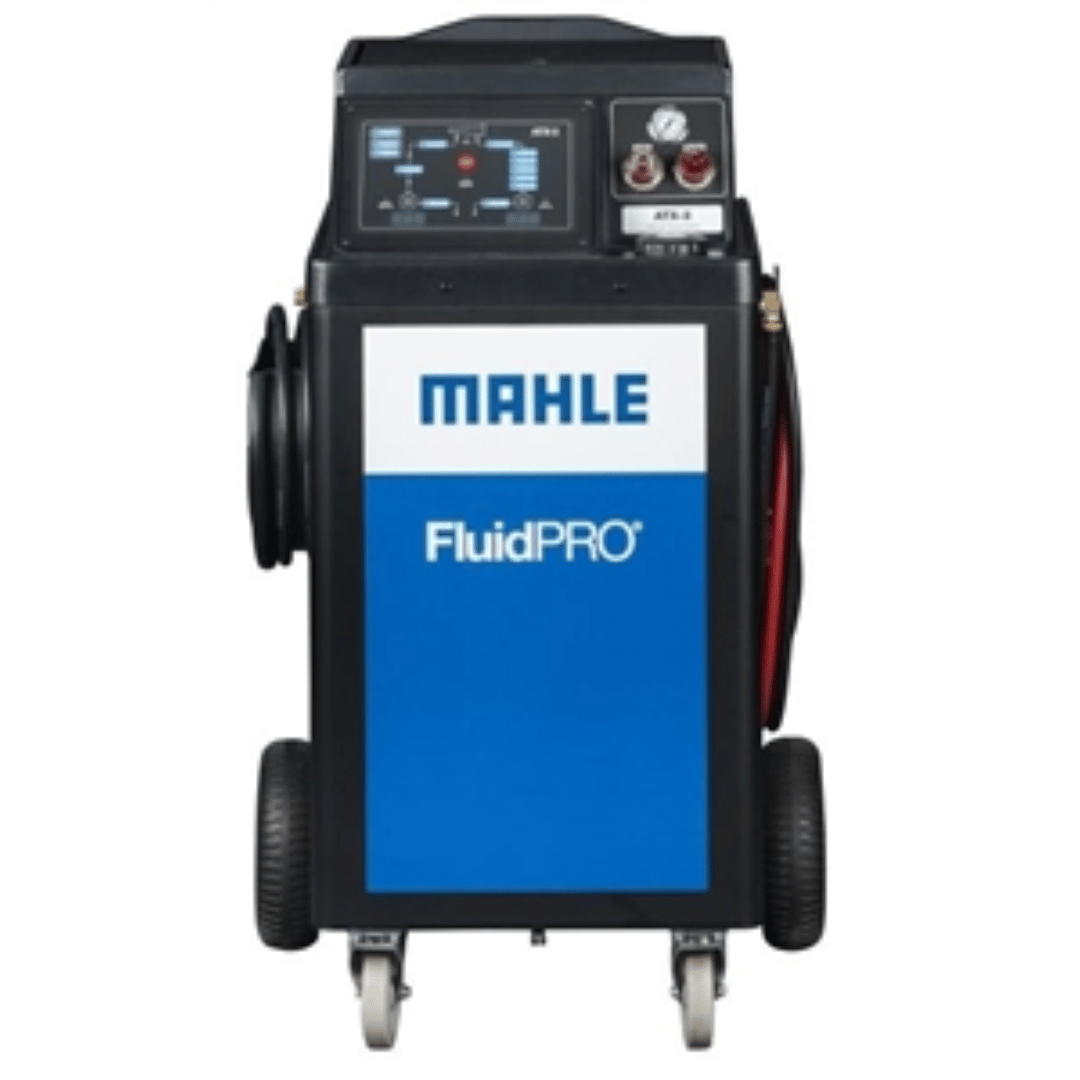

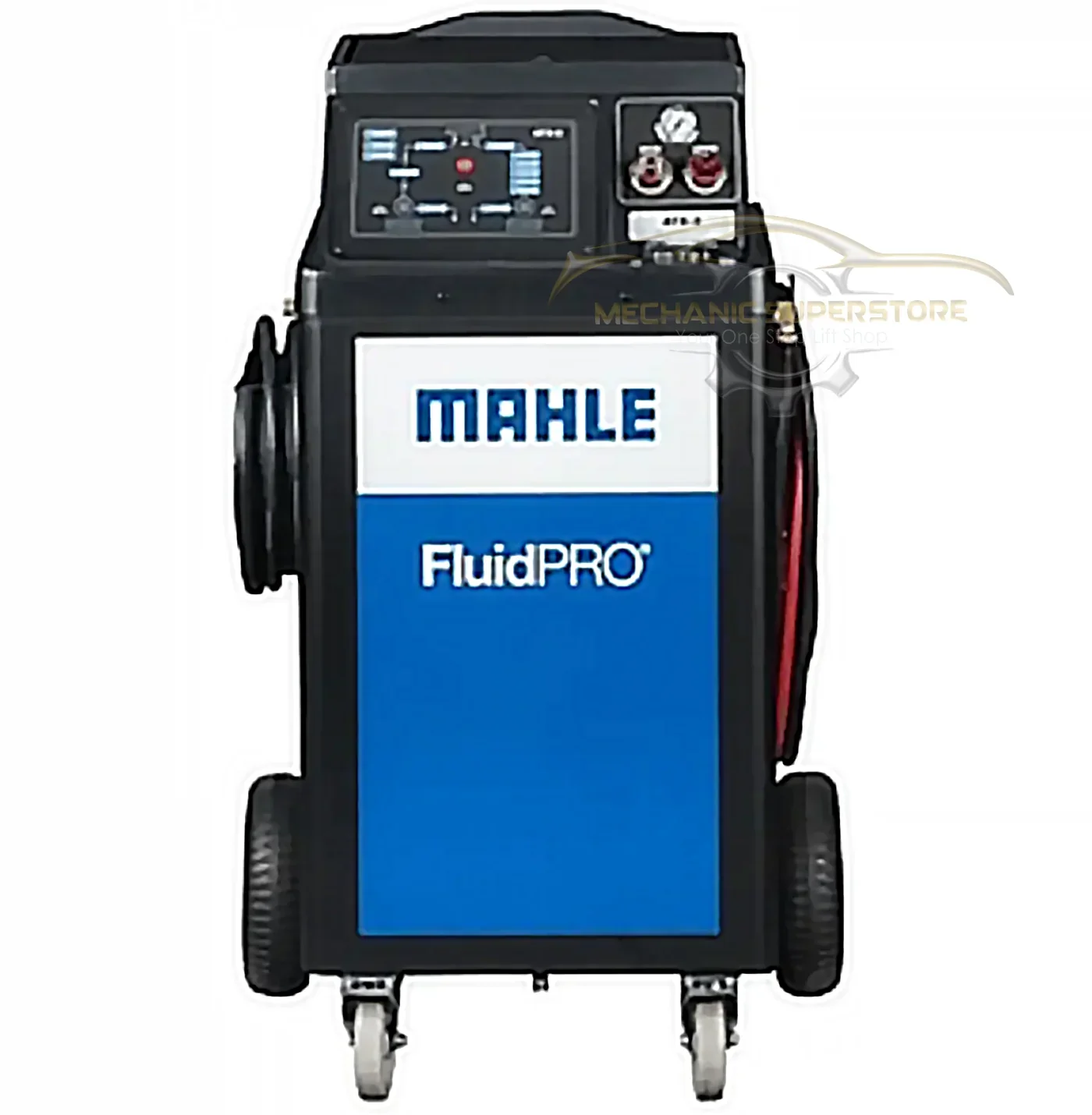

Mahle ATX-3+Boost FluidPRO™ Automatic Transmission Fluid Exchanger w/Dipstick Tube-Cooler Line Option
FluidPRO® ATX Automatic Transmission FluidExchangers offer the complete package with the utmost accuracy during fluid exchange combined with multitasking to ensure the fastest service.
FluidPRO equipment from MAHLE Service Solutions offers a range of choices in fluid exchange equipment. The ATX+Boost offers technicians fully-automatic operation with precise fluid measurement to maximize efficiency. The added feature of the high output boost pump yields faster service times of 2 to 5 minutes. The FluidPRO series goes beyond standards; for our customers, quality means failure-free assembly, satisfied end customers, and no product recalls — thus a strong brand. MAHLE Service Solutions is an industry leader when it comes to technical and training support. Whether our customers want on-site technical assistance in making their business more efficient or just have a question regarding our products, we’re here for them!
Designed for ease of operation, the FluidPRO® ATX is technologically advanced with:
- Fully automatic operation
- Precision fluid measurement to minimize technician input
- Electronic keypad
- Digital weight scale technology for accurate fluid exchange
- Logical intuitive command functions
- Transmission pressure diagnostics
- Patented bypass circuit for vehicle protection if power is interrupted
Product Features

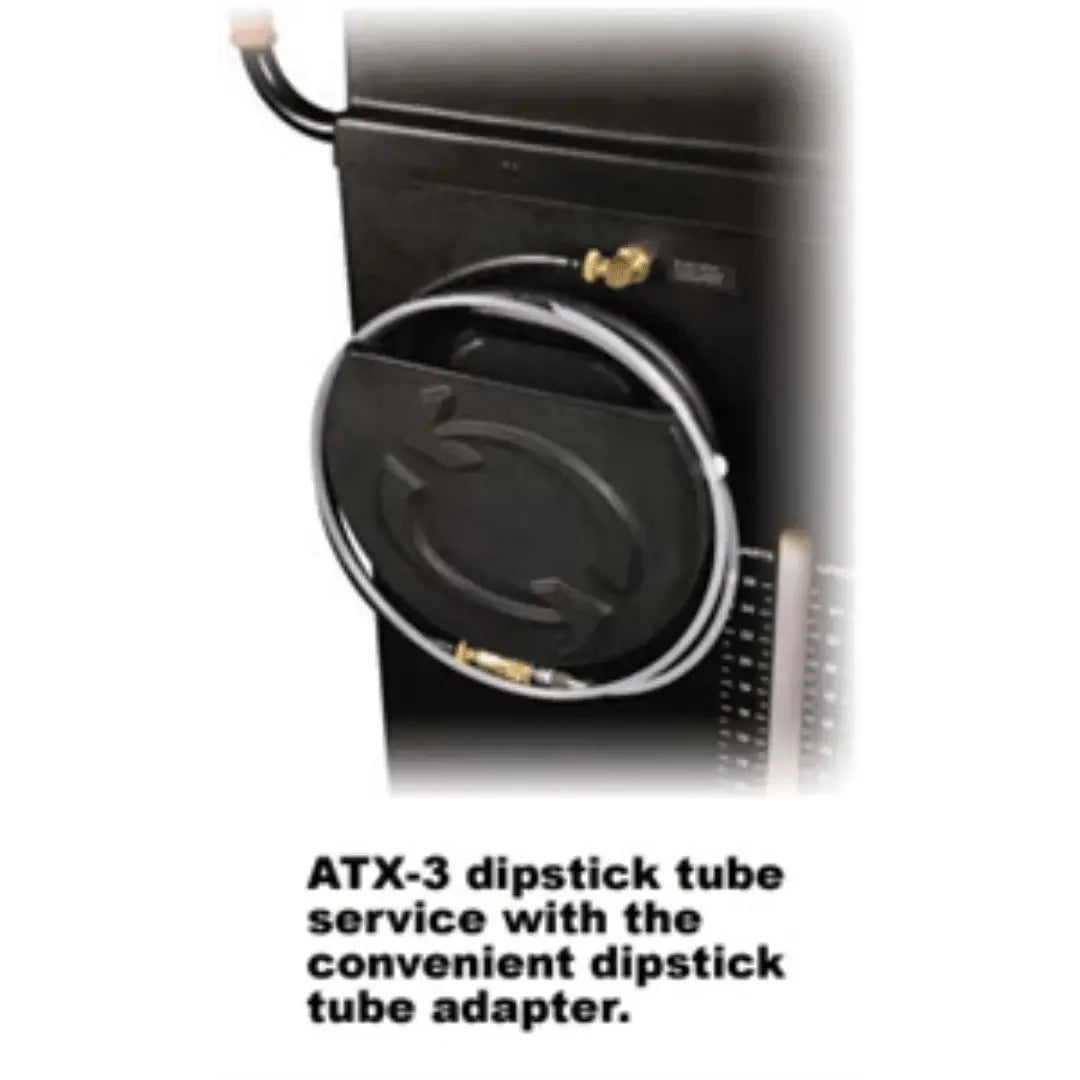

- ‘Dipstick’ or ‘Cooler’ mode selector, start engine indicator (on ATX-3 only)
- Start Engine Indicator
- Electronic diode illuminated keypad – fluid flow direction indicator verifies correct hook-up
- Transmission diagnostic pressure gauge
- New and used fluid sight glasses
- Push button drain function
- Automatic fluid level adjustment +/- ½ quarts
- Color coded adapters for ease of use with determining vehicle application
- Digital weight scale technology for accurate fluid exchange
- Patented bypass circuit for vehicle protection
- Caster style front wheels for easy maneuverability
- Cushioned, non-inflatable rear wheels require no maintenance
Product Specifications
| Model | ATX-3 |
| Adapters | Cooler line connection. Valved couplers for minimum spill. Standard adapters for Ford, GM, Chrysler, & Universal (most Asian imports). |
| Controls | Microprocessor with digital keypad & light emitting diodes |
| Fluid Tanks / Types | 26 quarts (24.6 liters) each for both new & used fluids / Multiple fluid capability |
| Hoses | 10 ft. (3 m) black & red (exchange); 8 ft. (2.5 m) black (empty used tank) ATX-3+Boost also includes 5 ft. (1.5 m) clear, attached to 8 ft. (2.5 m) black hose for dipstick mode |
| New Fluid Pump | Positive displacement gear pump, 4 quarts (3.8 liters) per minute/includes diaphragm pump, 7.2 quarts (6.84 liters) per min. Diaphragm pump increases fluid suction rate in low-flow/temperature controlled transmission in both ATX-2+Boost & ATX-3+Boost units |
| Operating Range | Cooler Mode: 32° to 122°F (0° to 50°C) Dipstick Mode: 42° to 122°F (5.5° to 50°C) |
| Power Source | 12 VDC - 10 Amp |
| Process Time | 3 to 6 minutes average full exchange. Dipstick Mode is available on the ATX-3+Boost with 8 to 14 minutes* average full exchange |
| Scale Accuracy | ±0.03% over usable range |
| Dimensions | 45" H x 28" W x 26.5" D (112 cm x 70 cm x 67 cm) |
| Weight | 244 lb. (111 kg) |
