Mahle ACX2250 ArcticPRO® R1234yf Refrigerant Handling System

Name: Mahle ACX2250 ArcticPRO® R1234yf Refrigerant Handling System
Brand: MAHLE Service Solutions
Price: 5999.0 USD
Availability: InStock

Part #:RTI-ACX2250

Brand: MAHLE Service Solutions

$0.00 - $0.00

$0.00

$5,999.00

$5,999.00 - $5,999.00

$5,999.00

Call/Text Us: 866-774-7743 Call Us

Description

-

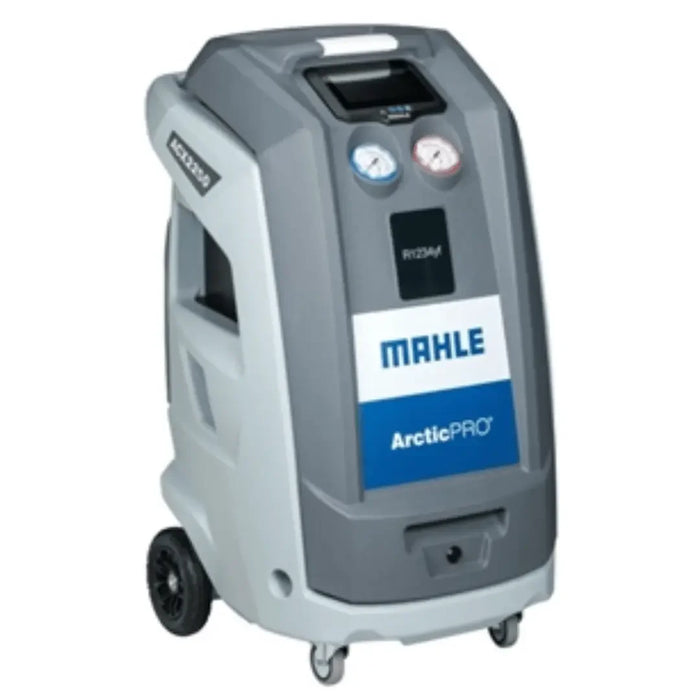

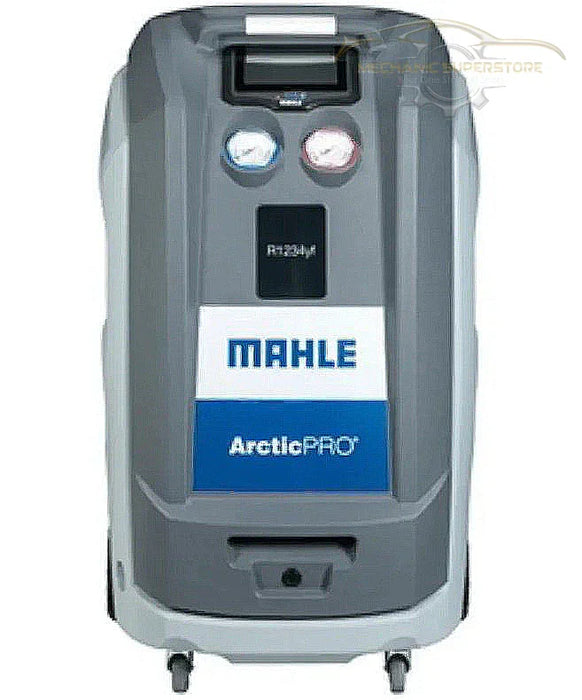

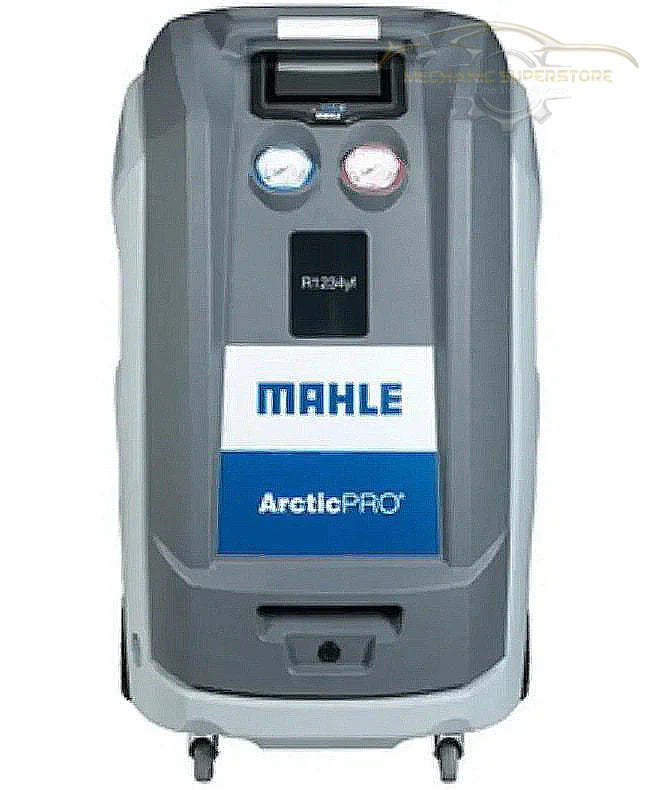

Mahle ACX2250 ArcticPRO® R1234yf Refrigerant Handling System

The most advanced R1234yf unit on the market today, the ArcticPRO ACX2280 and ACX2250 R1234yf Refrigerant Handling Systems offer your shop the ultimate in refrigerant recycling machines. Our newest professional units deliver a unique service door that is ergonomic in its design and an intuitive, state of the art user interface providing an optimal environment for fully automatic A/C service and simple unit maintenance. For a streamlined shop and safe and precise A/C refrigerant handling, rely on ArcticPRO.

Product Features

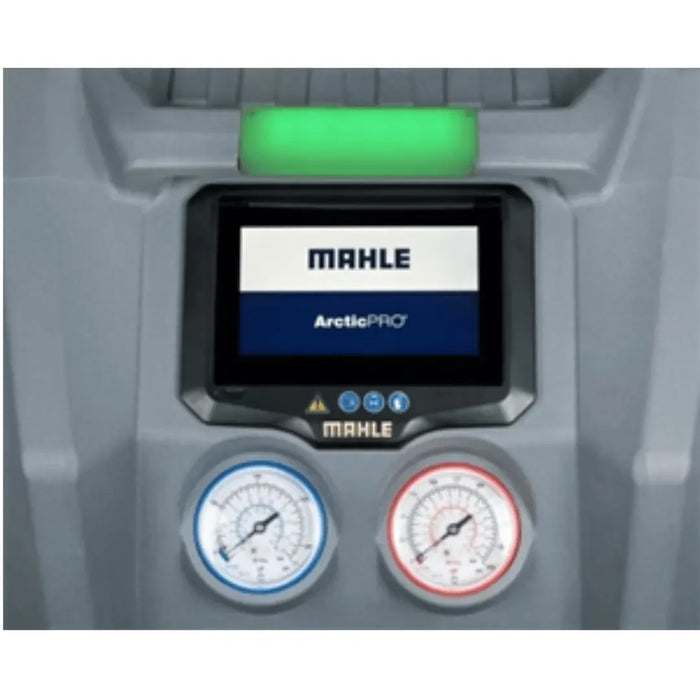

State-of-the-Art. Ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.

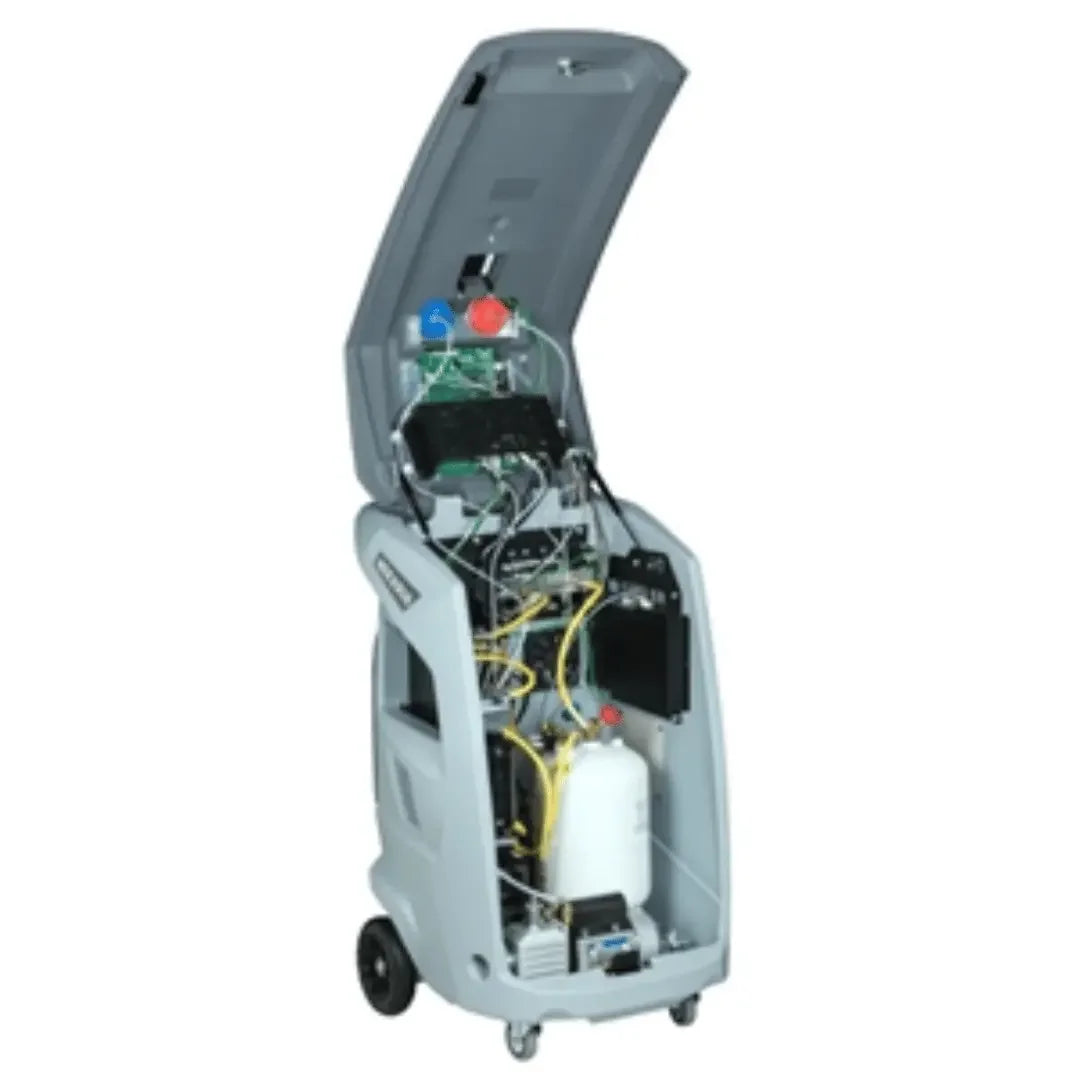

Best In Class Serviceability. New ergonomic hinged service door simplifies unit service.
Status Indicator. LED light indicates status visible from anywhere in the workshop.
Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
Oil System Management. Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service.
Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
Non-Integrated Refrigerant Identifier. Prevents contamination of machine internals by using a third hose and coupler for sampling.
Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage and a two year standard warranty.
Network Printing. Retains valuable service records, network printing capability to print services provided for customer.
Optional thermal printer allows printing of service reports.
Optional iOS and Android capable phone app allowing remote service session mirroring and advanced functions

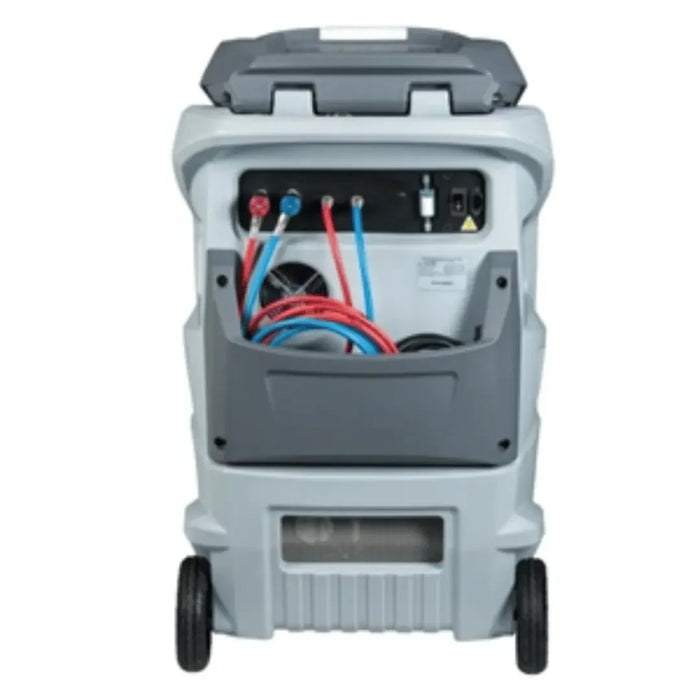

Includes

360 82948 00 Red Hose R1234YF
360 82949 00 Blue Hose R1234YF
360 82951 00 Quick Release Low Side Coupling R1234YF
360 82950 00 Quick Release High Side Coupling R1234YF

Product Specifications

Model	ACX2250
Certifications	SAE J2788, SAE J2099, UL 1963
Charge Performance	+/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
Recovery Performance	95% at 70° to 75°F (21° to 24°C) within 30 minutes
Operation	Fully Automatic
Charging Cylinder	30 lb. (13.6 kg) DOT
Compressor	3/8 HP-0.279kW
Display	Color, 7” Capacitive Touch Screen
Filter-Drier Capacity	150 lb. (68kg)spin-on type
Hoses	9 ft. (2.75 m)
Hybrid Function	Certified
Languages	English, French, Spanish
Operating Ranges	50° - 122°F (10°-50°C)
Power Source	120 VAC - 60 HZ - 12 AMP
Printer	Optional
Vacuum Pump	2 CFM dual stage
Dimensions	47" H x 29" W x 29" D (119 cm x 74 cm x 74 cm)
Weight	215 lb. (98 kg)

Pick Up and Delivery

Call, text, or chat with us if you have questions. 866-774-7743

Specifications

-

Modal	ACX2250
Overall weight	215 lb. (98 kg)

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
