Katool  |  SKU: KT-T810 + KT-B700

Katool Tire Changer KT-T810 & Wheel Balancer KT-B700 Combo

$2,399.00
Shipping FAQ's

Product Description

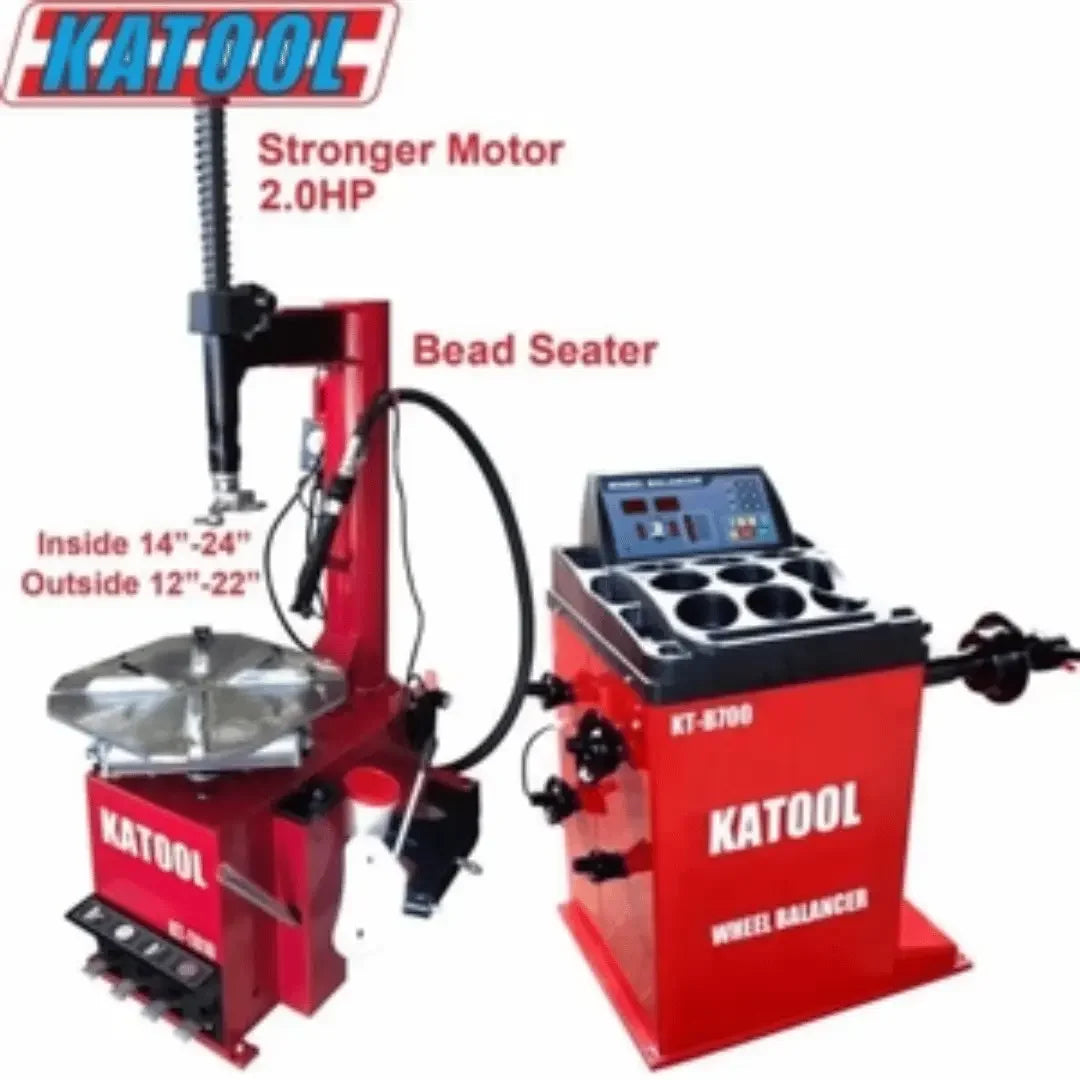

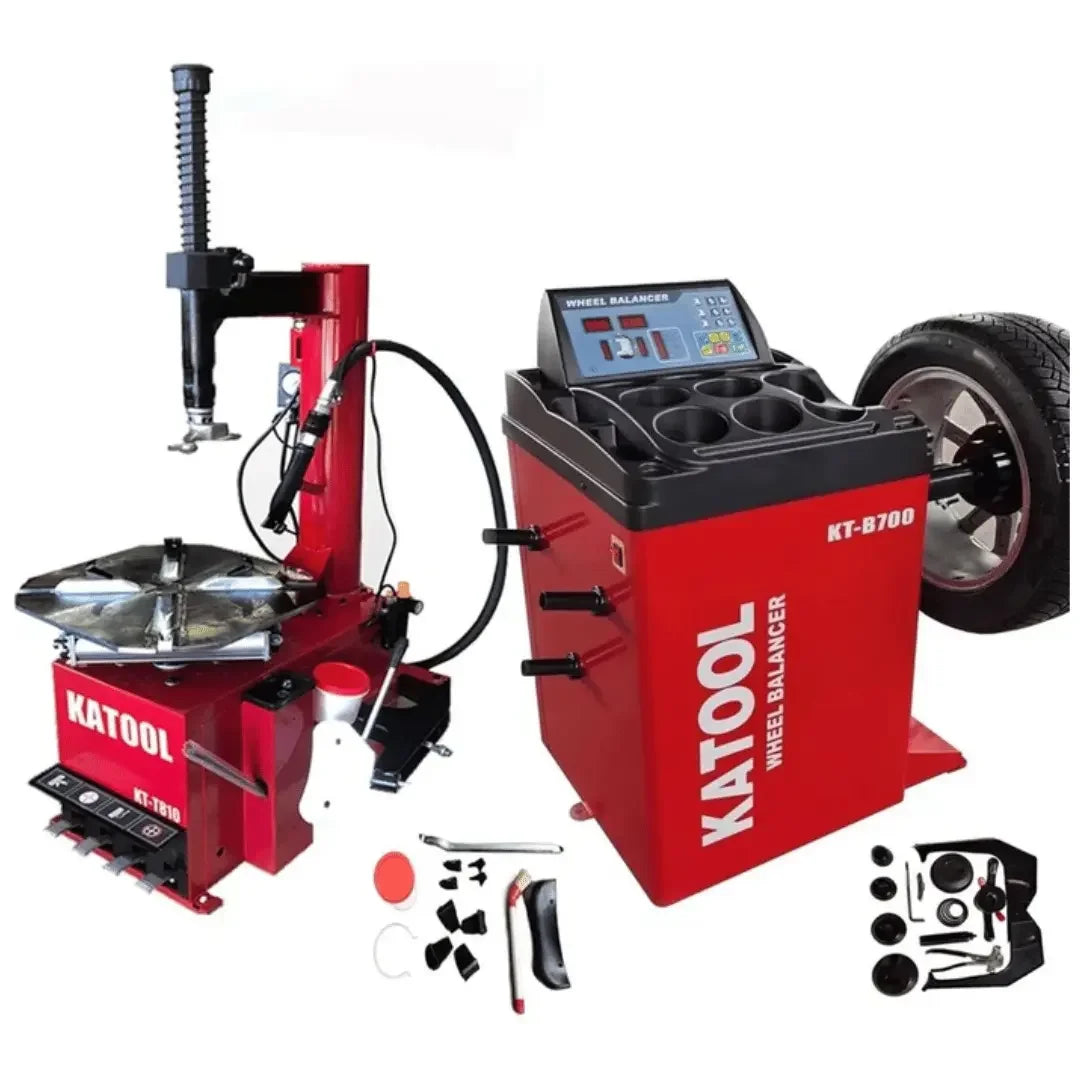

Katool Tire Changer KT-T810 & Wheel Balancer KT-B700 Combo

The Katool Tire Changer KT-T810 & Wheel Balancer KT-B700 Combo is a powerhouse duo engineered for precision and efficiency in tire service. The KT-T810 Wheel Clamp Tire Changer boasts an alloy steel jaw with advanced carburization, ensuring durability and rim protection. With features like an inflation gauge, pull-type pedal control system, and a top-level motor with pure copper winding, it delivers fast, reliable, and long-lasting performance. The closed body design protects internal components. Complementing this, the KT-B700 Wheel Balancer features a robust 3mm-thick steel body and an 8mm-thick sensor support for stability. Its top-level motor and advanced sensor technology offer superior precision in various balance modes. The combo, with optional wheel guard and longer shaft, ensures a comprehensive solution for tire maintenance needs.

Product Features

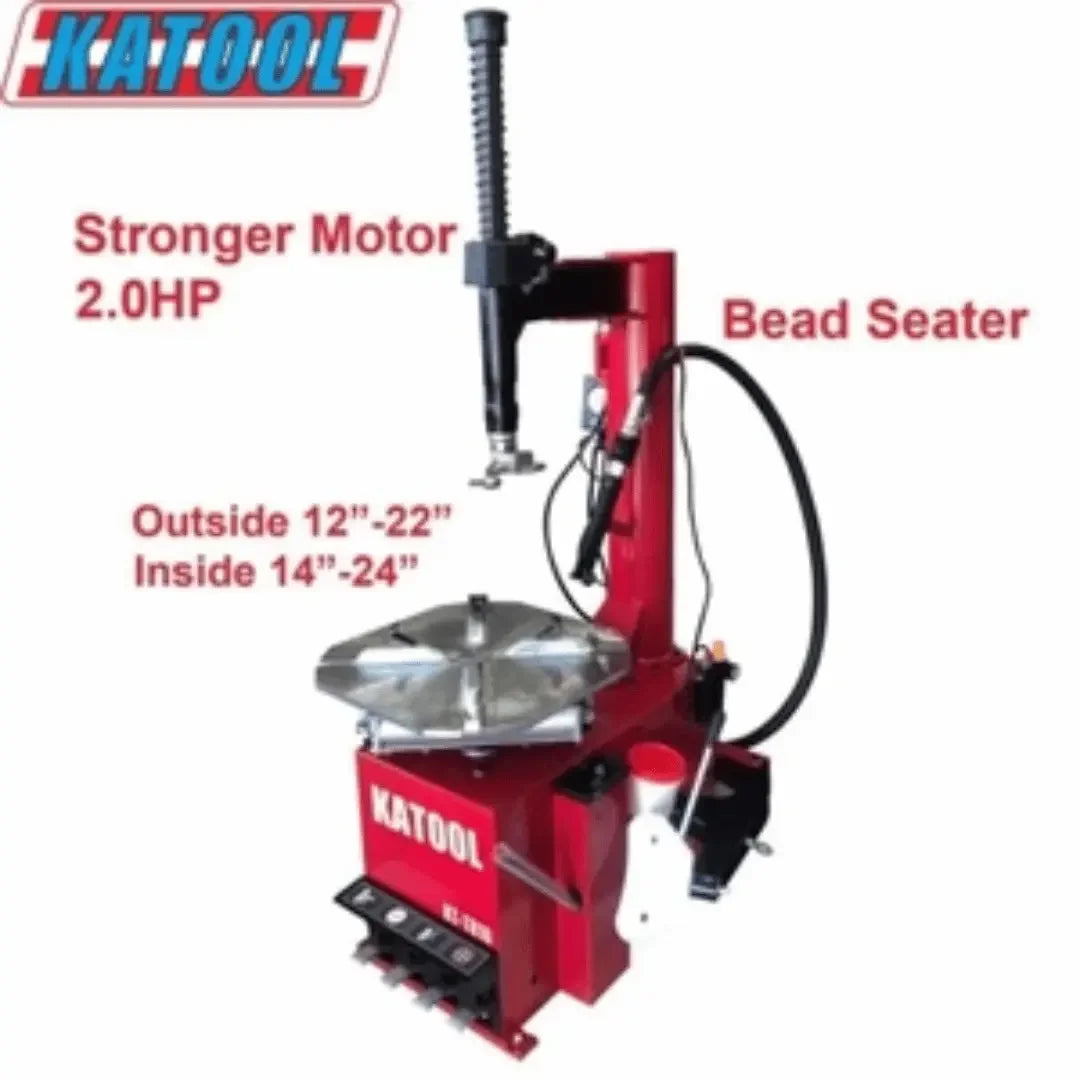

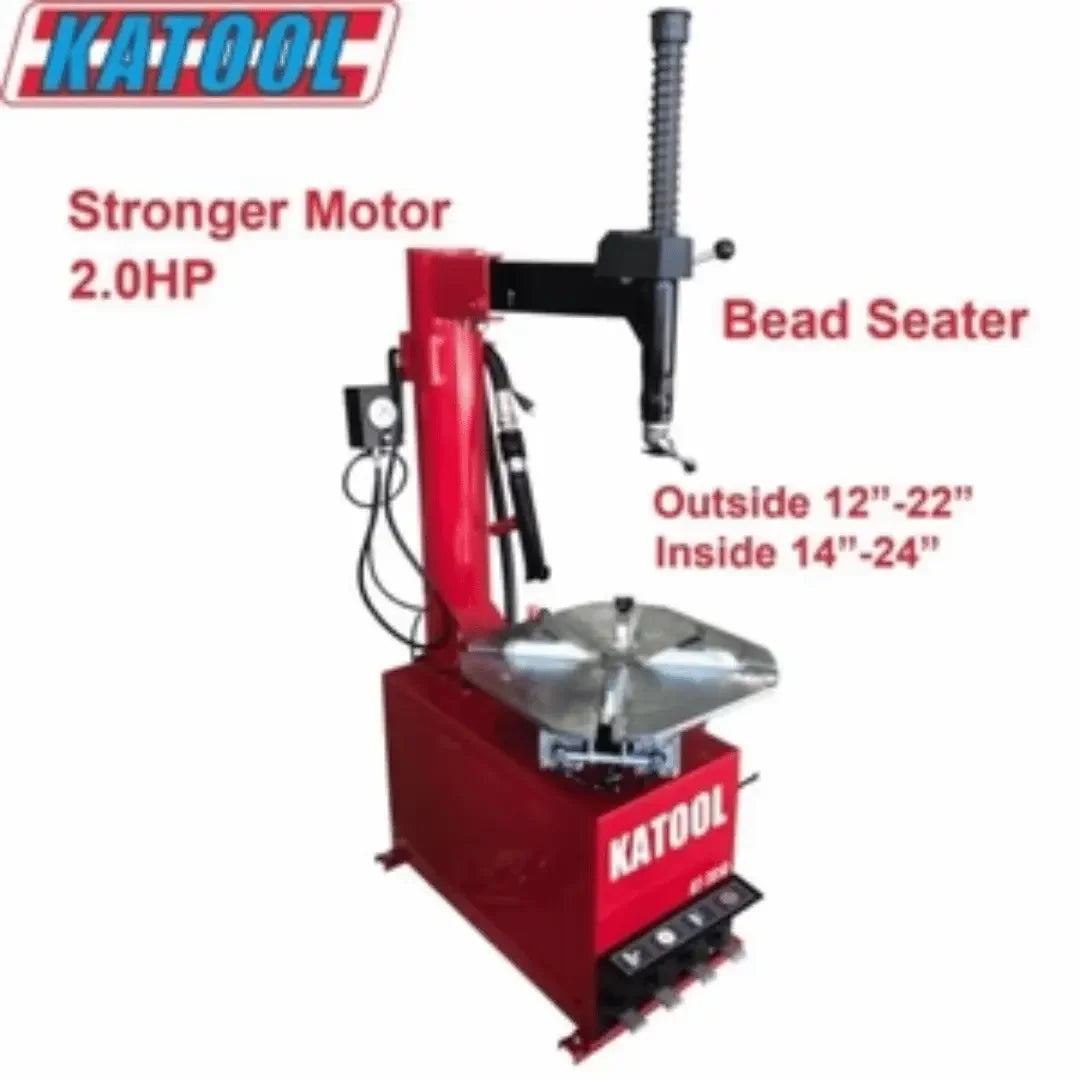

KT-T810 Wheel Clamp Tire Changer Machine

  • Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
  • The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim
  • Inflation gauge with pedal control
  • With high quality spade cover, effective prevent damage rim
  • Pull type pedal control system, convenience for changing and maintenance
  • Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
  • With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
  • For North America region used 120V/1ph/2.0HP motor, more strong power and high efficiency working
  • Closed body for protect inside parts well

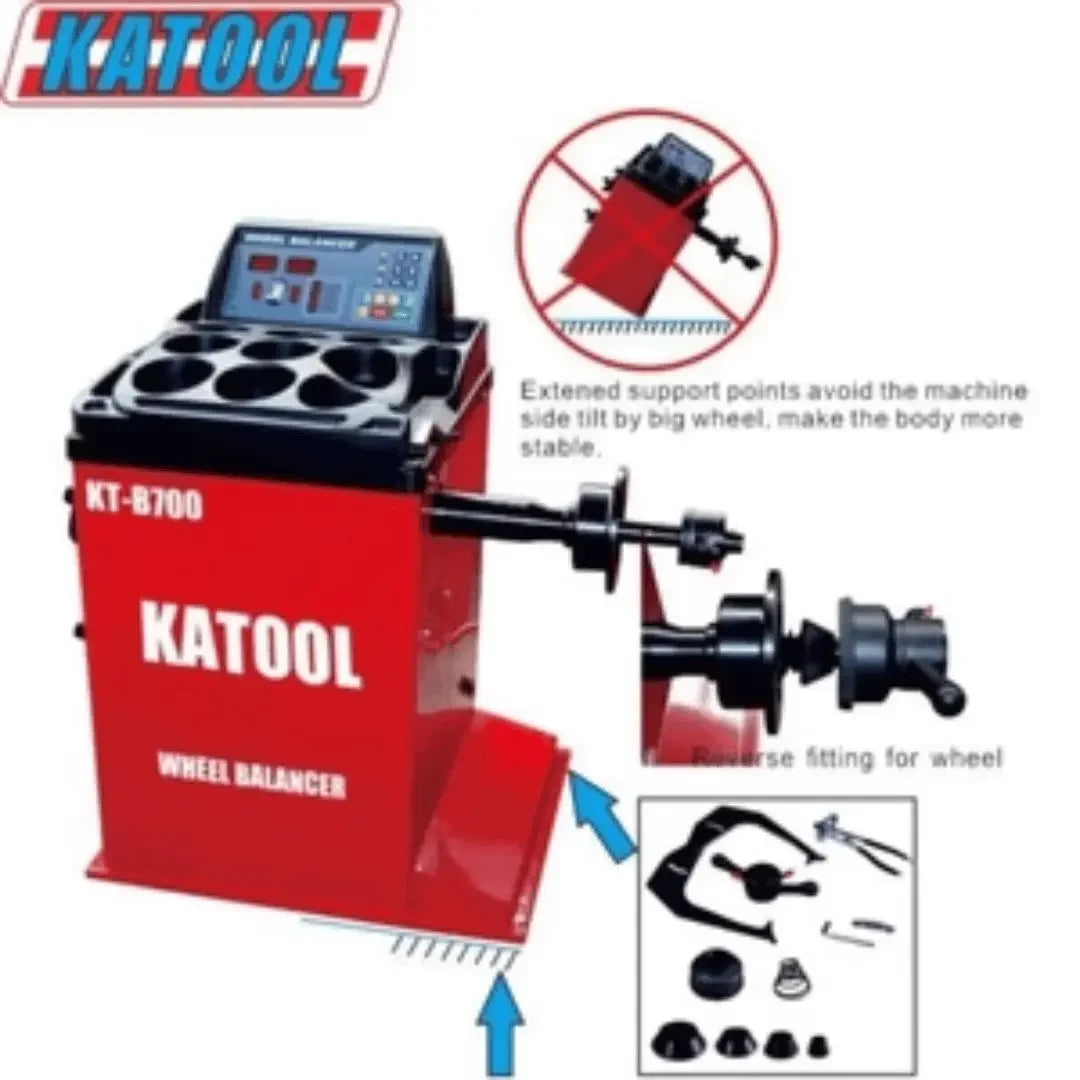

KT-B700 Wheel Balancer

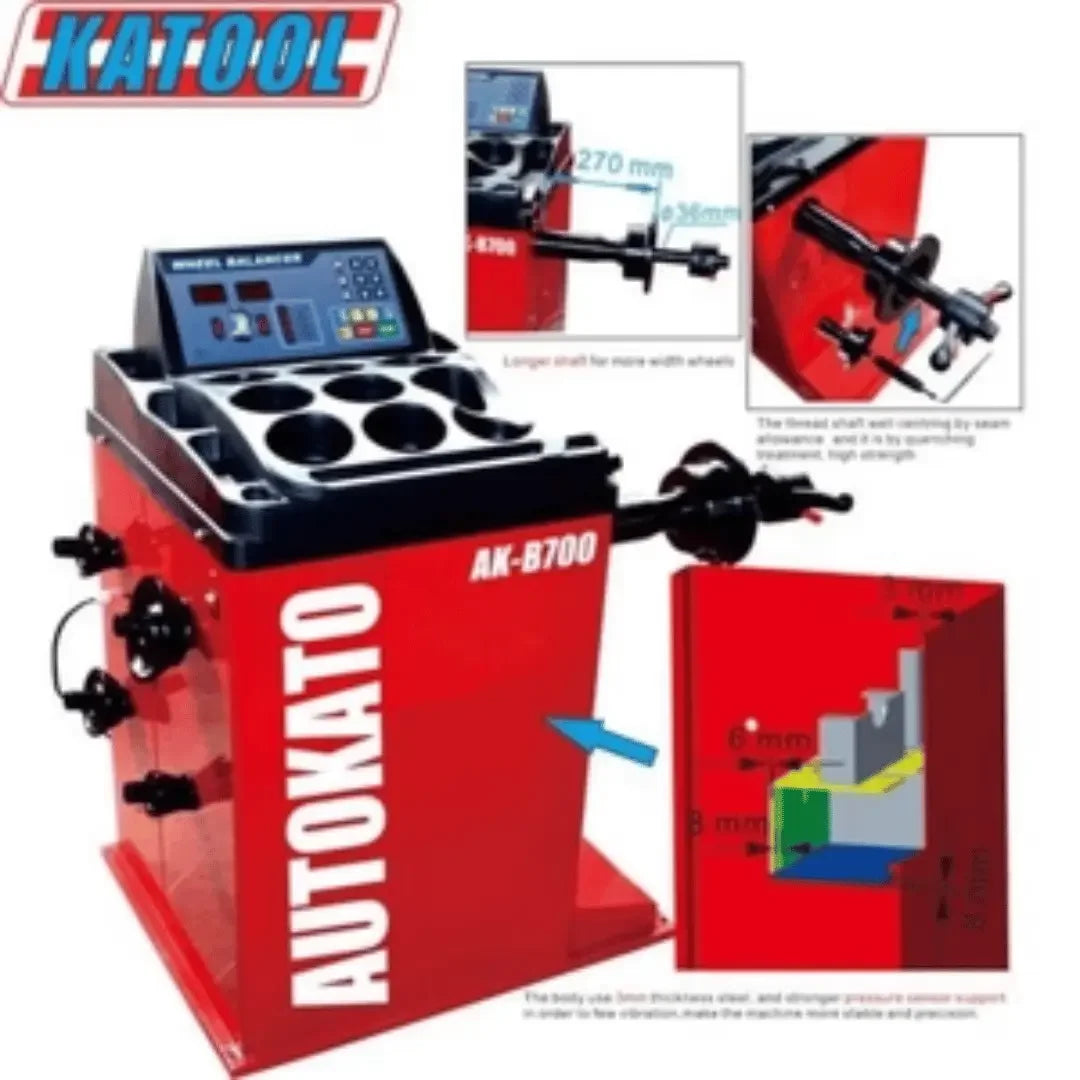

  • The body use 3mm thickness steel, high strength, solid welding, few vibration
  • All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision
  • Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life

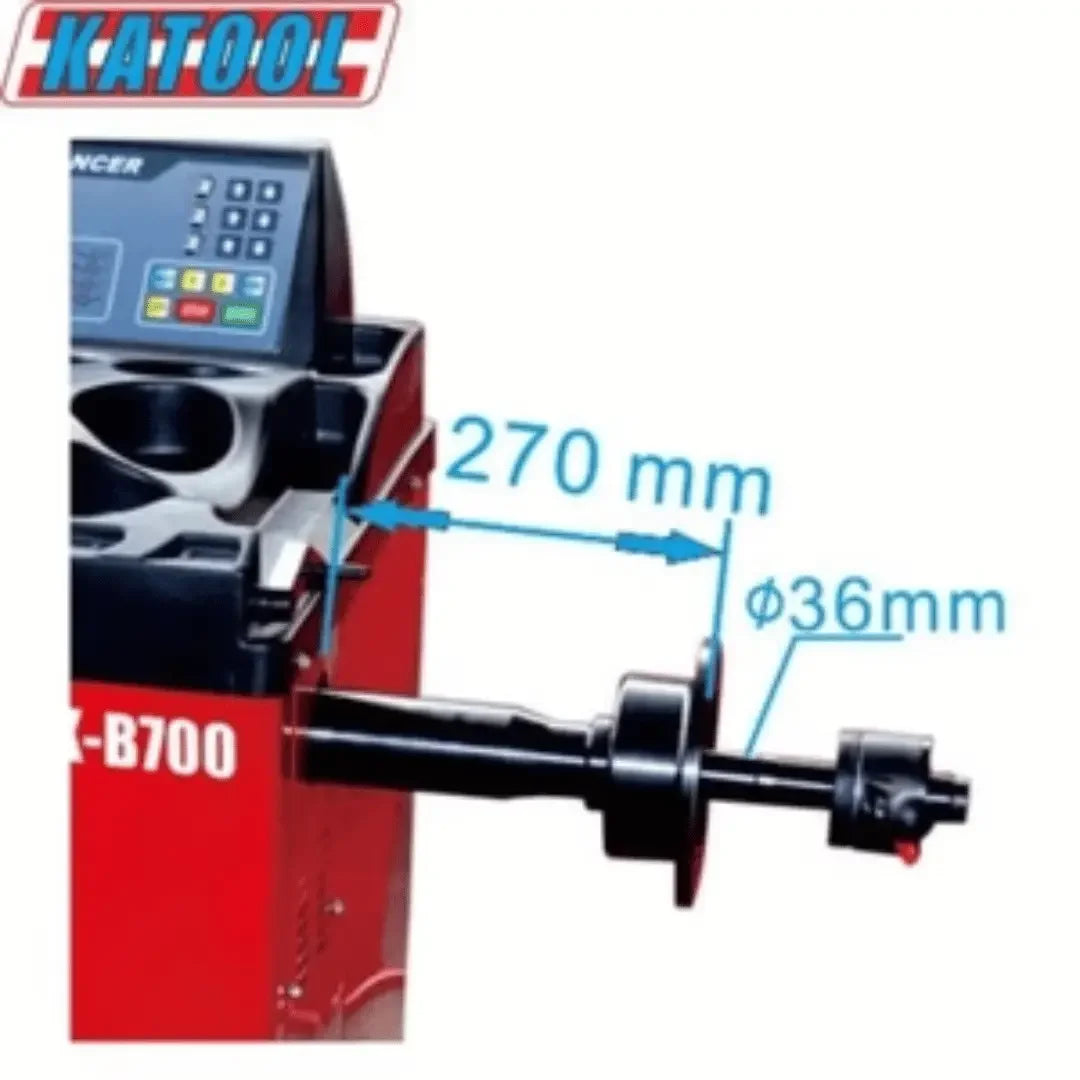

  • The ?36mm shaft thread is by quenching treatment, high strength
  • Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
  • The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
  • Various balance mode, according different rim for different balance mode, make the balance effect more precision
  • Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy
  • Unit selection(Ounce/Gram, MM/Inch)
  • High quality integration power board, working stable and reliable
  • Wheel guard for optional

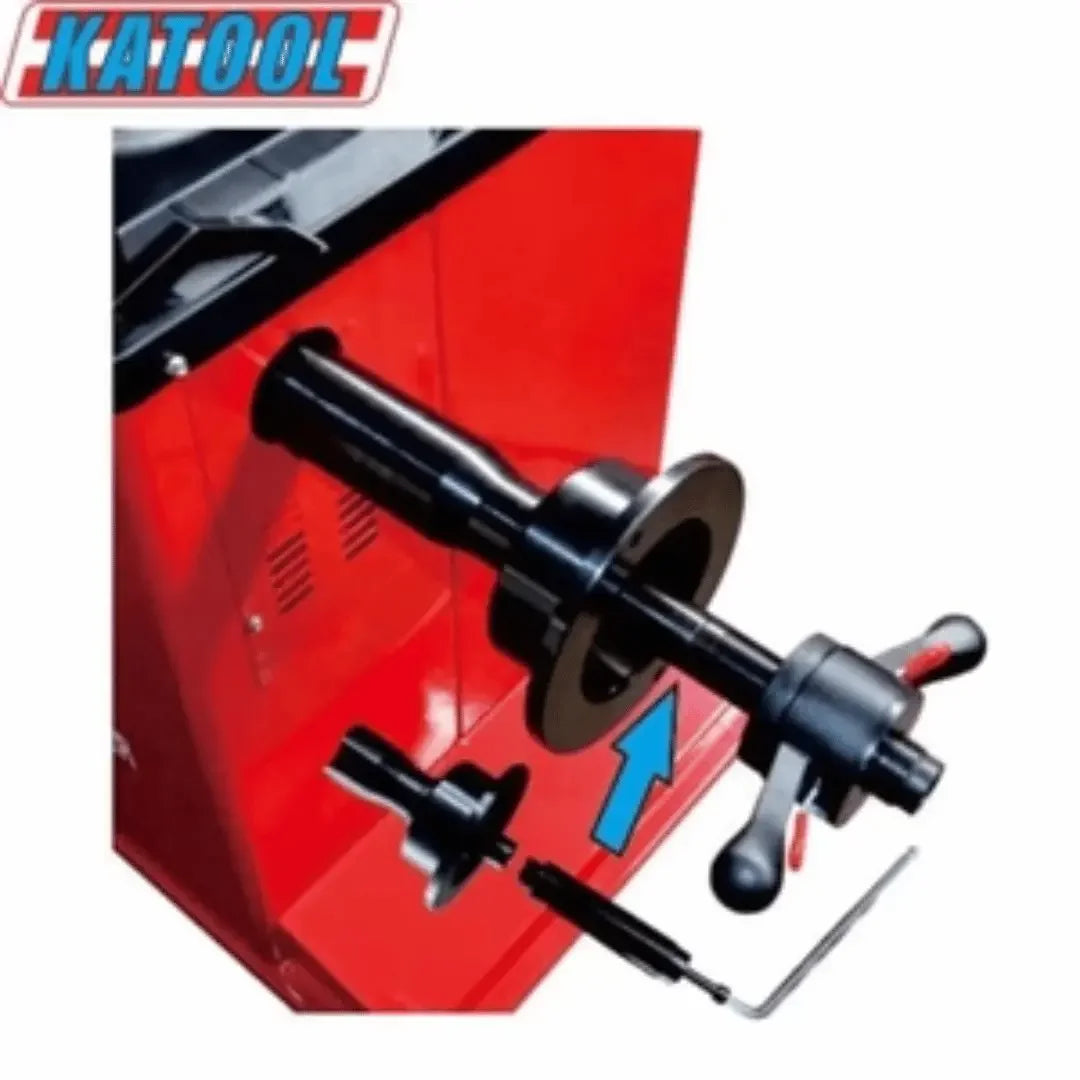

  • Longer shaft for more width wheels

Product Specifications

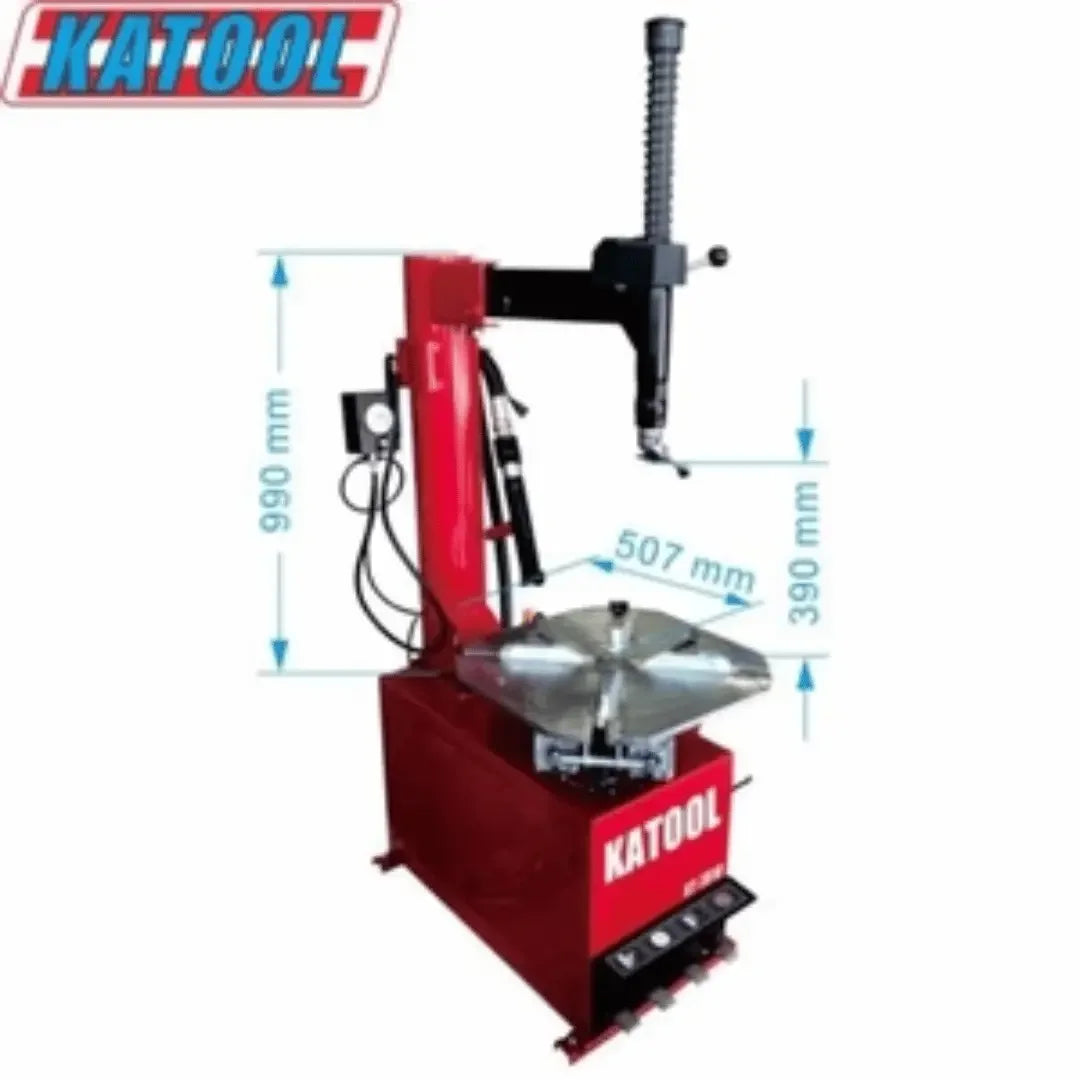

KT-T810 Wheel Clamp Tire Changer Machine

Max Wheel Diameter 41"/1040mm
Max Wheel Width 15"/380mm
Outside Clamp 12"-22"
Inside Clamp 14"-24"
Power Supply 120V 1PH
Motor Power 2.0HP/1.5KW
Rotation Speed 6.8r/min
Air Pressure 0.8-1.0Mpa(116-145psi)
Net weight 186KG


KT-B700 Wheel Balancer

Rim Diameter: <30"
Wheel Width: 3"-12"
Wheel Diameter: <880mm/34.64"
Balancing Speed: 180rpm
Power Supply: 120V 1PH
Motor Power: 0.25KW
Rim Center Hole Dia.: <135mm/5.31"
Wheel Weight: <65KG/143lbs
Balancing Accuracy: 1g
Measuring Time: 7S
