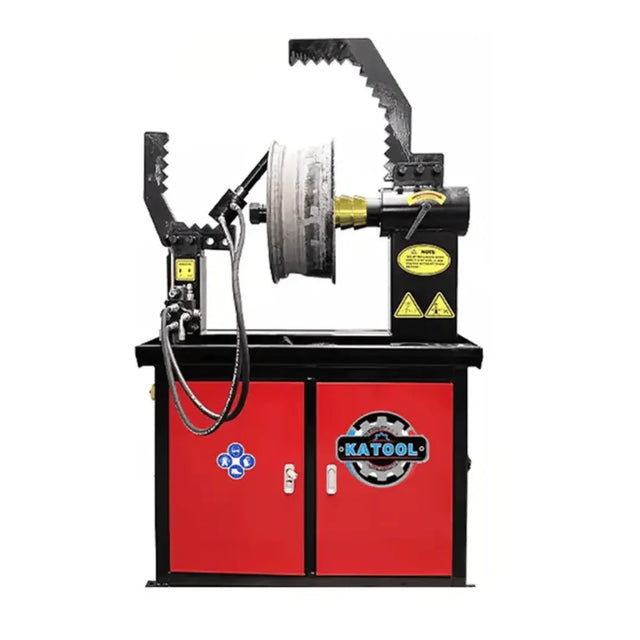

Katool KT-WL69 Rim Wheel Straightening Machine

The Katool KT-WL69 Rim Wheel Straightening Machine is a professional-grade tool built to restore bent or damaged wheels with efficiency and precision. This machine handles rim sizes from 10 in to 22.5 in, making it a versatile choice for many types of vehicles. It is designed to accommodate a maximum wheel diameter of 30 in, giving repair shops the capability to work on larger wheels without needing multiple machines.

With a compact footprint of 37.4 in in length, 22.05 in in width, and 35.43 in in height, the KT-WL69 wheel straightening machine fits well into most shop environments without dominating floor space. Its weight of 529.11 lbs ensures it stays stable during operation, reducing vibration and maintaining accuracy. The unit operates at approximately 75 decibels, enabling quieter operation compared to many heavy machinery alternatives.

The straightening system is powered via a hydraulic drive that enables controlled, consistent force to reshape rims without overcorrection. Assist arms and adjustable fixtures improve the practicality of the machine, allowing technicians to position and support wheels with confidence during repair. The user interface is designed to be intuitive, and setup is streamlined so that each straightening job can begin quickly with minimal adjustments.

Durability is built into the KT-WL69. It is constructed from quality steel materials and components engineered to withstand frequent use. The machine’s design supports both aluminum and steel rims, making it suitable for a variety of repair tasks. Because of its hydraulic mechanism, operators can apply precise corrections rather than relying on raw force, reducing damage to rims and improving repair quality.

Operational ease also plays a large role in the KT-WL69’s appeal. Technicians can rotate the wheel while applying bending forces, which allows full 360° access to deformed areas without repeatedly removing the rim. The combination of hydraulic force and rotation control enables fine adjustments and smoothing out of high spots. After straightening, the machine’s finishing adjustments help restore the rim’s true shape and ensure it is balanced correctly.

Installing the KT-WL69 requires a solid foundation and sufficient overhead clearance for the hydraulic drive motions. Shops must ensure the floor is level, and the machine should be mounted securely to prevent any shifting under load. Proper electrical service must support the hydraulic system’s demands. Routine maintenance includes checking hydraulic fluid, inspecting seals and hoses, lubricating guide rails, and calibrating measurement tools.
