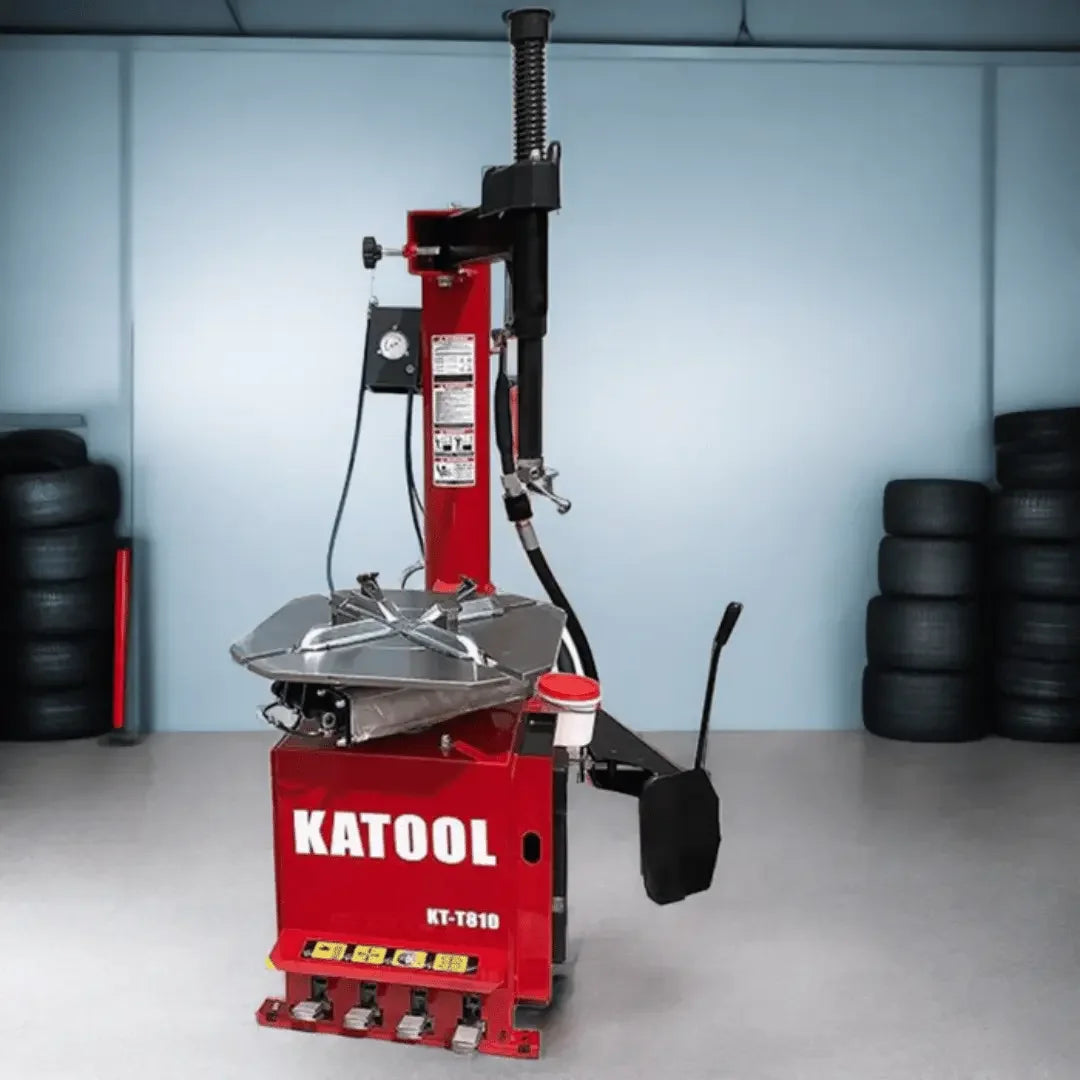

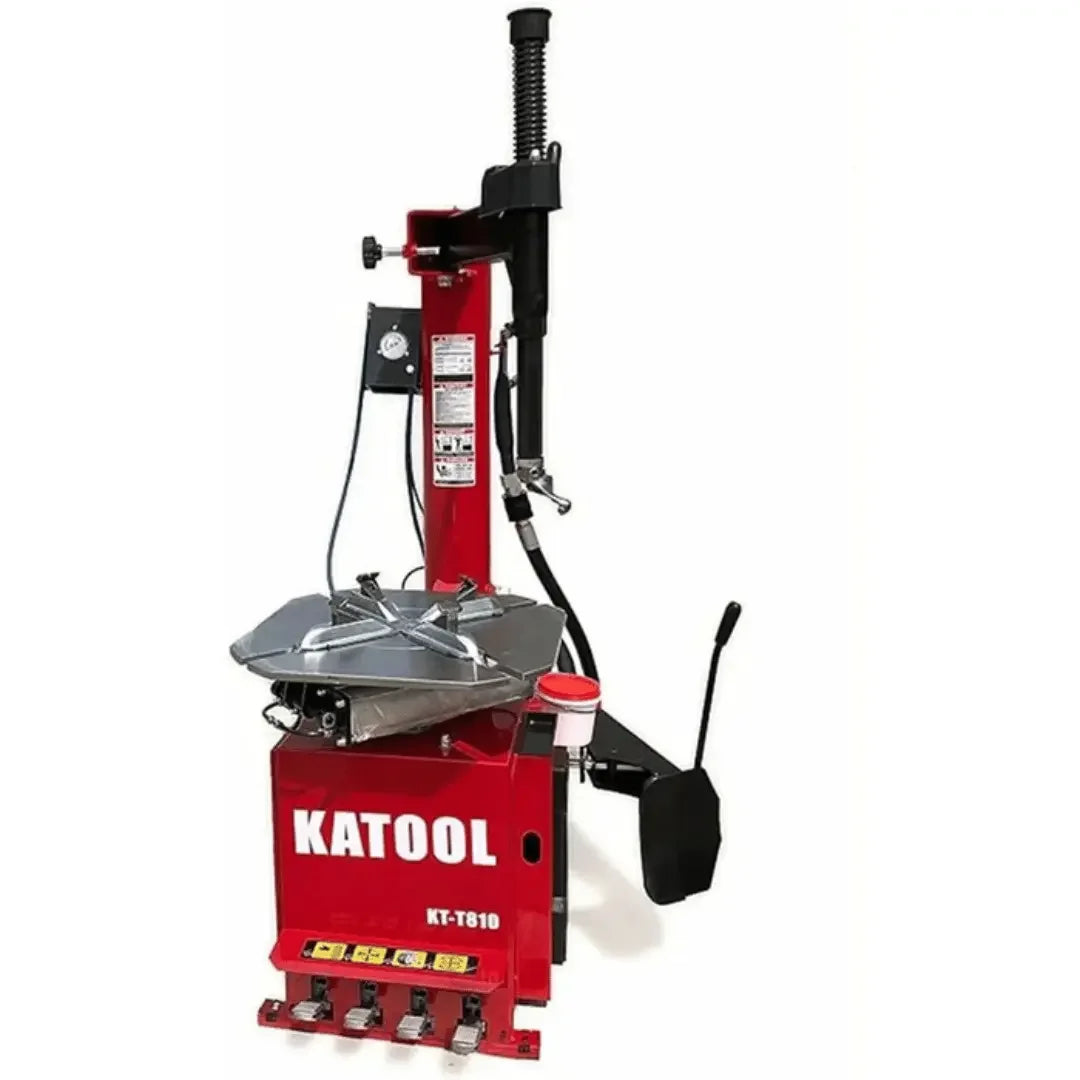

Katool KT-T810 Wheel Clamp Tire Changer Machine

The Katool USA Wheel Clamp Tire Changer Machine KT-T810 is engineered for rigorous shop environments and designed to deliver reliable, high-performance tire changing capability. This machine’s structural design and material selection aim to provide consistency, durability, and operator efficiency when mounting and demounting a wide variety of wheels. With its robust 2.0 HP motor, precise clamping options, and protective features, the KT-T810 becomes an indispensable tool in any tire service shop.

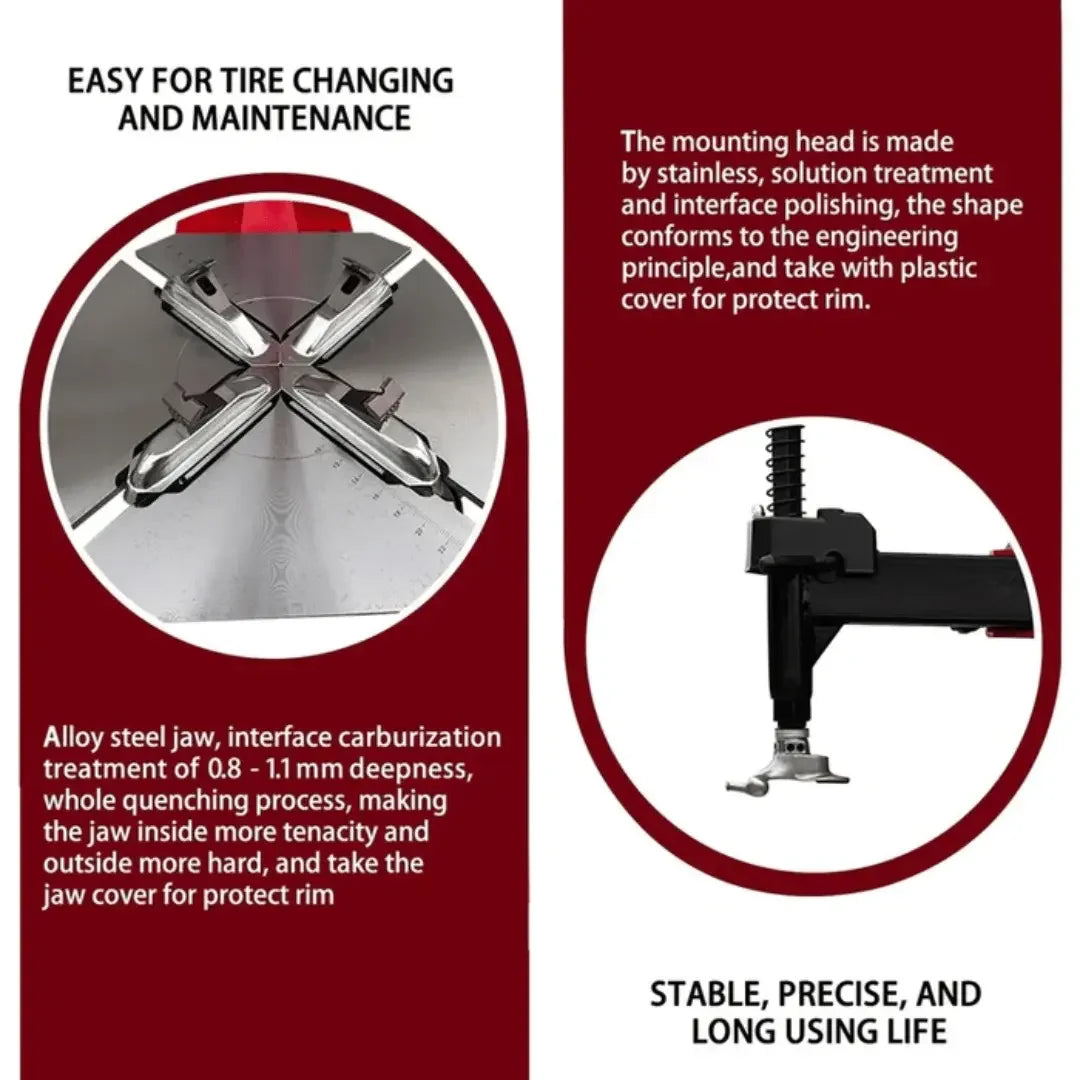

The KT-T810 is outfitted with alloy steel jaws treated via carburization and quenching. The process hardens the outer surface while maintaining internal tenacity, providing both wear resistance and structural durability. The jaws are enclosed with protective covers to reduce rim damage during operation. The mounting head is manufactured from stainless steel, polished and solution treated to resist corrosion, and includes a plastic rim protector to guard delicate finishes. These features work together to preserve the integrity of alloy or painted wheels during the changing process.

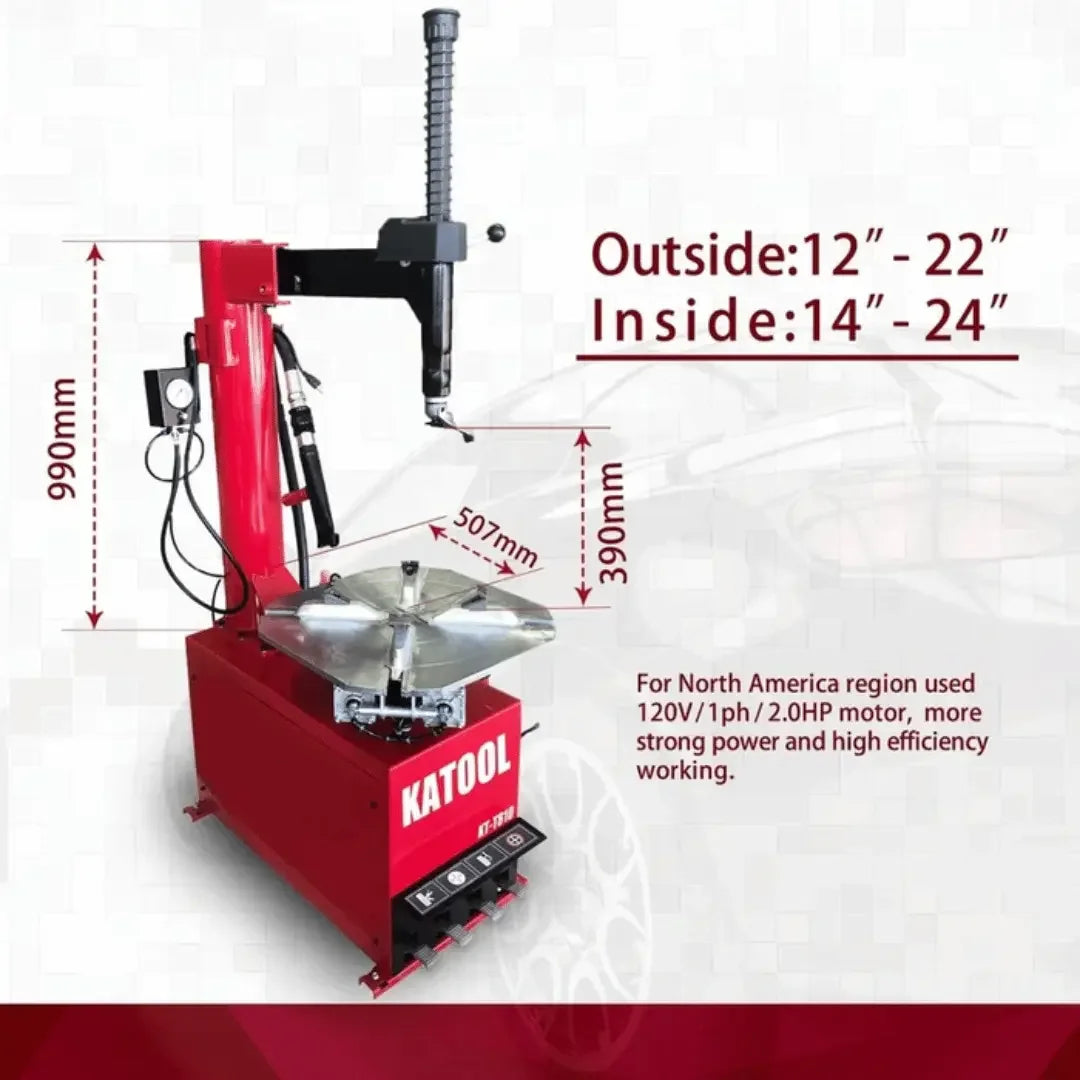

In North American configurations, the KT-T810 operates on a 120V/1-phase power supply with a 2.0 HP (1.5 kW) motor. This setup ensures ample power for rapidly handling larger wheels while maintaining control. The machine rotates at approximately 6.8 revolutions per minute and supports clamp ranges from 12" to 22" externally and 14" to 24" internally. It can accommodate wheels up to 41" in diameter and up to 15" in width. These specifications allow the KT-T810 to work with most passenger, light truck, and SUV wheel sizes encountered in modern shops.

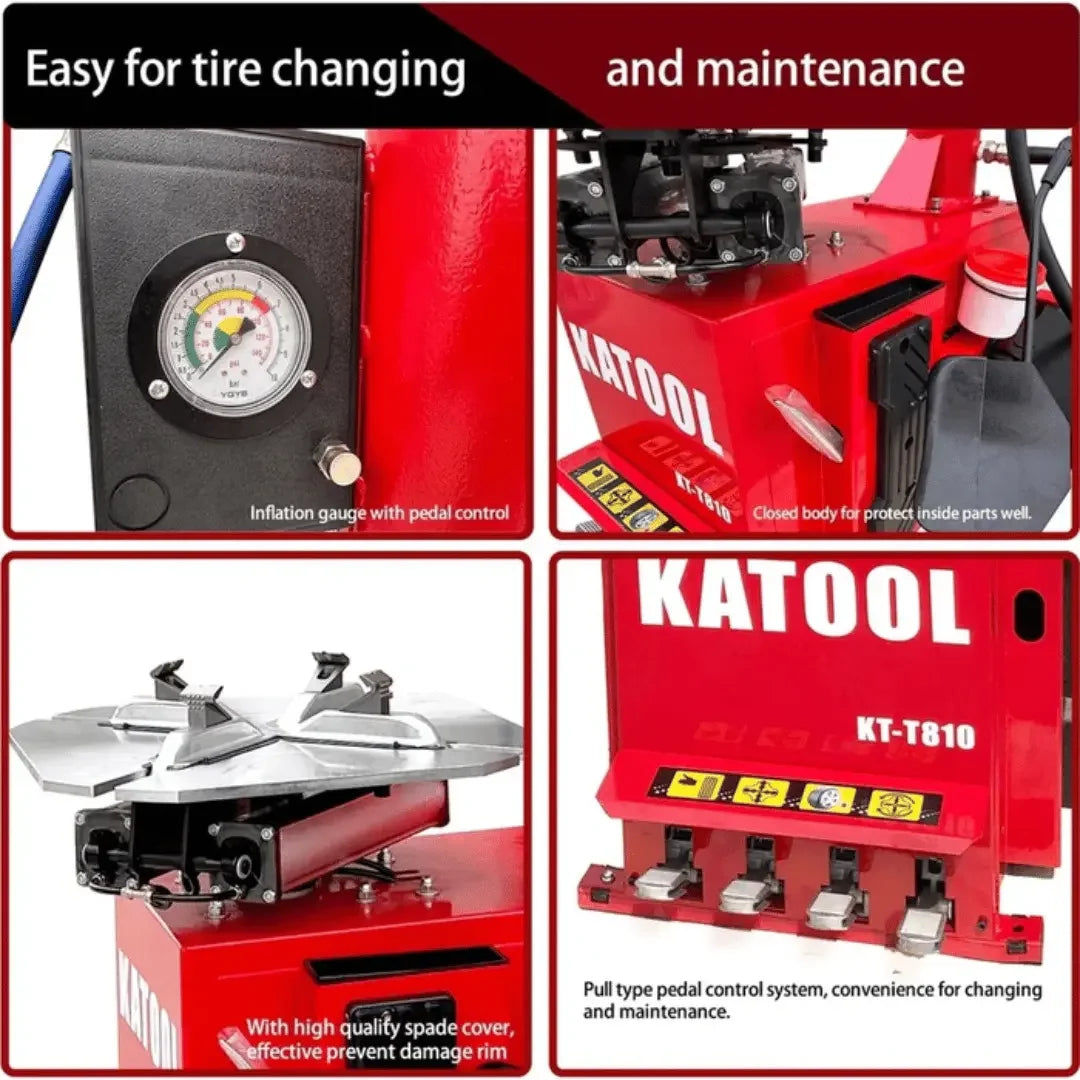

The machine includes pneumatic systems with filters and lubricators to maintain clean, pressurized air supply. The inflation gauge is integrated into a pedal control system, enabling hands-free bead inflation during rim mounting. The bead seater head includes a blast function supported by a post tank to assist with tight bead seating on low profile tires. Protective filter components help maintain the longevity of the pneumatic system, while the closed body enclosure shields internal mechanisms from dust, grime, and impact.

Controls are largely pneumatic and foot pedal based. A pull-type pedal control system simplifies operation, letting technicians engage clamping, bead breaking, and rotation without extensive manual lever handling. The design emphasizes ease of use under high volume conditions and limits operator fatigue. A spade cover is provided to protect the rim further during clamping actions. The machine’s layout and ergonomic design consider common repair bay workflows to keep operations smooth.

Durability is a recurring theme through the KT-T810’s construction. Heavy frame components, reliable motor winding, and protective enclosures combine to resist wear and tear common in busy shops. Technicians replacing parts or servicing components will find that many subsystems are straightforward to access, reducing downtime for maintenance. Because the machine integrates with standard shop air supply and electrical systems, it adapts cleanly to existing setups without requiring major modifications.

In practical use, the KT-T810 supports high throughput while maintaining safety and precision. Its wide clamping range accommodates diverse wheel styles, and the strong motor ensures consistent torque during bead mounting. The aerated blast seater aids in seating stiff tires, especially low profile types, while the pedal inflation system frees one hand for alignment tasks. The combination of rigid jaws, durable materials, and careful protection features helps minimize wheel damage and rejects, which ultimately reduces waste and customer returns.

For shops prioritizing reliability and performance in tire change operations, the Katool KT-T810 Wheel Clamp Tire Changer Machine delivers a compelling blend of power, versatility, and protection. Whether used in a busy repair center or a smaller specialist shop, it brings durability, efficiency, and professional results to every job.

Contact us for more tire changer machine information.
