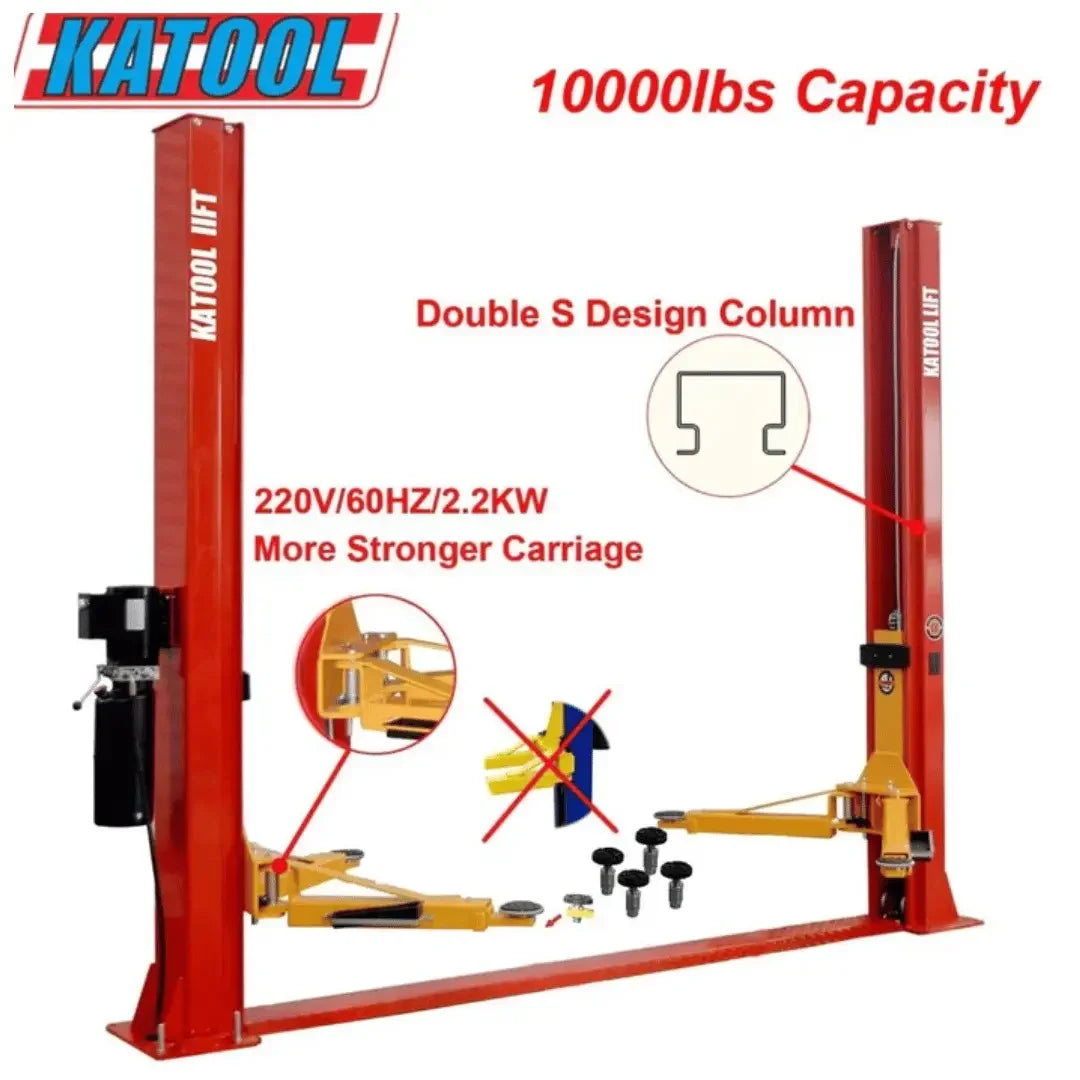

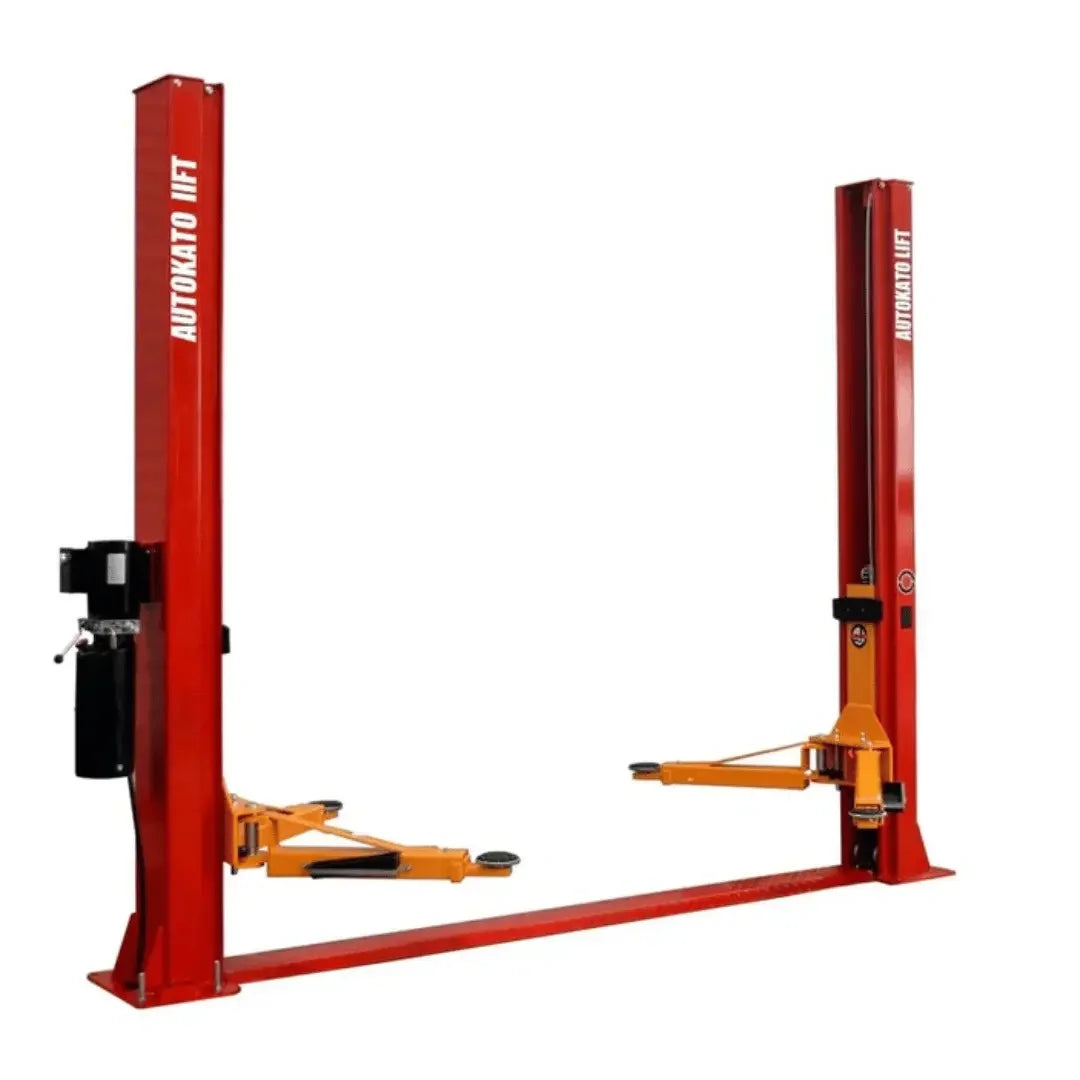

Katool KT-H100 10,000 lbs 2 Post Vehicle Garage Car Lift

The Katool KT-H100 10,000 lbs 2 Post Vehicle Lift is a professional-grade lifting solution built to meet the demands of busy automotive shops and dedicated enthusiasts who require both strength and reliability. With a robust 10,000-pound lifting capacity, this lift is engineered to handle a wide variety of vehicles ranging from compact cars and sedans to larger pickup trucks and SUVs. Its heavy-duty design, dependable hydraulic system, and advanced safety features make it an ideal choice for anyone looking to maximize shop efficiency without compromising safety or performance.

This model is designed with dual hydraulic chain-drive cylinders that ensure smooth, balanced lifting every time. Unlike lighter-duty models, the KT-H100 provides the operator with confidence when working on vehicles of varying sizes and weights. The maximum lifting height of approximately 70.75 inches allows for ample clearance to perform undercarriage inspections, exhaust work, brake service, and suspension repairs with ease. For vehicles with lower ground clearance, the minimum lowered height of only 4.25 inches ensures easy drive-on access, making this lift versatile enough for everything from sports cars to taller trucks.

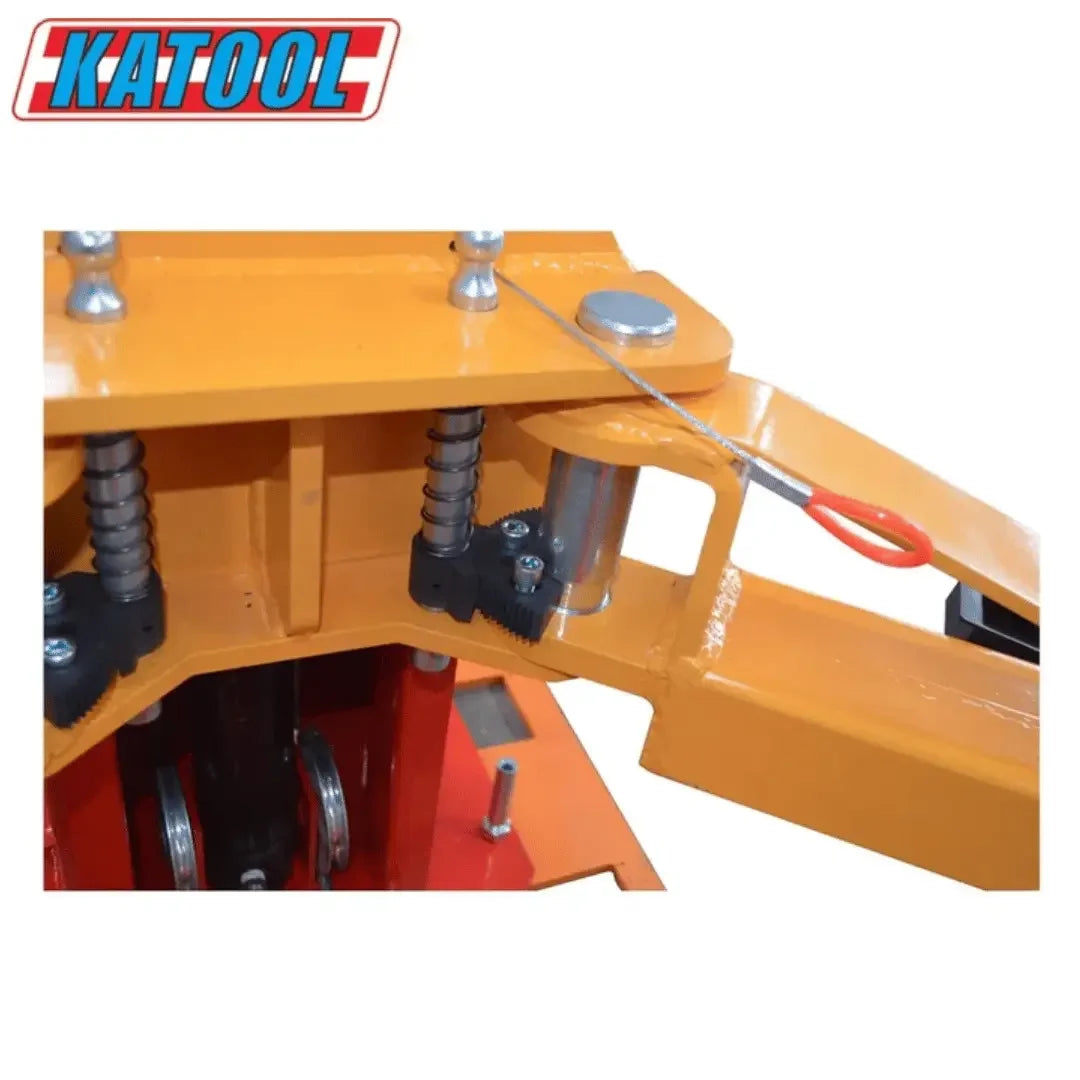

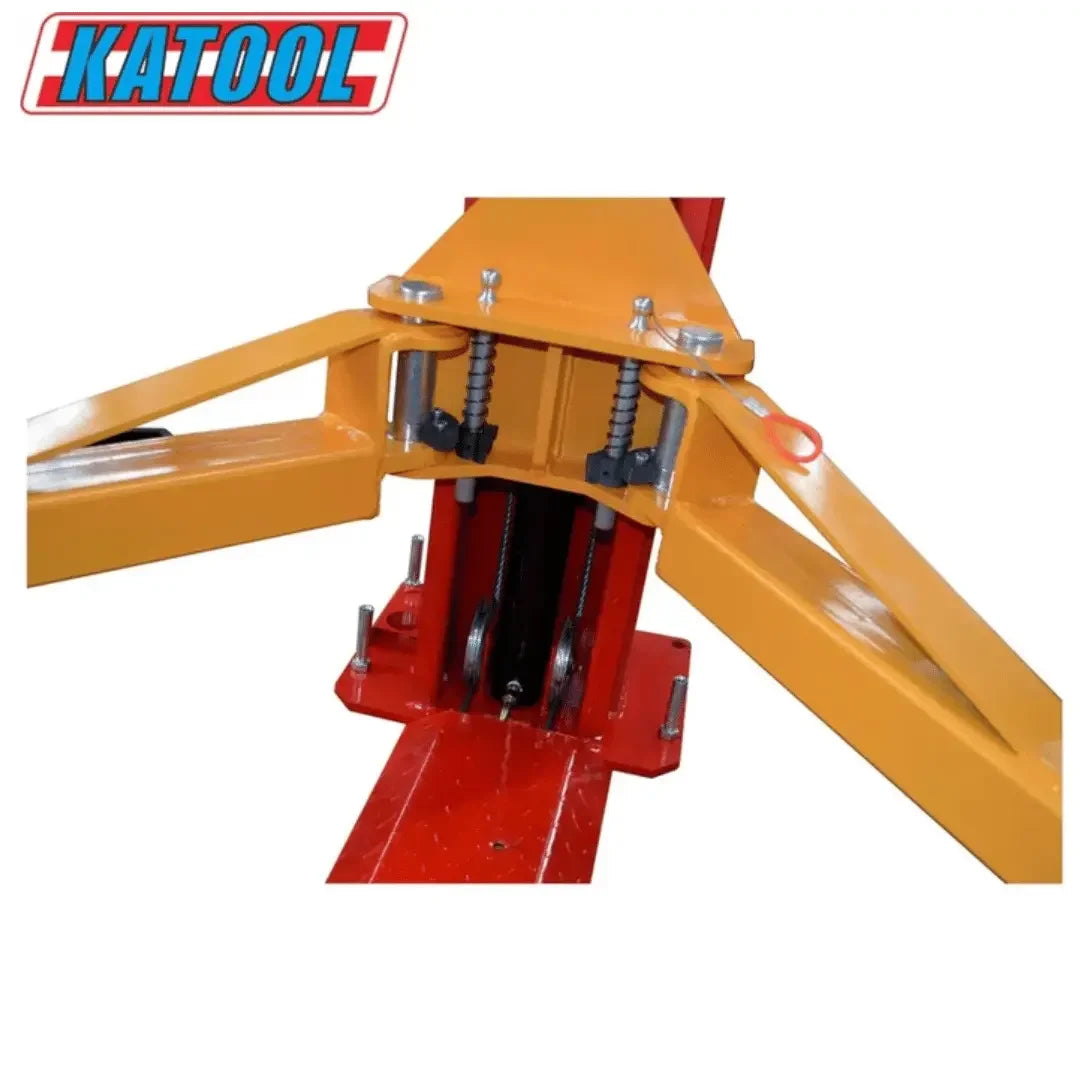

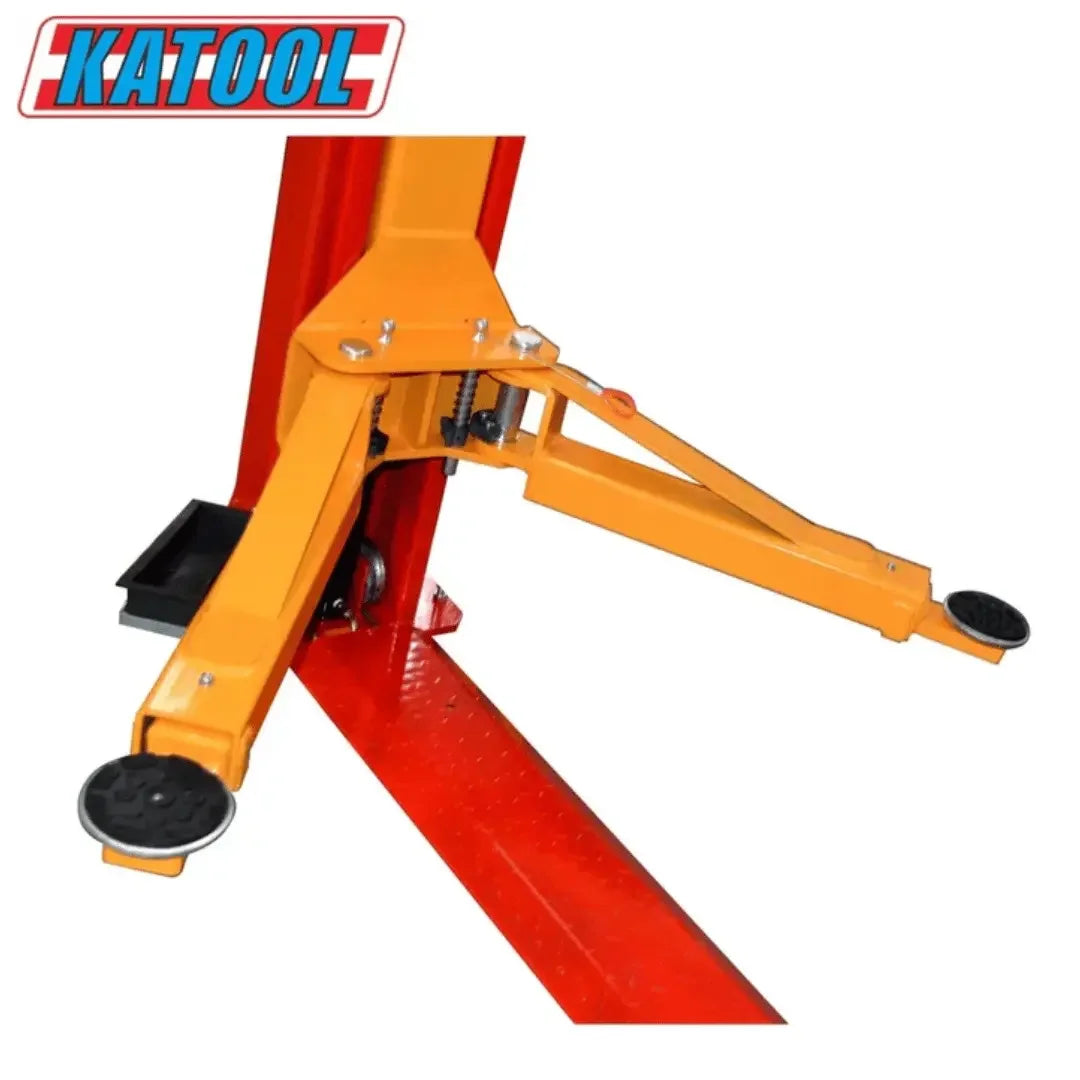

Durability is at the forefront of the KT-H100 2 post vehicle lift design. The structure features heavy-duty steel columns that are built to withstand years of daily use in a commercial setting. Reinforced arms are adjustable to accommodate different vehicle lifting points, while the included extension adapters (+30 mm and +120 mm) allow technicians to service vehicles with higher frames or specialty configurations. The powder-coated finish resists rust and corrosion, helping the lift maintain its professional appearance and structural integrity over the long term.

Safety has been prioritized at every step of the KT-H100’s design. Manual safety locks are accessible on both sides, providing reliable engagement during lifts. Rubber door guards are built into the posts to protect vehicles from accidental contact. The lift has been tested to meet stringent CE standards, including 115 percent dynamic load and 150 percent static load certifications, ensuring that it performs reliably under stress. These safety measures give both shop owners and vehicle owners confidence in the lift’s operation.

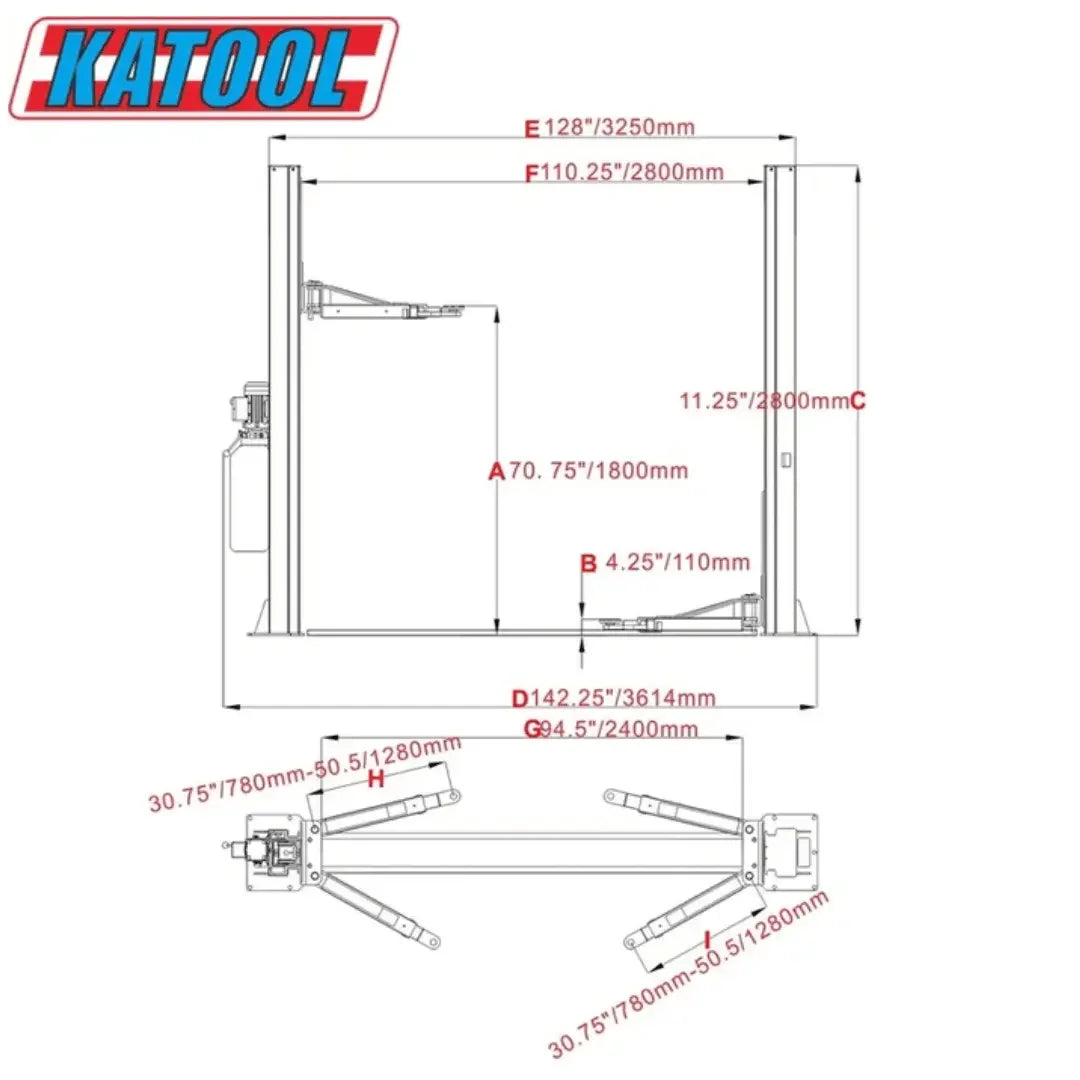

This 2 post vehicle lift requires a concrete foundation of at least 5.9 inches in thickness rated at 3,000 PSI for safe installation, ensuring stability and long-term reliability. Its overall height of about 110 inches and width of 142 inches provide a balanced footprint that accommodates most shop layouts. Inside column spacing of 110 inches offers ample working room between posts, making it easier for technicians to move around the vehicle once raised. Despite its impressive lifting capacity, the KT-H100 maintains a streamlined profile that allows it to be installed in many professional and personal garages without consuming excessive floor space.

Powering the lift is a 2.2 kW motor operating on a 220V / 60 Hz single-phase electrical system, which delivers consistent performance. An optional 110V configuration is available for shops that require different electrical setups, making the KT-H100 adaptable to various work environments. The net weight of the unit is approximately 1,256 pounds, further showcasing its robust construction and durability.
