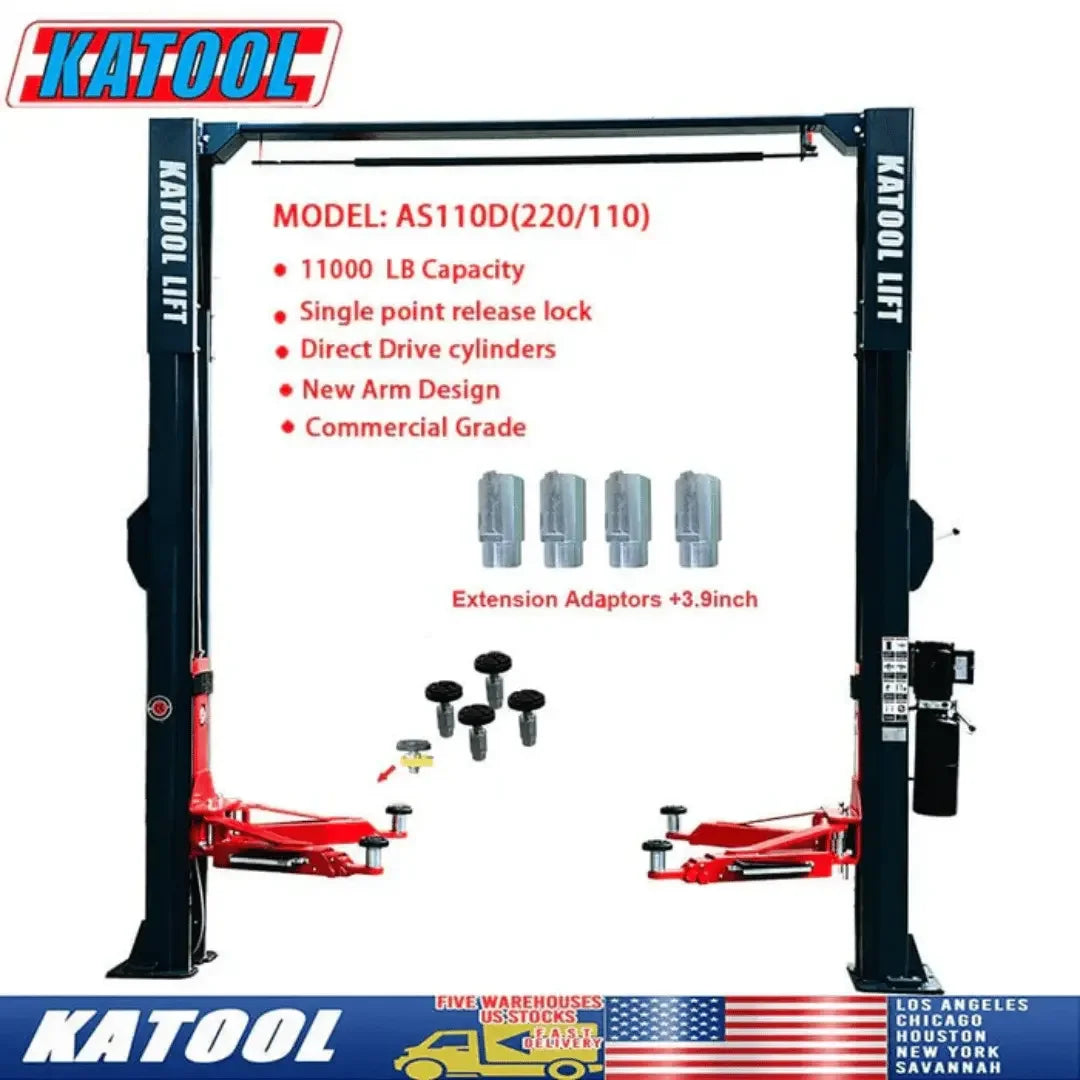

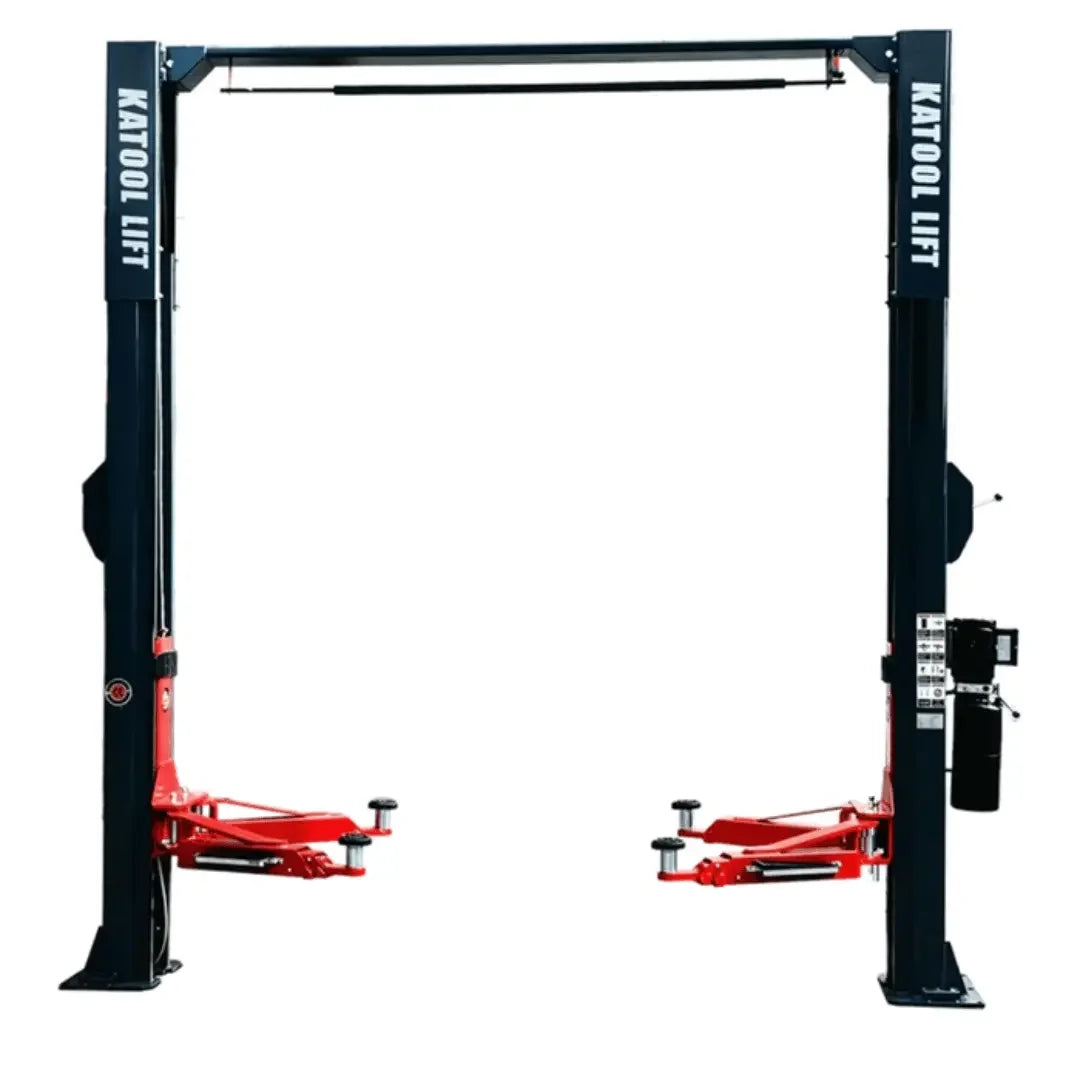

The Katool KT‑AS110D is a heavy-duty asymmetrical 2 post car lift designed for professional automotive shops, offering a powerful combination of capacity, stability, and convenience. With a rated lifting capacity of 11,000 lb, it is ideal for trucks, SUVs, and full-size cars, providing the strength and reliability required for demanding daily use. The asymmetric arm design improves access to doors, suspension components, and frame areas, while dual hydraulic cylinders deliver smooth and balanced lifting. A single-point lock release simplifies operation by allowing both columns to unlock from one side, streamlining workflow and saving time during service.

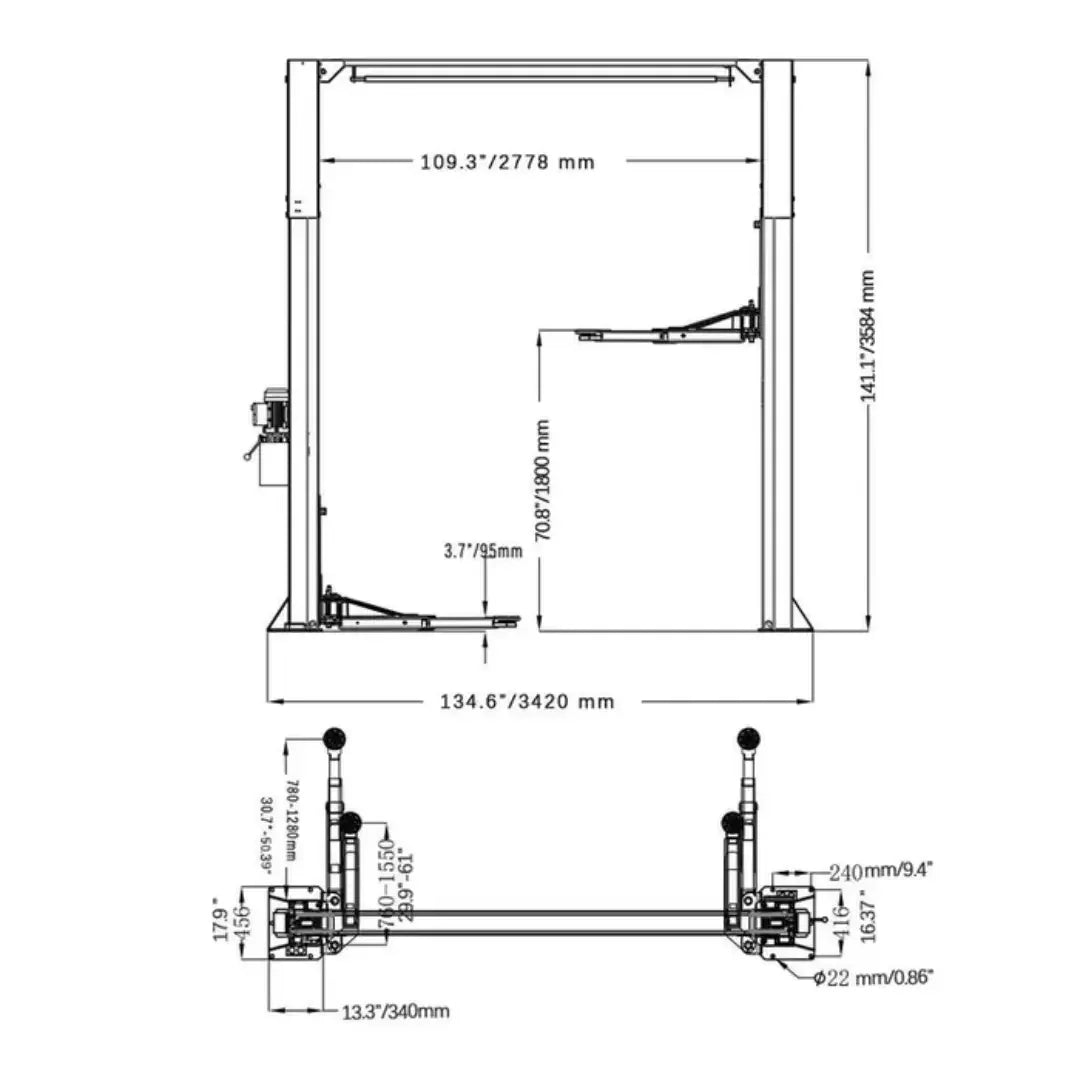

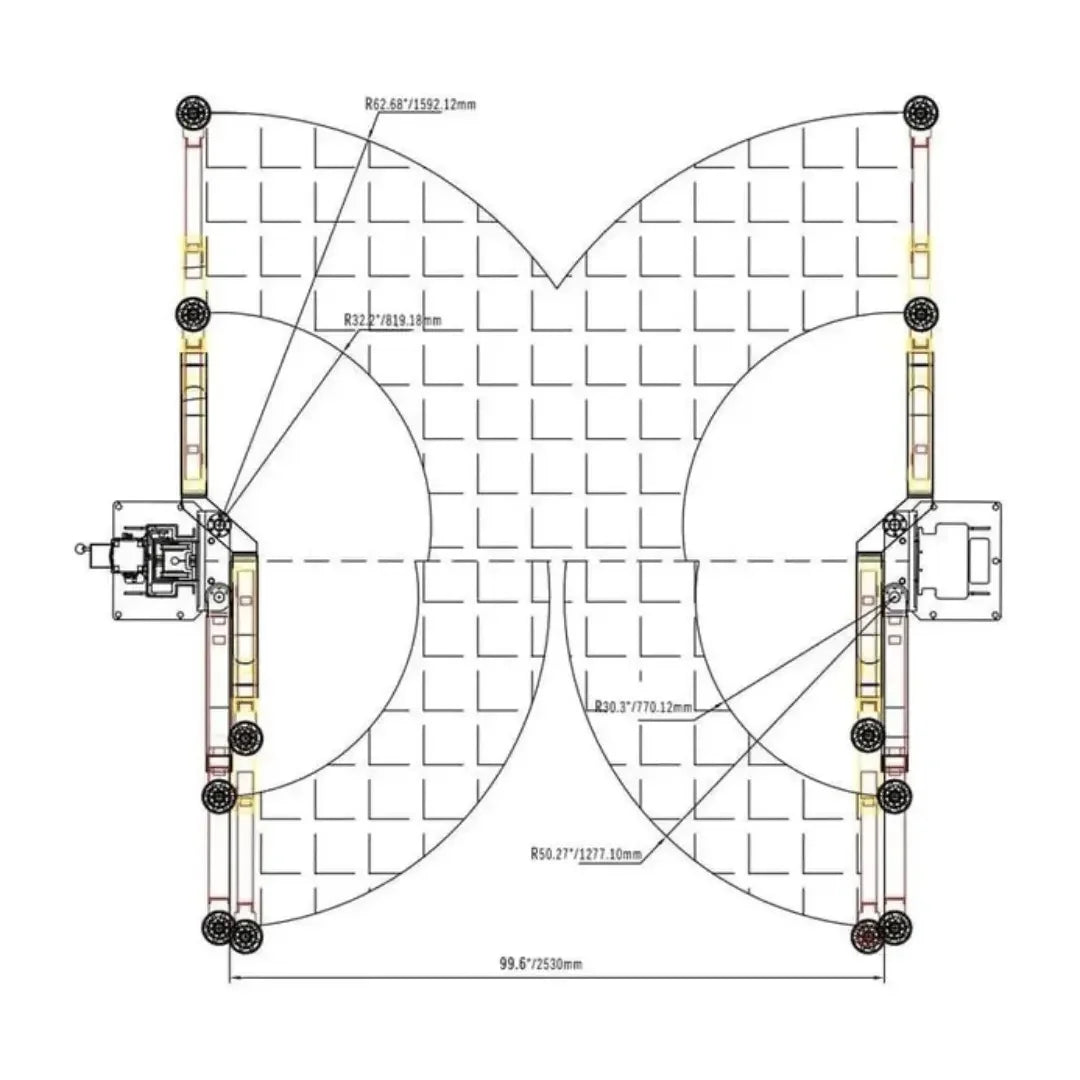

The KT‑AS110D has a maximum lift height of approximately 70.75 inches, providing ample undercarriage clearance for a variety of repair tasks. In its lowest position, the lift’s arm height retracts to about 3.74 inches, allowing easy drive-on for low-clearance vehicles. The overall structure stands roughly 141.25 inches tall with an overall width of about 134.65 inches. Interior clear width between columns is approximately 109.37 inches, and drive-through clearance is around 99.61 inches, making it capable of accommodating long wheelbase vehicles with ease. Outside column spacing is 120.4 inches, giving stability without occupying excessive floor space.

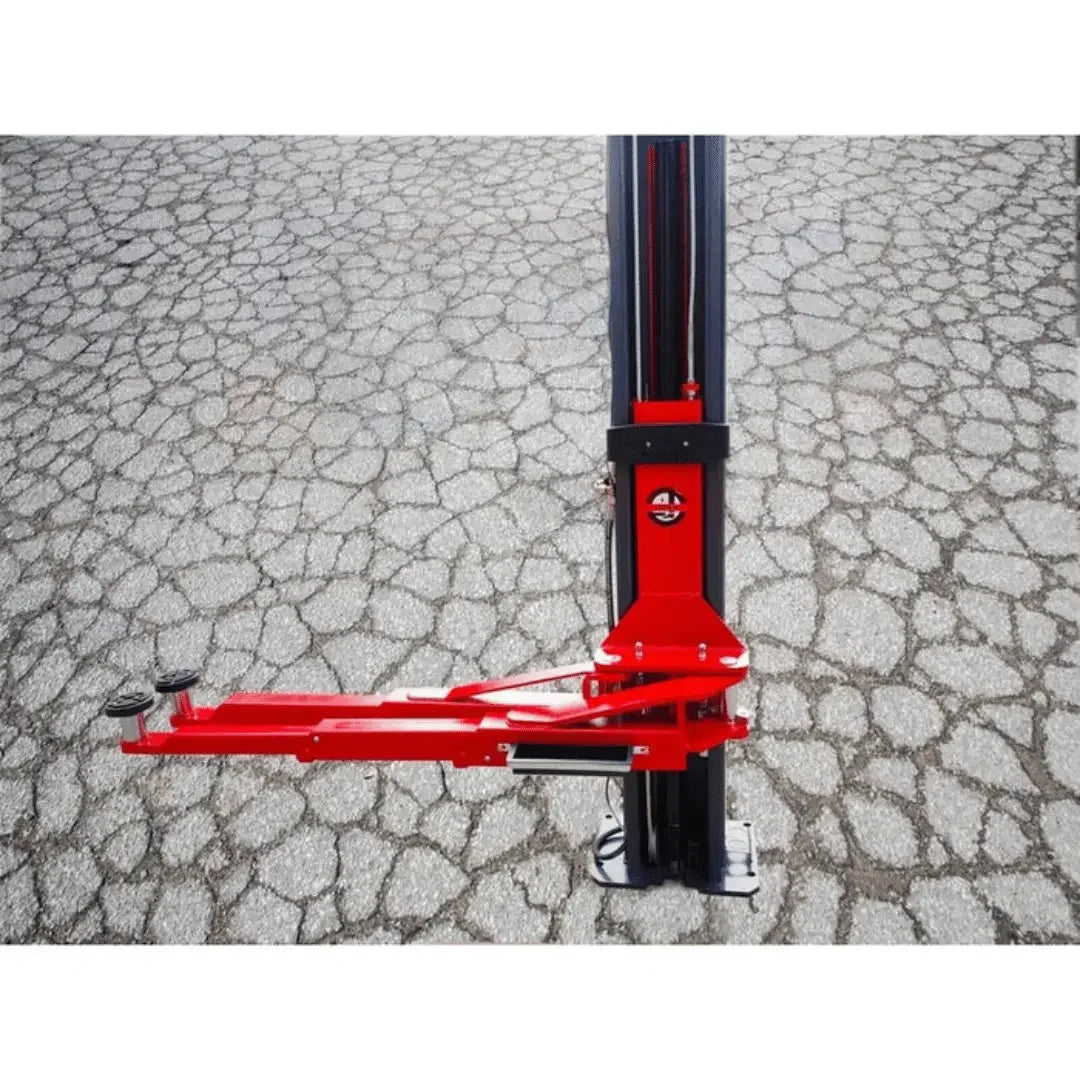

Safety and durability are key features of the KT‑AS110D. The 2 post car lift has been CE-certified and tested to 115 percent of its dynamic load and 150 percent of its static load capacity, ensuring solid performance under heavy stress. The arms include adjustable support adapters that extend from 3.94 to 6 inches to fit varying vehicle lift points. Rubber pad protection is incorporated to safeguard vehicle doors during positioning, while overhead safety shutoff bars prevent over-lifting. Feet protection guardrails add extra safety for technicians working around the lift. The design of the lift also incorporates accessibility for inspection and maintenance, ensuring efficiency in busy shop environments.
Power comes from a reliable hydraulic system available in a 220V single-phase 60 Hz configuration, with optional configurations available for different markets. This system integrates seamlessly into standard shop power setups. The lift’s pump and cylinder assembly ensure smooth lifting and lowering operations even under maximum load. The frame and arms are engineered to resist bending or misalignment, extending the life of the lift and ensuring consistent performance over years of heavy use. Technicians appreciate the accessibility of hydraulic lines, safety locks, and pulleys for maintenance without requiring major disassembly.
Operation is straightforward. Vehicles are positioned between the columns, lift pads aligned to manufacturer specifications, and the hydraulic motor engaged to raise the vehicle. The safety locks automatically engage at intervals during ascent, securing the load. Lowering is controlled via the single-point release mechanism, allowing both columns to descend evenly and safely. The asymmetric arm layout improves accessibility around the vehicle, giving technicians room to work without obstruction and increasing efficiency for repairs.
Installation requires a solid foundation. The KT‑AS110D must be anchored to a concrete slab with a minimum thickness of 5.9 inches and compressive strength of at least 3,000 psi to ensure stability and safety under load. This requirement protects both the lift and the operator, reducing the risk of accidents due to uneven or unstable installation.
Over time, the Katool KT‑AS110D stands out for its strength and reliability. Its construction ensures consistent performance under heavy use, with safety features that protect both vehicles and operators. Rubber protections, adjustable adapters, and a robust frame contribute to reduced wear and long-term durability. For a shop that demands a dependable, high-capacity lift, the KT‑AS110D delivers superior functionality and long-term value.
Contact us for more 4 post and 2 post car lift information.
