iDEAL PSB-SDD26B-AK Side Down Draft Paint Spray Booth
Product Description

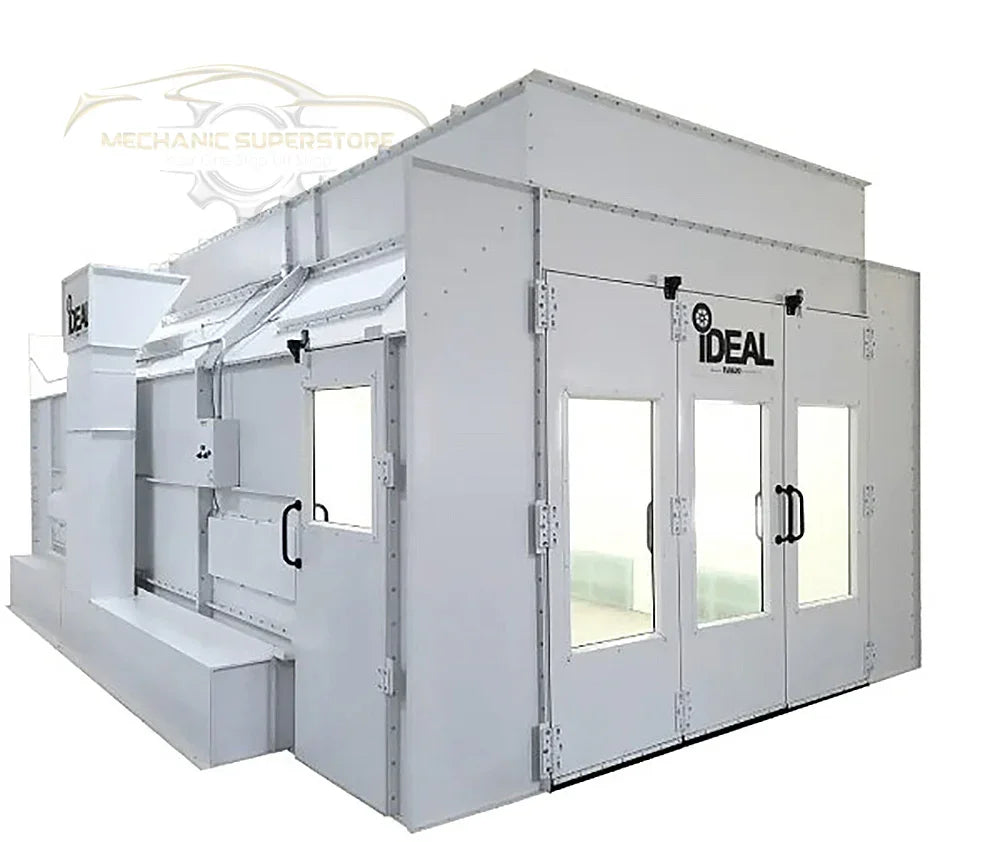

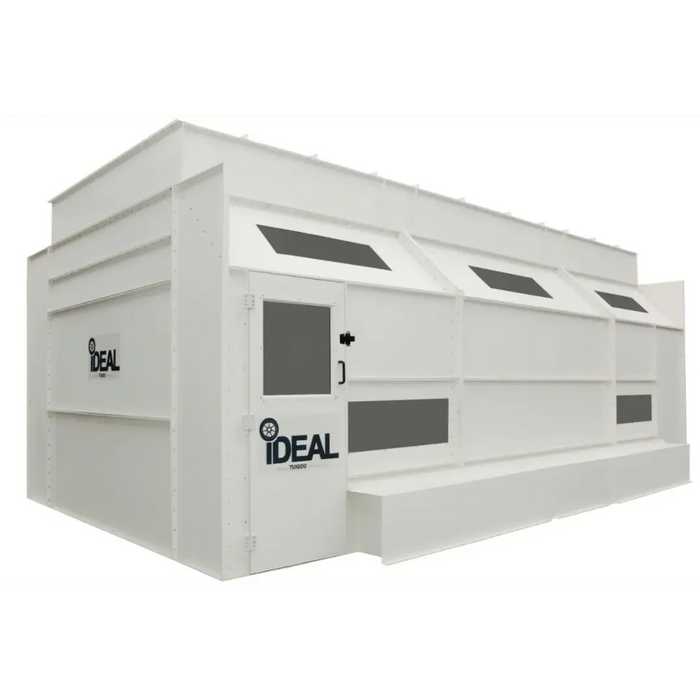

iDEAL PSB-SDD26B-AK Side Down Draft Paint Spray Booth
Introducing the Ideal PSB-SDD26B-AK Side Down Draft Paint Spray Booth—a top-tier, industrial-grade solution designed for precision, durability, and efficiency in all your painting projects. Built with heavy-duty materials and equipped with advanced features, this paint spray booth is engineered to deliver optimal performance in commercial environments, ensuring a flawless finish every time.
Robust Construction and Design
The PSB-SDD26B-AK is constructed from heavy-duty, precision-punched 18-gauge panels, providing exceptional durability and stability. The booth’s bright white powder coat finish, both inside and outside, not only enhances visibility but also ensures long-lasting protection against wear and tear. The commercial-grade ‘hip panel’ design optimizes lighting coverage, making it easier to achieve a consistent and professional paint job.

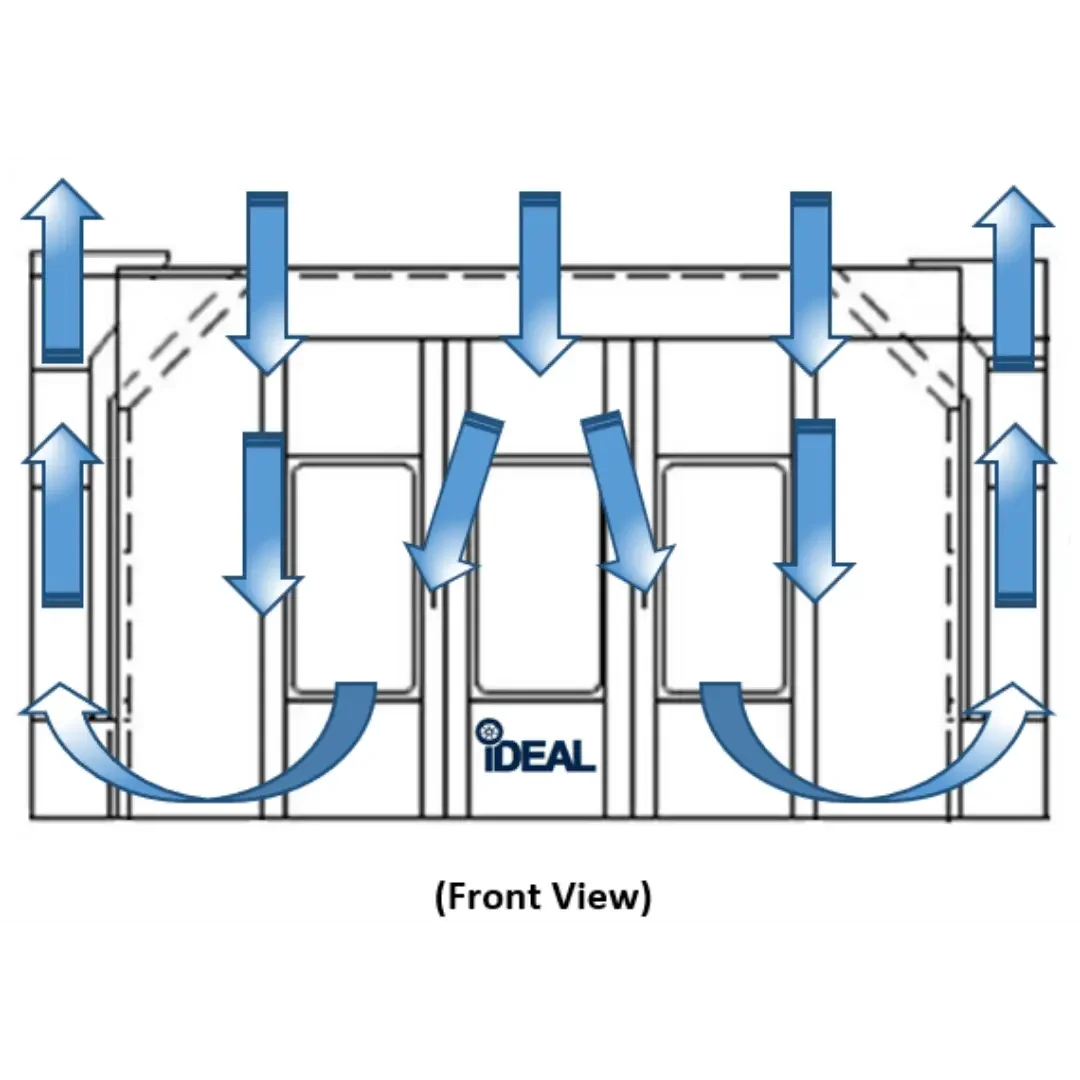

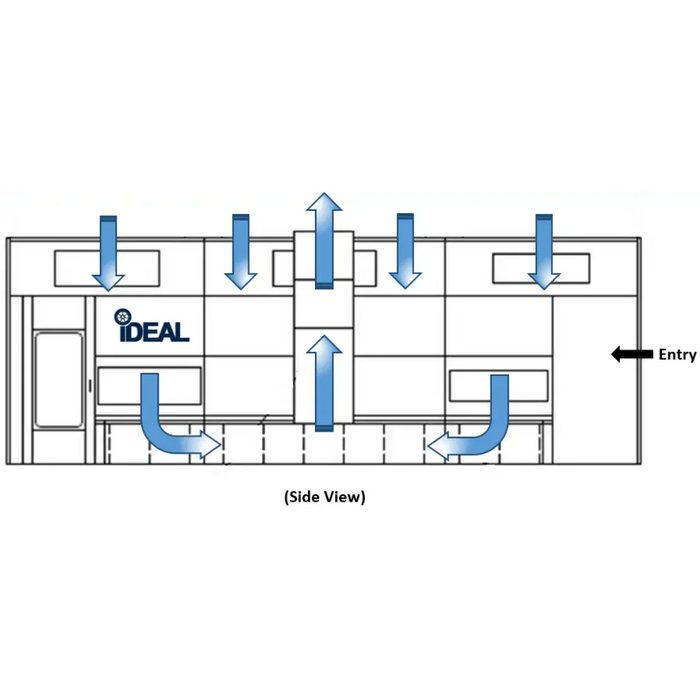

Optimal Air Flow and Ventilation
With a CFM rating of 14,000 at .5 static pressure, the PSB-SDD26B-AK guarantees optimal air flow, effectively removing overspray and maintaining a clean work environment. The booth is equipped with two UL-listed Dayton 24” tube-axial exhaust fans featuring spark-resistant fan blades, ensuring safe and efficient operation. The included premium AFC intake and exhaust filters further enhance air quality, making this booth a reliable choice for all your painting needs.

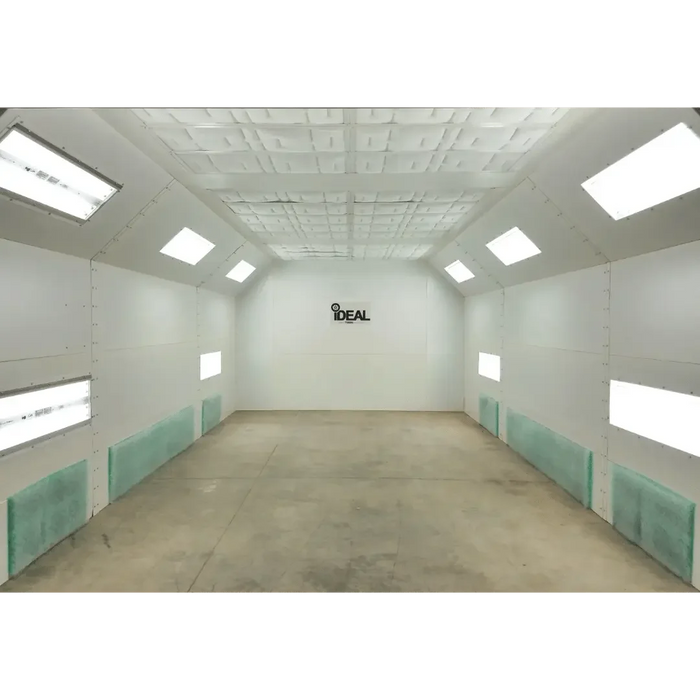

Superior Lighting for Precision Work
The PSB-SDD26B-AK features 10 LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, each with 4 GE T8 fluorescent lamps (32W, 5000K, 4’ length), providing bright, uniform illumination across the entire workspace. This superior lighting setup allows for precision in every detail, ensuring that your paintwork is completed to the highest standards.
User-Friendly Assembly and Control

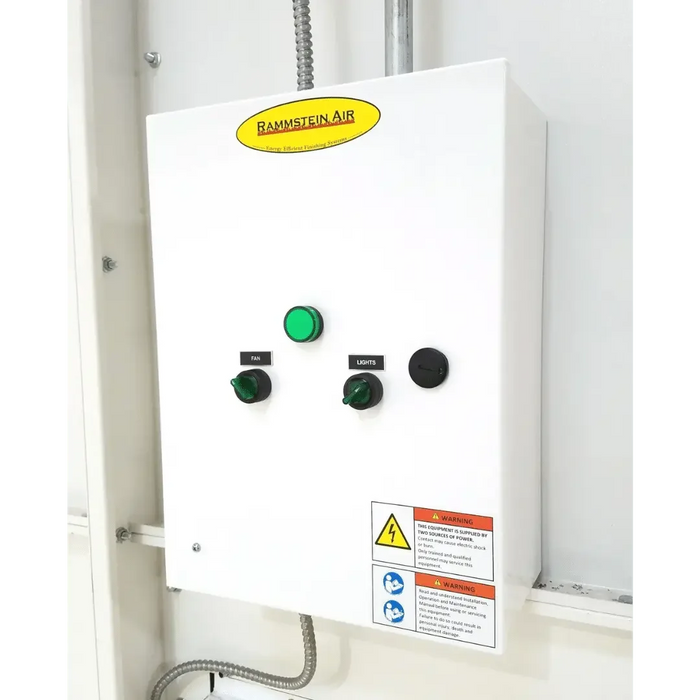

Designed with convenience in mind, the booth features a 5/16” bolt and nut assembly for easy setup. The deluxe control panel included with the booth allows for straightforward operation, while the NEMA-rated 3HP, 3-Phase motors (230/460VAC-60Hz) ensure powerful and reliable performance. The booth also comes equipped with a manometer, solenoid valve, hardware, and sealant, giving you everything you need for a seamless installation and operation experience.
Safety and Compliance
Safety is a priority with the PSB-SDD26B-AK. The booth meets NFPA 33 standards, ensuring it adheres to the strictest safety regulations. The tri-fold entry doors and personnel door come with viewing windows and shutoff switches, providing both convenience and safety during operation.
Versatile and Expandable
The PSB-SDD26B-AK offers versatility with optional features, including a 1PH electrical setup, plenum kit, tri-fold drive-thru and personnel door kits, and a booth extension kit, allowing you to customize the booth to meet your specific needs.
Generous Workspace Dimensions
With inside dimensions of 26″ L X 14′ W X 9′ 3″ H, this booth provides ample space for a variety of painting projects, making it an ideal choice for both small and large-scale jobs.
Fast Shipping and Reliability
The Ideal PSB-SDD26B-AK typically ships within 48 hours, ensuring you receive your equipment quickly and can get started on your projects without delay.
The Ideal PSB-SDD26B-AK Side Down Draft Paint Spray Booth is the perfect combination of durability, efficiency, and safety, making it an essential tool for any professional paint operation. Whether you’re outfitting a new facility or upgrading your current setup, this booth delivers the performance and reliability you need to achieve superior results every time.

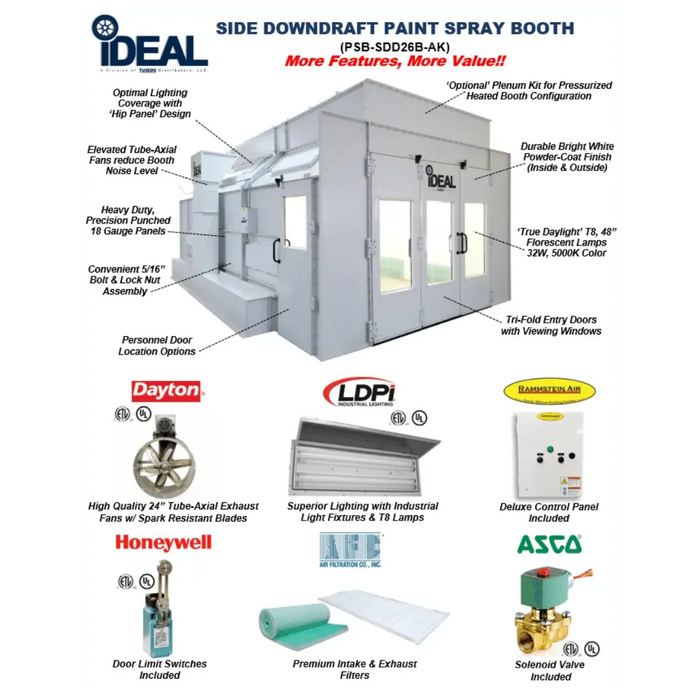

Product Features
- Typically ships within 48 hours!
- Heavy duty precision punched 18 Gauge panel construction
- Optimal air flow w/ CFM 14,000 @ .5 static pressure
- Commercial grade ‘hip panel’ design for optimal lighting coverage
- Inside Dimensions: 26″ L X 14′ W X 9′ 3″ H
- Convenient 5/16” bolt & nut assembly
- Deluxe Control Panel included
- Bright White Powder Coat panel Finish – (inside & outside)
- Manometer, Solenoid Valve, Hardware & Sealant Included

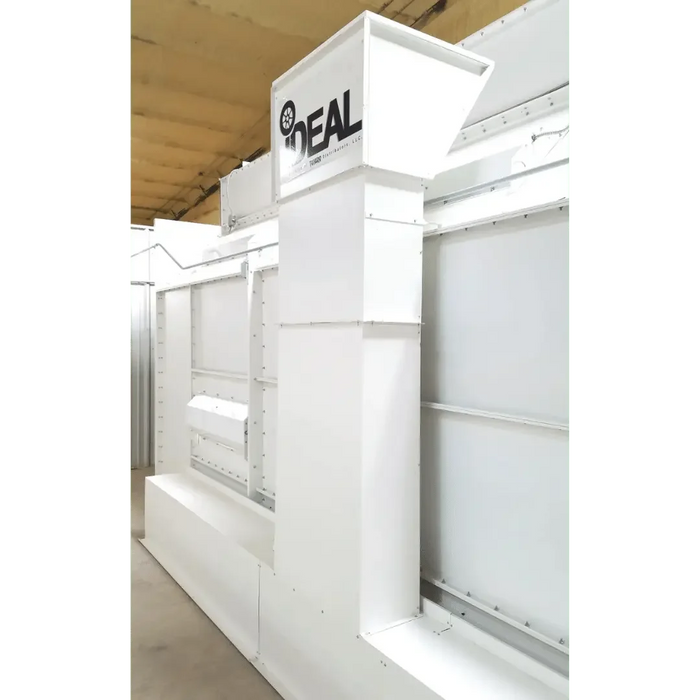

- (2ea) UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
- Premium AFC intake & exhaust filters
- (10ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
- (40ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length

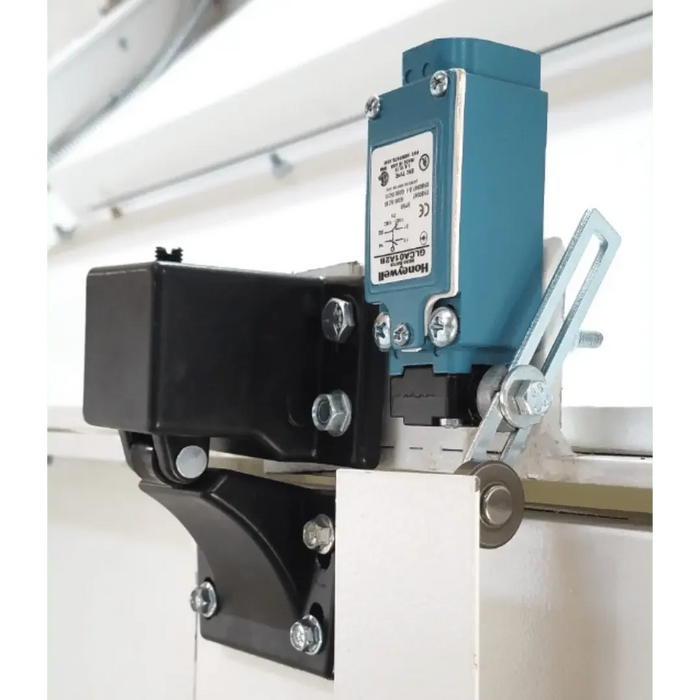

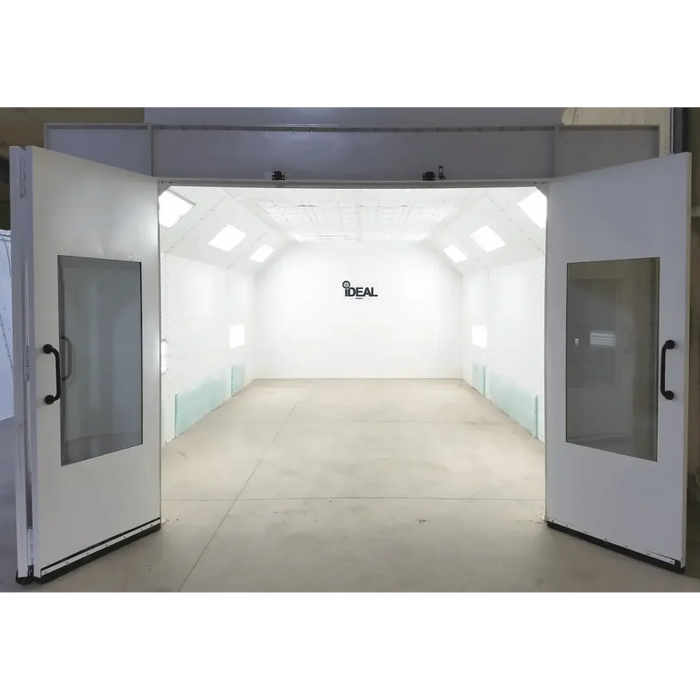

- Tri-fold entry Doors w/ viewing windows & shutoff switch
- Personnel Door w/ viewing window & shutoff switch
- Meets NFPA 33 standards
- Optional: 1PH electrical, plenum kit, tri-fold drive-thru & Personnel door kits & booth extension kit
Specifications
| Paint Booth Model | PSB-SDD26B-AK |
| Inside Dimensions | 26’L X 14’W X 9′-3″H |
| Outside Dimensions | 26′-4″L X 17′-8″W X 9-5″H |
| Fan / Motor | (2ea) - 24″ Tube Axial Fan / 2HP-3PH-230/460VAC-60HZ / Non-Spark, NEMA Rated |
| CFM | 14,200 @ .5 Static Pressure |
| Lighting | 10 Each T-8 / 4 Bulb Light Fixtures |
| Options | Single Phase Electrical Configuration / 8′ Exhaust Extension Kit (13″ Diameter) / 8′ Exhaust Extension Kit (13″ Diameter) / Side Personnel Door Kit / 48″ Solid Extension Kit / Drive Thru Door Kit / Gas Fired Booth Heater 3 Phase (Plenum Req.) / Gas Fired Booth Heater 1 Phase (Plenum Req.) / Electric Booth Heater 3 Phase / Electric Booth Heater 1 Phase |
