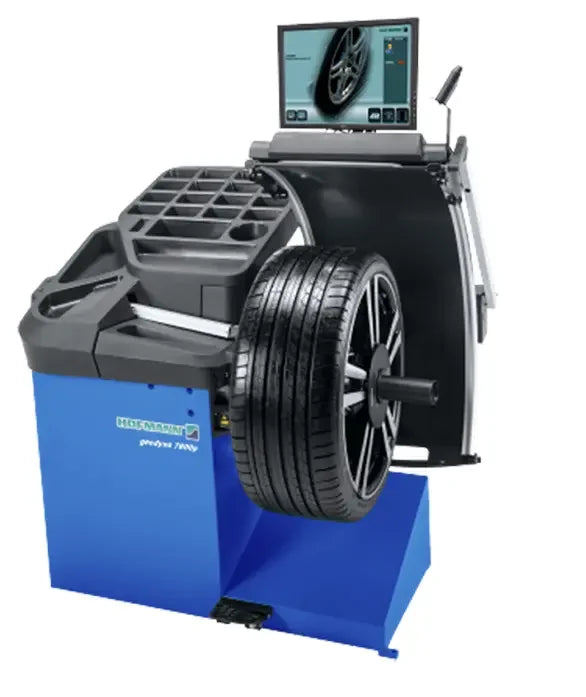

Hofmann GEODYNA 7800P Wheel Balancer with Touchscreen Monitor and Non-Contact Data Entry
Couldn't load pickup availability
Shipping-FAQ's
Shipping Info
At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.
I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.
Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.
Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.
Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.
Hofmann GEODYNA 7800P Wheel Balancer with Touchscreen Monitor and N...
Product Description
The wheel balancer for garages, car dealerships, tire shops, and premium workshops with high tire service volume. With touchscreen monitor, automatic non-contact data entry, and easyWEIGHT™ pinpoint indicator light - an accurate, fast, and easy solution to position adhesive weights on the wheel.
Productivity Enhancing Features
Automatic data entry and selection of balancing mode via scanner and Smart Sonar
Automatic spoke detection - automatically detects the number and position of rim spokes
One-spin balance
VPM measurement technique for uncompromised accuracy
Intuitive, Ergonomic Design
Platinum touchscreen user interface: new resistive touch display with large icons for use with or without gloves on
Fast and intuitive selection of the cycle modes: fully automatic with spoke detection, fast automatic without spoke detection, and manual mode
Patented ergonomic telescopic wheel guard reduces the overall equipment footprint
geodata
The geodyna 7800p is equipped with the geodata arm, a unique and patented tool.
VPM Measurement Technique
The geodyna 7800p comes with the patented virtual plane measurement (VPM) technique which ensures accurate balancing results while being insensitive to ambient conditions.
easyWEIGHT
Pinpoint indicator light is the accurate, fast, and easy solution to position adhesive weight on the wheel.
Power Clamp
The electromechanical power clamp always clamps the wheel accurately and with a constant force.
EZ-Collets
Mobile app helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Additional Features
The patented wheel scanner detects wheel diameter and offset as well as the number and position of wheel spokes
The 225mm long shaft allows the use of accessories with every type of wheel
The operator only has to touch the amount of unbalance on the screen and the tire is automatically indexed to the correct position
Product Features
- Intuitive, Ergonomic Design
- The geodyna 7800p is equipped with the geodata arm, a unique and patented tool.
- VPM Measurement Technique
- easyWEIGHT
- Power Clamp
- EZ-Collets
Product Specifications
| Wheel clamping | Power clamp |
| Diameter of shaft | 40 mm |
| Measuring speed | < 200 rpm |
| Balancing accuracy | 0.035 (1 g) |
| Angular resolution | ±0.35° |
| Length of shaft | 225 mm |
| Start/Stop balance time - Check spin (Wheel 195/65R15) | 4.5 seconds |
| Manual rim diameter range | 8-32" (203-813 mm) |
| Manual offset range | 1-20" (25-508 mm) |
| Manual rim width range | 1-20" (25-508 mm) |
| Semi-automatic rim diameter range | 8-25" (203-635 mm) |
| Semi-automatic rim width range | 3-15" (76-381 mm) |
| Max. wheel diameter | 42" (1,067mm) |
| Max. wheel weight | 154 lbs (70 kg) |
| Motorized | Yes |
| Power Requirements | 230 VAC 1ph 50/60 Hz – 1.1A |
| Dimensions LxWxH (Unit only) | 54" x 40" x 73" (1,372 x 1,016 x 1854 mm) |
| Net Weight | 297 lbs (135 kg) |
Pick Up and Delivery
All Hofmann machines come with free delivery, setup, and instruction.
Call, text, or chat with us if you have questions. - 866-774-7743
Downloads
Brochure
Manual
