Hofmann 15K 4 Post Alignment Lift
Product Description

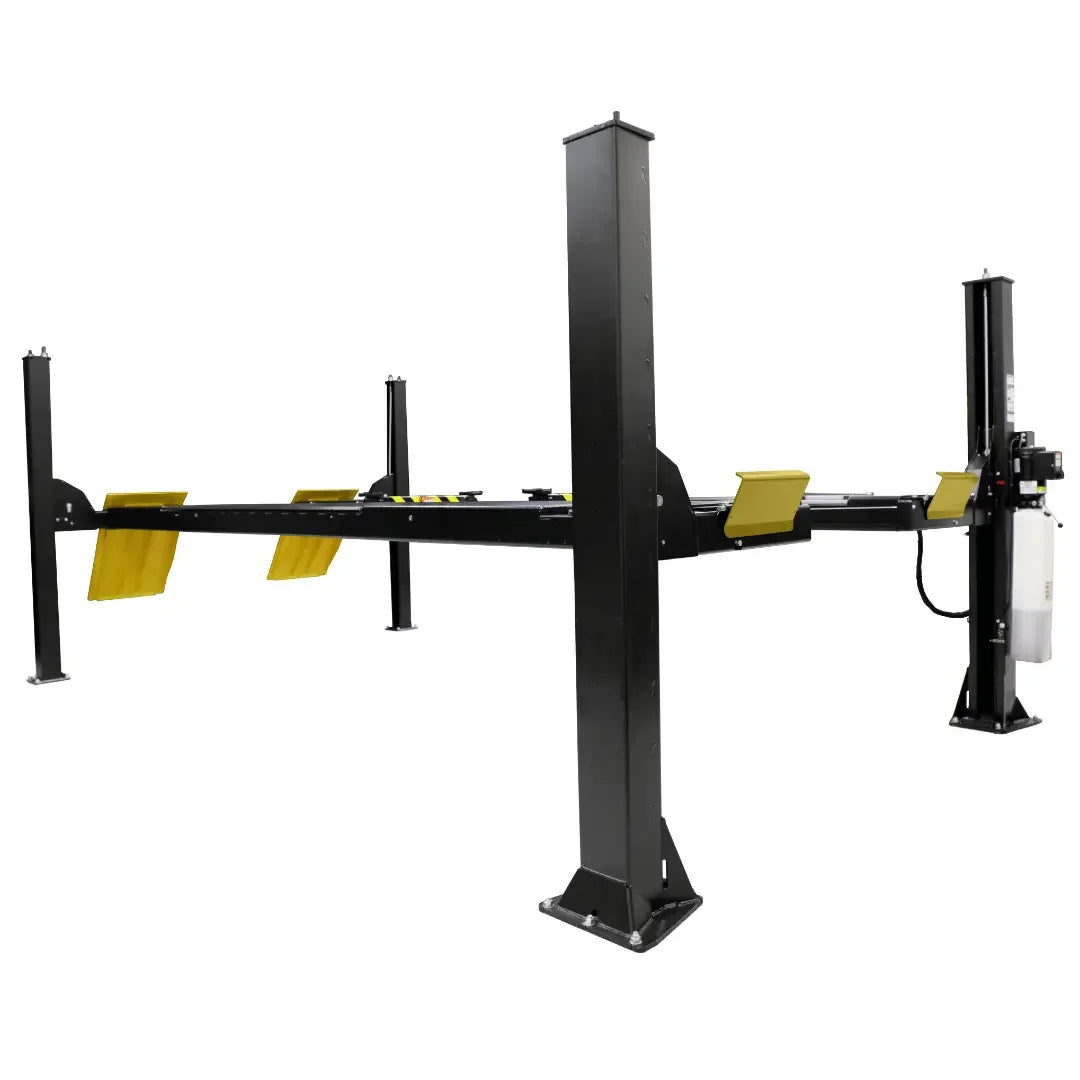

Hofmann 15K 4 Post Alignment Lift
Accommodating, accessible, and equipped - the Hofmann®15k 4-post Alignment Lift is designed for the modern era of automotive service with a robust and refined structure made for professional-grade lifting.
Offering a heavy-duty lifting capacity of 15,000 lbs., convenient open-front construction, ultra-wide runways and extended 100” rear slip plates with easy-access low-approach ramps, this 4-post lift is equipped to handle a diverse range of vehicles and take your service work to the next level.
Available in two lengths: standard and extended, this lift is certified to the industry's leading ANSI/ALI automotive lift standard.
Product Features
-
Part Number: EELR706APKG standard / EELR708APKG extended
-
Expanded clearance and extended runways
- 120” drive-on clearance / 125” body clearance allows dual-wheel trucks to drive on without interference
- Best-in-class, ultra-wide, 26” runways accommodate wide-track vehicles
- Ultra-low-profile, 8” runways allow “easy-on” approach angle for low-profile vehicles
- Extra-long 100” rear slip plates for improved 4-wheel alignment capability for long and short wheelbase vehicles
-
Easy access, open-front design
- Open-front construction provides easy access to service areas for hassle-free adjustments and repairs
- Micro-adjustment leveling on front and rear cross beam
- Adjustable, folding 4” front wheel stops have clearance for long, low-profile vehicles
- Imaging alignment compatible – easily accommodate split-roll during alignment using AC200 or AC400 clamps
Product Specifications
| Lift Model | HM-15K-4POST |
| Capacity | 15,000 lbs. |
| Lifting times | 85S |
| Motor | 3 HP |
| Power supply | 230 VAC 1Ph 50/60 Hz |
| Minimum concrete thickness | 4" |
| Weight | 4550 lbs. |
| Width Between Runways | 40.625" |
| 4 Wheel Alignment Wheelbase | 68-158" |
| 2 Wheel Alignment Wheelbase | 167.75" (standard) / 195.25" (extended) |
| Air Supply Requirements | 90-120 PSI |
| Front Accessibility | Open |
| Overall Length | 250.75" (standard) / 277" (extended) |
| Service Wheelbase | 183" (standard) / 210.5" (extended) |
| Overall Width | 142" |
| Column Height | 99.25" (front) / 98" (rear) |
| Lifting Capacity Per Column | 3750 lbs. |
| Runway Width | 26" |
Pick Up and Delivery
All Hofmann machines come with free delivery, setup, and instruction.
