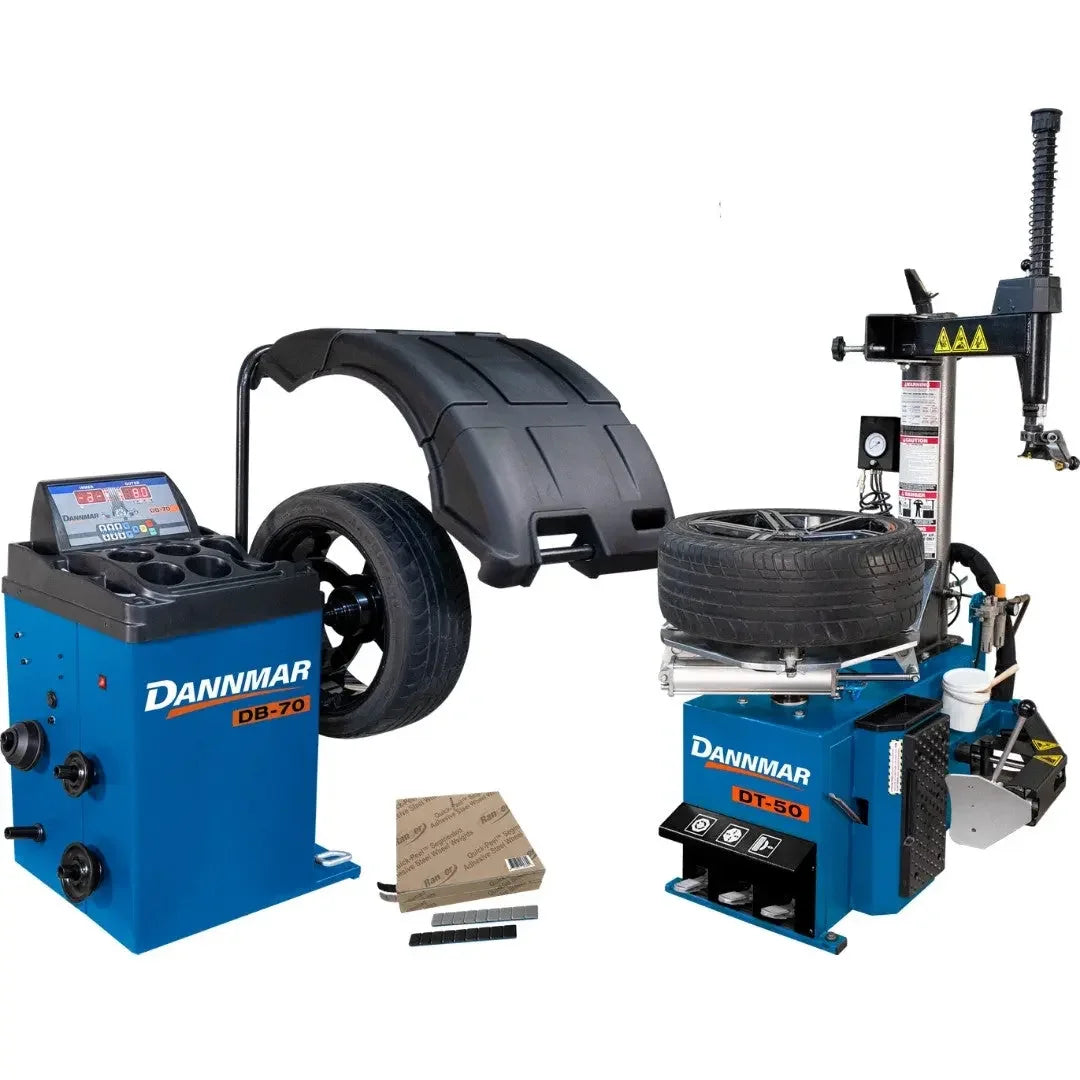

DANNMAR DT-50/DB-70 Package With 1,400 PC Tape Wheel Weights
DANNMAR DT-50/DB-70 Package With 1,400 PC Tape Wheel Weights
Save money and increase efficiency with Dannmar. Dannmar helps you increase your tire shop’s work flow with a durable tire changer teamed with a quick operating wheel balancer. The package features comprise a swing-arm tire changer for direct wheel service and a proven dynamic wheel balancer to ensure smooth-spinning results. With these Dannmar machines, your technicians can stay busy moving tire installs through the shop with shorter wait times. Plus the package program will save you money.

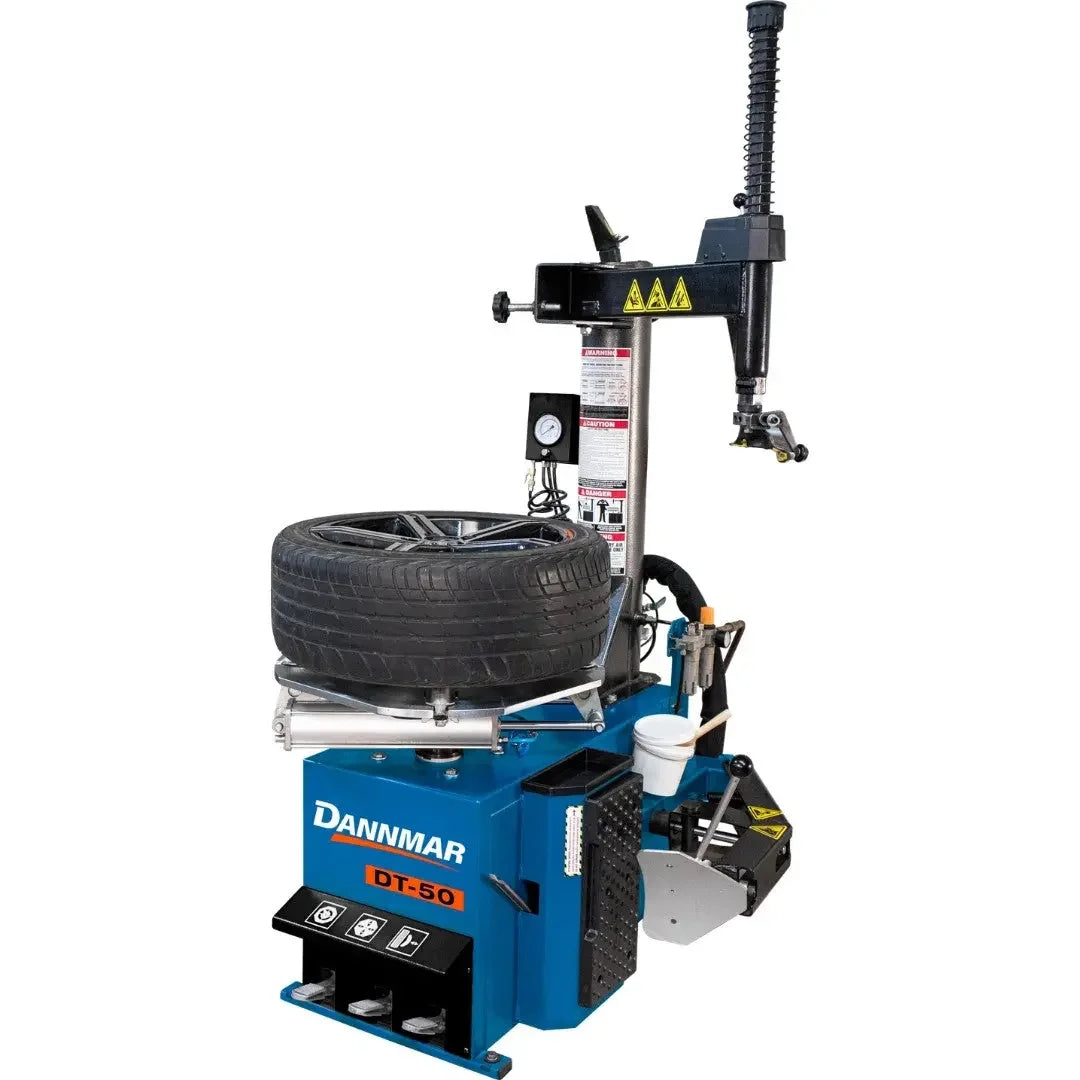

Take advantage of Dannmar’s value packaged deals. This Dannmar tire changer and wheel balancer package consists of a DT-50 tire changer with a swing arm and a DB-70 wheel balancer. The DT-70 tire changer controls are mounted upfront and logically arranged for both speed and ease-of-use. The tire changer is designed to handle the needs of on-the-go shops with its sturdy body, rigid hexagonal vertical shaft and hardened-steel horizontal outrigger support arm that eliminates flex during tire service operations. This also reduces the risk of damaging allow wheels.

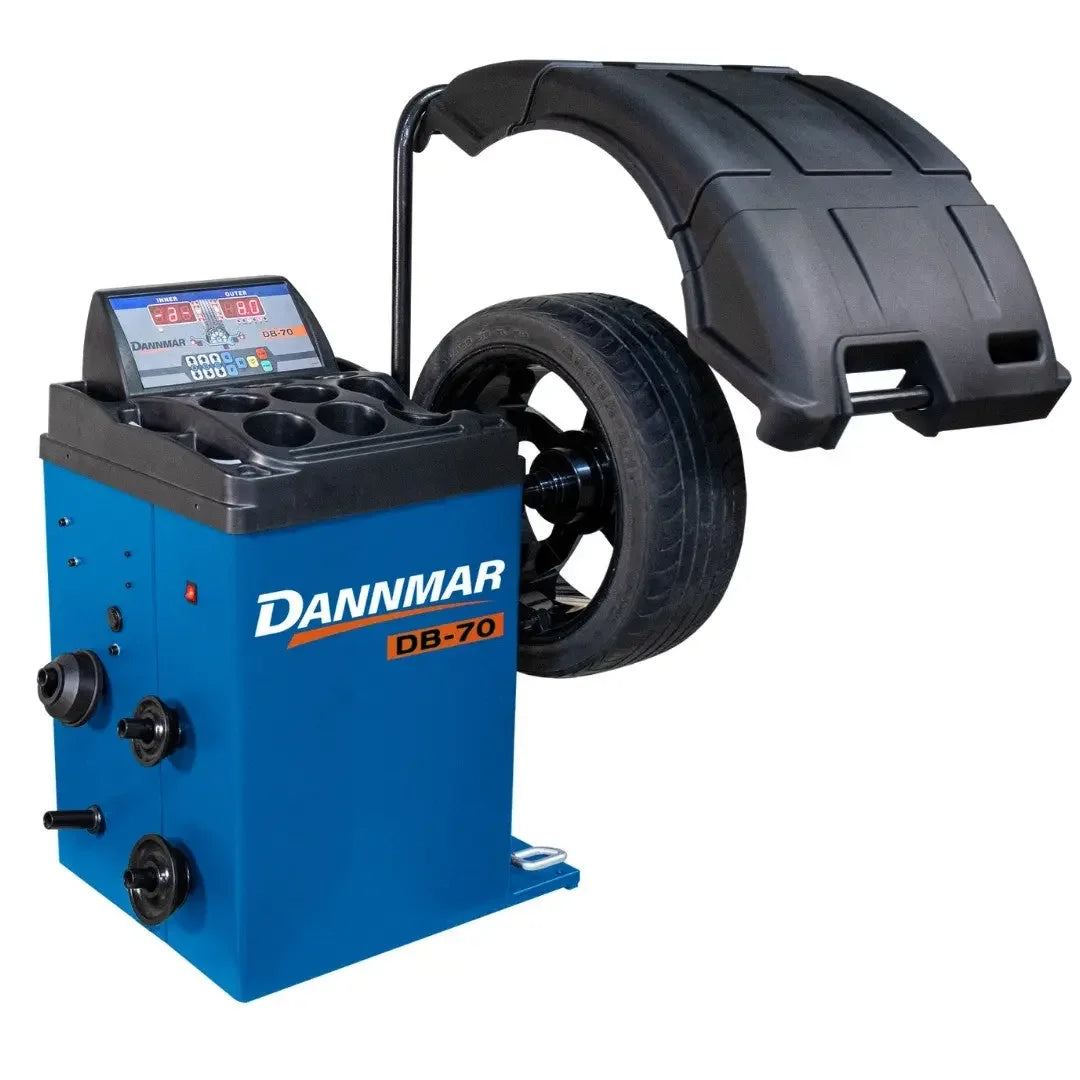

The Dannmar DB-70 wheel balancer works on wheels up to a 28" diameter. It is very accurate and a dependable no-frills balancer that features proprietary Digital Sensor Technology for critical reliability and repeatability. Dannmar’s wheel balancer automatically determines the exact weight needed for optimal balance and uses brightly displayed LEDs that show the correct amount and location of weights in just six seconds. And best of all this special package provides more for less.
Product Features
DT-50 Features
- Alloy steel mount and demount head w/protective plastic covers
- Traveling drop-center, top-mount helper/swing-in bottom helper disc
- High Torque Electric Turntable
- Adjustable Internal Rim Clamping - Capacity - 12” – 26” (305 mm - 660 mm)
- Maintenance-free gearbox
- Aluminum pneumatic cylinders
- High-pressure polyurethane pneumatic tubing
- Enhanced bead Breaker Blade
- Turbo-Blast Bead Seater
- Inflation Gauge with Integrated Air Dump Valve
- Tool Tray/Storage
- Soap Bucket
- Enhanced Bead Breaker Blade
- Oiler/Lubricator
- Optional motorcycle clamps
- Air Regulator
- Inflation restraint
- Forged steel foot pedals
DB-70 Features
- Top positioning weight locator
- Inside and outside measuring
- Manual wheel offset distance setting
- Auto-start when hood is lowered
- Wheel holding manual brake pedal
- Truck cone/spacer ring adapter set
- Wheel calipers
- No-mar rear cone mount pressure cup
- Quick-release and mount hub nut
- Tape weight feeder
- LED rolling wheel weight displays
Product Specifications
DT-50 Specifications
| Motor | 110-VAC, 50-60 Hz, 1-Ph |
| Drive System Type | Electric / Air |
| Tower Design | Rigid Fixed / Swing Arm |
| Power Assist Tower | Not Equipped |
| Bead Seating System | Turbo Blast / Bead Seating |
| Air Requirement | 110-175 PSI (8-10 BAR) |
| Wheel Clamping Method | 4 Clamps - Internal / External |
| Table Clamping System | Dual Pneumatic Cylinders |
| Bead Breaking System | Pneumatic Blade |
| Tower Design | Fixed |
| Internal Rim Clamping Capacity | 14” – 26” (356 mm - 660 mm) |
| External Rim Clamping Capacity | 12” – 24” (305 mm - 610 mm) |
| Turntable Rim Width Capacity | 3” – 15” (76 mm – 381 mm) |
| Bead Breaker Rim Width Capacity | 3” – 14” (76 mm – 356 mm) |
| Maximum Tire Diameter | 49” (1,245 mm) |
| Noise | < 70 dB |
DB-70 Specifications
| Motor | 110-230 VAC, 50-60 Hz, 1-Ph |
| Cycle Time | 7 Seconds |
| Balancing Modes | 6 Dynamic / 1 Static |
| Drive System | Serpentine Poly-V Belt |
| Wheel Braking | Lever Caliper Brake / Foot Pedal |
| Cones Included | 4 |
| Max. Tire Diameter | 49” (1,247 mm) |
| Max. Tire Weight | 150 lbs. (68 kg) |
| Wheel Diameter Capacity | 10” - 28” (254 mm - 711 mm) |
| Wheel Width Capacity | 1.5” - 20” (38 mm - 508 mm) |
| Balancing Increments | 0.25 or 0.01 ounce |
| Balancing Speed | 260 RPM |
| Accuracy | +/- 1 Gram (.035 oz) |
| Noise | < 70 dB |
