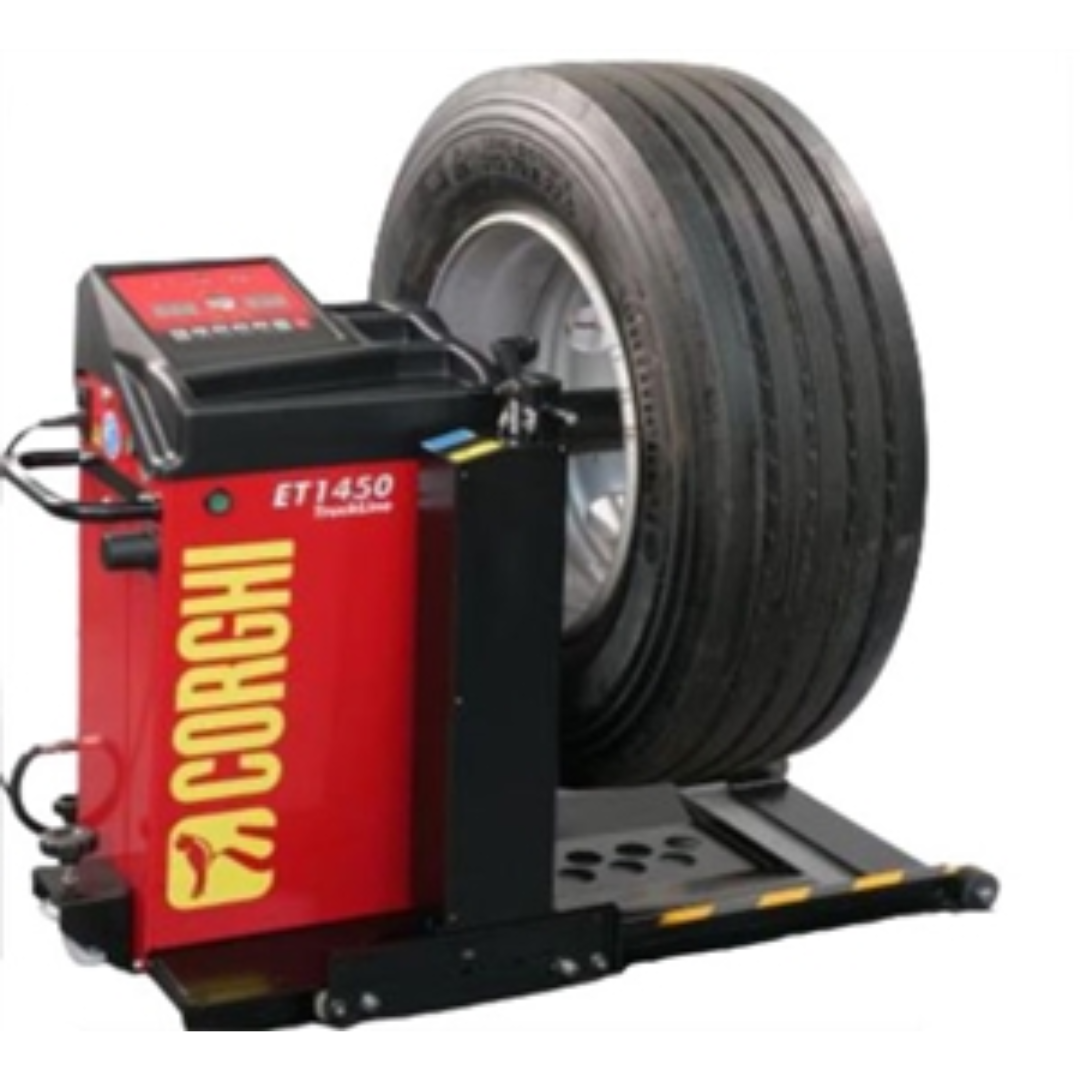

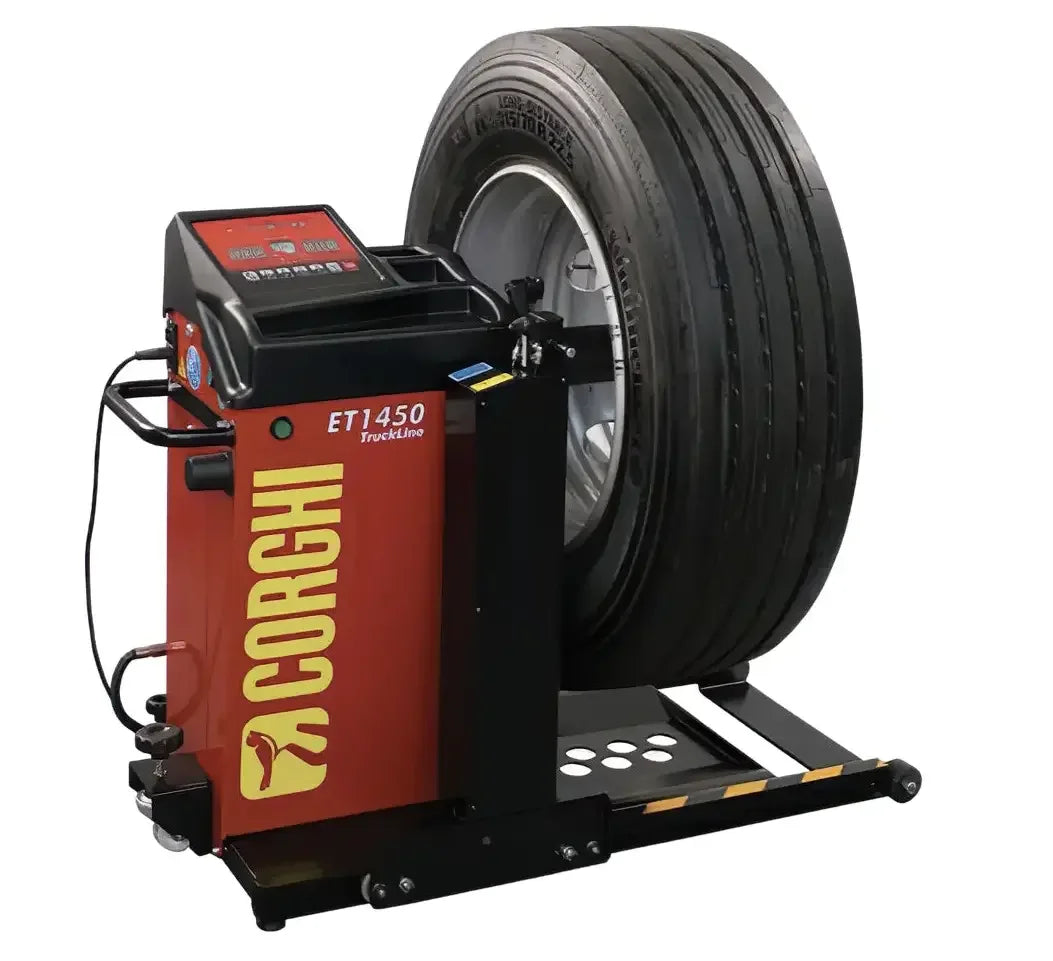

Corghi ET1450 HD Truck Wheel Balancer W/Lift
Corghi ET1450 Heavy-Duty Wheel Balancer w/Lift
The Corghi ET1450 HD Truck Wheel Balancer with Wheel Lift is a professional-grade machine designed for high-volume tire service centers and commercial fleets. Engineered for precision and durability, this machine ensures optimal wheel balancing for trucks, buses, and cars, accommodating a wide range of wheel sizes and weights.
Equipped with an integrated pneumatic scissor lift, the Corghi ET1450 HD can handle wheels up to 330 lbs (150 kg), facilitating easy loading and unloading without additional equipment. This built-in lift eliminates the need for separate lifting devices, streamlining operations and reducing manual labor in demanding environments.
The balancer features inverter-driven motorized spin and automatic wheel size detection, reducing setup time and ensuring consistent, accurate results for every wheel serviced. The machine offers dual spin speeds, operating at 100 rpm for car wheels and 80 rpm for truck wheels, optimizing balancing accuracy and speed.
With a maximum wheel diameter of 52 inches and a rim width range from 1.5 inches to 25 inches, the Corghi ET1450 HD accommodates a variety of wheel sizes. Rim diameters can be measured automatically from 8 inches to 28 inches, while the maximum wheel width supported is 29 inches with the guard in place. The balancer provides unbalance measurement accuracy of 1 gram, delivering highly precise results to maintain tire and vehicle performance.
The Corghi ET1450 HD also features seven balancing programs, including hidden weight options, and an energy-saving standby mode, enhancing efficiency and reducing operational costs. The machine's digital interface is intuitive and well-lit, providing operators with a user-friendly experience even in workshops with variable lighting conditions. High-quality construction and durable materials ensure long-lasting reliability in the most demanding automotive service environments.
This balancer is powered by 110V/60Hz single-phase electricity and weighs 441 lbs (200 kg), with overall dimensions of 53.4 inches by 23.6 inches by 38.8 inches. The Corghi ET1450 HD Truck Wheel Balancer with Wheel Lift is ideal for automotive professionals who require a robust, reliable, and efficient solution for balancing wheels across a variety of vehicles. Its combination of advanced technology, integrated lifting capabilities, and energy-efficient operation makes it a valuable addition to any workshop looking to improve service speed, accuracy, and operator safety.
Contact us for more information on Corghi products.
Product Features
- Air powered scissor lift
- Inverter controlled wheel spin and brake
- 3D Smart Arm wheel data entry utilizing the FSP program
- Bright digital display with easy to use controls
- Compact and ergonomic display
- 7 Balancing programs including hidden weight
- Energy savings via stand-by mode
- Includes the Laser and Light kit, easily identify the weight placement location inside the wheel
Product Specifications
| Max Wheel Diameter | 52" (1,321 mm) |
| Rim Width | 1.5-25" (38-635 mm) |
| Rim Diameter | 8-28" (203-711mm) |
| Max. Wheel Weight | 330 lb (150 kg) |
| Shaft Diameter | 40mm |
| Spinning/Rotation Speed | Truck - 80 RPM / Car - 100 RPM |
| Maximum Unbalance Value | 999g / 35.3 Oz |
| Unbalance Measurement Accuracy | 1g / 0.0353 Oz |
| Power Consumption | 370 W |
| Power Supply | 110V / 60hz / 1ph |

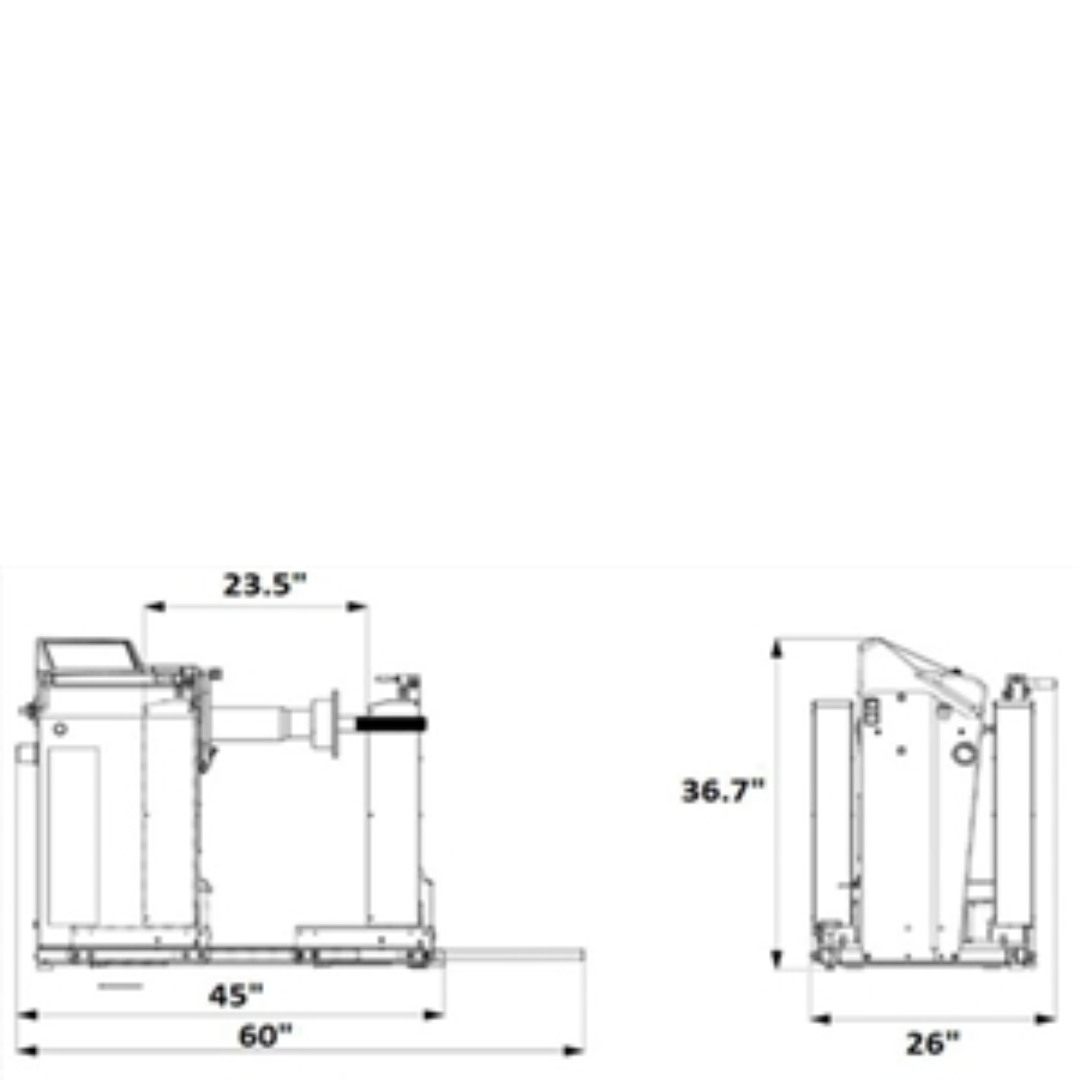

| Dimensions | 53.4" x 23.6" x 38.8" |
| Weight | 441 lbs (200 kg) |
