Challenger Lifts CL20-2 20000 Lbs Heavy Duty Symmetric 2 Post Lift (Extended Height)

Name: Challenger Lifts CL20-2 20000 Lbs Heavy Duty Symmetric 2 Post Lift (Extended Height)
Brand: Challenger Lifts
Price: 29214.25 USD
Availability: InStock

Part #:CL20-2

Brand: Challenger Lifts

$0.00 - $0.00

$0.00

$29,214.25

$29,214.25 - $29,214.25

$29,214.25

Call/Text Us: 866-774-7743 Call Us

Description

-

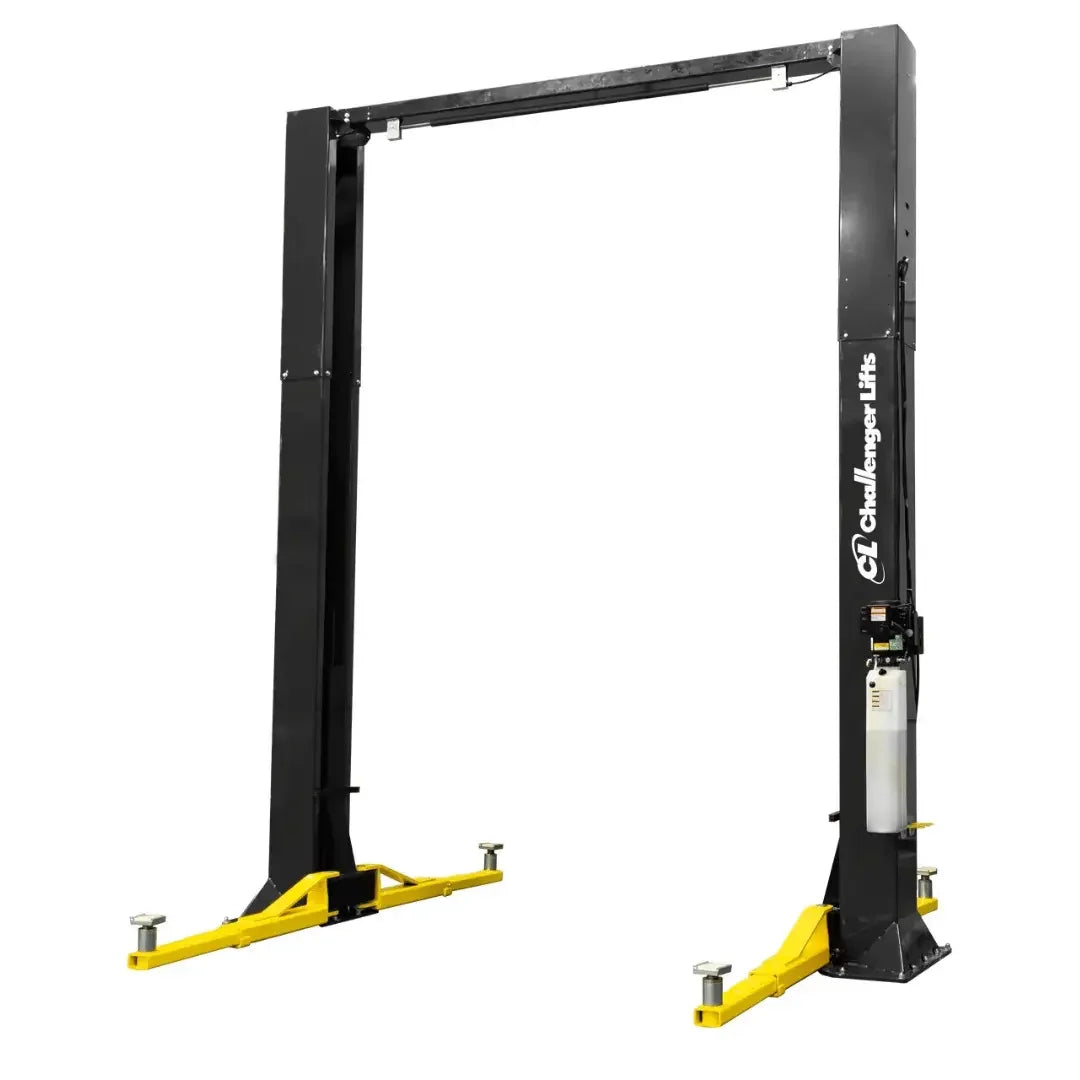

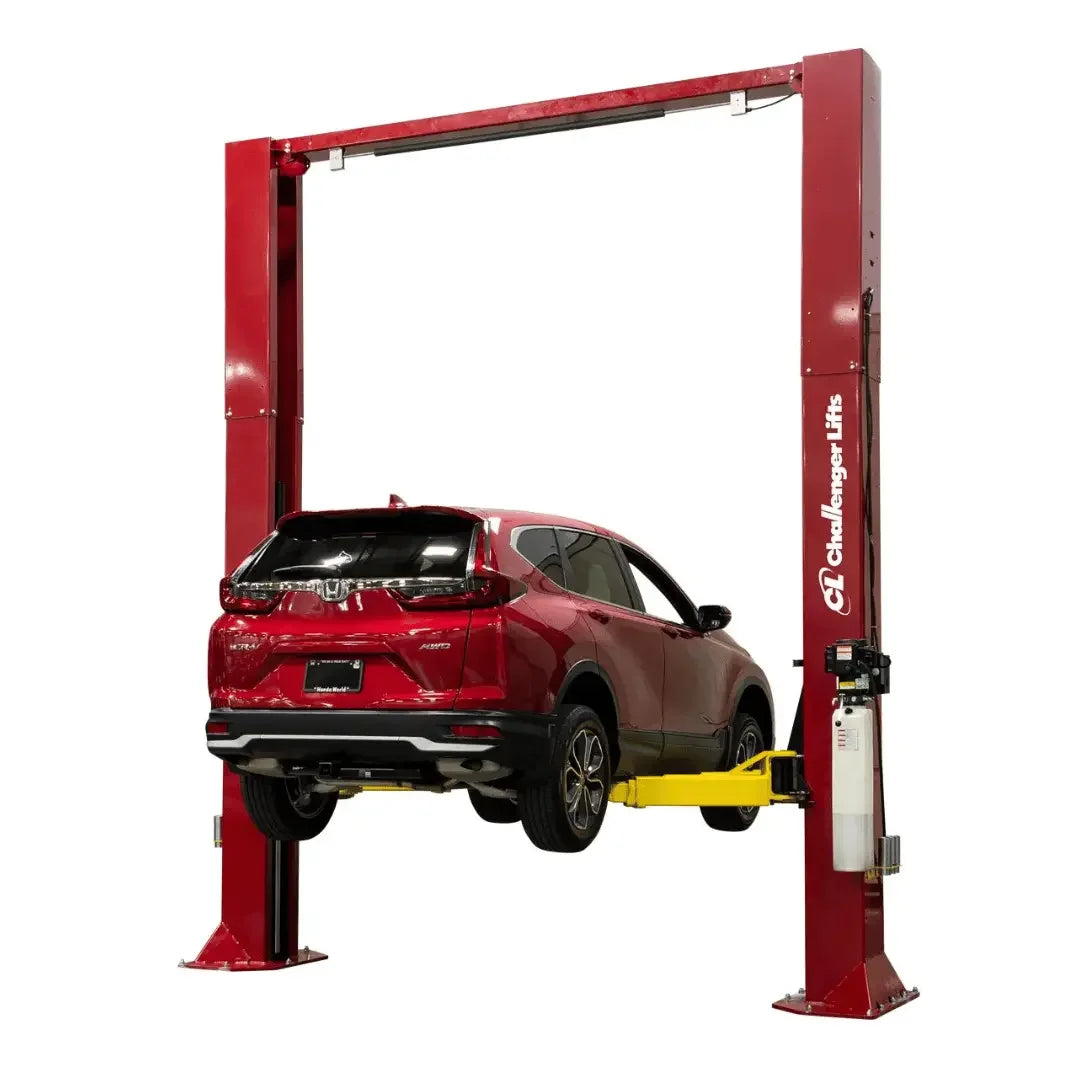

Challenger Lifts CL20-2 20000 Lbs Heavy Duty Symmetric 2 Post Lift (Extended Height)

Introducing our heavy-duty 2 Post Lift solution, specifically engineered for vehicles weighing up to 20,000 lbs. Our Challenger 2 post lift is wider and taller, providing a robust and durable option for your fleet maintenance needs. The 2-Stage arms ensure stability during lifting, while the adjustable width makes it suitable for various vehicle sizes. The optional 2′ column extensions allow your shop to handle even taller vehicles.

This versatile lift is essential for any fleet maintenance operation. With adjustable columns and superior strength, this lift is your ultimate lifting solution for heavy-duty vehicles. ALI® Certified.

Product Features

Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
60” lifting carriage design increases lift life.
Adjustable width and symmetrical design allow easy access to the vehicle’s interior.
Dual integrated rubber door guards to prevent door damage.

Product Specifications

Model	CL20-2
Description	20K Extended Height
Lifting Capacity	20,000 lbs.
Maximum Load Per Arm	5,000 lbs.
Lift Configuration	Symmetric
Rise Time	62s
Rise Height (Maximum with Stack Adapters)	Min. 76.6" Max. 84.6"
Screw Pad Height	Min. 6.2" Max. 7.6"
Overall Height Options	186", 192", 198"
Overall Width Options	166.75", 160.75", 154.75"
Arm Configuration	2-Stage Front/Rear
Arm Reach	Min. 38.5" Max. 62"
Between Columns	120", 126", 132"
Drive-Thru Clearance	104.25", 110.25", 116.25"
Floor to Overhead Switch	179", 185", 191"
Motor/Voltage	3HP, 1Ph, 60Hz, 208/230v
Air Supply Required	90-120 psi
Min. Ceiling Height Required	15'8", 16'2", 16'8"

Pick Up and Delivery

Call, text, or chat with us if you have questions. 866-774-7743

Specifications

-

Drive thru width	9.65 ft
Drive thru between carriage	104"110"116"
Inside columns	120"126"132"
Lifting capacity	20000 lbs
Lifting height top of arms	7 ft
Lifting height top of pad	77"85"
Max rise under arms	7 ft
Max rise under arms	71"
Min height lowered arm height	6.5"
Minimum pad height	6"
Modal	CL20-2
Motor	208-230V
Overall width	12.80 ft
Overall heights	186"192"198"
Overall width	155"161"167"
Width between columns	11 ft
