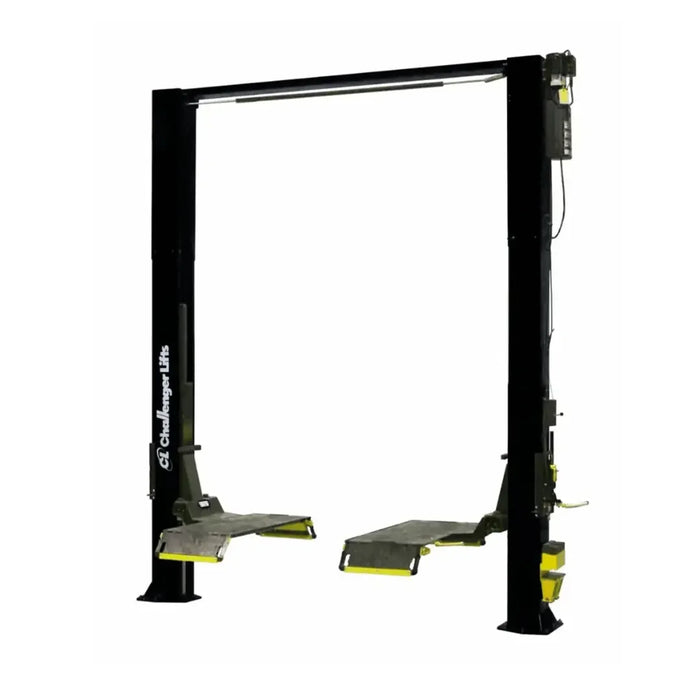

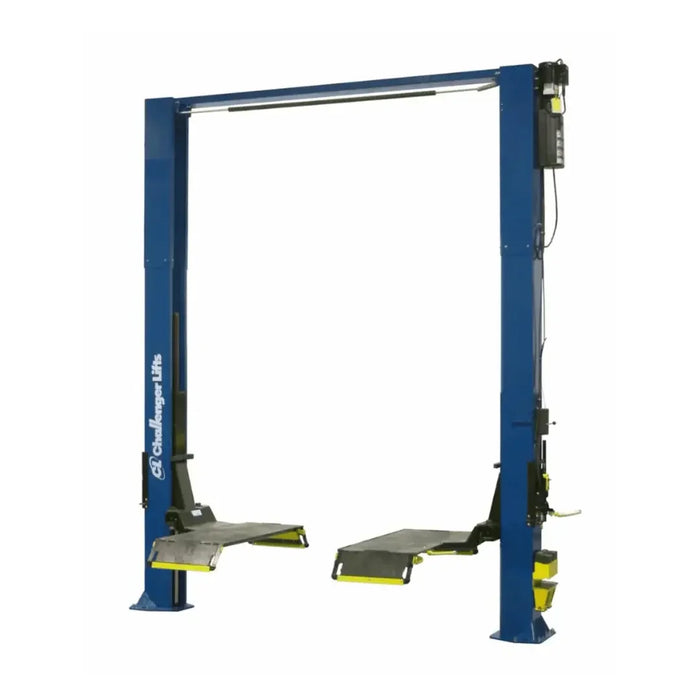

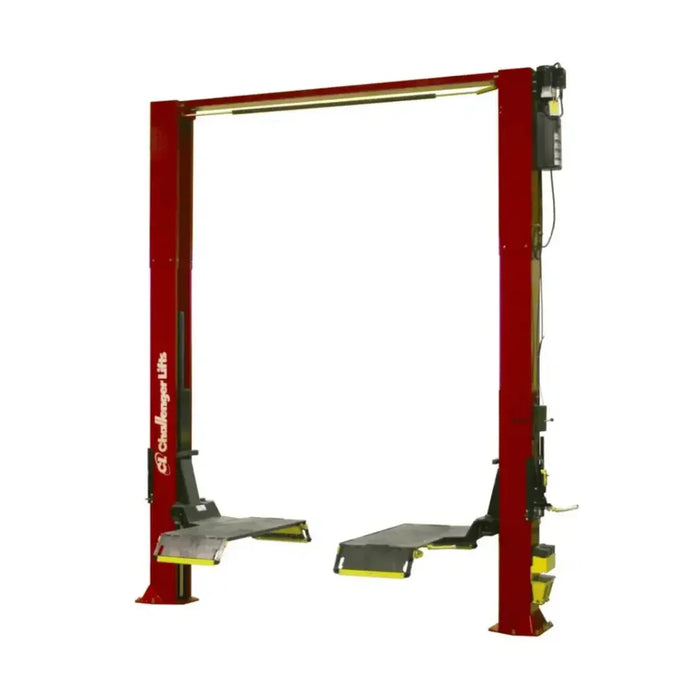

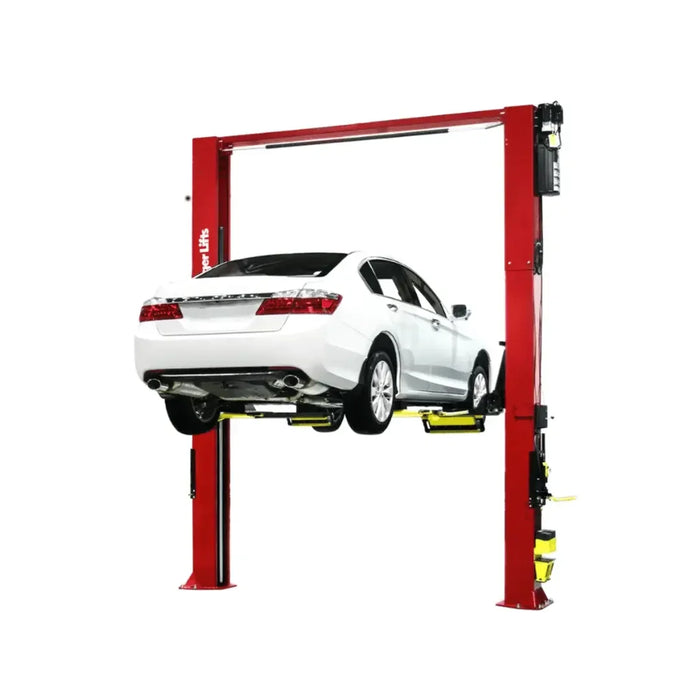

Challenger Lifts CL10-XP9-QC 9000 lbs 2 Post Lift - Drive-On Pad

Name: Challenger Lifts CL10-XP9-QC 9000 lbs 2 Post Lift - Drive-On Pad
Brand: Challenger Lifts
Price: 14513.49 USD
Availability: InStock

Part #:CL10-XP9-QC

Brand: Challenger Lifts

$0.00 - $0.00

$0.00

$14,513.49

$14,513.49 - $14,513.49

$14,513.49

Call/Text Us: 866-774-7743 Call Us

Description

-

Challenger Lifts CL10-XP9-QC 9000 lbs 2 Post Lift - Drive-On Pad

Challenger’s 9,000 lb. capacity CL10XP9 2 post lift offers a drive-on pad for the quickest vehicle spotting designed for express bays. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop. QuickCycle™ models improve lifting speed to just 27 seconds rise and 17 seconds lower. Also, adjustable height and width options are available, making the CL10-XP9 the best choice for any service professional. Expand your service potential with our most versatile, easy-to-operate lift. ALI® certified.

Product Features

9,000 lb. lift capacity
Drive-on style pad aids in quick vehicle spotting for express bays
Low-profile pad design minimizes vehicle clearance issues
Reinforced front and rear access ramps are designed to easily flip up and lock to extend the platform length to accommodate longer wheelbase vehicles
Standard column mounted spotting block storage caddy helps keep a safe and clean work environment
48″ elongated carriage design increases lift life
Oversized 5″ diameter pulley and heavy duty 5/16″ cable reduces stress on equalization system and increases cable life
Padded overhead shut off system prevents vehicle damage
Fully gusseted base plate design increases column rigidity
Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
Premium powder coat finish provides long-lasting durability
Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

Product Specifications

Model	CL10-XP9-QC
Lifting Capacity	9,000 lbs.
Lift Configuration	Drive-on express pad
Arm Configuration	NA
Rise Height	70”
Overall Height	140”
Overall Height (Cylinder Extended)	143”
2’ Height Extension Available	Yes
3’ Height Extension Available	Yes
Overall Width	138.5”
Drive-Thru Clearance	90”
Floor to Overhead Switch	134.5”
Platform Height	2.25”
Platform Width	24”
Platform Length	58” / 66.5” / 75”
Width Between Platforms	31.5”
Inside Columns	110”
Motor / Voltage	3HP, 208v-230v, 60Hz, 1Ph
Speed of Rise	27s
Ceiling Height Required	12'
ALI/ETL Certified	Yes
Featuring Quick Cycle	Yes
Featuring Dual Pendant Controls	-
Colors Available	Red, Blue, Black

Pick Up and Delivery

Call, text, or chat with us if you have questions. 866-774-7743

Specifications

-

Drive thru width	7.5 ft
Drive thru between carriage	90"
Inside columns	110"
Lifting capacity	9000 lbs
Lifting height top of arms	6 ft
Lifting height top of pad	70"
Max rise under arms	6 ft
Max rise under arms	68"
Min height lowered arm height	2.25”
Minimum pad height	2.5"
Modal	CL10-XP9-QC
Motor	208-230V
Overall width	11.5 ft
Overall heights	140"
Overall width	139"
Width between columns	9.15 ft

Resources

-

For more detailed information and guidance, you can download the following:

Download Brochure (PDF)
