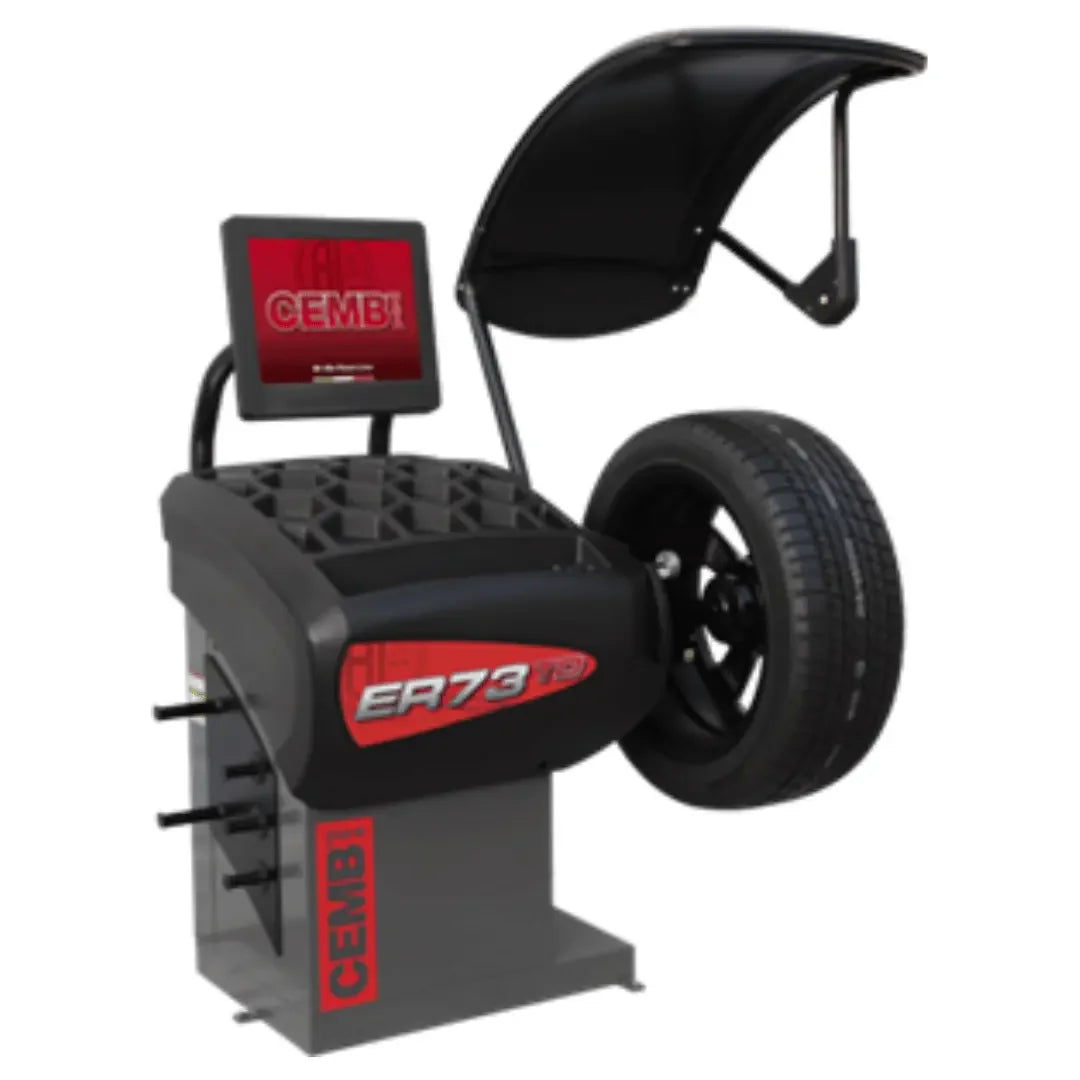

CEMB ER73TD Video Touchscreen Wheel Balancer

CEMB ER73TD: the force-variation readout on a screen you can actually read

Every balancer in this family measures the same two things — imbalance, and radial force variation, the out-of-round behaviour that survives a perfect balance job and still puts a shimmy in the steering. What sets the ER73TD apart is how it hands that information over. A video touchscreen and a 3D laser scan mean the technician is looking at a picture of the wheel and the correction, not decoding a row of indicator lamps and remembering what the third one means.

That sounds cosmetic until you watch a shop use one. A diagnostic machine only pays for itself if the diagnosis is acted on, and one nobody can read at a glance gets skipped. CEMB's comparison against traditional force-variation balancers is a 78% faster cycle time at more than 40% lower equipment investment — the screen is what makes that speed usable.

Roundness, not just balance

A wheel can be balanced perfectly and still vibrate, because balance and roundness are different faults. Balance is where the mass sits; radial force variation is whether the assembly pushes back at the road evenly as it turns. Correcting one does nothing for the other, which is why a shop that owns only a balancer collects customers whose cars still shake after a "successful" balance.

The ER73TD's HubMatch process attacks roundness the way the vehicle manufacturers do on the assembly line: it identifies the high point of the assembly and clocks it against the vehicle hub as the wheel goes on, so the eccentricity is cancelled by the mounting position rather than by re-indexing the tire on the rim. An auto-prompting limit monitor tells the operator which assemblies carry enough force variation to be worth the extra step, so the process is triggered by the machine rather than by a technician's judgement at the end of a long day.

AutoAdaptive Mode: the tolerance is calculated, not assumed

Conventional practice applies one fixed residual-imbalance threshold to every wheel regardless of its size or mass, and that is physically the wrong test: what a driver feels is the residual acting on that specific wheel, and heavy wheels absorb residuals that light alloys transmit straight into the steering column. AutoAdaptive Mode detects each wheel's weight and dimensions during the spin and derives the limit corresponding to a vibration the driver will not perceive — so no chasing a residual nobody would feel, and no light wheel signed off that would have come back.

One Plane Balancing and the laser spotter

Static imbalance causes most of the vibration a driver notices, but correcting only the static component by hand tends to raise the dynamic residual, and it is easy to trade one problem for another. One Plane Balancing computes whether a single ideal correction plane exists inside the rim — a point where one counterweight minimises static and dynamic residual together — and the machine turns the program on itself when the wheel qualifies.

The laser spotter then marks the exact position for the stick-on weight inside the rim, and an electric brake holds the wheel at the angular position of the imbalance so it cannot creep while the technician reaches in. Fewer weights, placed once, in the right place.

The measuring end

An automatic arm takes distance and diameter and the machine handles width, so the two dimensions most often mistyped on a keypad are measured rather than entered. The spindle is a 40 mm shaft. Rim diameter runs 10"–30" (up to 765 mm) and rim width 1.5"–20" (up to 510 mm), spanning small passenger wheels through to large commercial fitments on one machine, with a maximum wheel weight of 165 lbs (75 kg). Self-diagnosis and self-calibration are built in, so the machine checks itself rather than drifting quietly out of specification — the failure mode that costs a shop its reputation, because nothing looks wrong.

Will it fit your shop?

Power is 220 V, single phase. Confirm you have that circuit within reach of the machine's final position before delivery; providing it, and having a licensed electrician connect it to local code, is the customer's responsibility. Shipping weight is 310 lbs (170 kg), and the machine arrives assembled, so the practical question is the route from the truck to the bay rather than an installation job. Leave room in front of the machine for the operator to stand square to the touchscreen with a wheel on the spindle — a screen you have to lean around is a screen that stops being used.

Perfect for

• Busy tire shops — the machine is explicitly built for high-volume work with the diagnostic step folded into the normal cycle.
• Shops training newer technicians — a graphical readout teaches; an indicator lamp does not.
• Dealerships chasing vibration complaints — the high-point-to-hub process is the one that fixes what a straight balance cannot.
• Mixed passenger and light commercial work — one machine covering 10"–30" rims with a 165 lbs (75 kg) wheel allowance.

What's in the box

The ER73TD arrives assembled, with the video touchscreen, the laser spotter, the automatic measuring arm, self-diagnosis and self-calibration, the optimisation program for compensating rim and tire imbalance, and the direct weight location program — all standard on this model. Unit menus let the shop switch between ounces and grams and between inches and millimetres. The manufacturer's data does not itemise the cone and adapter set for this model, so we have not listed one; if a specific adapter matters to your work, ask us to confirm before you order.

Specifications

Wheel capacity

Power and shipping

Two figures to confirm before you order

Maximum tire diameter. The specification gives it as 42" (1,016 mm), and those two values do not describe the same measurement: converted, the millimetre figure lands around forty inches rather than forty-two. Both are printed above exactly as CEMB publishes them. If you intend to run assemblies at the top of that range, contact us and we will confirm the current limit with CEMB before you order.

Balancing speed. The same specification table states balancing speed twice, once as under 100 rpm and once as 100 rpm. The difference has no practical consequence for a buyer, and both readings are reproduced above as published.

Certification, stated plainly

We do not publish a third-party North American safety listing for this balancer, and we will not imply one. The manufacturer's data covers performance and dimensions; it does not include an independent listing, and a manufacturer's own declaration is not the same thing.

Insurers, corporate fleet policies and some local inspection authorities can require a named third-party listing before signing off an installation. If you buy under any of those, ask us to confirm what documentation ships with the machine before you order rather than after.

Shipping and delivery

Freight only, within the contiguous United States. Your rate is calculated live at checkout from the ZIP code you enter, so it reflects the lane and the day rather than a number baked into a product page. Residential delivery carries a residential fee, added by the checkout.

Two things are yours to arrange. The unload: this arrives crated and someone at your end needs a forklift or a dock, so if that is not you, tell us and we will set it up for terminal pickup. And the inspection: look at the crate first — corners, banding, wrap, whether the load has shifted — and note every mark on the bill of lading while the driver is still there.

Warranty

This machine is covered by the manufacturer's warranty, and the warranty document is the authority on the terms. We are not going to summarise a coverage period here — a summary that drifts out of date is worse than none — so ask us and we will send the current document before you commit.

Standing advice: do not disassemble before you claim. It is a natural instinct to open something up and diagnose it, and it is also the fastest route to a denied claim.
