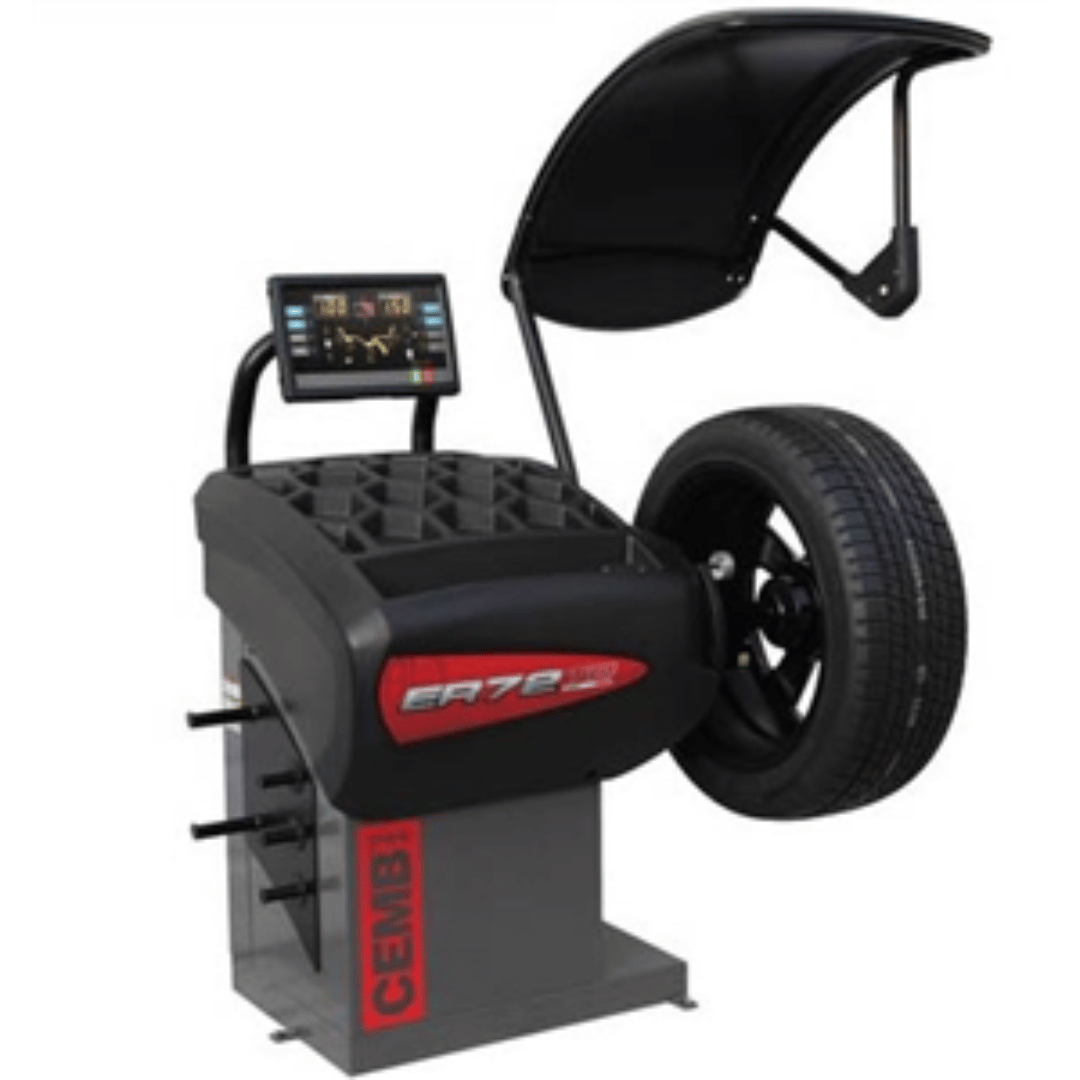

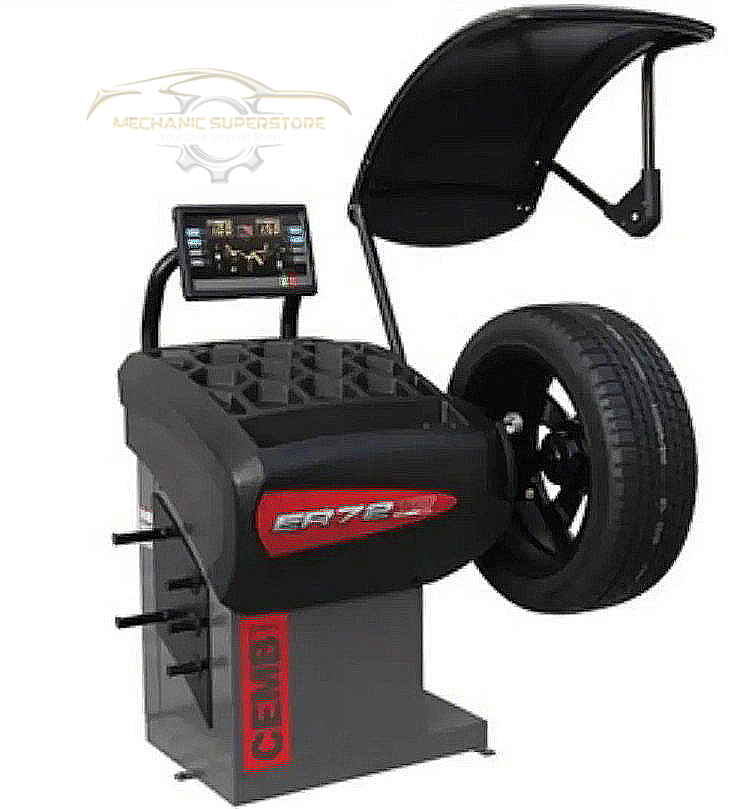

CEMB ER72SE: powered clamping, on every wheel, all day
The ER72 platform is a professional digital balancer built for tire dealers, and it is sold in two forms. This is the pneumatic one, and the clamping is the entire reason to choose it. Instead of a technician threading a nut down onto a cone by hand, the wheel is locked by a control action: the same clamping force, applied the same way, on the first wheel of the morning and on the last wheel before close.
That consistency is worth more than the seconds it saves per wheel, though it saves those too. Clamping force that varies with how tired the operator is means measurement that varies with how tired the operator is, and a balancer that reads differently in the afternoon is a balancer nobody quite trusts.
Why the clamp is the bottleneck
On a high-volume day the measurement is not what limits throughput. The machine takes its readings in seconds. What takes time is everything around the spin: getting the wheel onto the spindle, centring it, locking it, unlocking it, getting it off. Powered locking removes the slowest and most physical of those steps, and it removes it on every single wheel, which is where a small saving turns into a real one.
There is a quality argument as well as a speed one. A hand-tightened cone that is not quite seated introduces a runout the machine will faithfully measure and correct for — producing a wheel that is balanced on the spindle and out of balance on the car. Powered, repeatable clamping takes that variable off the table.
The measurements the operator no longer types
The classic source of check-spin errors is not the machine. It is a dimension entered wrongly on a keypad. The ER72SE removes the opportunity: an automatic arm measures diameter and distance and takes rim diameters up to 30" without the operator entering anything, and width is captured by sonar in three dimensions. Static imbalance is displayed full-time on screen rather than being something you have to switch modes to see, so the operator always knows the number that actually correlates with what the customer will feel.
The laser spotter and the electromagnetic brake
The Spotter laser system is fully automatic, and it exists to answer one question exactly: where does this weight go? During correction it pinpoints the position for the stick-on weight inside the rim, and an electromagnetic brake locks the wheel at the precise angular position of the imbalance so it cannot creep while the technician is reaching into the rim well with an adhesive weight in one hand. An LED lights the working space inside the rim, which sounds trivial until you have tried to place a weight by feel in a deep alloy.
Put together, those three features attack the same failure: a correct calculation ruined by an approximate placement. That is the most common reason a wheel needs a second spin.
One Plane Balancing and AutoAdaptive Mode
One Plane Balancing works out whether a single counterweight can cancel both static and dynamic imbalance, and where inside the rim it would have to go. The machine makes that assessment itself at the end of the spin and enables the program only when the wheel genuinely qualifies, so it is not a mode somebody has to remember to select. One weight instead of two means less adhesive, less weight inventory and one fewer thing to come loose.
AutoAdaptive Mode changes what "balanced" means from a fixed threshold to a calculated one. It detects each wheel's weight and dimensions and derives the residual imbalance limit that corresponds to a vibration the driver will not perceive — because a heavy wheel and a light alloy do not transmit the same residual into the steering column, and treating them identically wastes time on one and undersells the other.
Will it fit your shop?
This machine needs two supplies, and the second one catches people out. Power is 220 V, single phase — and it also needs compressed air, because the clamping is pneumatic. Without an air drop at the bay the defining feature of this model does not work. Confirm both are present at the machine's final position before it arrives; providing them, and having the electrical connection made by a licensed electrician to local code, is the customer's responsibility.

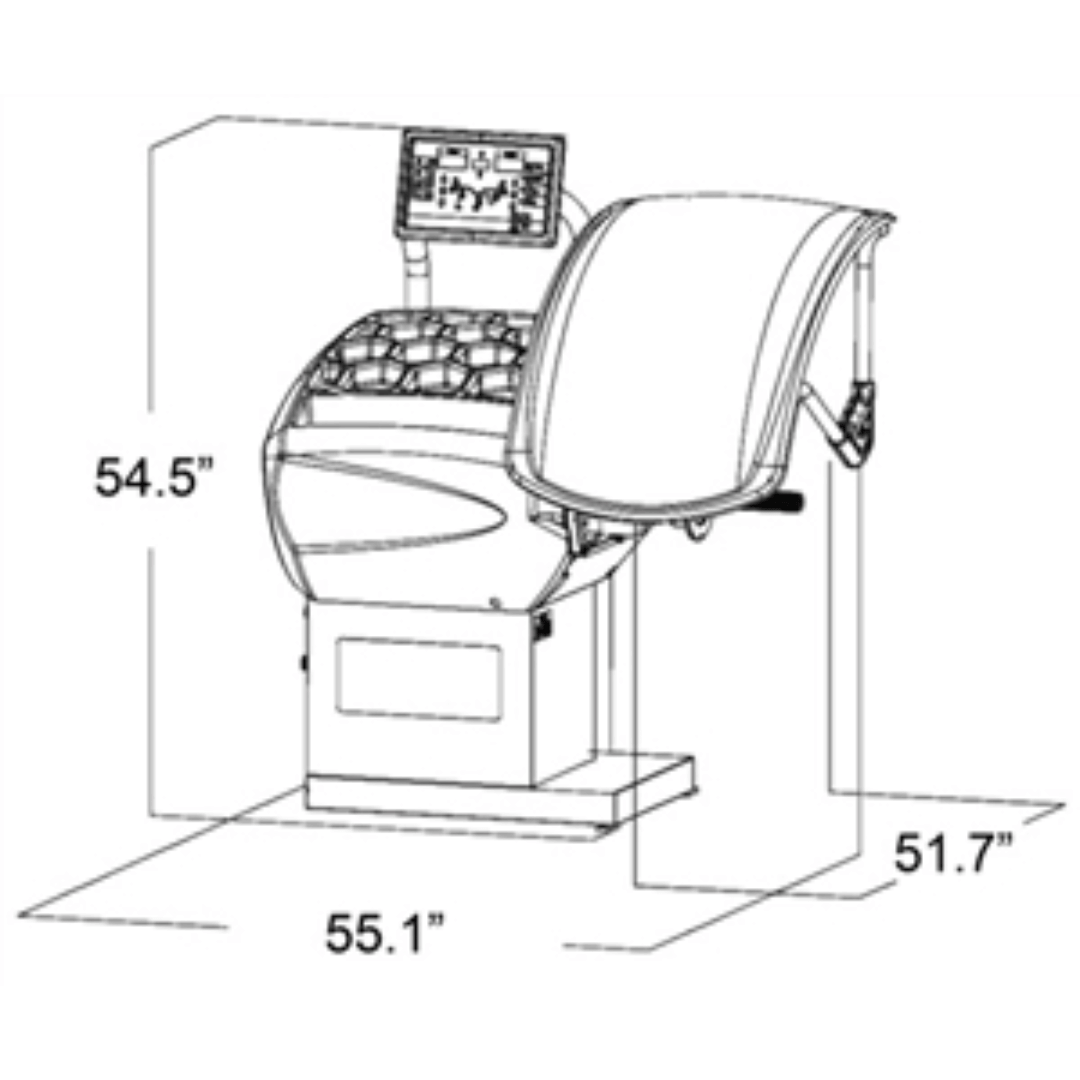

It comes fully assembled at a shipping weight of 300 lbs (136 kg), so there is no build to schedule — but do check the route from the delivery point to the bay, and leave enough clear space in front of the machine for an operator to handle a wheel up to 165 lbs (75 kg) onto the spindle without twisting.
Perfect for
-
High-volume tire dealers — the machine is specified for exactly this: many wheels, quickly, consistently.
-
Shops with an existing air system — if the bay already has a proper drop for a tire changer, the pneumatic model is the obvious choice.
-
Alloy and custom wheel work — the laser spotter, the rim LED and single-plane correction keep weights off visible rim faces.
-
Shops where several technicians share one balancer — powered clamping means the results do not depend on who set the wheel up.
What's in the box
The ER72SE arrives fully assembled with pneumatic locking, the automatic measuring arm, sonar width measurement, the Spotter laser system, the rim LED, the electromagnetic brake and quick-nut standard locking. The optimisation program for compensating rim and tire imbalance and the one-button split and hidden weight program are built in, and the display switches directly between ounces and grams. The manufacturer's data does not itemise the cones and adapters supplied with this model, so we have not listed a set; if a specific adapter is essential to your work, ask us to confirm before ordering.
Specifications
Wheel capacity
| Maximum tire diameter |
42" (1,067 mm) |
| Maximum rim diameter |
30" (765 mm) |
| Maximum rim width |
20" (510 mm) |
| Maximum wheel weight |
165 lbs (75 kg) |
| Shaft size |
40 mm |
Clamping, power and shipping
| Wheel clamping type |
Pneumatic |
| Power supply |
220 V, 1 ph, plus compressed air |
| Shipping weight |
300 lbs (136 kg) |
One note in this machine's favour, and we make it because we have had to flag the opposite elsewhere in this range: every published figure above reconciles. 42" really is 1,067 mm, 30" really is 765 mm, and 165 lbs really is 75 kg. Where a specification sheet contradicts itself we say so on the product page; here there is nothing to say.
Certification, stated plainly
The manufacturer's data for this balancer states where it is built and that it is assembled and tested in the United States. What it does not include is a third-party North American safety listing, and we will not imply one by writing around the subject — a manufacturer's own declaration is a different document from an independent listing.
That matters when a third party writes the rules. Some equipment insurers, fleet policies and local inspection regimes ask for a named independent listing. If any of those apply to you, tell us before you order and we will confirm what documentation ships in the crate.
Shipping and delivery
This ships freight, to the contiguous United States only. Rather than print a shipping price that would be out of date within the quarter, we quote it live at checkout against the ZIP code you enter. Residential delivery carries a residential fee, added at checkout.
The unload is the part people underestimate: a crated machine needs a forklift or a dock at your end, and the carrier brings the freight, not the equipment to lift it off. If you have neither, say so and we will arrange terminal pickup. Inspect before you sign, and record anything you see on the bill of lading with the driver present.
Warranty
A manufacturer's warranty document exists for this machine and it is the text that governs. You will not find a coverage period quoted here, and that is deliberate — we would rather hand you the document than a paraphrase. Ask and we will send it over.
House rule on claims: do not disassemble before you call. Pulling a cover to investigate can end a warranty claim before it starts. Photograph it, note the serial number, and speak to us first.
