CEMB CM27T Truck & Bus Universal Tire Changer
Product Description

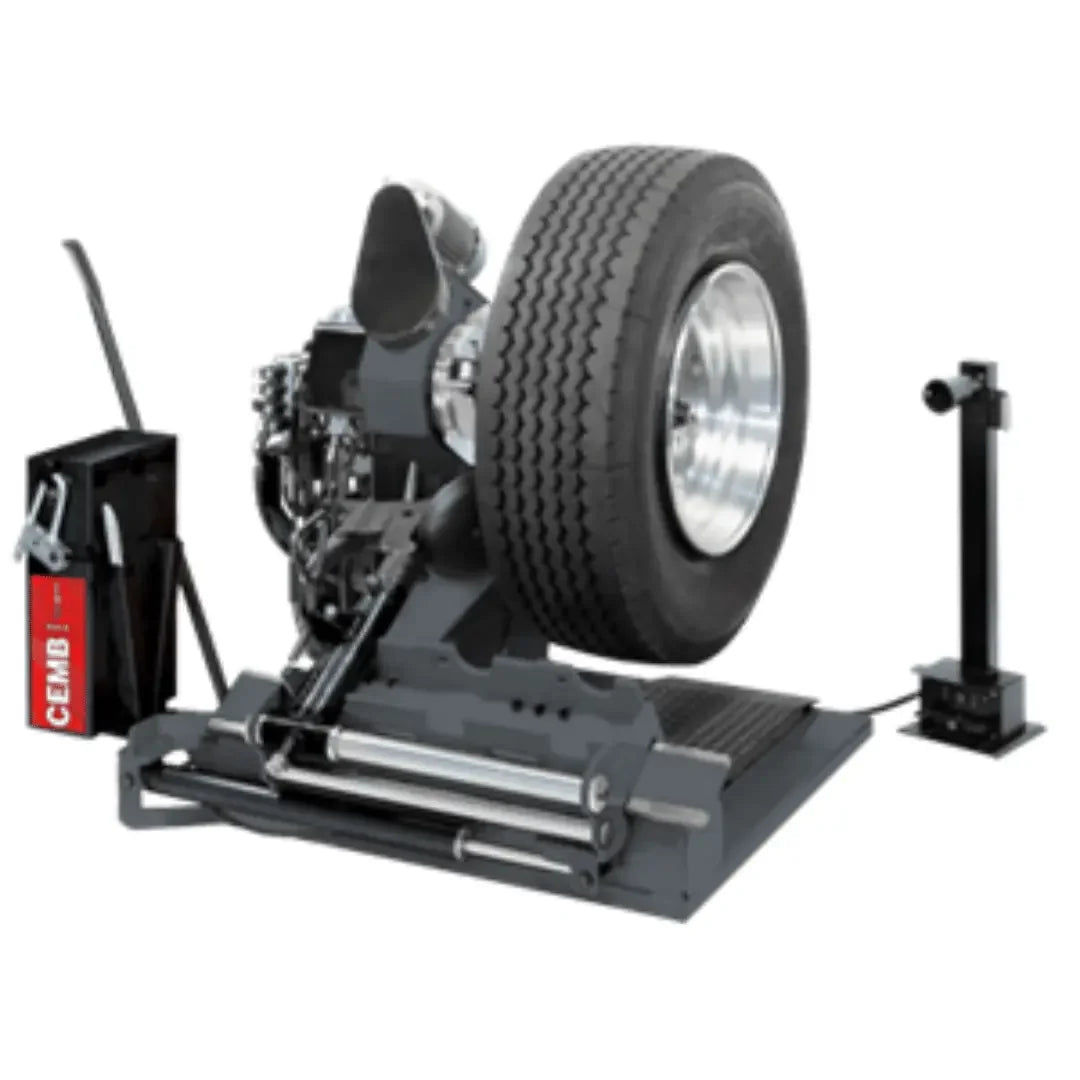

CEMB CM27T Truck & Bus Universal Tire Changer
Introducing the CEMB CM27T Truck & Bus Universal Tire Changer, available at Mechanic Superstore. This versatile tire changer is specifically designed for the rigorous demands of over-the-road Class 8 commercial trucks and some off-road tractor tires and rims. The CM27T is the perfect solution for shops that need to handle a wide range of tire types efficiently and safely.
The CM27T Tire Changer is built for heavy-duty performance. It can handle both tube and tubeless tires, with a self-centering wheel clamping system that accommodates wheel diameters from 13” to 27” and tire diameters up to 63”. The pivoting four-jaw clamping chuck not only secures the wheel but also acts as a wheel lift, eliminating the need for manual lifting and reducing the risk of injury.
All operations are controlled from a portable control unit, allowing technicians to move freely around the tire and wheel. This control unit aids in tire bead lubrication, demounting, and mounting, ensuring that each task is completed with precision. The bi-directional rotation of the clamping system, combined with an adjustable bead loosening roller that exerts over 4100 lbs of force, makes handling even the toughest tires straightforward.
Powered by a heavy-duty 220V, 1-phase, 50/60 Hz high-torque motor, the CM27T is designed for durability and long-term use. Its robust construction ensures that it can withstand the demands of a busy shop, providing reliable performance day in and day out. The bead breaker force of 3,300 lbs ensures that even the most stubborn tires can be serviced without hassle.
With maximum wheel width capability of 30 inches and a gross shipping weight of 1,415 lbs, the CM27T is a substantial piece of equipment that promises efficiency and effectiveness. Its fully assembled dimensions are L63" x W59" x H41", making it a powerful yet compact addition to your shop’s toolkit.
Upgrade your tire service capabilities with the CEMB CM27T Truck & Bus Universal Tire Changer from Mechanic Superstore. This machine combines strength, precision, and ease of use to handle the toughest tire jobs with ease.
Product Features
- Self-centering wheel clamping from 13”-27” diameter and tire diameters to 63”. Nominal HD truck wheel service ranges from 15” to 24.5” rims.
- All operation controlled from a portable control unit to gain access to multiple areas around the tire and wheel during service. Aids in tire bead lubrication, demounting and mounting.
- Bi-directional rotation of the clamping system works with an adjustable bead loosening roller force of over 4100 LbF. (1860 KgF)
- Heavy duty 220v, 1 ph. 50/60 Hz high torque motor.
- Comes Fully Assembled
Product Specifications
| Model | CM27T |
| Maximum Wheel Width | 30" (780 mm) |
| Maximum Wheel Diameter | 63" (1,600 mm) |
| Rim Clamping Range | 13" - 27" |
| Bead Breaker Force | 3,300 lbs (1,500 Kg) |
| Max. Operating Pressure | 1885 psi (130 bar) |
| Power Supply | 220VAC, 50/60 Hz, 1 ph |

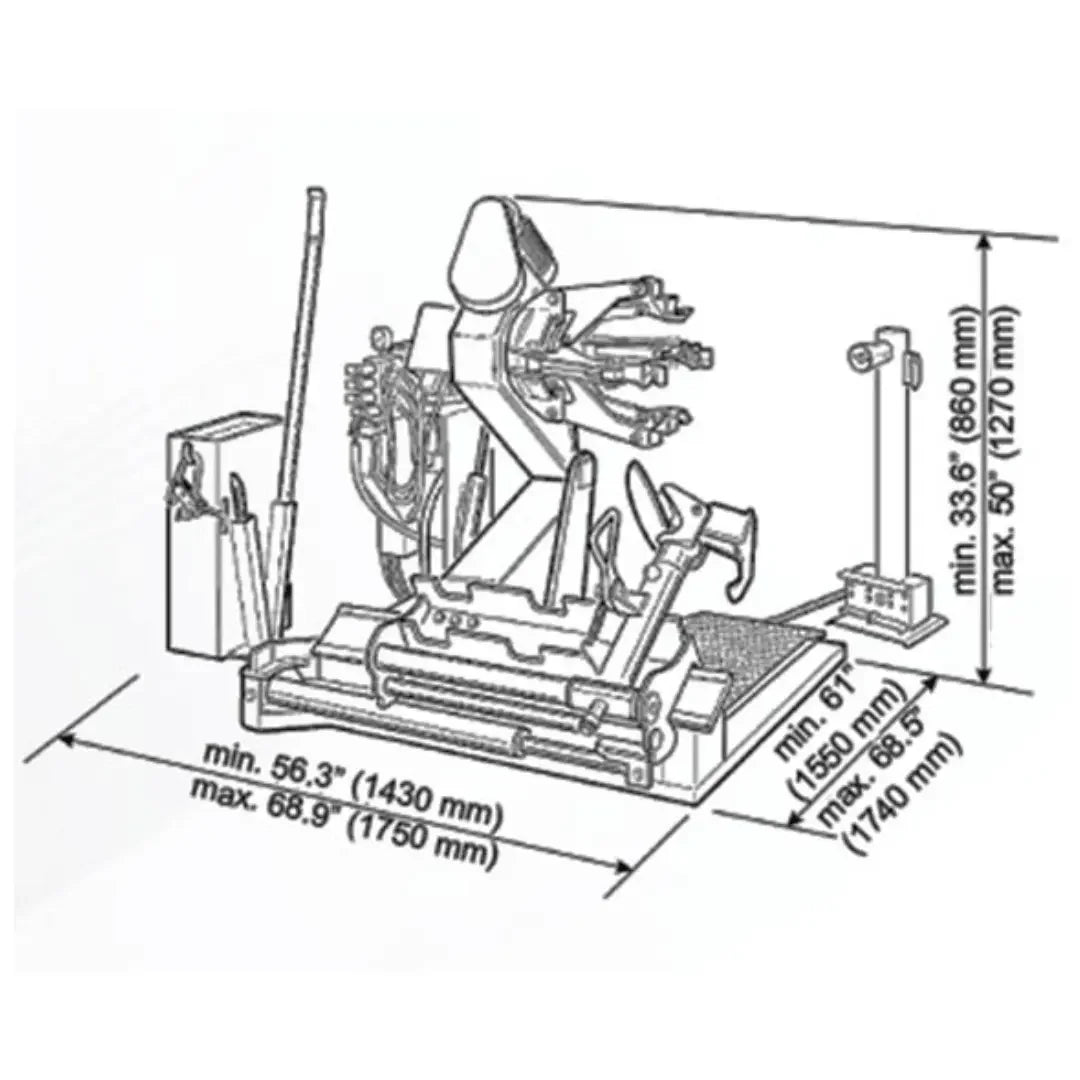

| Shipping Dimensions | L63" x W59" x H41" |
| Gross Shipping Weight | 1,415 lbs (640 Kg) |
