Atlas BP10000X Commercial Grade Baseplate 10,000 lb. Capacity 2-Post Lift - Mechanic Super Store

Delivery or warehouse pickup

Part #:ATEATTD-BP10000X
Brand: Atlas
$0.00 - $0.00
$0.00
$3,899.00
$3,899.00 - $3,899.00
$3,899.00
Call/Text Us: 866-774-7743 Call Us

Description

-

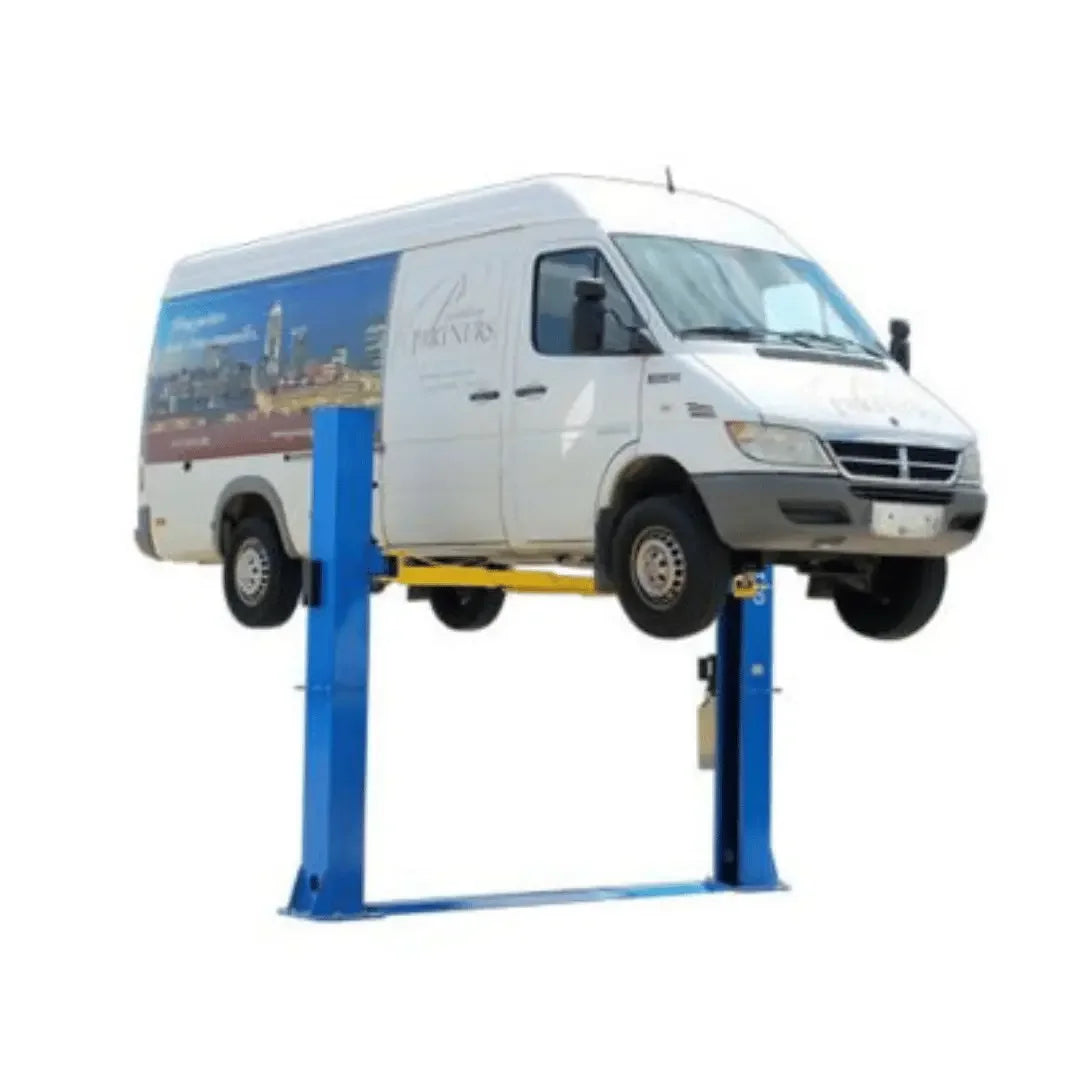

Atlas BP10000X Commercial Grade Baseplate 10,000 lb. Capacity 2-Post Lift

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the 2 post baseplate lift for your shop.

Product Features

  • 10,000 lb capacity
  • Commercial Grade
  • Baseplate, Open-Top Style Lift
  • Overall Height: 111 7/8? (9' 3 7/8")
  • Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
  • Super-Symmetric Arms
  • Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
  • Welded Support Gussets Increase Column Strength
  • Automatic Arm Restraints
  • Powder Coat Finish
  • Free 12 Piece Truck Adapter Set
  • Shipping Weight: 1,640 LBS.
  • 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
  • This part number FRIEGHT PREPAID

Product Specifications

Model ATTD-BP10000X
Capacity 10,000 lbs.
Overall Height 111 7/8" (9' 3 7/8")
Overall Floor Width 139 1/8" (11' 7 1/8")
Outside Column to Outside Column 134 1/2" (11' 2 1/2")
Maximum Lift Height (Without Adapters) 77 3/8"
Maximum Lift Height (With Adapters) 86 3/8"
Minimum Arm Height 4"
Inside Column 112 1/4” (9' 4 1/4”)
Drive Thru 101 1/4” (8' 5 1/4”)
Column Size 9 1/2" x 11"
Column Thickness of Steel 6mm
Base Of Lift 17 1/2" x 21 1/2"
Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,640 Lbs
Adapter Heights 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size 1.5”
Requires a minimum of 4" of concrete with a 3000 psi. rating

Pick Up and Delivery

Call, text, or chat with us if you have questions. - 866-774-7743


Specifications

-
Description For shops and garage owners that need a more capable lifting setup, Atlas BP10000X brings 10,000 lb capacity to a two post car lift platform. Its strongest advantages are 111 7/8 inch lifting height, 86 3/8 inch lifting height, and 220 minimum pad height, which help define how the lift fits into real service work instead of just looking good on a spec sheet. This model is a strong match for professional bays and serious home users, especially when floor layout, vehicle access, and reliable operation all matter. The BP10000X can support routine maintenance, tire and brake work, inspections, and undercar access while keeping the buying decision simple for customers comparing similar car lift models. If you want an auto lift that feels practical, serviceable, and purpose-built, Atlas BP10000X is positioned as a dependable choice. That makes Atlas BP10000X useful for buyers who want equipment that supports both immediate service needs and future shop growth.
Drive thru between carriage 101 1/4
Inside columns 112 1/4
Inside post width 4"
Lifting height top of pad 77 3/8
Max rise under arms 73 3/8"
Minimum pad height 4"
Modal BP10000X
Motor 220 volt single 1 phase
Overall heights 111 7/8
Overall weight 1,640 Lbs
Overall width 139 1/8
Phase Single Phase
Voltage 220V
