BendPak RBJ15000 15,000-lb. Capacity Rolling Bridge Jack
Product Description

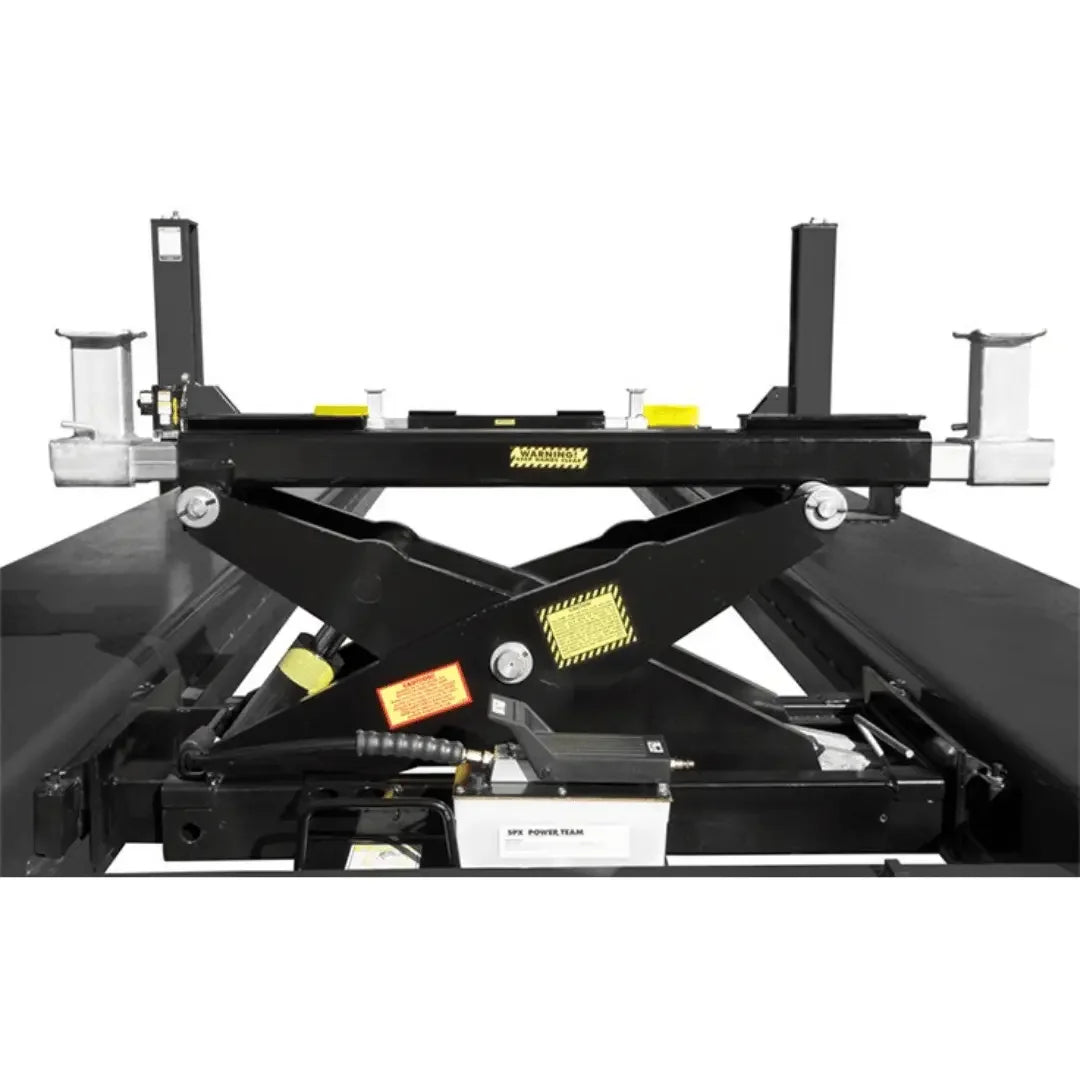

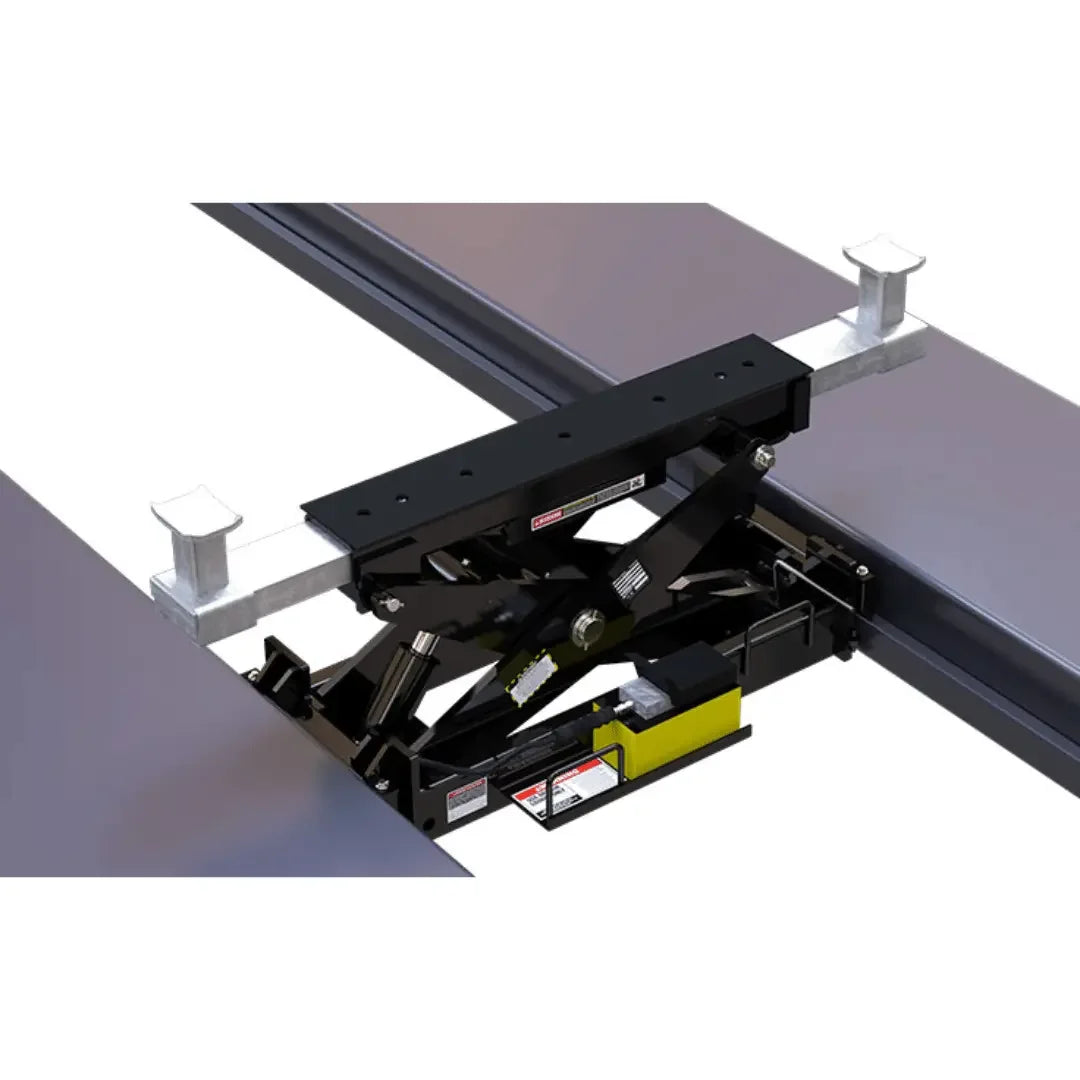

BendPak RBJ15000 15,000-lb. Capacity Rolling Bridge Jack
Our 15,000-lb. capacity bridge jack is made just for the HDS-27 four-post lift. This particular car lift is truly made for massive trucks and commercial equipment. Check out the RBJ15000 jack if you need to perform full wheel service on heavy-duty vehicles.
Lift 15,000 lbs. for Full Wheel Service Capability
The RBJ15000 bridge jack is capable of lifting half of a 30,000-lb. truck or commercial bus. The HDS-35 four-post car lift is a heavy-duty machine meant for professional shops that deal with massive, specialty equipment. If you have a truck lift, you have easy access to the undercarriage but can’t get to the wheels. A rolling bridge jack opens the door to new service opportunities, such as wheel balancer, wheel alignment and tire changer equipment.
Steel contact pads
BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axle and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars.
High-pressure hydraulic power unit
The power unit to this jack is completely pneumatic-hydraulic. A small airline is attached to the bridge jack and is controlled with an ergonomically designed foot pedal. Two bridges jacks can share a single airline with the addition of BendPak’s exclusive, optional airline kit.
Three lock levels
Raise your jack to three different heights—whatever is most comfortable for you. The work you do varies, so if all you need is to lift the wheels a few inches, just enough to remove them, BendPak makes it easy. Rolling bridge jacks also give a little more raise for extra undercarriage clearance and comfort.
Product Features
- 15,000-lb. lifting capacity
- Steel lifting pads standard
- High-pressure hydraulic power unit
- Optional air-line kit
Product Specifications
| Lifting Capacity | 15,000 lbs. (6,804 kg) |
| Suitable Lift Model(s) | HDS-27 Series, HDS-40 Series |
Min. Drive-Over Height
| Short Arm Pad | 9" (229 mm) |
| Short Top Pad | 10" (254 mm) |
| Tall Arm Pad | 11" (279 mm) |
| Tall Top Pad | 12" (305 mm) |
Max. Lifting Height
| Short Arm Pad | 19" (483 mm) |
| Short Top Pad | 20" (508 mm) |
| Tall Arm Pad | 21" (533 mm) |
| Tall Top Pad | 22" (559 mm) |
Reach
| Support Base Width | 45.75" (1,162 mm) - 59" (1,499 mm) |
| Max. Arm Pad Reach | 63.75" (1,619 mm) |
| Min. Arm Pad Reach | 48.5" (1,232 mm) |
| Max. Top Pad Reach | 39.5" (1,003 mm) |
| Min. Top Pad Reach | 7.75" (197 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 6,000 PSI |
| Power Requirement | None |
| Shipping Weight | 708 lbs. (321 kg) |
| Shipping Dimensions | 48" x 29" x 18" (1,238 mm x 736 mm x 457 mm) |
