BendPak P-9000LT 9,000 lb. Capacity Low-Rise Lift
Couldn't load pickup availability
Shipping-FAQ's
Shipping Info
At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.

I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.

Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.

Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.

Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.


Product Description

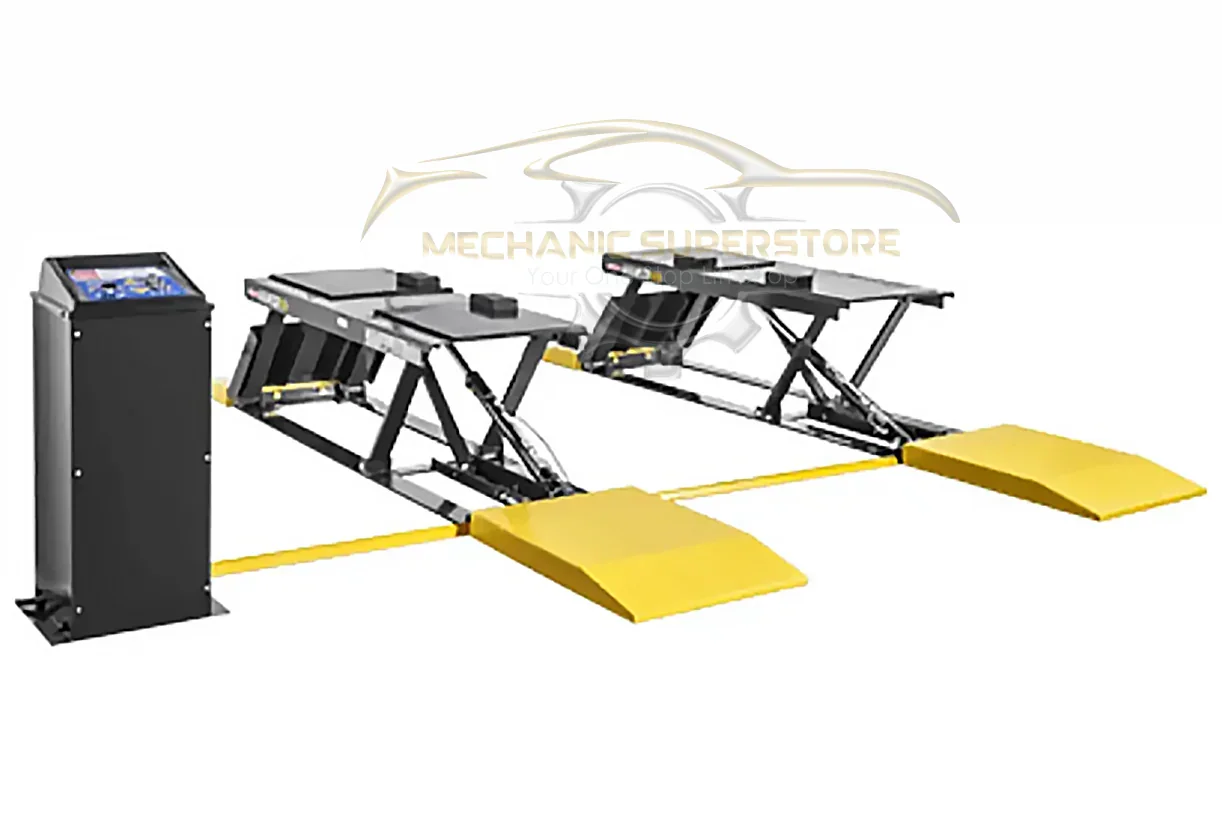

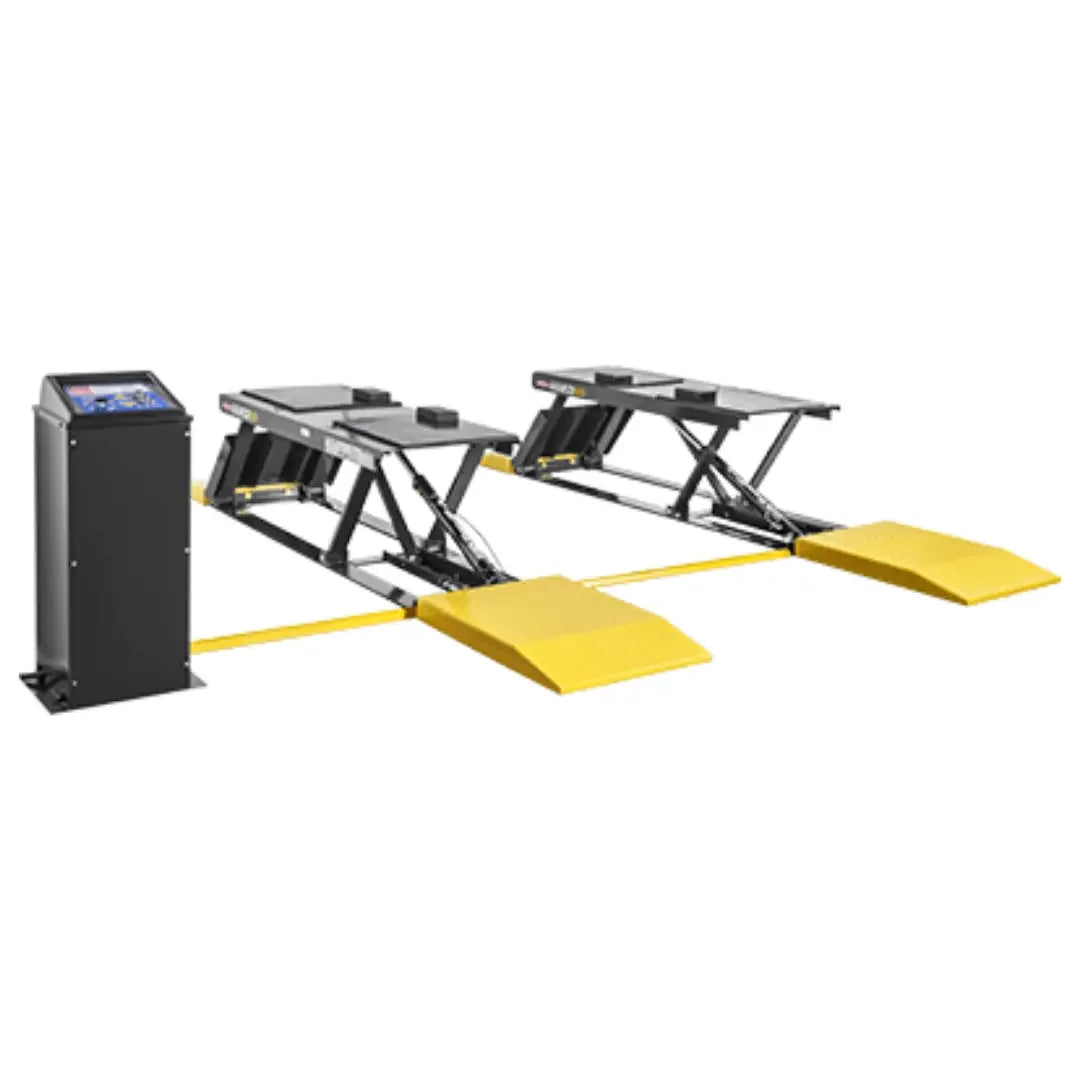

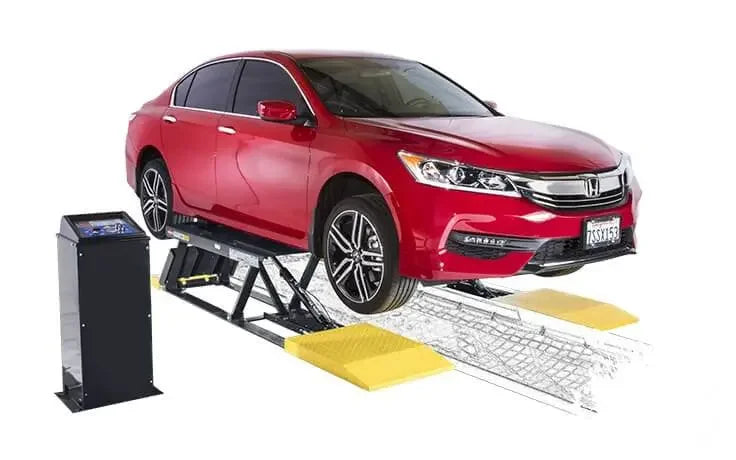

BendPak P-9000LT 9,000 lb. Capacity Low-Rise Lift
The 9,000-lb. capacity P-9000LT scissor lift is a heavier-duty version of the P-6B. We increased the lift capacity by 30% while maintaining all the features you love: dual-approach design, open-center access and a hands-free safety check. This is the industry’s ultimate pit lift.
The Undisputed World’s Best Pit Lift
9,000 lbs. of lift. Unobstructed access to the vehicle’s undercarriage. Optional ramps or flush-mount design. Miniscule footprint. Optional arm adapters. You know it already: this is the best low-rise car lift money can buy. Fast-lube shops have been relishing in the P-6B for years, and the best thing we could do to improve on the design was increase the weight capacity. The P-9000LT is suitable for more light trucks and SUVs than ever, and whether you choose the extended approach ramps or flush-mount option, lifting low-stance vehicles is a cinch for this lift.
Surface and flush-mount options
Whether you work in a pit or prefer to keep your low-rise lift on the ground, the BendPak P-9000LT is versatile enough to do both. Converting the flush-mount P-9000LTF into a floor model is as simple as attaching the extended approach ramps. These heavy-duty ramps are extended farther and slope very gradually, so low ground-clearance vehicles never rub against them.
The P-9000LT is made with oil-change facilities first and foremost in mind. The frame-engaging design permits full access to the wheels for tire and brake service. This makes your oil-change business a threat to competing auto shops who used to steal your wheel service. They’ll be missing all those great, profitable references once you put a full-service lift in your garage. This industry-leading lift features a 1.5 HP electric-hydraulic power unit, dual hydraulic cylinders, precision flow-divider, simple push-button controls and remote pneumatic safety locks.
Pneumatic lock release
Air locks provide a safe, instant release that efficiently permits the lowering of vehicles. A single button push is all it takes to disengage the locks and completely lower the lift in seconds flat.
Low-profile design
At just 4” high when fully lowered, the P-9000LT is one of the most space-effective models ever made. When flush-mounted, its profile virtually disappears completely.
Rugged steel channel frame
The super-wide base provides this 9,000 lbs. of lifting force with excellent support. No one matches the steel channel frame design of the P-9000LT. We’ll always be the original, but ongoing heavy-duty construction ensures we stay the best.
Solid rubber lift blocks
We don’t charge a penny extra for the rubber blocks you need to lift your or your customers’ vehicles. These rugged blocks protect vehicle undercarriages and chassis. They’re made to take as much use and abuse as your work requires.
Detailed instructions
Every BendPak lift comes complete with an easy-to-read instruction manual, space to keep service records, a guide for safe lifting and a safety/training instruction placard.
Choose flush-mount
The P-9000LTF pit lift mounts flush against the concrete. If you don’t want to see the car lift, or you simply need it out of the way in your busy garage, the ramps are completely detachable. That means if you change your mind, you can easily convert your P-9000LT into a P-9000LTF at any time.

Product Features
- 9,000-lb. lifting capacity
- Reinforced parallel lifting arms to better support inboard loading
- Reinforced upper lift platform to better support inboard loading
- Dual-pump power unit with built in proportioning valve
- Easily convert fast-lube pits into wheel service work bays
- Mounts outside the pit rail without interfering with center work area
- Model P-9000LTF flush-mount model provides recessed drive-over option
- Heavy duty 1.5 HP electric-hydraulic power unit
- Electronic push-button controls allow smooth, single-hand operation
- Automatic multi-position safety locks with air release deliver safe, remote operation
- Powder-coat finish
- Durable rubber-topped pad surface and rubber lift blocks provide quick set-up
- Enhanced adjustable (optional) lifting arms

Product Specifications
Lifting capacity | 9,000 lbs. (4,082 kg) |
Lifting Height | 24” (610 mm) |
Lifting height + blocks | 27” (686 mm) |
Overall Lift Platform Length | 58.5” (1,484 mm) |
Overall Lift Platform Width | 24” (610 mm) |
Fully Lowered | 4" (102 mm) |
1st Lock | 15" (381 mm) |
2nd Lock | 19" (483 mm) |
3rd Lock | 21.5" (546 mm) |
4th Lock/td> | 23.5" (597 mm) |
Full Rise | 24" (610 mm) |
Overall Length | 124.6” (3,165 mm) |
Lowered height | 4" (102 mm) |
Lifting Time | 55 seconds |
Motor | 1.5 HP / 208-230 VAC / 60 Hz / 1 Ph |
Shipping Weight | 1,502-lbs. (681 kg) |
Shipping Dimensions | 77" x 60" x 24" (1,966 cm x 1,534 mm x 609 mm) |

Pick Up and Delivery
Our Pick Up locations for BendPak are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions. 866-774-7743

Downloads

Brochure

Manual

Warranty
