BendPak HD-9SWX 9,000 lb Super Wide Runway 4 Post Storage Lift

Part #:5175024
Brand: BendPak
Original price $0.00 - Original price $0.00
Original price $0.00
$12,595.00
$12,595.00 - $12,595.00
Current price $12,595.00

Description

-

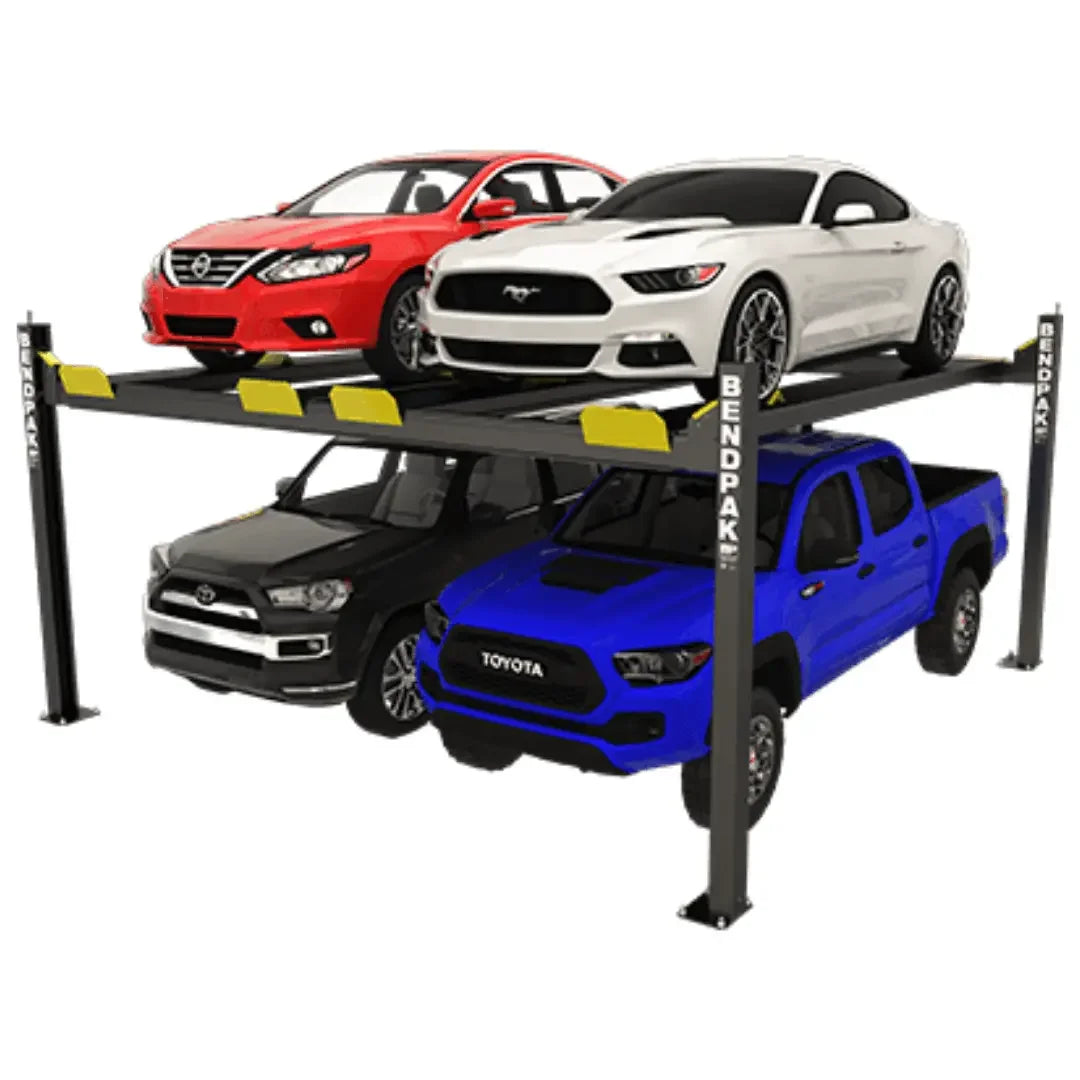

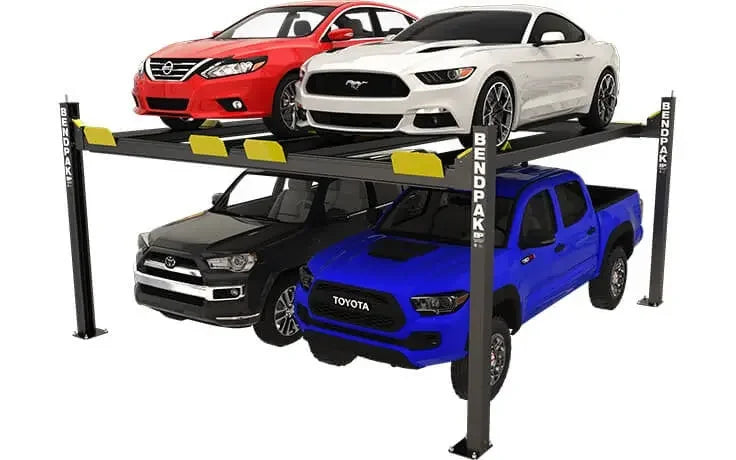

BendPak HD-9SWX 9,000 lb Super Wide Runway 4 Post Storage Lift

9,000-lb. Capacity / Four-Post Lift / Dual Platform / Super Wide / Extended-Length

HD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 24" longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.

The Ultimate Extended-Length, High-Rise, Double-Wide Car Lift

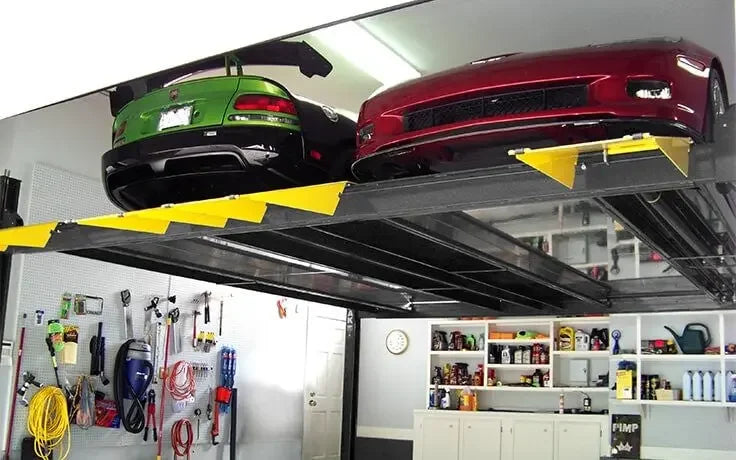

If you're looking for a little more lifting height, extended-length runways and a lot less column interference, then our HD-9SWX four-post lift is the answer. This super-wide, extended-length model is designed to transform your garage into a state-of-the-art parking facility. It turns that two-car space into a four-car trophy stand. The HD-9SWX is an extended length model with higher rise to provide exceptional clearance underneath. The extra dimensions are particularly useful for parking or servicing long-wheelbase vehicles.

The best thing about this car lift is how easy it is to use. Low-stance vehicles glide onto the runways without risking damage to the chassis. It’s a smart solution for family garages and professional spaces. Auto shops sometimes prefer large lifts like the HD-9SWX because their techs need equipment that allows them to work on virtually anything that rolls through their doors. The 9,000-lb. capacity of this lift (4,500 lbs. max per car, per side) covers sedans and sports coupes. If you do need to step up into the next category of lifting, BendPak has four-post lift options, from the 14,000-lb. capacity HDS-14 series to the 40,000-lb. capacity HDS-40.

NOTE:Comes standard with 1 Kit(pair) of Aluminum Ramps (additional ramps may be purchased but are not provided)

Product Features

  • 9,000-lb. maximum lifting capacity
  • Freestanding design
  • Perfect for parking, storage and service
  • Double-wide configuration for quad-vehicle storage
  • Four runways
  • Super-tall rise

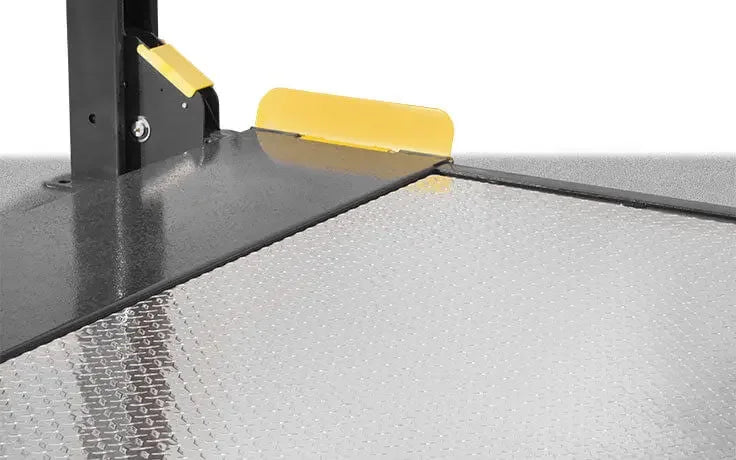

  • Extra-long ramp
  • Runways accommodate wide or narrow vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column

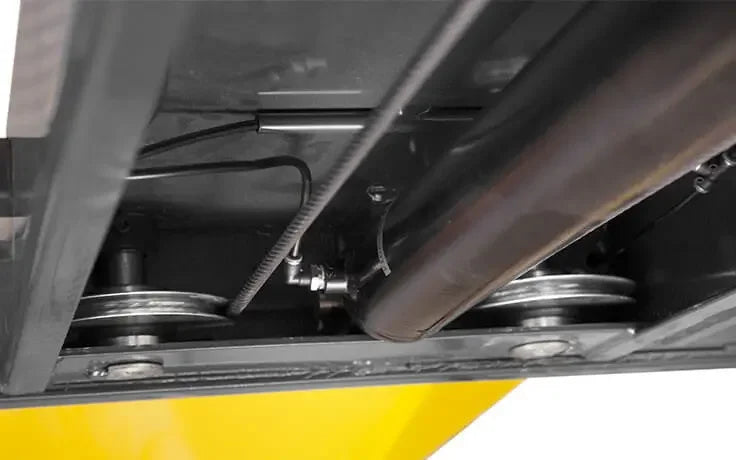

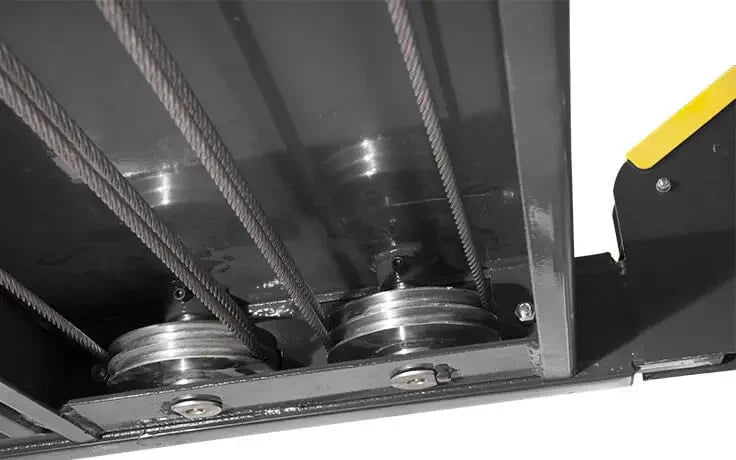

  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles

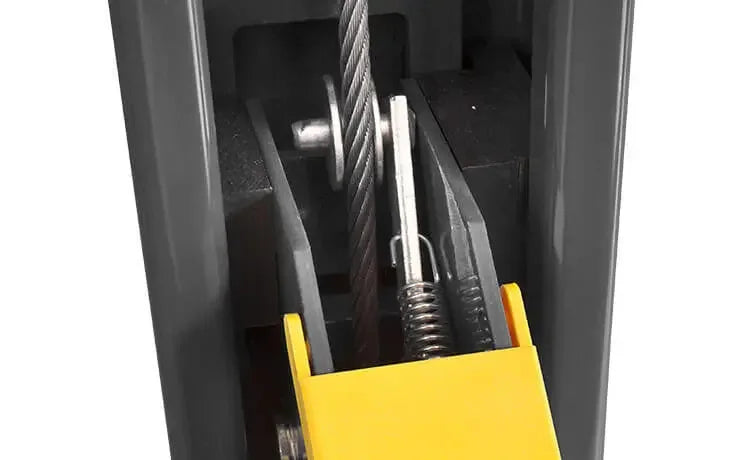

  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature a durable matte finish
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Inside runways adjust for different tread widths
  • Customizable power unit location

Product Specifications

Capacity

Lifting Capacity: 9,000 lbs. (4,082 kg)
Max. Capacity / Front Axle: 4,500 lbs. (2,041 kg)
Max. Capacity / Rear Axle: 4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height 7" (178 mm)
B - Max. Rise 82" (2,083 mm)
C - Max. Lifting Height 89" (2,261 mm)
Lifting Time: 65 Seconds

Outside Dimensions

D - Overall Width 202" (5,131 mm)
E - Outside Length 198" (5,029 mm)
F - Overall Length 242.5" (6,159 mm)
G - Height of Columns 102" (2,591 mm)

Inside Dimensions

H - Width Between Columns 192" (4,877 mm)
I - Drive-Thru Clearance 178" (4,521 mm)

Runways

J - Runway Width 19" (483 mm)
K - Length of Runways 188" (4,775 mm)
L - Width Between Runways 34.25" (870 mm) - 41" (1,041 mm)
M - Runway Centerline 56.25" (1,429 mm) - 62.75" (1,594 mm)
N - Outside Edge of Runways 75.25" (1,911 mm) - 81.75" (2,076 mm)

Minimum Wheelbase

Rated Capacity 135" (3,429 mm)
75% Capacity 115" (2,921 mm)
50% Capacity 95" (2,413 mm)
25% Capacity 80" (2,032 mm)

Locking

Locking Positions 17
Lock Spacing: Every 4" (102 mm)

Power Unit

Motor 220 VAC /60 Hz / 1Ph
Noise 45 dB

Shipping

Weight 3,038 lbs. (1378 kg)
Dimensions (LxWxH): 205” x 22” x 51” (5,207 mm x 5,58 mm x 1,282 mm)

Pick Up and Delivery

Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.

Call, text, or chat with us if you have questions. 866-774-7743

Specifications

-
Drive thru width 14.85 ft
Gtin 00849672001027
Lifting capacity 9000 lbs
Lifting height top of runway 7.5 ft
Max rise under runway 6.85 ft
Outside edge of runways 6.65 ft
Overall length 18.65 ft
Overall width 16.85 ft
Runway length 15.65 ft
Upc 849672001027
Width between columns 16 ft
