BendPak BB-2 Blue-Bullet Pipe Bender W/Metric Tooling Package - Mechanic Super Store

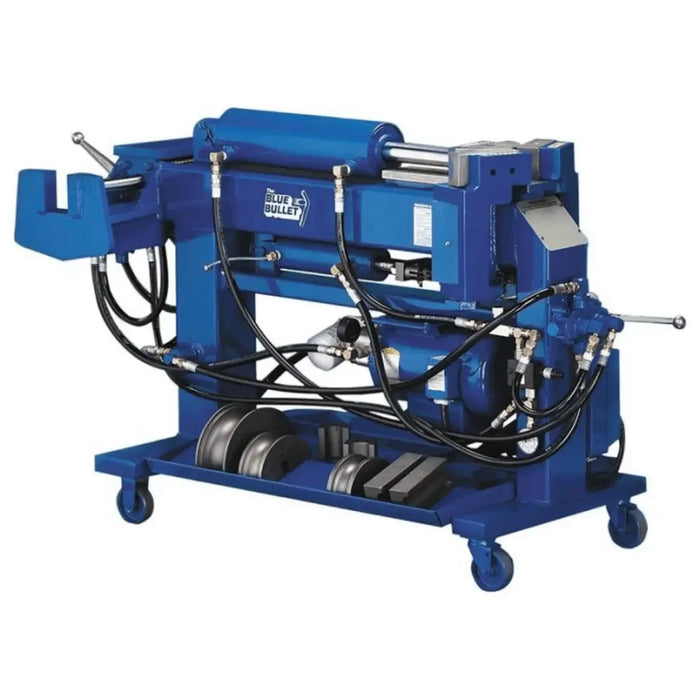

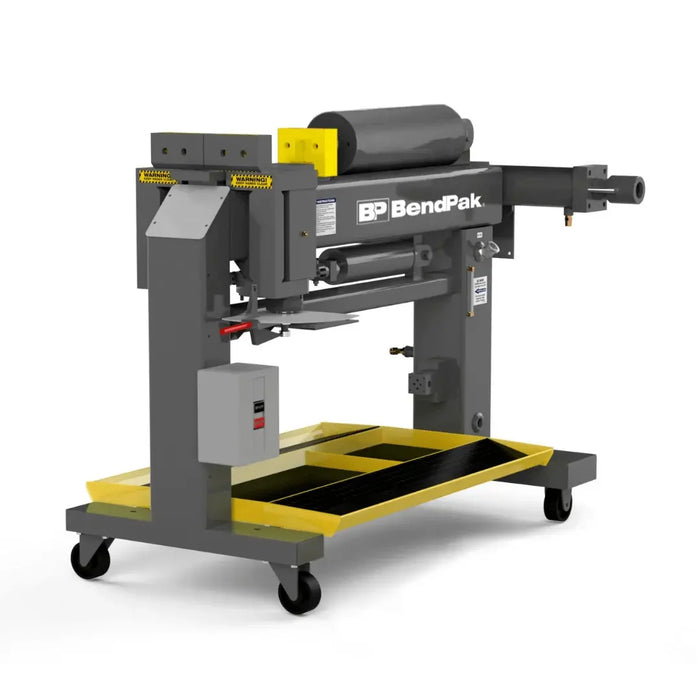

BendPak BB-2 Blue-Bullet Pipe Bender W/Metric Tooling Package

Part #:5115120
Brand: BendPak
$0.00 - $0.00
$0.00
$12,595.00
$12,595.00 - $12,595.00
$12,595.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BendPak BB-2 Blue-Bullet Pipe Bender With Metric Tooling Package - 208-460V / 50Hz / 3 Phase

Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.

Go Manual and Control Your Bends

Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.

With its superior performance and simple operation, the Blue Bullet BB-1 and BB-2 exhaust pipe benders will hold a special place in your shop.

Contact us for more information on Bendpak equipment.

Bendpak Pipe Bender Product Features

  • 2 separate end-finishing units at rear for all necessary flaring and expanding
  • BB-1 Tooling Package included
  • Comes complete with quick release bending and finishing dies
  • Includes high-speed clampless swager and internal expander
  • Easy-to-use drop-in collar makes swaging operations quick and efficient
  • Twist-lock tooling
  • Integrated power-relief control valve
  • Pass-through cylinder stem passes completely through the primary frame
  • Rigid 6" x 6" x 3/8" welded-steel tube frame
  • Commercial-grade hydraulic cylinders
  • All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
  • Quick-release bending dies for reduced set-up times
  • Bending heads precision grounded to within .002"
  • Enclosed controls keep your bending area clutter-free
  • 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
  • Standard grease fittings allow for simple lubrication
  • NEMA-rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
  • Pressure gauges let you know exactly what the system pressures are at all times
  • Industrial grade casters help you easily move the bender around your shop
  • Adjustable pressure valve located right up front
  • One-piece barrel ensures that the bending gates stay perfectly aligned with the ram
  • Heat-treated tooling for greater service life
  • Convenient tool trays keep your tooling organized
  • Strong, 5 HP energy efficient motor delivers maximum performance
  • Direct-drive, high-speed, 4 gpm pump
  • Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
  • Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
  • Canister oil filter in the hydraulic system keeps the oil nice and clean
  • Oil sight-gauges allow you to visually inspect oil levels
  • Over-sized 1/2" high-pressure hose provides better speed and cooling
  • Open-sided swager box allows for easier access and reduces the chance of "crashing" tools and damaging the cylinder
  • 180° bending die available

Product Specifications

Overview

Bending Controls Manual
Expander Controls Manual
Frame Style Double-Ended Expander
Max. Tube Capacity 3" (76 mm) .095 wall

Bending

Max. Bending Radius 5" (127 mm)
Min. Bending Radius 3.3" (89 mm)

Hydraulics

Top Cylinder Force 60,000 lbs. (27,216 kg)
Hydraulic Filter Canister
Motor 208-460 VAC / 50 Hz / 3 PH

Die Pack

Standard 1.5", 1.75", 1.625", 2", 2.25", 2.5" (302)

Dimensions

Width 42" (1,067 mm)
Depth 62" (1,575 mm)
Depth 31" (787 mm)

Shipping

Weight 1,364 lbs.
Dimensions 70" x 32" x 47" (1,778 mm x 812 mm x 1,206 mm)
