BendPak 3-Button Tooling and Automatic Pipe Bender Package

BendPak 3-Button Control - Automatic Pipe Bender Package With Metric Tooling

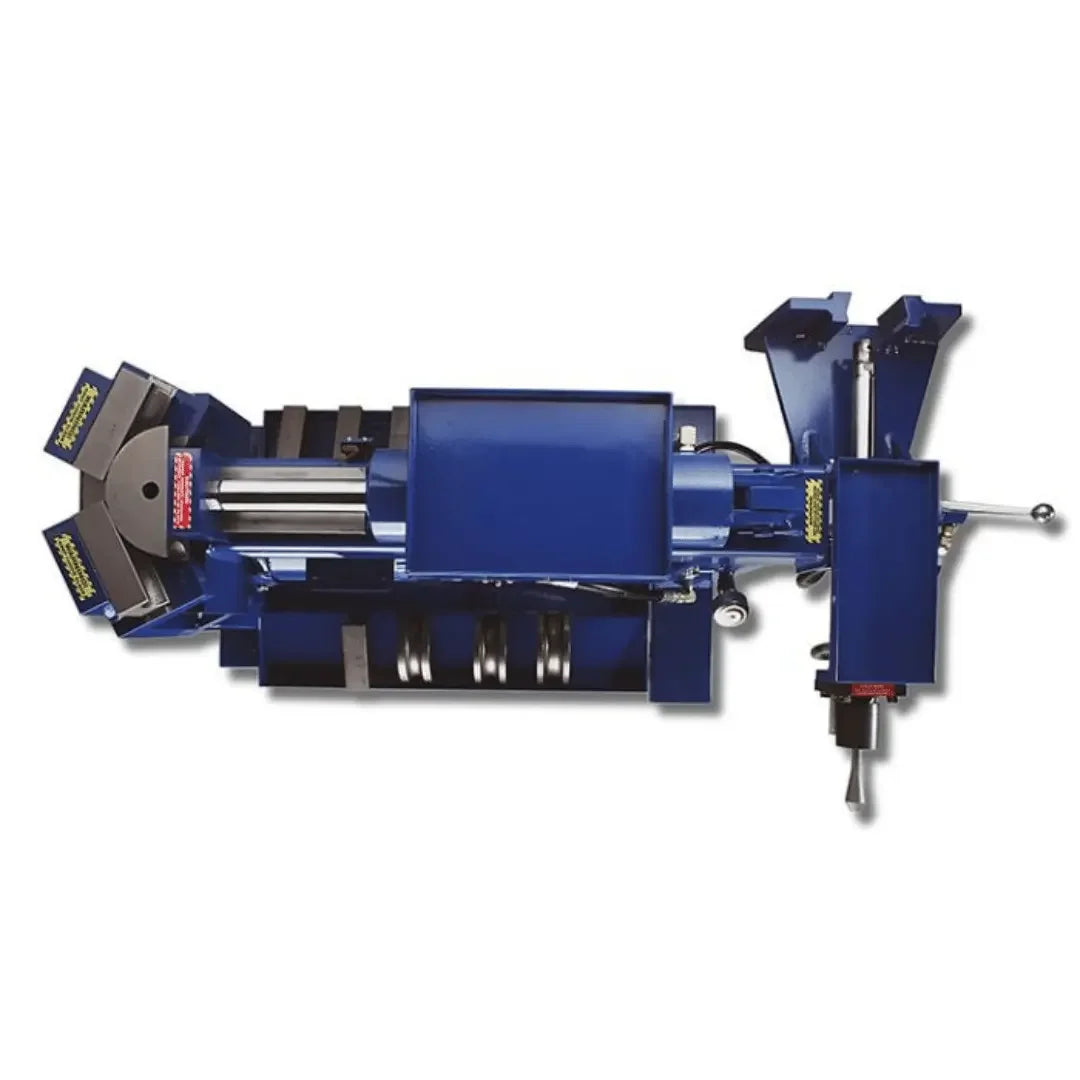

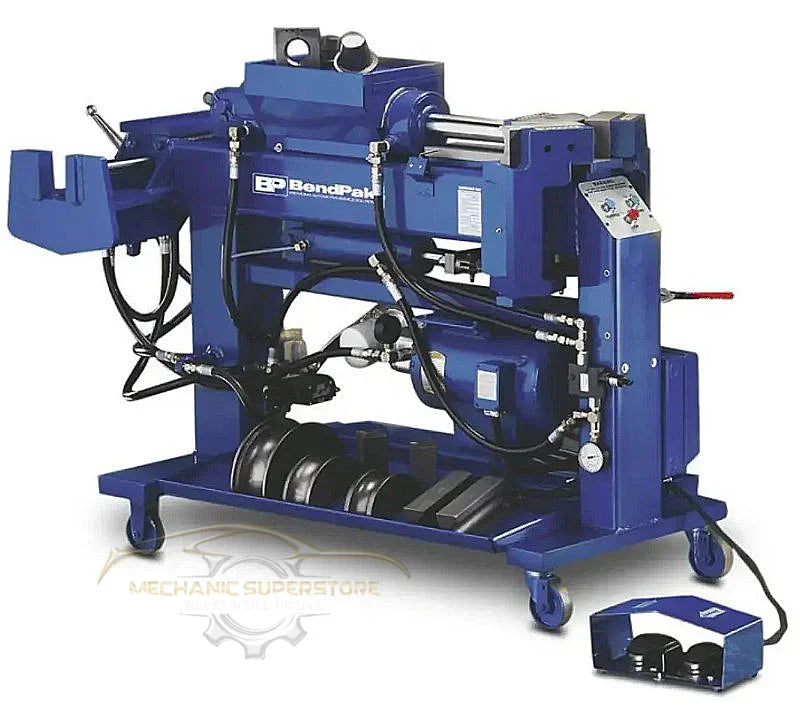

The BendPak 1302BAS semi-automatic pipe bender is engineered to bring speed, precision, and flexibility to fabrication and exhaust shops that run both metric and imperial tube work. This machine offers a three-button control interface that allows operators to command bend, retract, and indexing modes, giving semi-automation with room for manual override when needed. It is built to accept both standard 302 die tooling and optional metric tooling kits, enabling seamless transitions between industry norms. With load capacities and tolerances that support demanding shop environments, this bender is a serious tool for professionals who refuse to compromise on consistency.

The frame is constructed from rigid 6-inch-by-6-inch steel members with 3⁄8-inch wall thickness, giving the structure the torsional strength needed to resist twist under bending loads. The Bendpak bending heads and tooling interfaces are precision ground to within .002 inch to ensure alignment and minimize runout. Chrome-moly rods and industrial grade hydraulic cylinders provide longevity and smooth operation. The entire control assembly is enclosed to protect against swarf, coolant, and shop dust, preserving sensitive electronics over time.

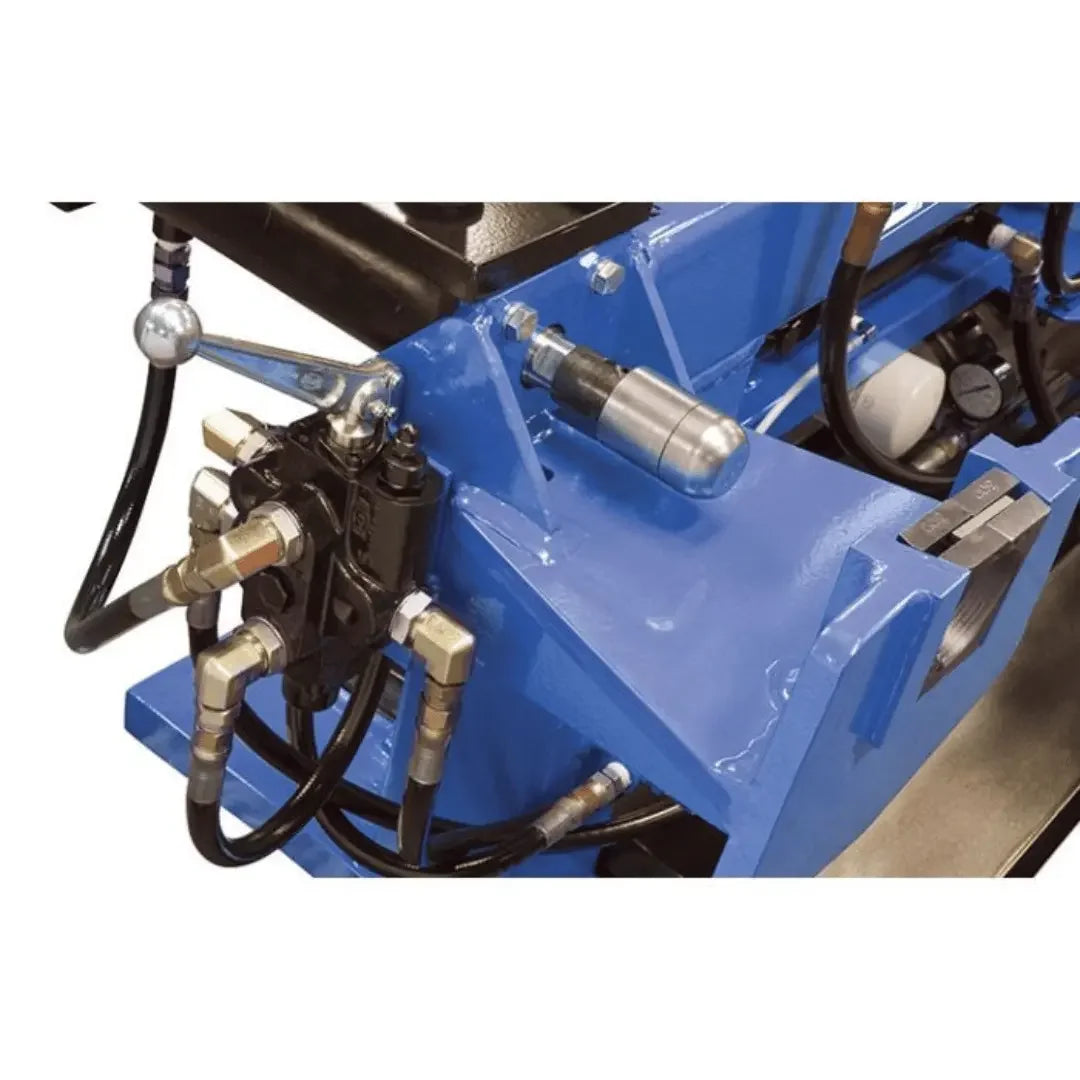

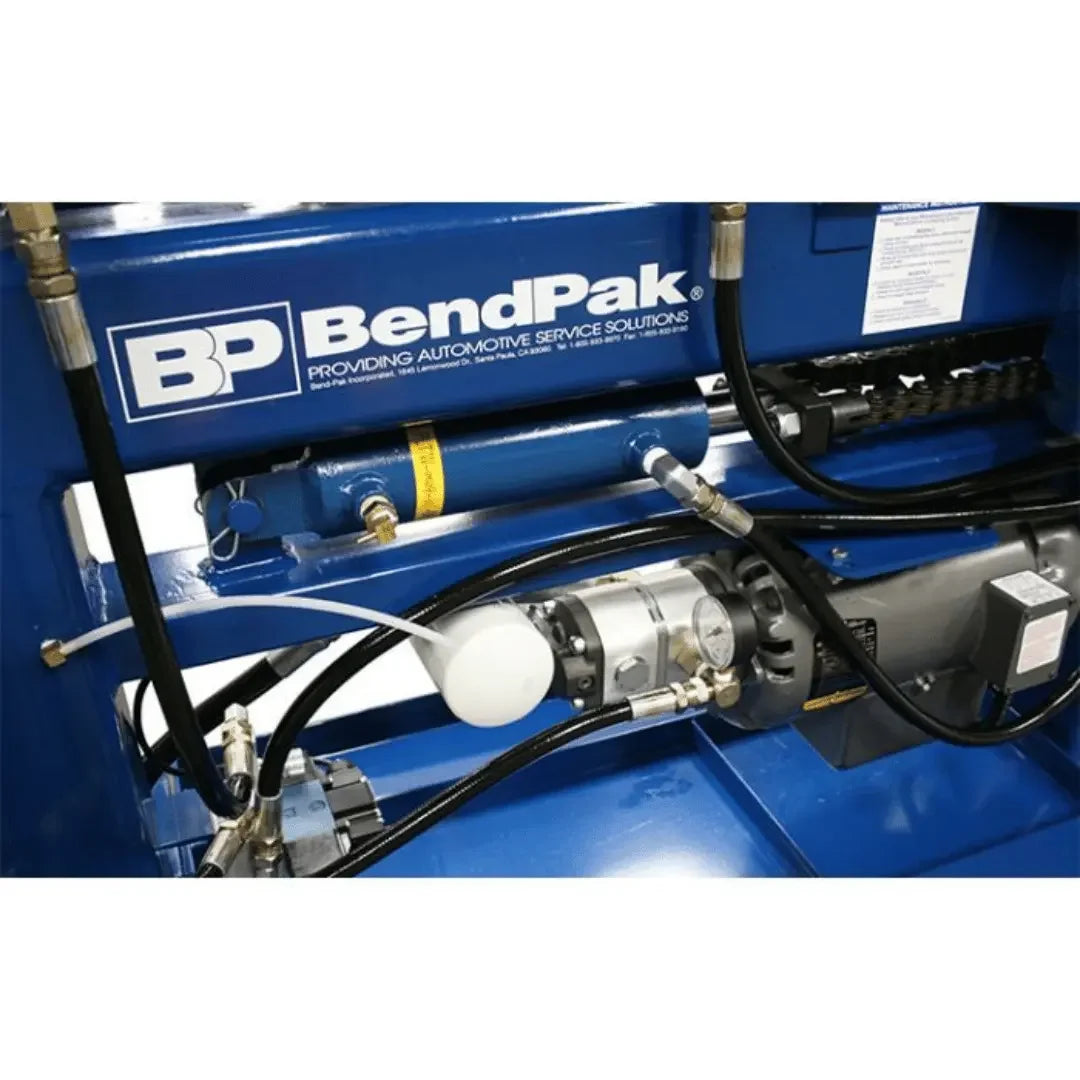

In terms of capacity, the Bendpak 1302BAS accepts tubing up to 3.00 inches nominal outer diameter and supports wall thicknesses up to 0.095 inches. Its bending radius range spans from a minimum of approximately 3.3 inches to a maximum of 5.00 inches, affording flexibility for tight bends or gradual curves depending on the application. The primary bending cylinder produces up to 60,000 pounds of force, ensuring even robust tubing can be bent without kinks or deformation. The integrated hydraulic system includes pressure relief valves and a canister oil filter to prevent overpressure or contamination in demanding cycles.

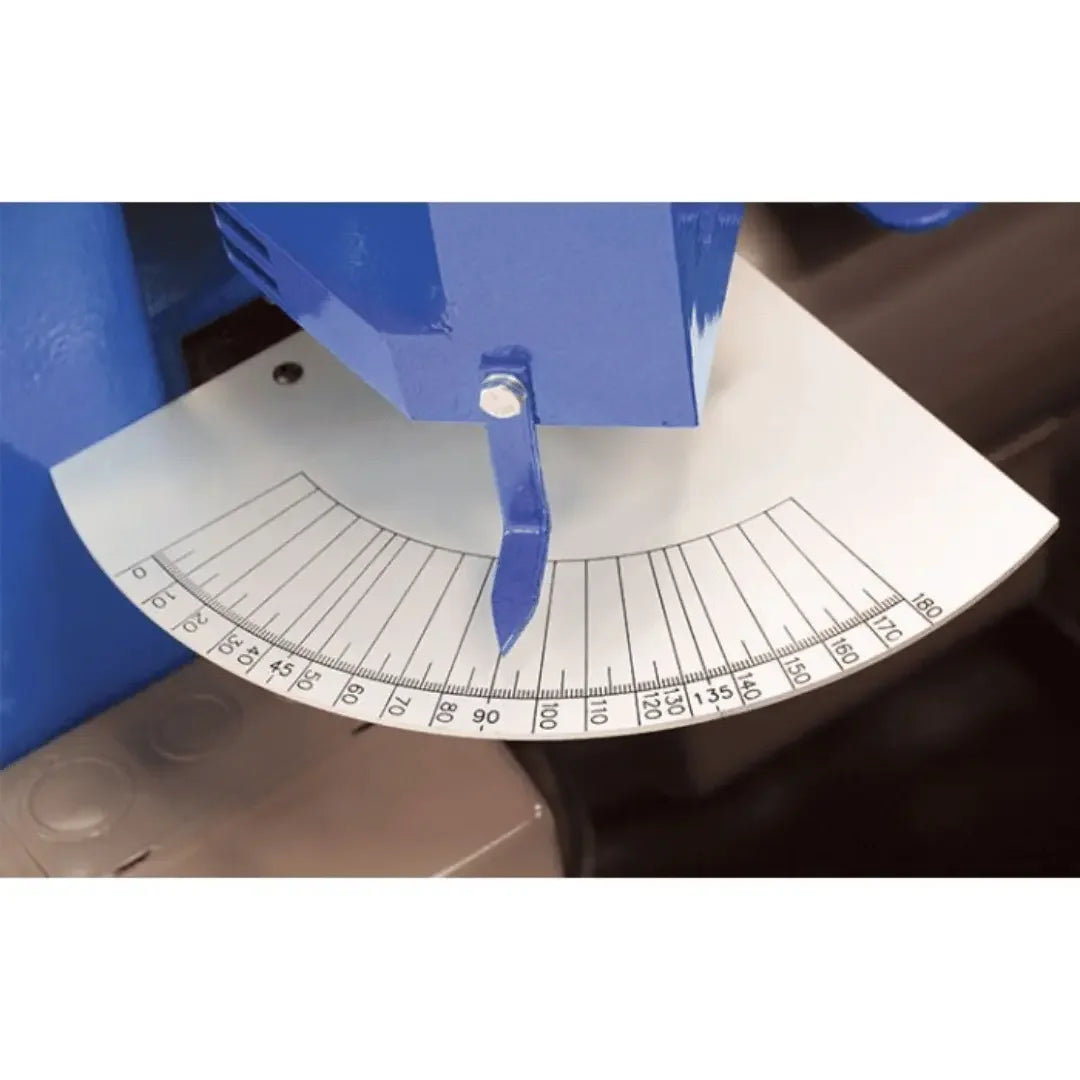

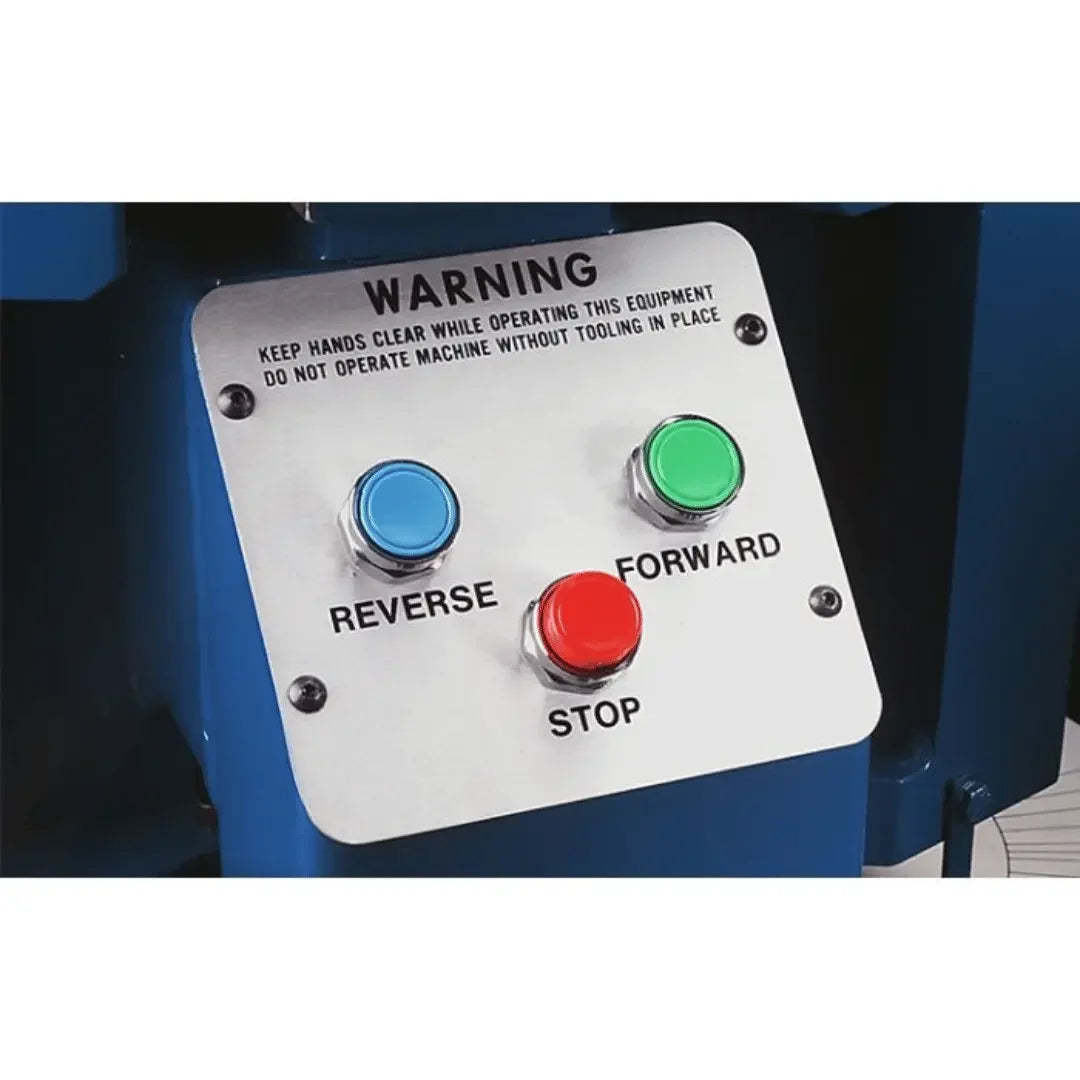

Controls are intuitive: the three-button panel lets the operator start a bend cycle, retract the ram, or index to the next section. A digital readout provides live feedback on bend depth, helping minimize overbend, and the semi-automatic mode accelerates repetitive or mirrored bends. Remote footswitch capability extends control to the operator’s location near the workpiece, enhancing ergonomics and safety. Overload protection and NEMA-rated switchgear guard the machine against power faults or unexpected current draw.

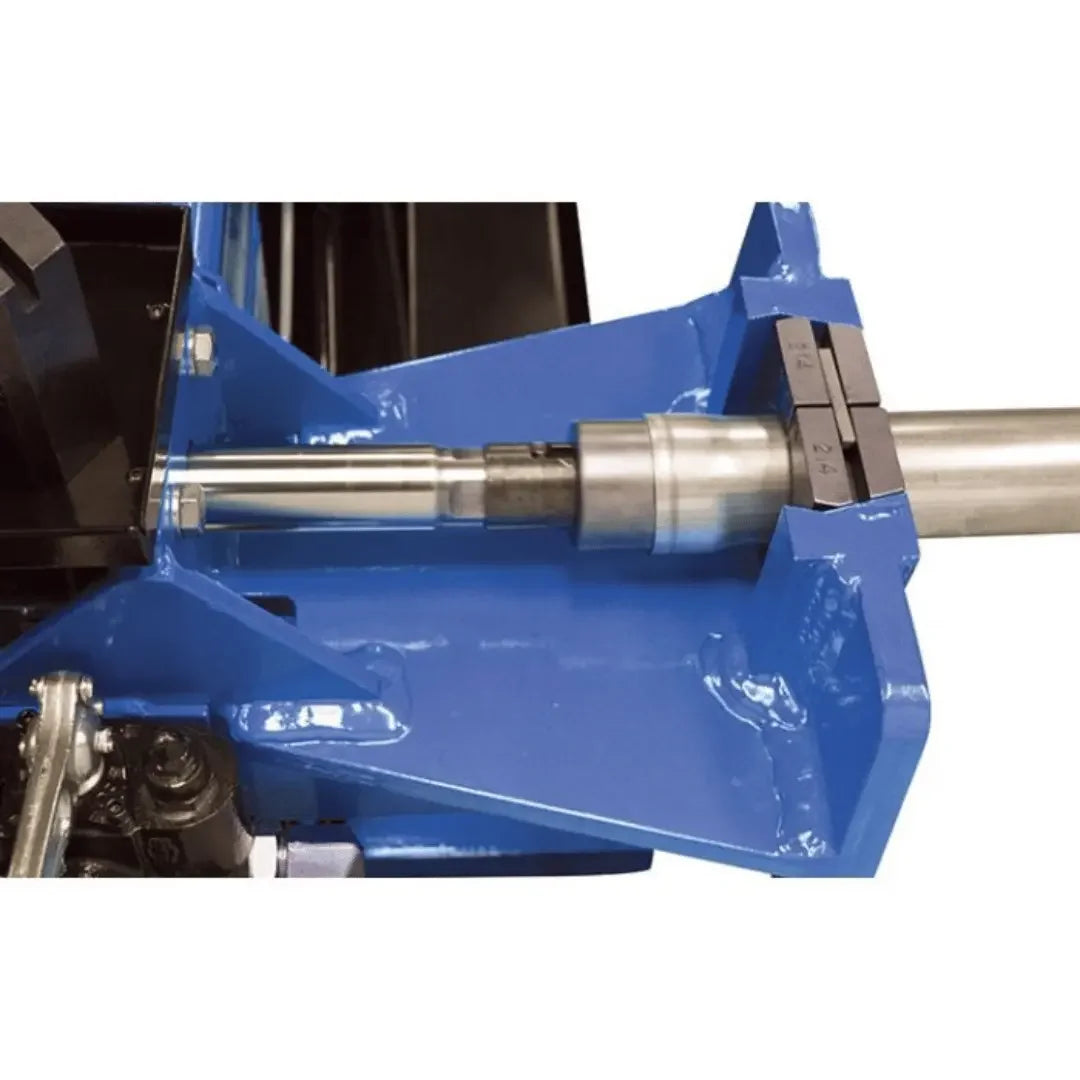

Applications range from exhaust fabrication to structural tubing, roll cage builds, and custom pipe systems in industrial settings. Its ability to quickly transition between standard and metric tubing makes it ideal for global or export fabrication. The integrated flaring and expansion capabilities enhance utility by removing the need for separate specialty machines in many workflow processes.

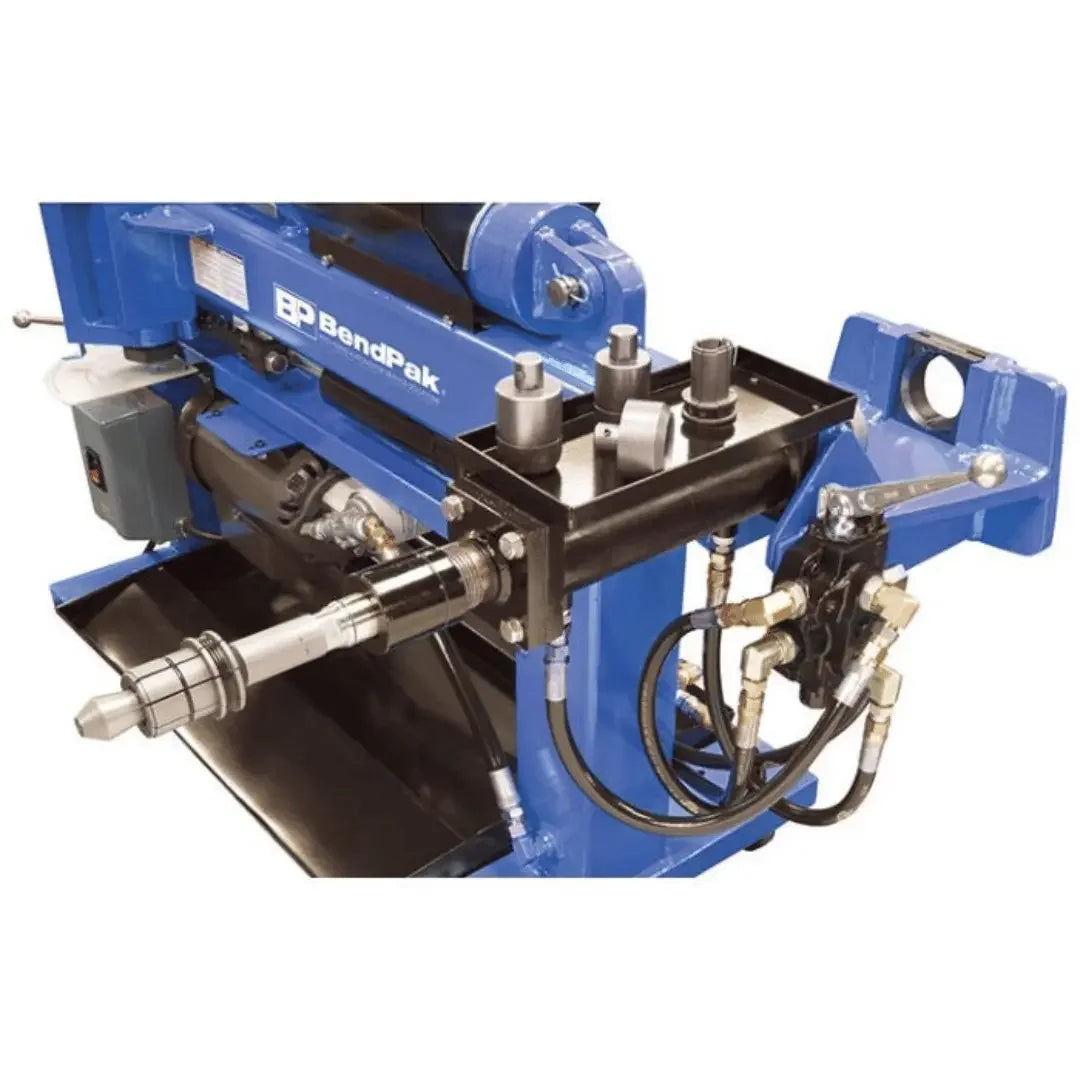

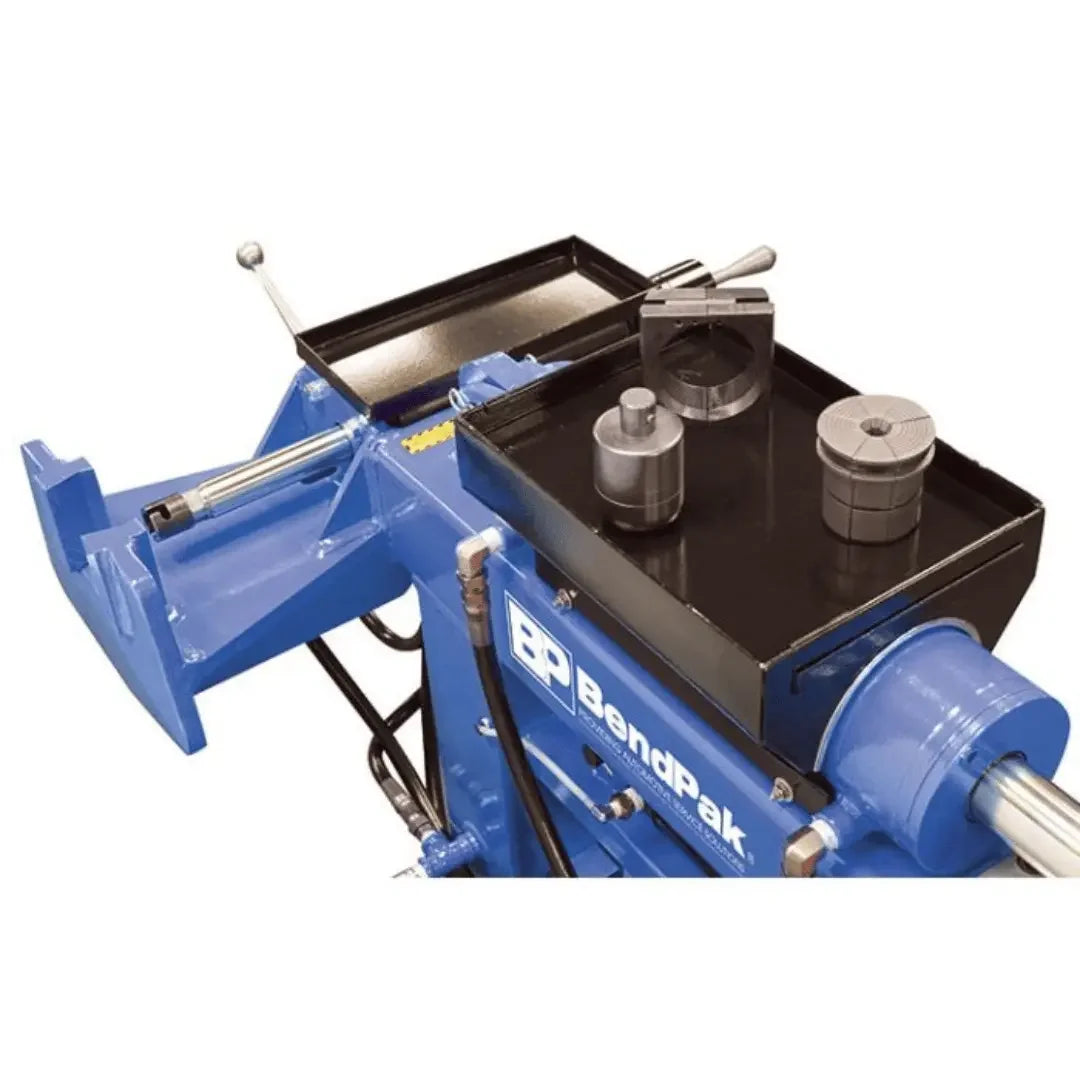

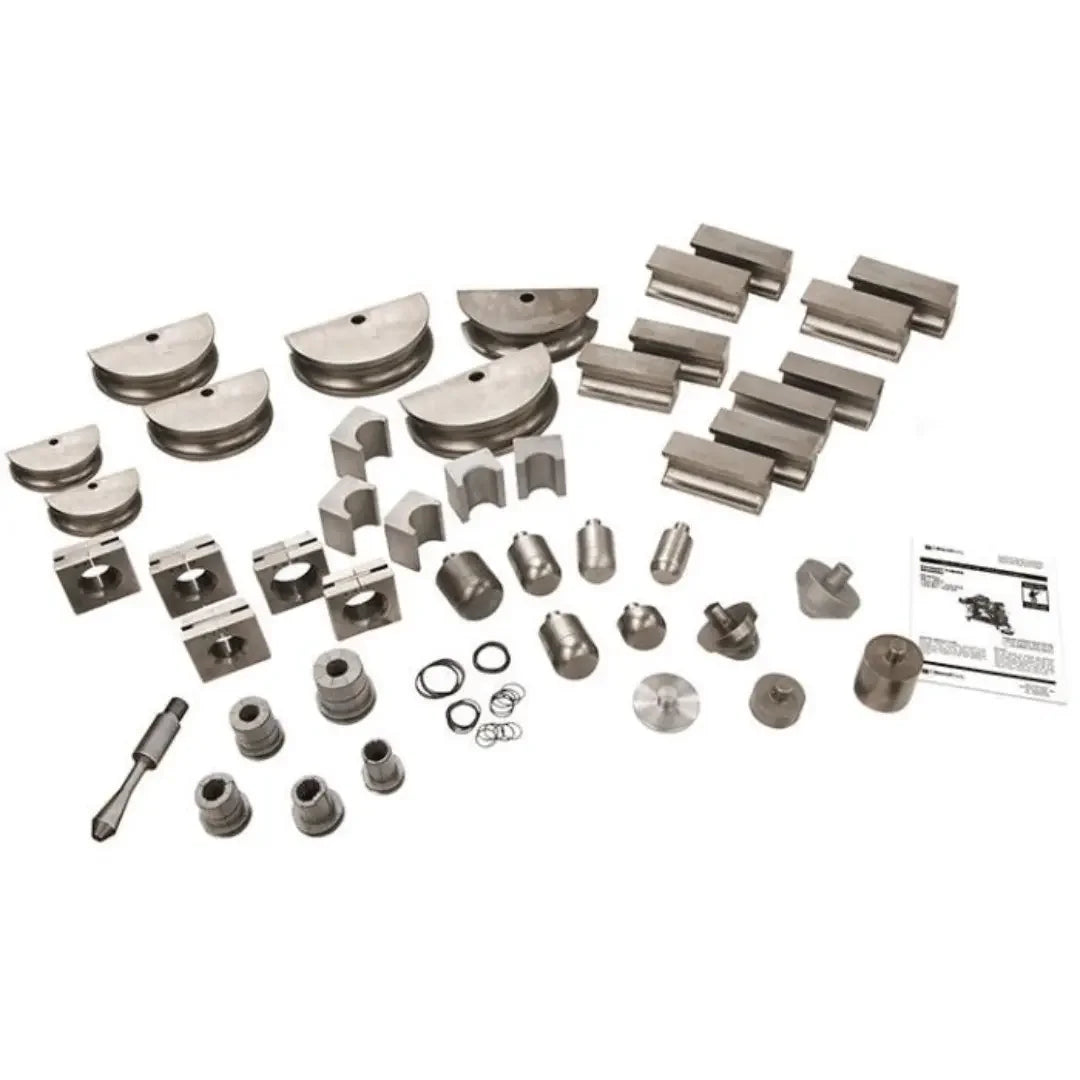

Operators will appreciate how the Bendpak handles repeat patterns. Once the bend depth is set and stored, repeating the same angle on the mirror side or subsequent runs is faster, with less reliance on setup calibration. The swager, expander, and die tools are stored conveniently nearby in tool trays, making job transitions smoother. The machine’s layout keeps all operations contained within a manageable footprint, reducing shop congestion.
