BendPak 1302BA Digital Automatic Pipe Bender With Deluxe 302 Die Pa...
Product Description

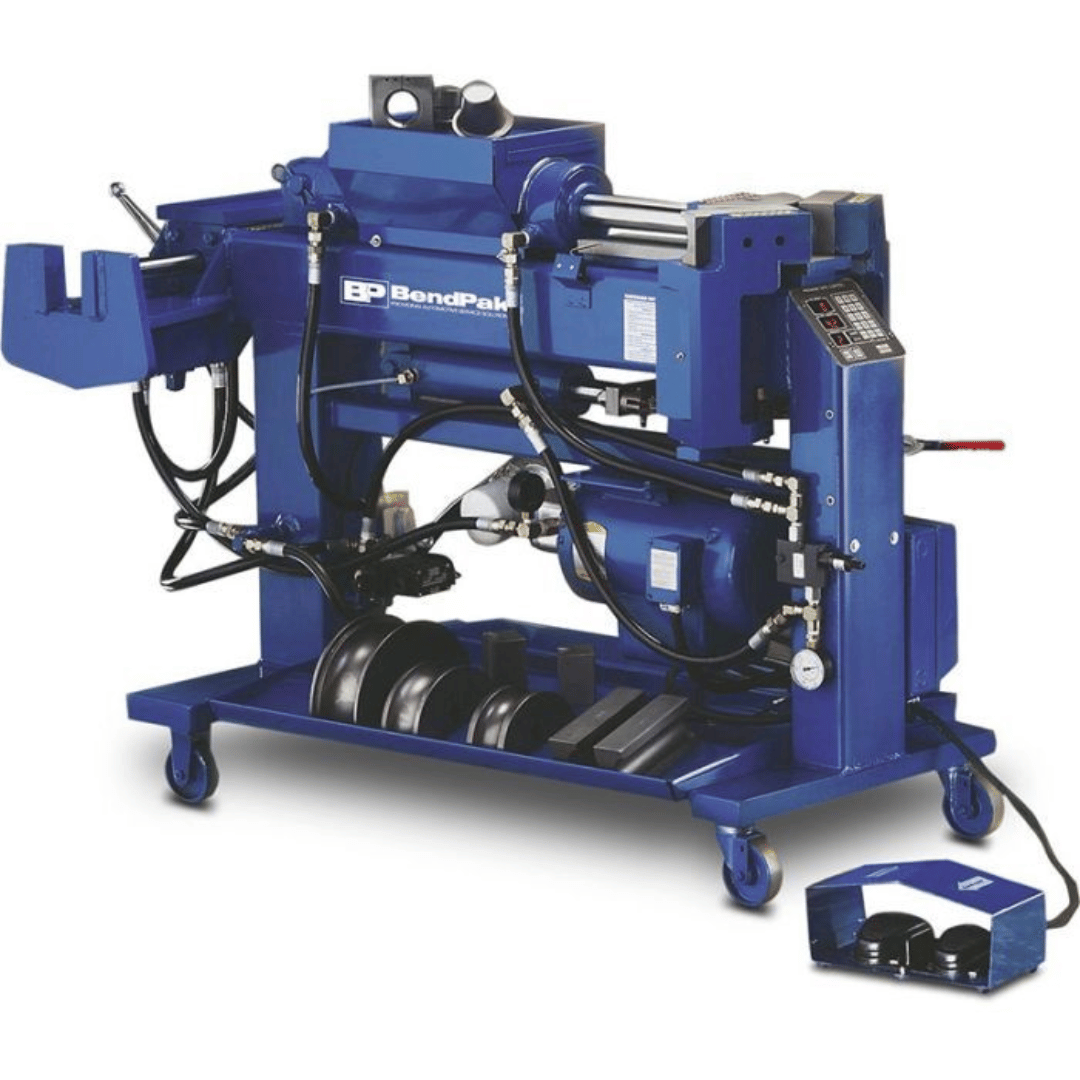

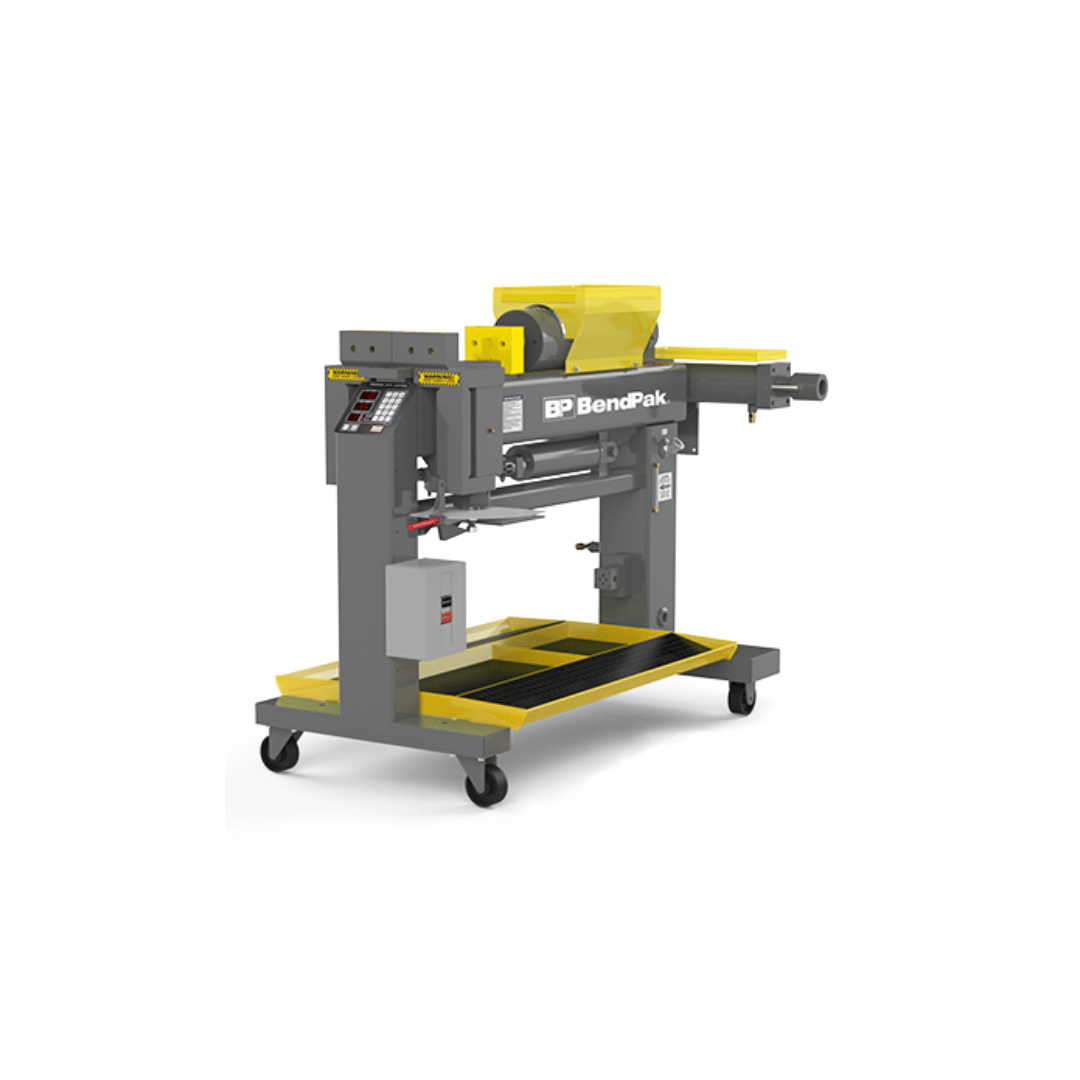

BendPak 1302BA Digital Automatic Pipe Bender With Deluxe 302 Die Package - 208-230V / 60Hz / 1 Phase
The BendPak 1302BA series of pipe benders features an ergonomically placed and highly sophisticated keypad display that can record bending patterns for accurate and repetitive use. For extremely busy shops, an automatic pipe bender will save time and make it easy to duplicate results.
Quick-change bending dies
BendPak pipe benders feature twist-lock tooling and quick-change bending dies that are absolutely one of our most copied designs across the entire industry. We’re flattered, really, but if you want the best, most consistent bends, make sure you choose BendPak.

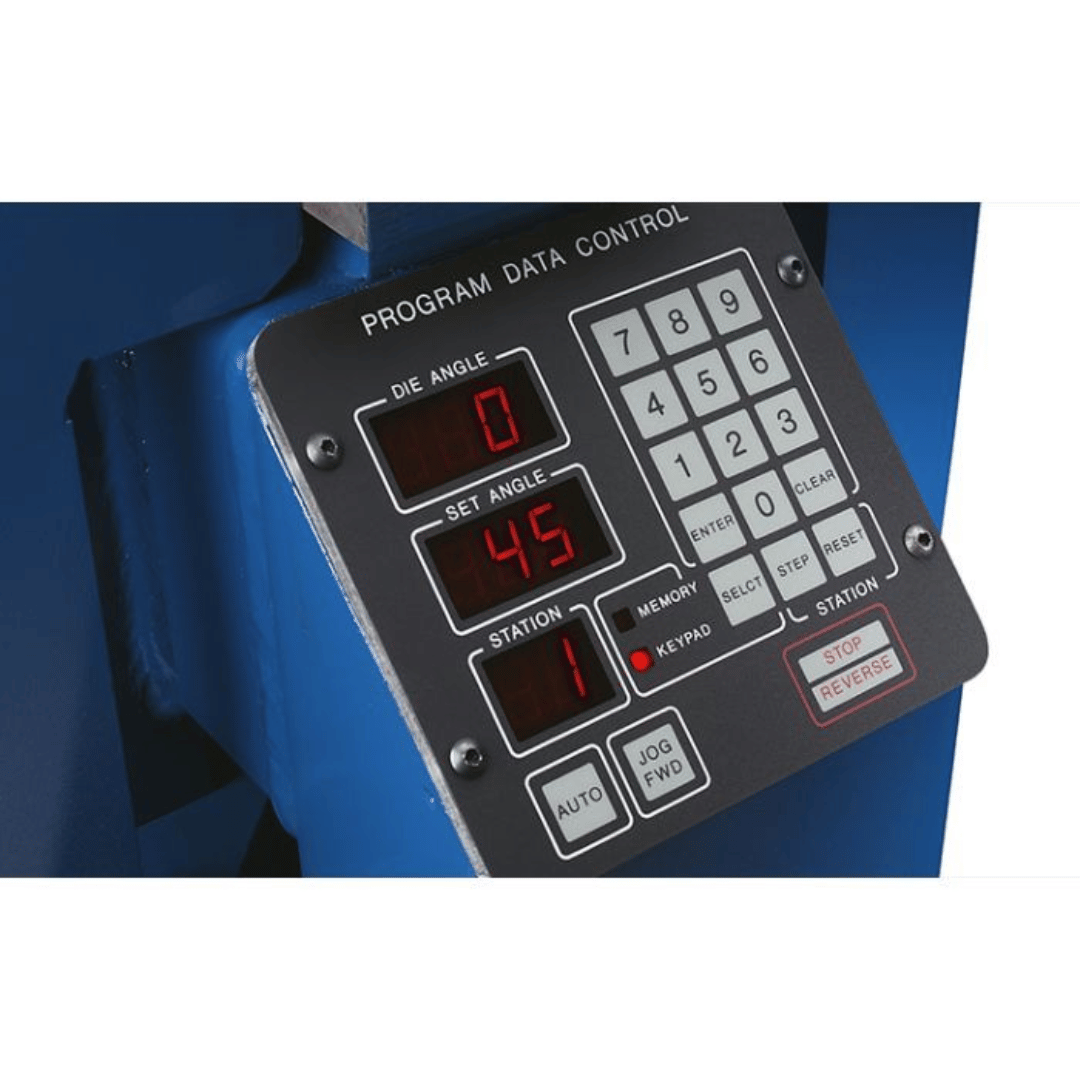

Digital control
Hardcore users will appreciate the convenience of our digital control that gives you digital die angle readings right up front. An advanced, programmable mini-computer is safely enclosed within the front upright of the bender, allowing effortless fabrication on virtually every original equipment exhaust system. The program data control board manages all bending functions, automatic or manual, and stores up to 99 different bend depths.
Product Features
- 2 separate end-finishing units at rear for all necessary flaring and expanding
- Comes complete with quick release bending and finishing dies

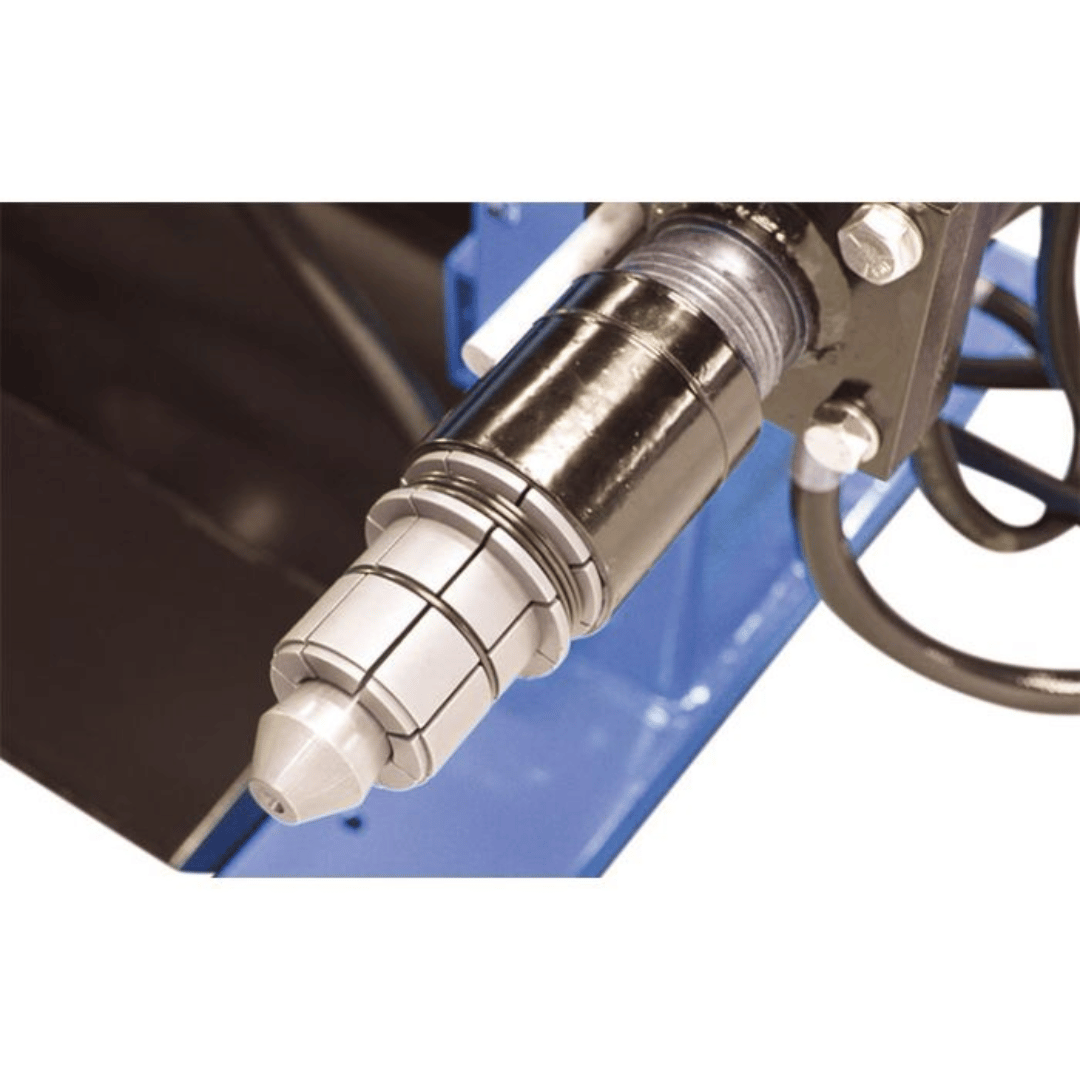

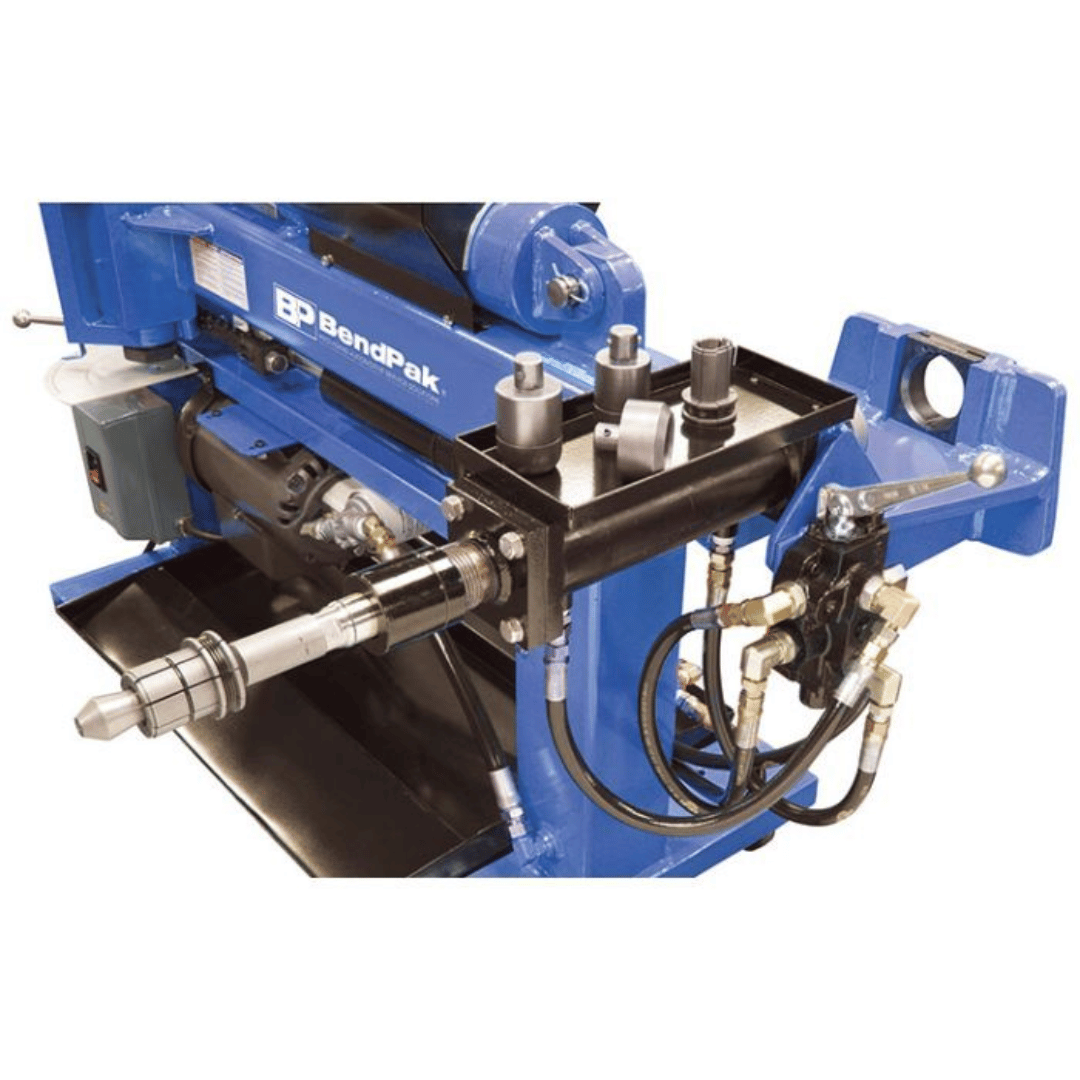

- Includes high-speed clampless swager and internal expander
- Easy-to-use drop-in collar makes swaging operations quick and efficient
- Twist-lock tooling

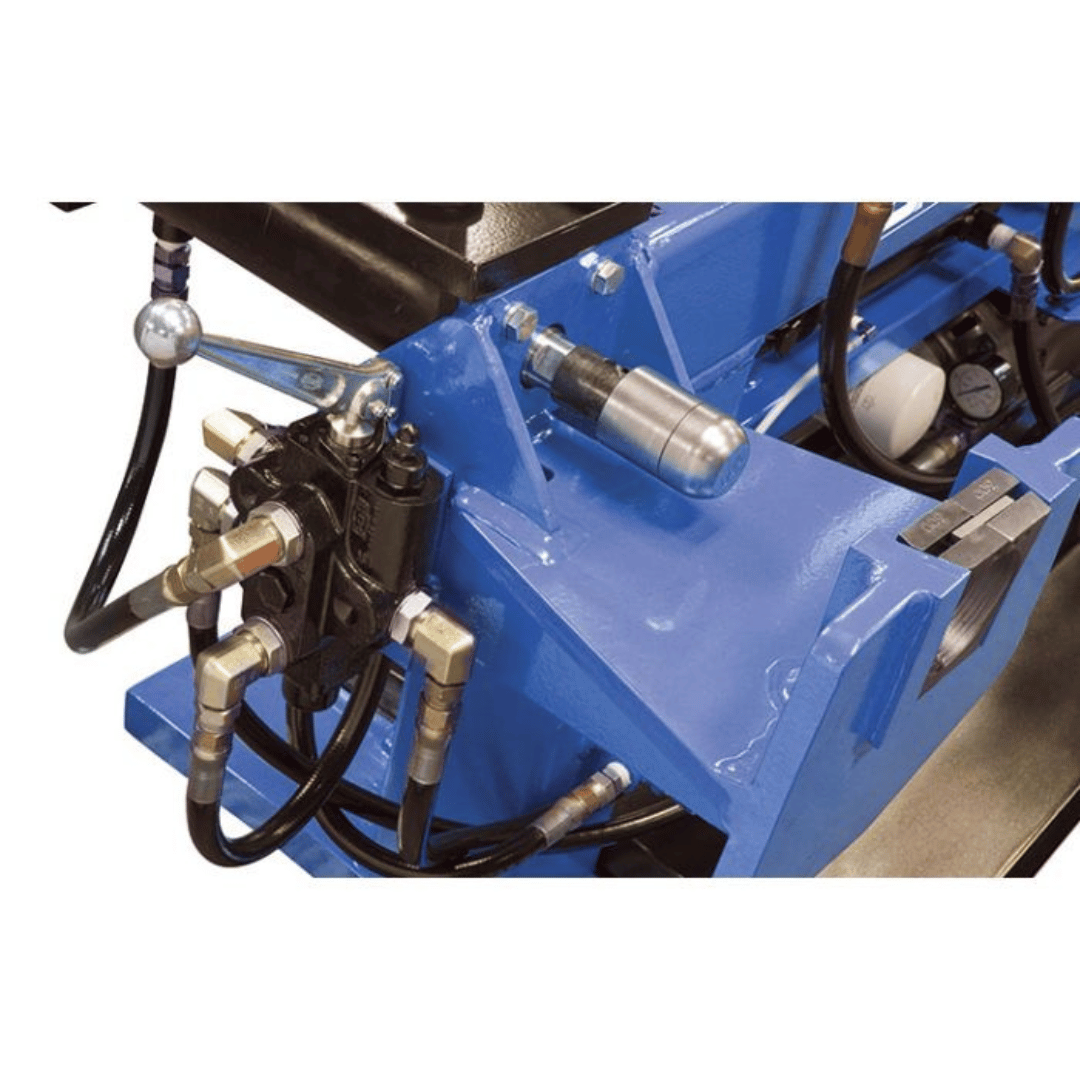

- Integrated power-relief control valve
- Pass-through cylinder stem passes completely through the primary frame
- Rigid 6" x 6" x 3/8" welded-steel tube frame

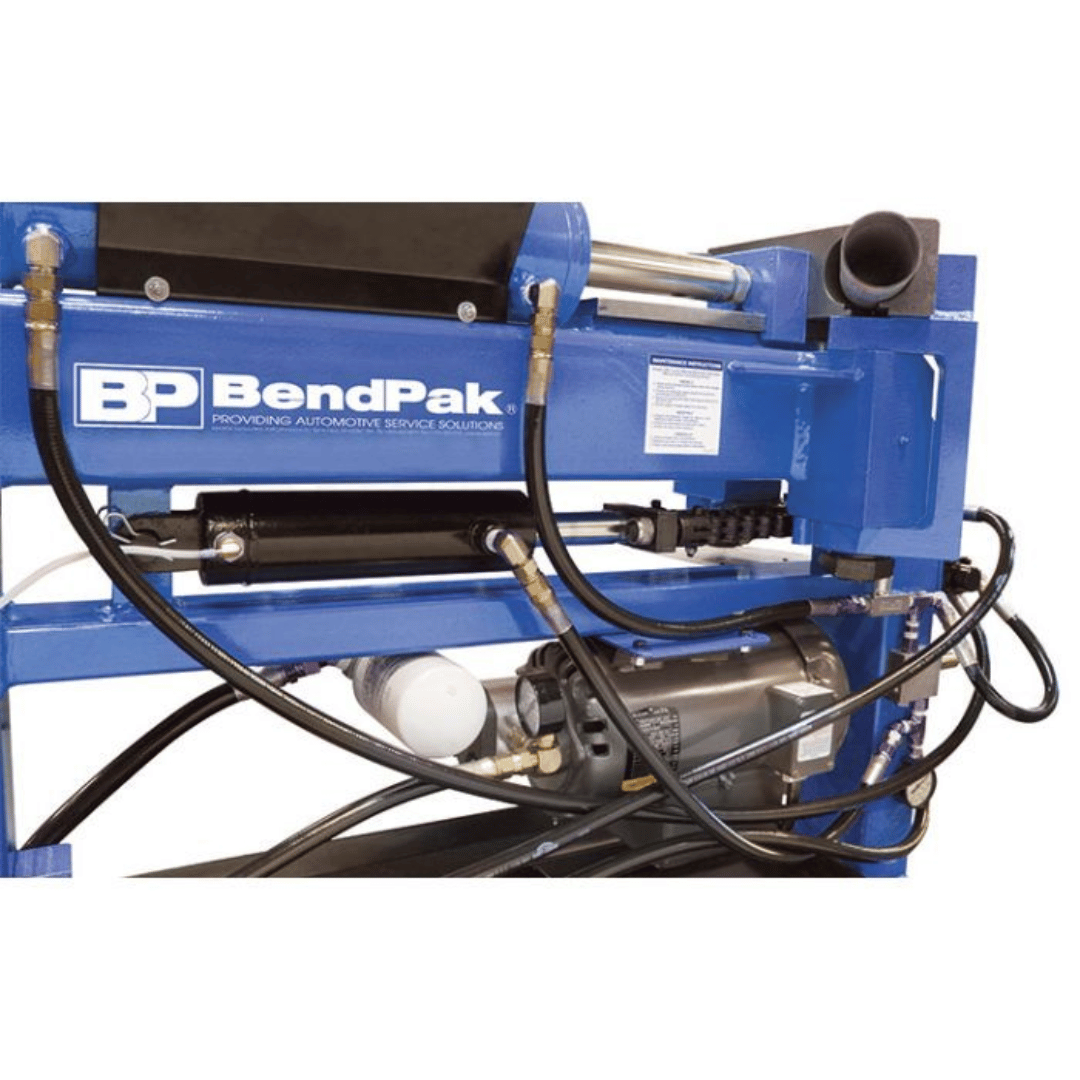

- Commercial-grade hydraulic cylinders
- All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
- Quick-release bending dies for reduced set-up times
- Bending heads precision grounded to within .002"
- Enclosed controls keep your bending area clutter-free
- 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
- Standard grease fittings allow for simple lubrication
- NEMA-rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
- Pressure gauges let you know exactly what the system pressures are at all times
- Industrial grade casters help you easily move the bender around your shop

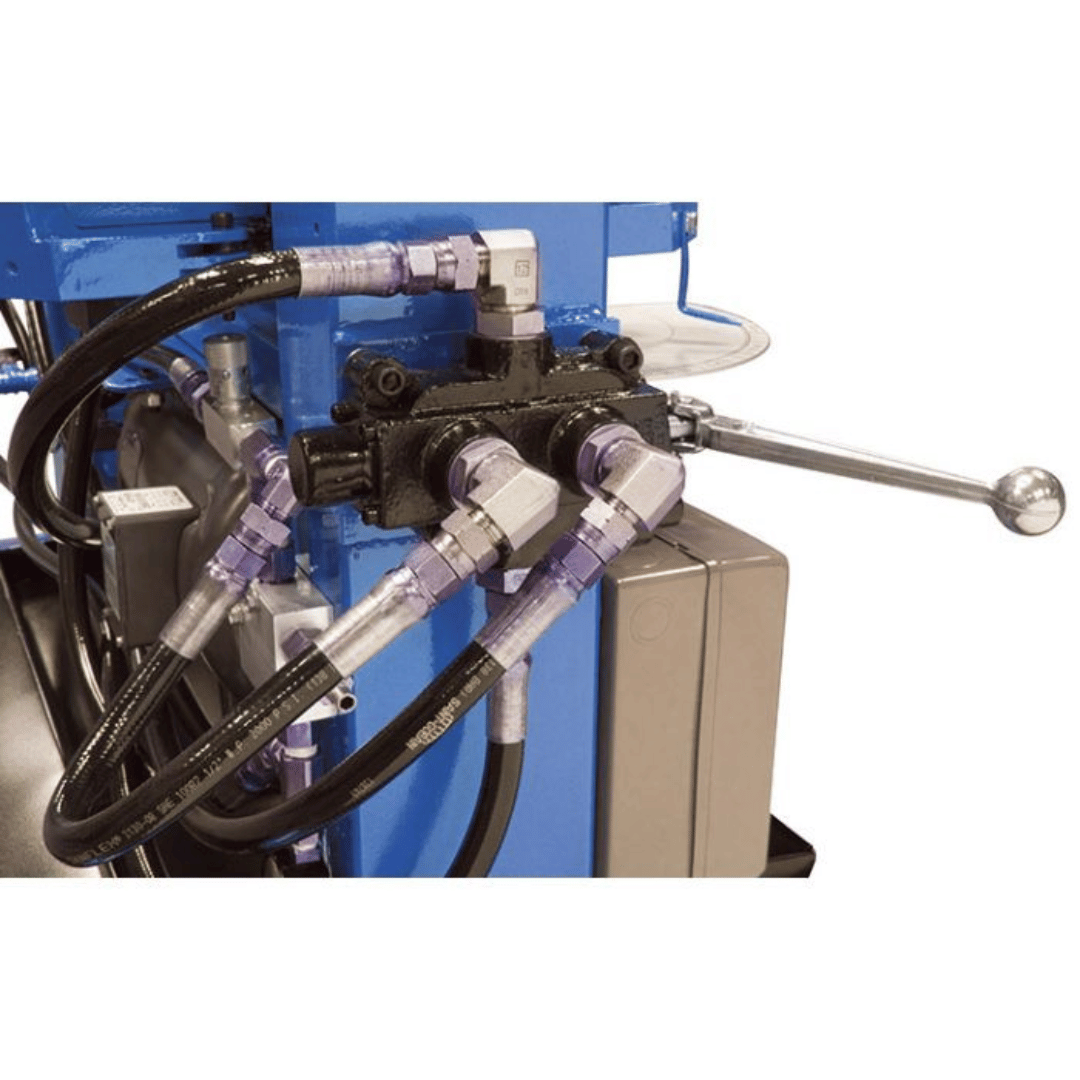

- Adjustable pressure valve located right up front
- One-piece barrel ensures that the bending gates stay perfectly aligned with the ram
- Heat-treated tooling for greater service life

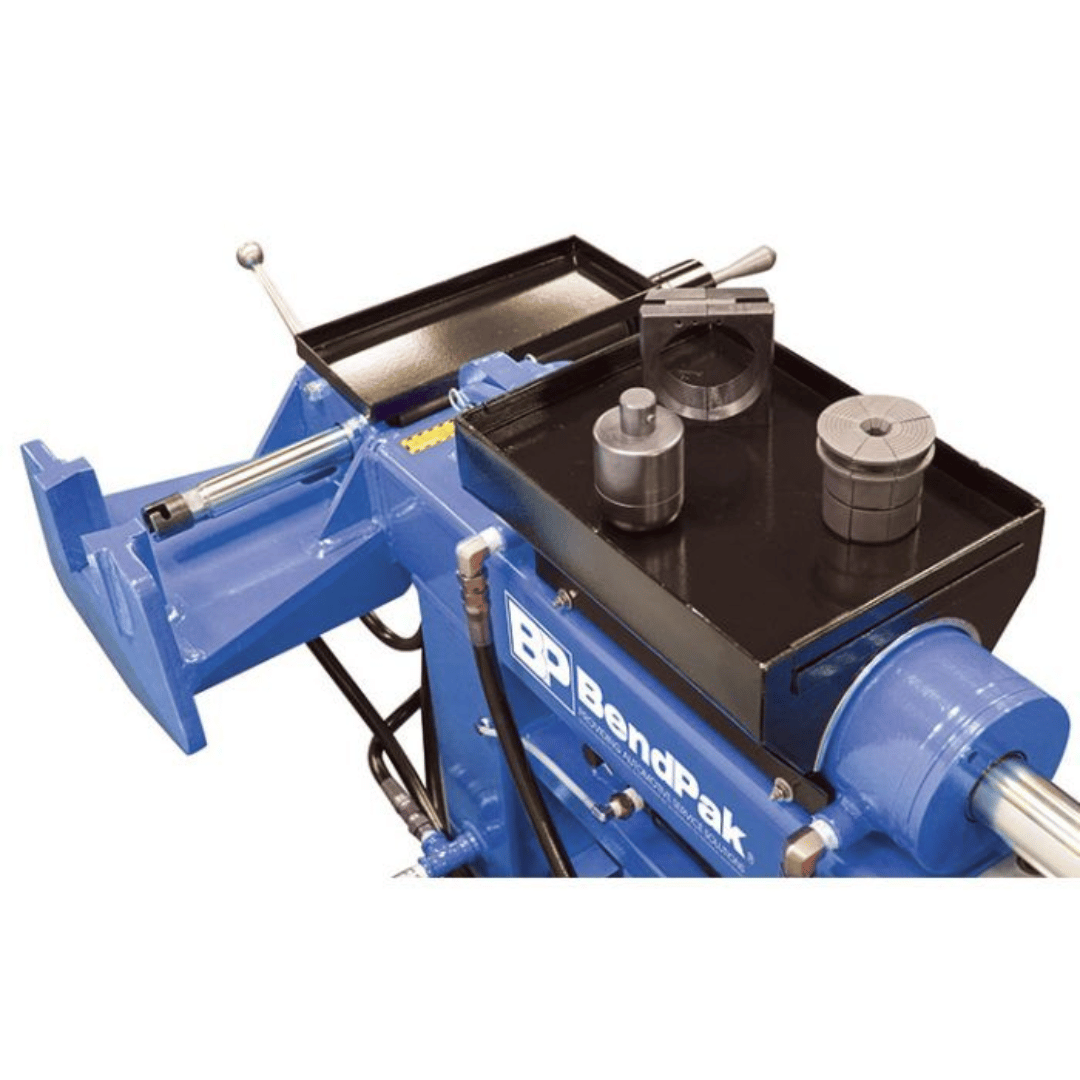

- Convenient tool trays keep your tooling organized
- Strong, 5 HP energy efficient motor delivers maximum performance

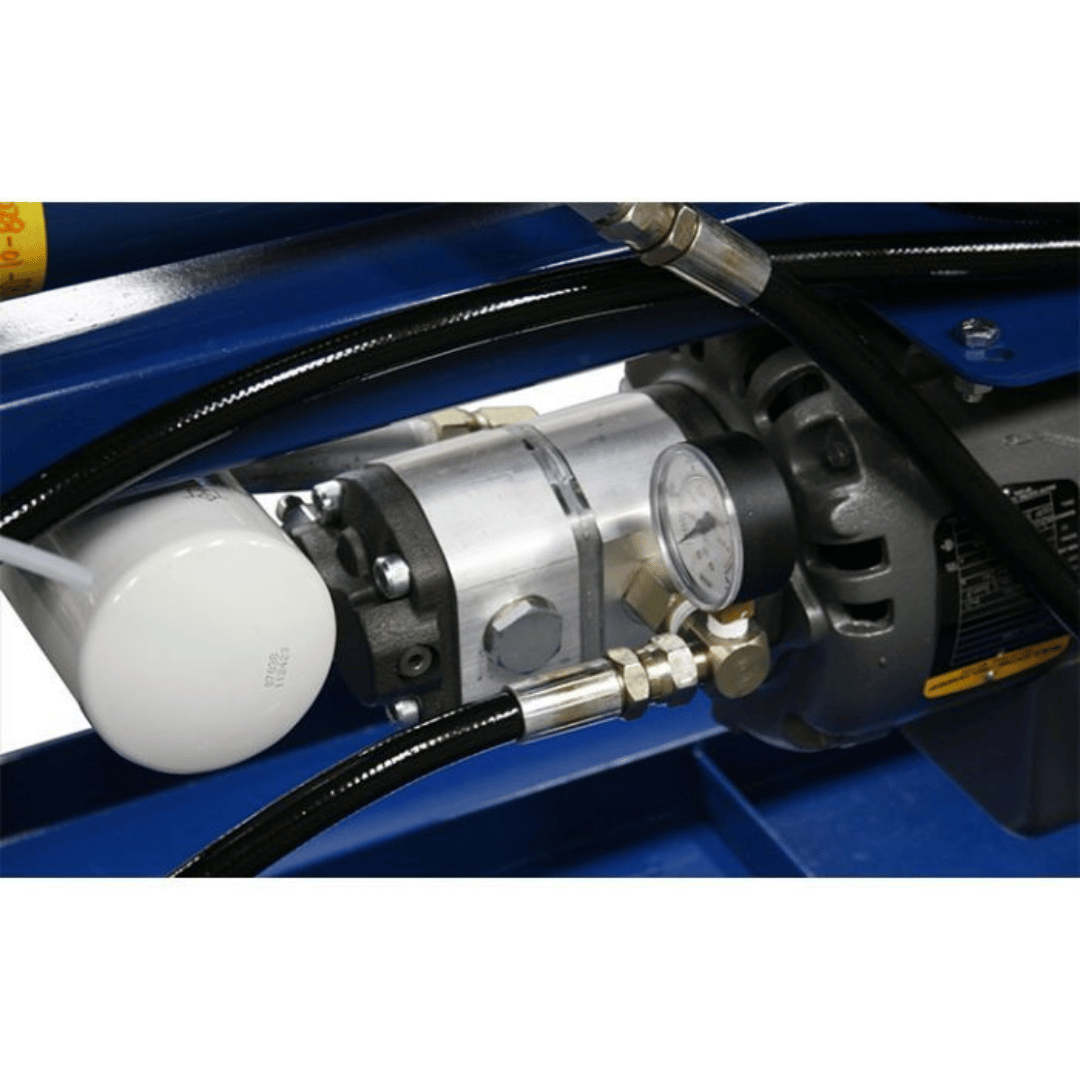

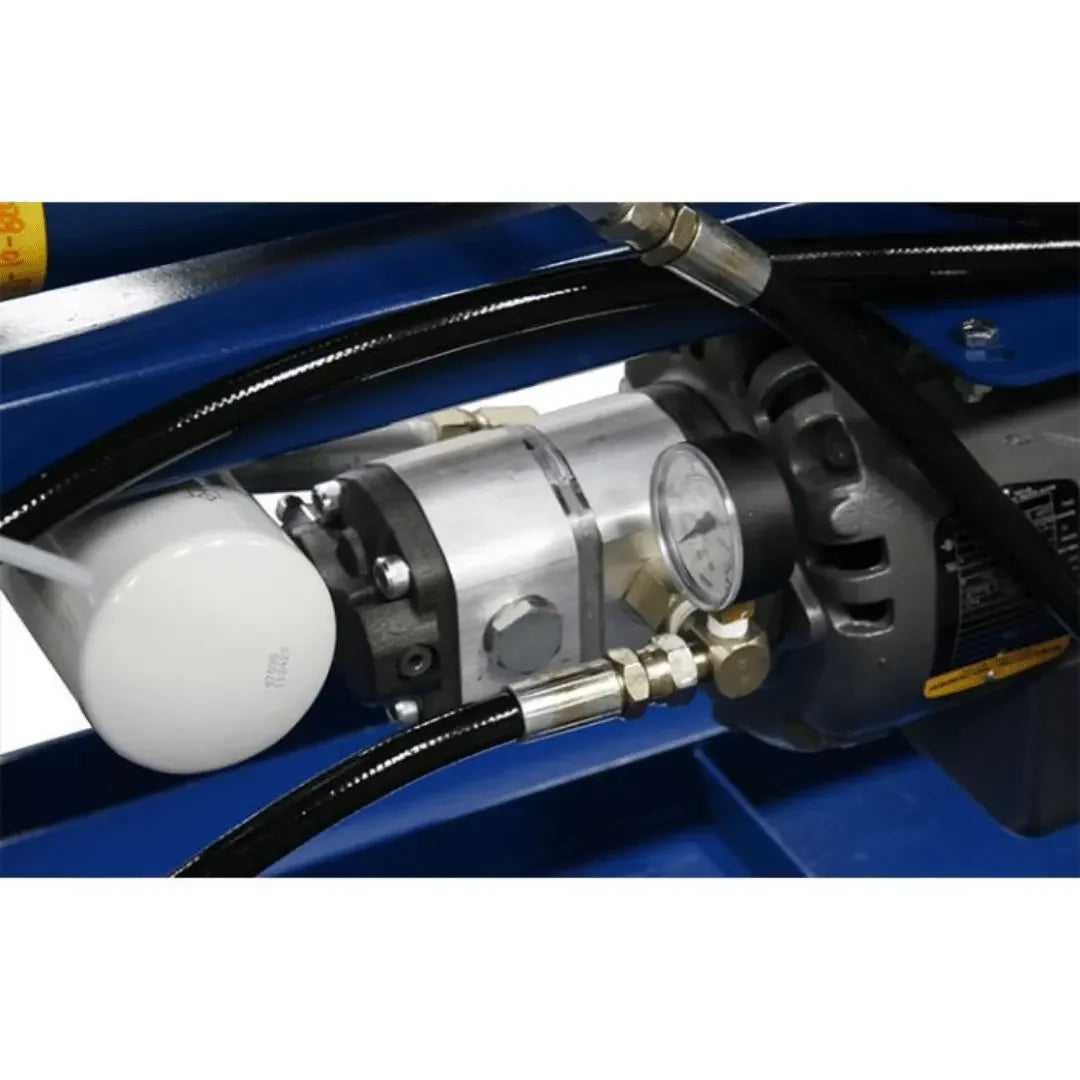

- Direct-drive, high-speed, 4 gpm pump
- Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
- Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
- Canister oil filter in the hydraulic system keeps the oil nice and clean
- Oil sight-gauges allow you to visually inspect oil levels
- Over-sized 1/2" high-pressure hose provides better speed and cooling
- Open-sided swager box allows for easier access and reduces the chance of "crashing" tools and damaging the cylinder
- 180° bending die available
Product Specifications
Overview
| Bending Controls | Automatic / Digital |
| Expander Controls | Manual |
| Frame Style | Double-Ended Expander |
| Max. Tube Capacity | 3" (76 mm) .095 wall |
Bending
| Max. Bending Radius | 5" (127 mm) |
| Min. Bending Radius | 3.3" (89 mm) |
Hydraulics
| Top Cylinder Force | 60,000 lbs. (27,216 kg) |
| Hydraulic Filter | Canister |
| Motor | 5 HP / 208-230 VAC / 60 Hz / 1 PH |
Die Pack

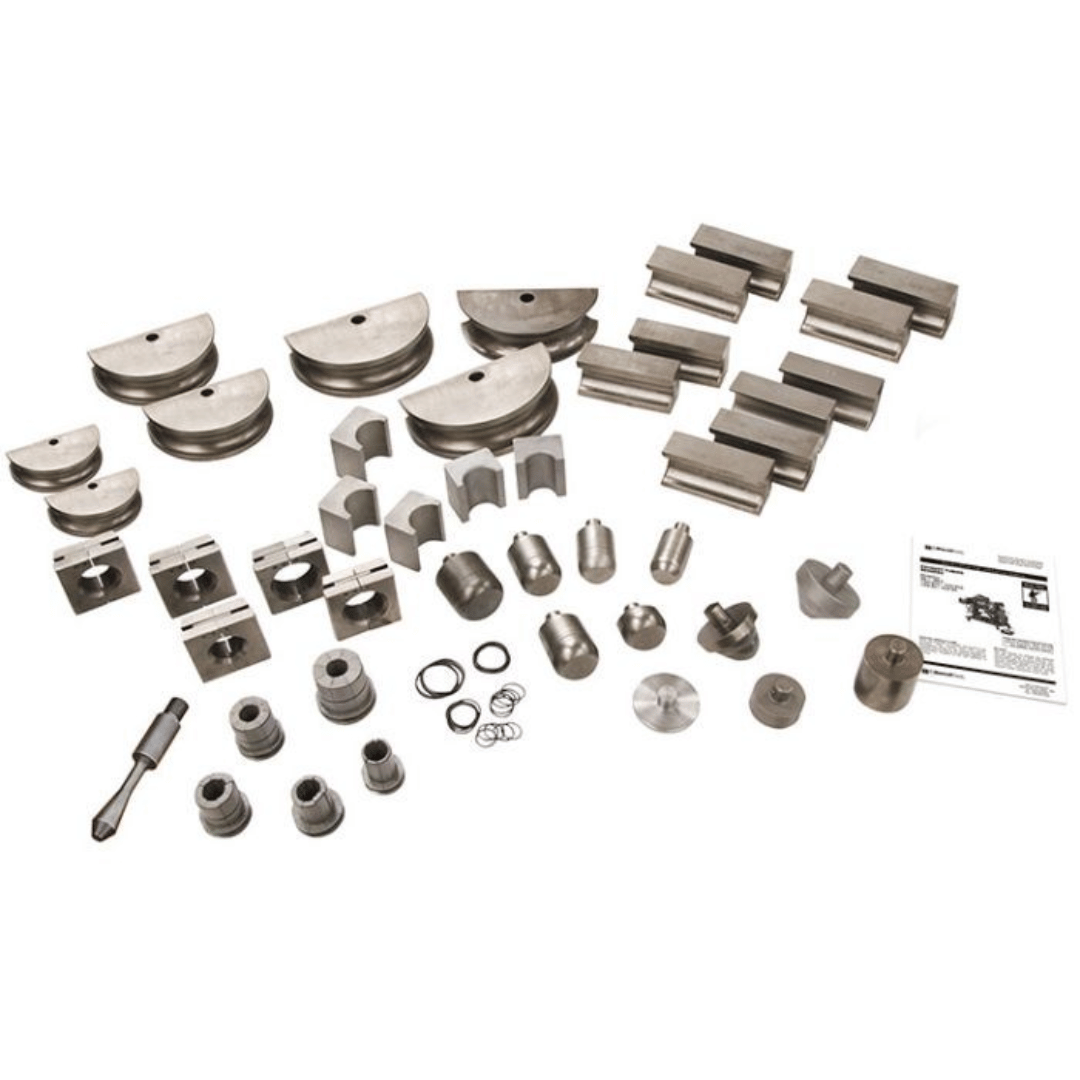

| Standard | 1.5", 1.75", 1.625", 2", 2.25", 2.5" (302) |
Dimensions
| Width | 41" (1,041 mm) |
| Depth | 64" (1,626 mm) |
| Depth | 26" (660 mm) |
Shipping
| Weight | 1,388 lbs. |
| Dimensions | 48" x 70" x 30" (1,219 mm x 1,778 mm x 762 mm) |
Pick Up and Delivery
Our Pick Up locations for BendPak are located in Santa Paula, California & Theodore, Alabama.
