BelAire  |  SKU: 8090253140

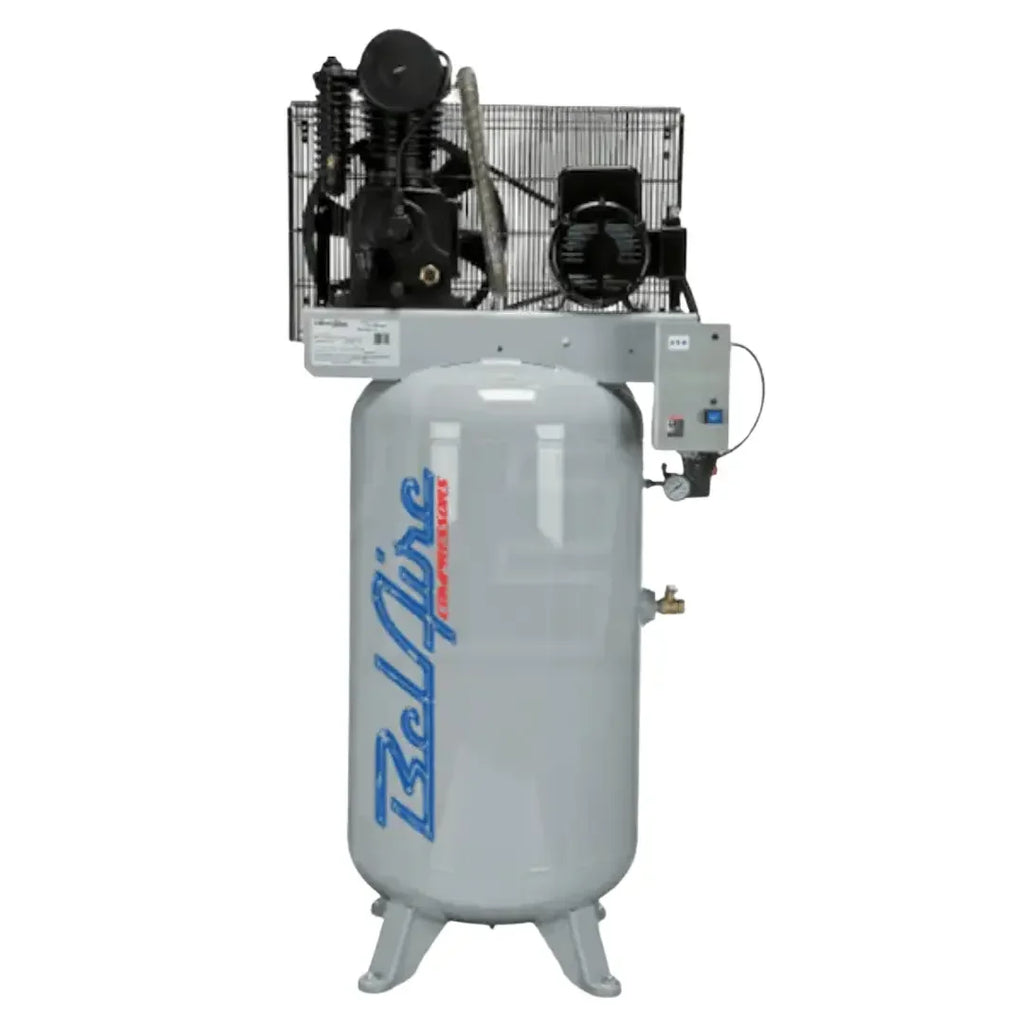

BelAire 438V Iron Series 5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 3-Phase)

$2,789.00
Shipping FAQ's

BelAire 438V Iron Series 5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 3-Phase)

The BelAire 438V Iron Series air compressor delivers dependable power in a compact vertical design. Featuring a 5 horsepower motor operating on 208-230 volt three-phase, this unit provides up to 18 CFM at 100 PSI and 16 CFM at 175 PSI, making it a strong choice for small to mid-size automotive and industrial shops.

The cast-iron two-stage pump is built to handle daily demand with reduced wear and consistent airflow. This 80-gallon vertical tank saves valuable floor space while offering ample storage capacity for air tools and equipment requiring higher pressure.

An included magnetic starter ensures smooth and reliable operation, while the start/stop pressure switch maintains output automatically. The rugged build of the BelAire 438V gives technicians confidence in its performance and longevity, with the brand’s standard two-year warranty backing it for peace of mind.

Its straightforward design and proven reliability make it an efficient addition for those who need a durable shop compressor ready for steady workloads.

Product Features

  • Solid Cast Iron 2 Stage Pump
  • Delivers 18 CFM at 100 PSI; 16 CFM at 175 PSI
  • Rugged components provide long-lasting dependability
  • Automotive-Style Rod Bearings & Wrist Pins
  • Smoother running & more durable
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • Dual 208-230 3-Phase Power
  • Easily wires into either your 208V or 230V 3-phase system
  • CPXHT50 dryer recommended (not included)

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230 Volt AC
Phase Three-Phase
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 5

Pump

CFM 18
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off No

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 580 Pounds
Certification ASME
Consumer Warranty 2 Year
Commercial Warranty 2 Year
Product Length 37 Inches
Product Width 24 Inches
Product Height 72 Inches
Power Type Electric
